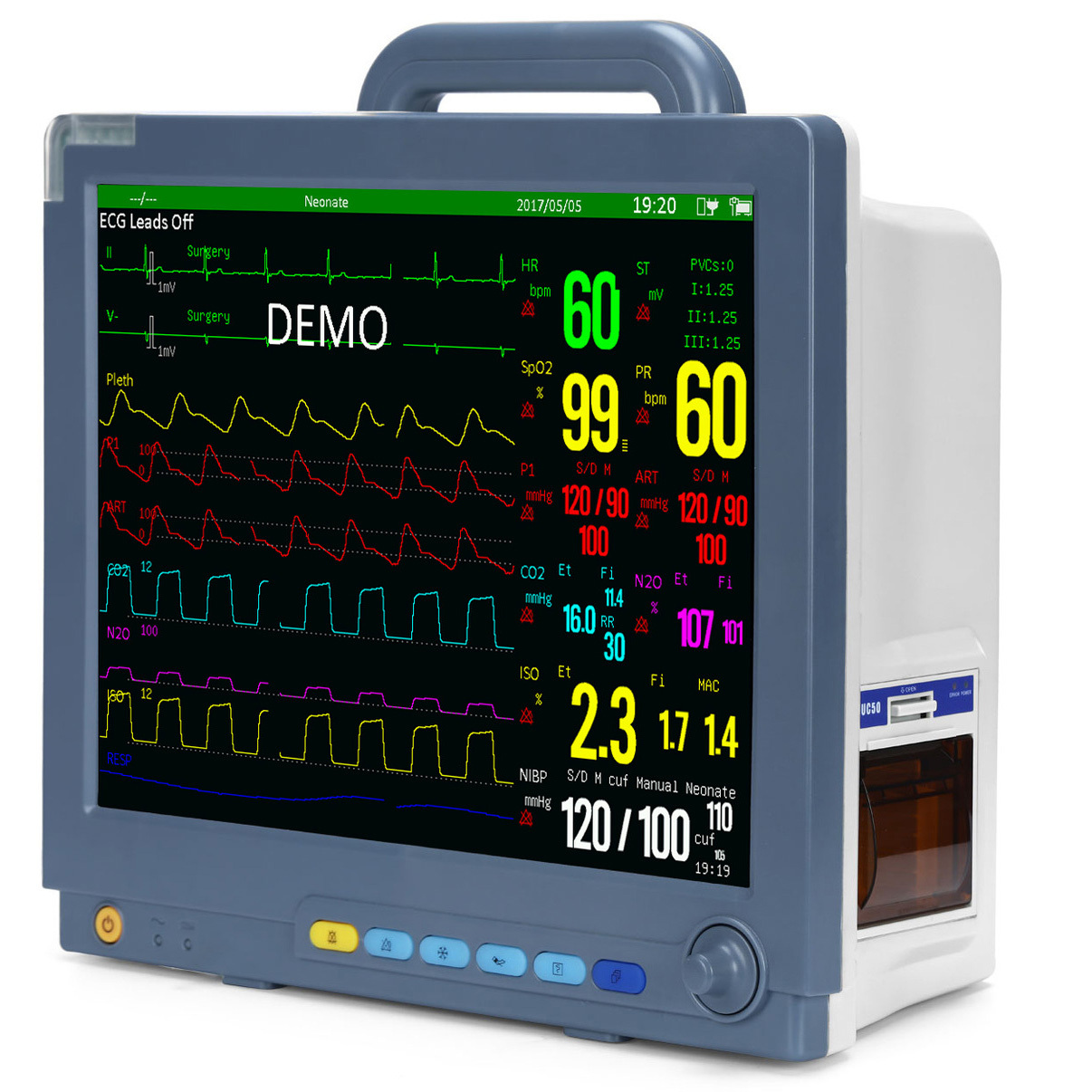

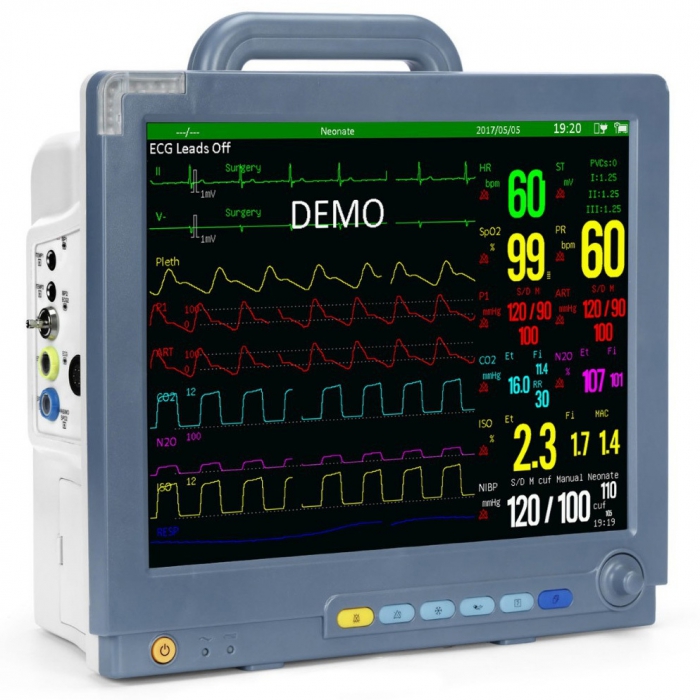

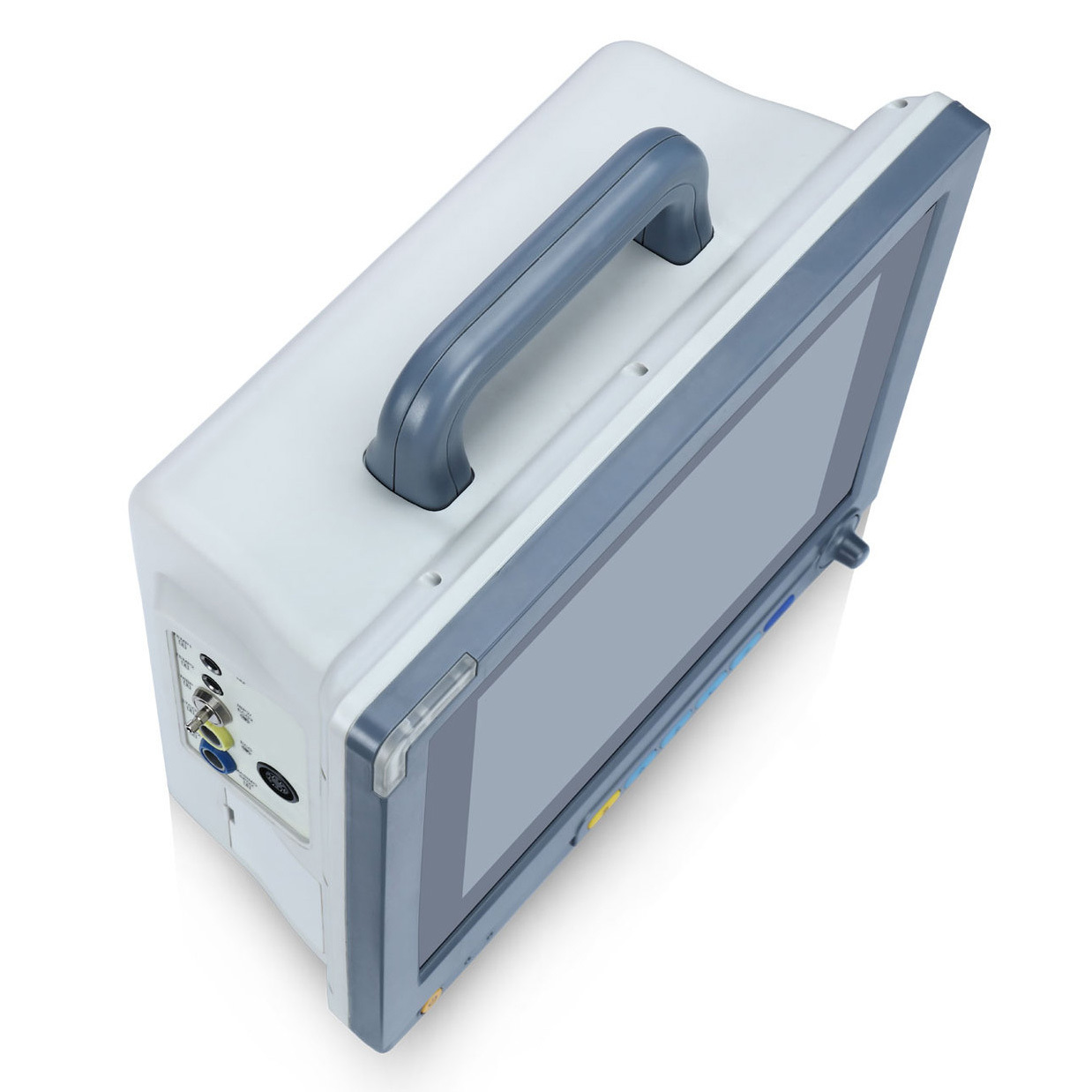

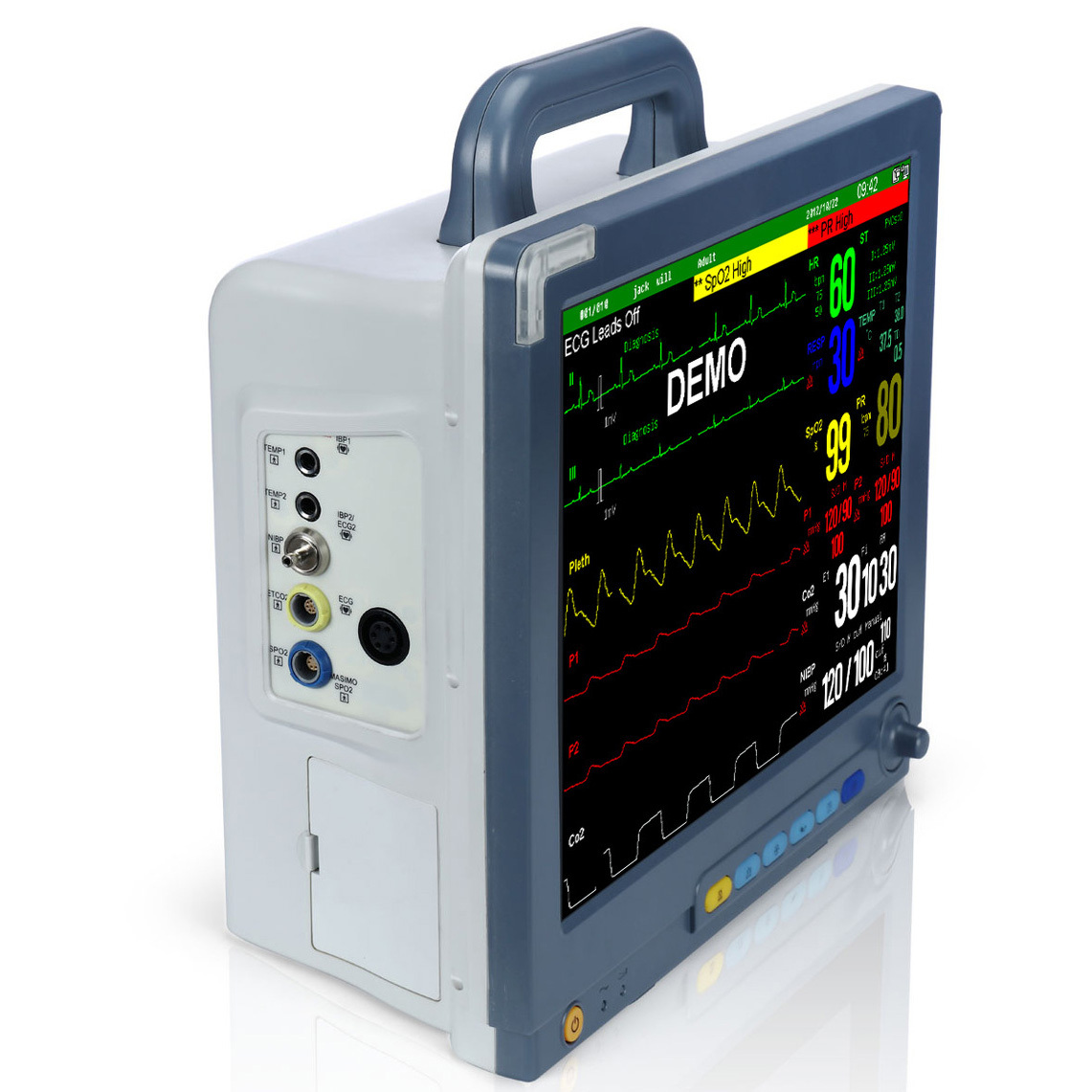

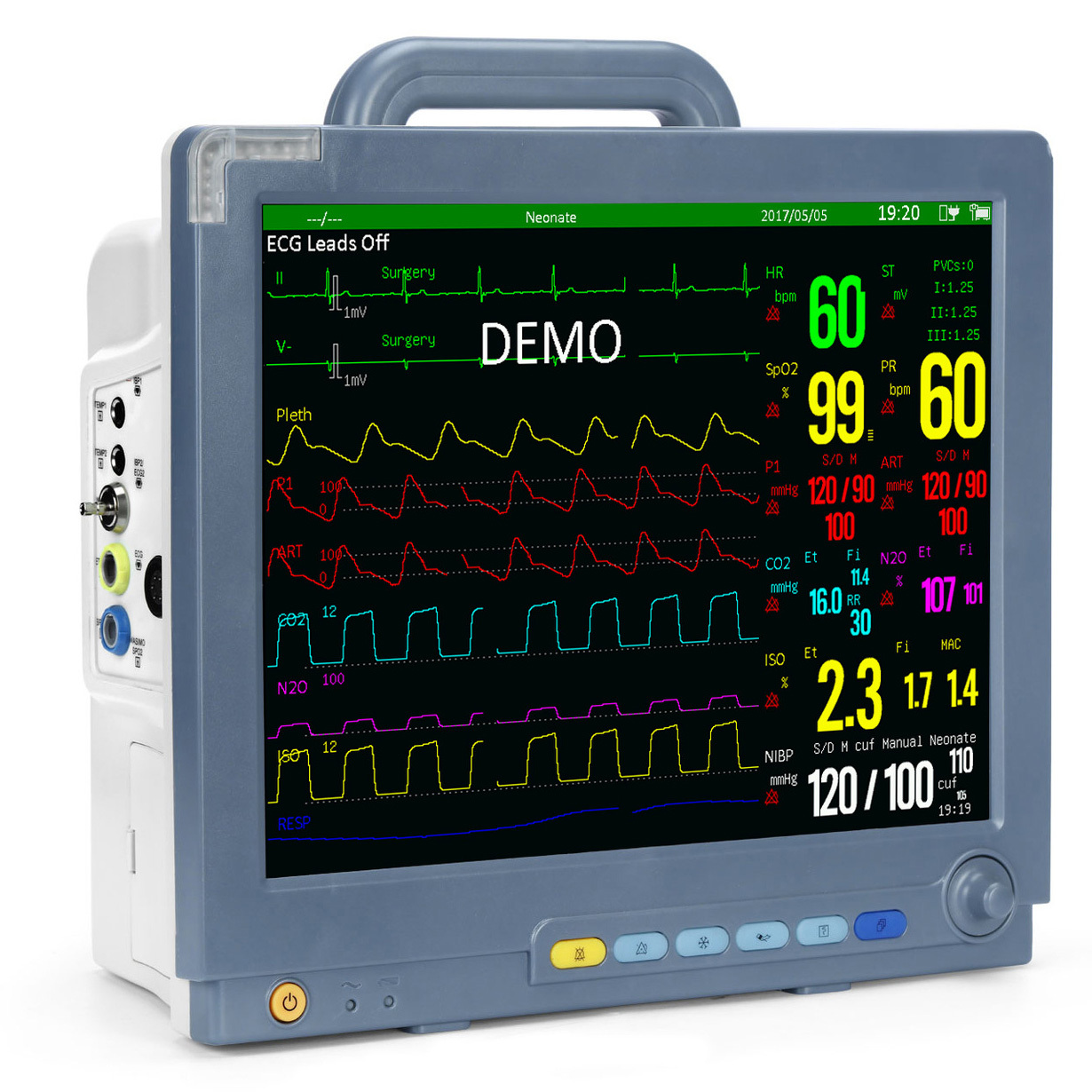

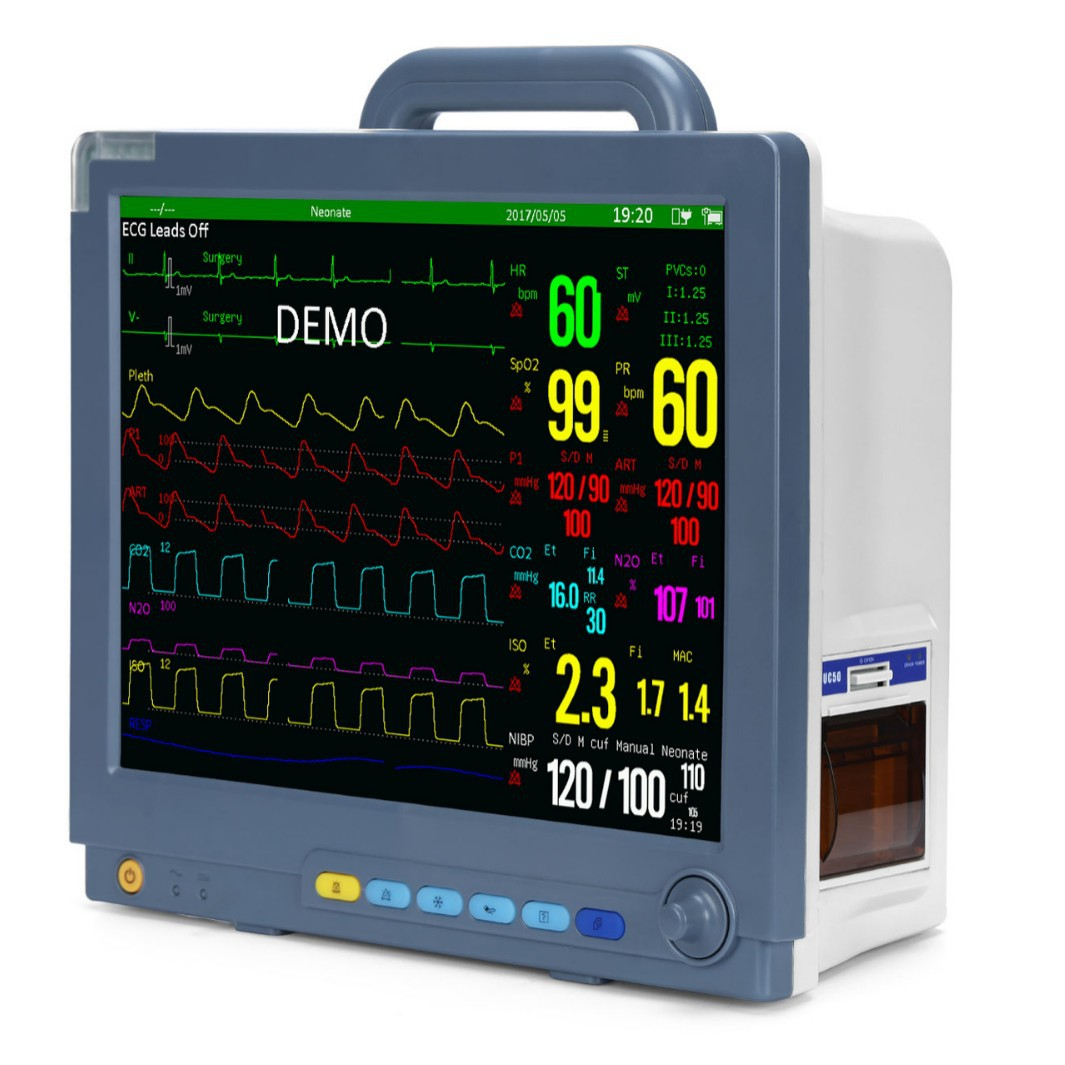

SINNOR SNP9000M 15'' Patient Monitor 8 Parameters With Touchscreen

Features:

1. 15” color TFT display, high resolution: 1024×768dpi;

2. Separated para board: ECG, NIBP, SpO2 board;

3. Full touch-screen enables intuitive operation by clicking one the specific parameters or the waveform in real time, standard configuration includes the navigation knob.

4. Real time S-T segment analysis, and ARR analysis;

5. SpO2 Pitch Tone Variation and Drug Dose Calculation;

6. Parameter waveform and characters color selectable

7. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic

8. Standby mode for Energy saving and suspend monitoring;

9. 7-lead ECG waveforms display in phase;

10. Capture dynamic waveforms;

11. Built-in rechargeable lithium battery, and battery volume checking,

12. AC power checking

13. Efficient resistance to interference of defibrillator and HF knife;

14. SINNOR F-6 SpO2 technology, VS NELLCOR accuracy;

15. Networking capacity and TCP/IP networking platform enable abundant future upgrade

16. Time delay switch-off function keep the monitor data restart monitor;

17. Complete and flexible mounting solution for transportation and in-patient monitoring

Standard parameters: 5-lead ECG, SpO2(F-5),NIBP, TEMP,RESP,PR,HR.

Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO,

Performance Specifications

Display: 15”color TFT; Rolling and refreshing waveform display

Resolution: 1024×768

Multi display selectable including: Large-font display; Trend coexist display; OxyCRG dynamic view display; Bed-to-bed view display

Trace: 9 waveforms(7 ECG, 1 SPO2 and 1 RESP)

Sweep speed: 12.5mm/s,25mm/s,50mm/s

Indicator: Power/battery indicator light; QRS beep and alarm sound

Battery: 12v/4AH; Max.24 hour for charging, 4 hours for continue working.

Trend:

Parameter graphic and tabular trends: 5s/piece,8 hours; 1min/piece,168 hours(24hour×7days); 5min/piece,1000 hours.

Storage:

NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

SD card external storage

Alarm: User-adjustable High, Medium and Low limits 3-level; Audible and visual alarm.

Networking: Connected to central monitoring system; TCP/IP netting platform.

Recorder: Build-in, thermal array

Plethysmogram caveform: 2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type: Frozen waveform record; NIBP recall record; Trend table record; Alarm record; Fixed -time record.

Standard parameter:

ECG:

Lead mode:5 –lead(R,L,F,N,C)

Lead selection: I,II,III,avR,avL,avF,V

Waveform: 3 and 7 channel selectable

Gain selection: 0.5mm/mv,1mm/mv,2mm/mv

Sweep speed: 12.5mm/s;25mm/s;50mm/s

Heart rate range: Adult: 15~300bpm;

Neonate/pediatric:15~350bpm

Accuracy: +1bpm or +1%,whichecer is greater

Resolution: 1bpm

Filter:surgery mode:1~20Hz

monitor model:0.5~40Hz

Diagnostic mode:0.05~130Hz

Scaling signal: 1mv,+3%

Protection: withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation

Alarm range: 15~350bpm

S-T segment detecton:

Measurement range: 2.0mV~+2.0mV

Alarm Range: -2.0mV~ +2.0mV

Accuracy: -0.8mV ~+0.8Mv

Error: +0.02Mv

Arrhythmia analysis: YES

SPO2

Measurement range: 0~100%

Resolution: 1%

Accuracy: +2%(70-100%);0-69% unspecified；Alarm range 0~100%

Pluse Rate: range: 20~300bpm

Resolution: 1bpm

Error: +1bpm or +2%,whichever is greater

NIBP

Method: Digital Automatic oscillometric

Operation mode : Manual/Automatic/continuous

Auto measurement time: Adjustable(1~480min)

Measurement Unit: mmHg/Kpa selectable

Measurement types: Systolic, Diastolic, Mean

Measurement tange:

Range of Systolic pressure: Adult: 40~270mmHg; Pediatric: 40~220mmHg; Neonate: 40~135mmHg

Range of mean pressure: Adult: 20~235mmHg; Pediatric: 20~165mmHg; Neonate: 20~110mmHg

Range of diastolic pressure: Adult: 10~215mmHg; Pediatric: 10~150mmHg; Neonate :10~100mmHg

Over-pressure protection: Double safety protection

Resolution: 1 mmHg

Alarm: Systolic.Diastolic,Mean

RESPIRATION

Method: Thoracic impedance

Measurement range: Adult:7~120rpm;

Neonate/Pediatric:7~150rpm

Apnea alarm: YES,10~40s

Resolution: 1rpm

Accuracy: +2rpm

TEMPERATURE

Compatible probe: YSI or CYF

Measurement range: 5~50℃

Resolution : 0.1℃

Accuracy: +0.1℃

Refreshing time: about 1

Average measuring time: <10s

FHR

Transducer: Multi-crystal, Pulsed Doppler

Measurement range: 50~210 BPM

Working frequency: 1 MHz

Strength: <5mW/cm2

Signal processing: special DSP system and modern recognization.

Resolution: 1BPM

Accuracy: ±1BPM

Alarm Range: High: 160,170,180,190 BPM, Low: 100,110,120 BPM

Manual button marking, automatic FM identifying function

TOCO Measuring

Transducer: External pressure transducer

Measurement range: 0~100 units

Resolution: 1rpm

Accuracy: ±2 rpm

IBP

Channel: 2 channels

Range: -50-300mmHg

Resolution: 1mmHg

Accuracy: ±4mmHg(±4%)

Unit: mmHg, Kpa

Converter Sensitivity: 5mV/V/mmHg

Transducer sites: ART/PA/CVP/LAP/RAP/ICP

EtCO2( Sidertream CO2)

Measurement range: 0~99mmHg

Accuracy: +2mmHg (0~40mmHg)

Sampling Range: 100ml/min

Sampling rate accuracy: 15%

Respiration rate: 0~120rmp

Respiration accuracy: +2rmp (0~70rmp); +5rmp (>70rmp)

Respiration time: <240msec (10% to 90%)

Delay time: <2s

EtCO2 (mainstreaam CO2)

Method: Infrared Spectrum

Range: 0.0-10% (0~76%)

Resolution: 1mmHg (0.1%)

Accuracy: ＜5%(±4.0 mmHg) Or＜10%(of Readings)

Miscellaneous

Satety:

Safety level: Class I, type CF

Dimendion: 28*42*48cm

G.Weight: <6.5KS

Operation Environment

Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240,50/60Hz

Patient range: Neonate,pediatric,and adult patients

Accessories supplies

(1) 5 lead ECG cable

(2) 1 spo2 probes

(3) 1 NIBP prbe

(4) 1 temp probe

(5)1 ground connecting liner

(6) Chest electrode (10pcs/set)
