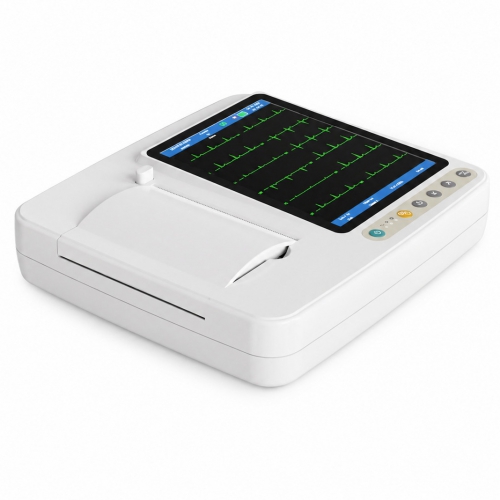

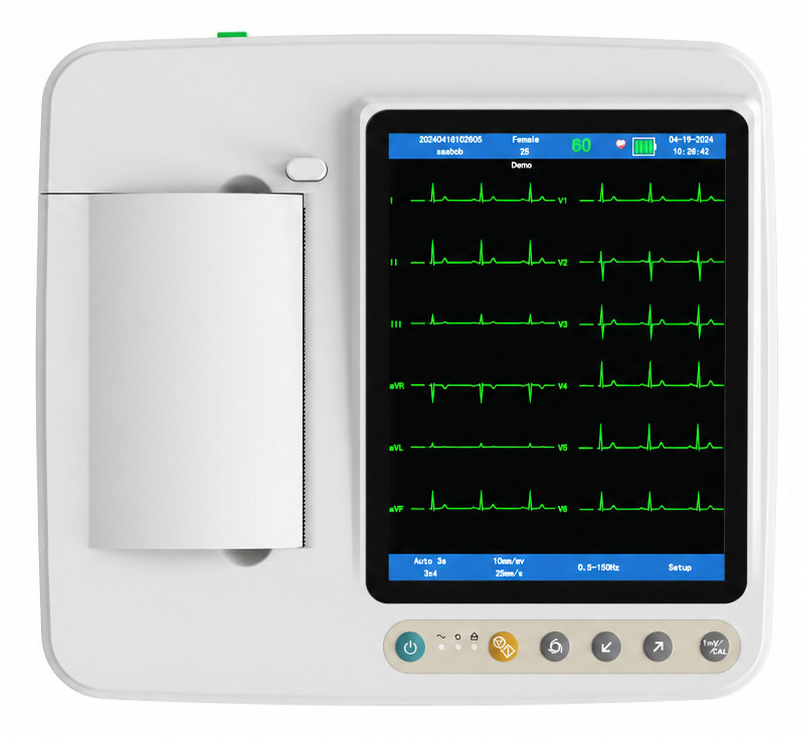

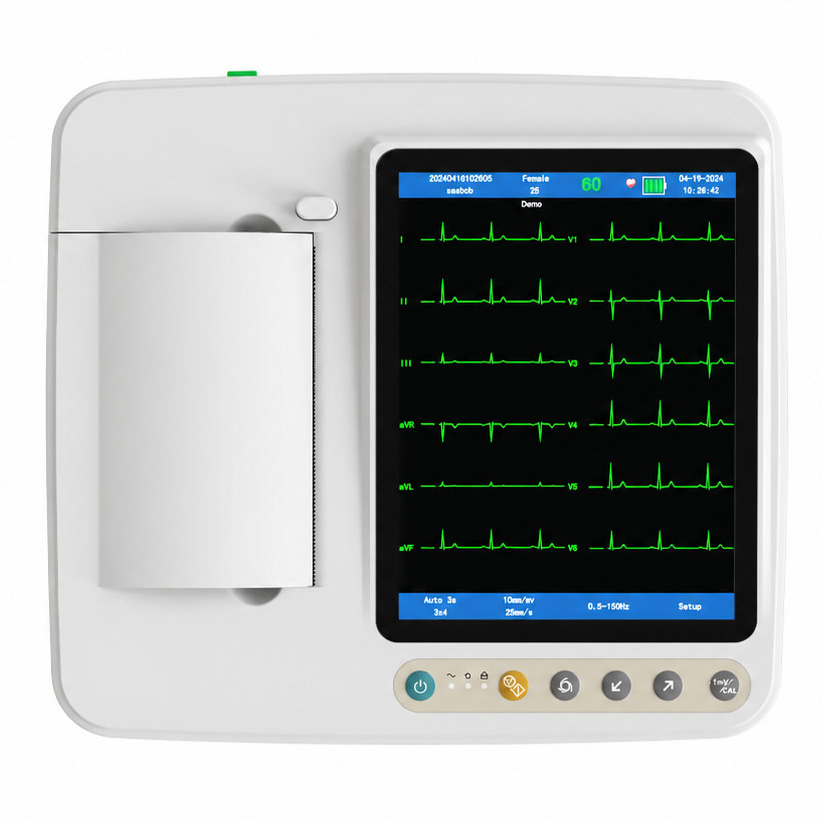

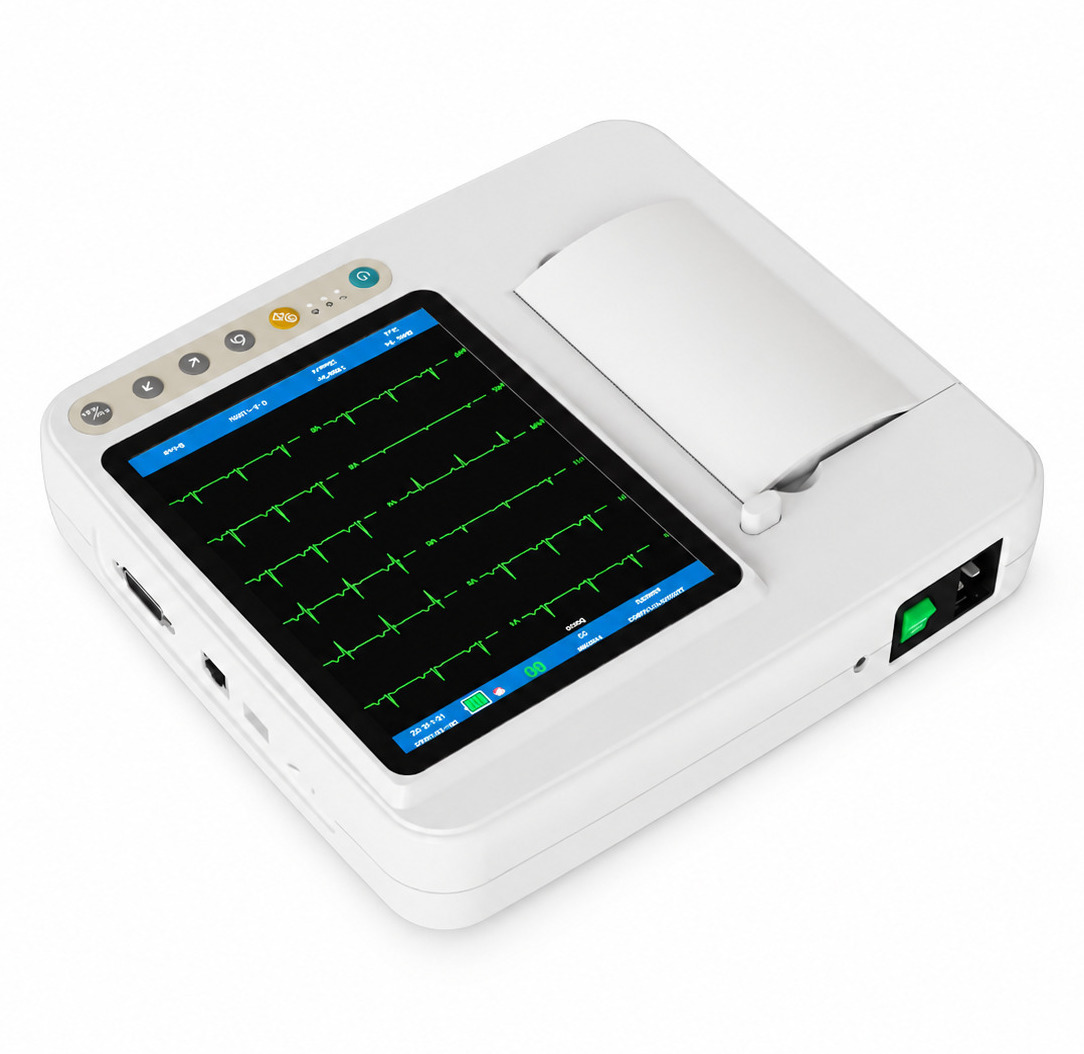

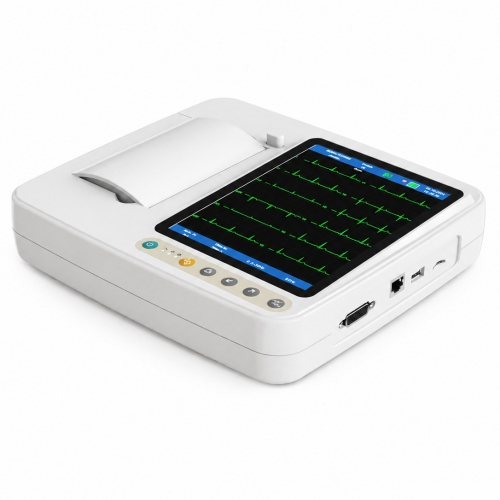

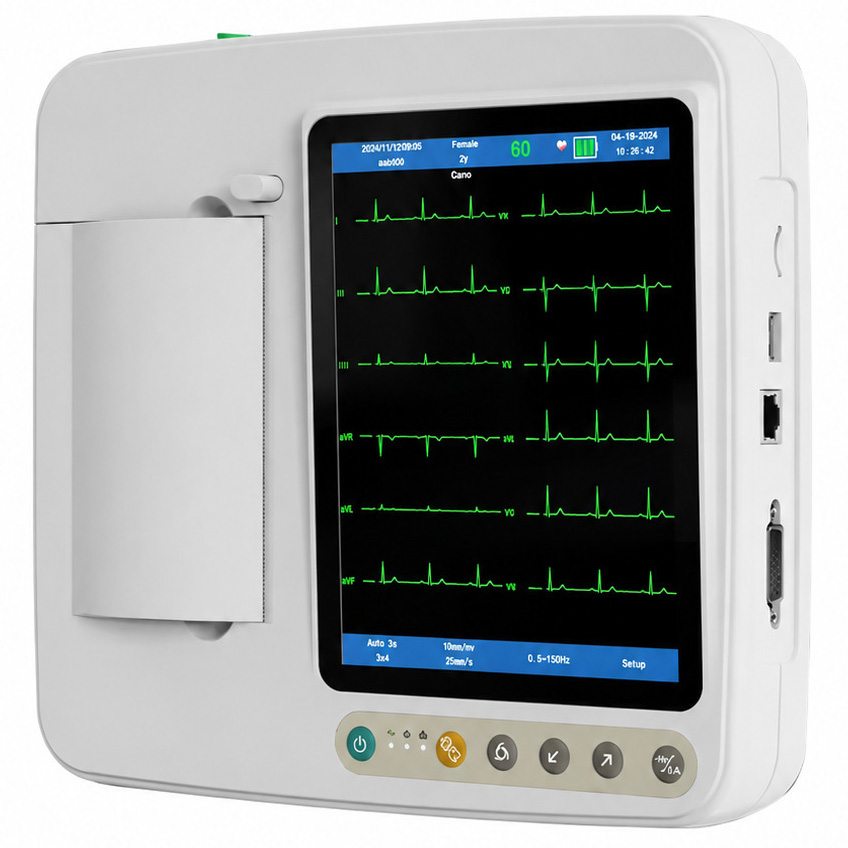

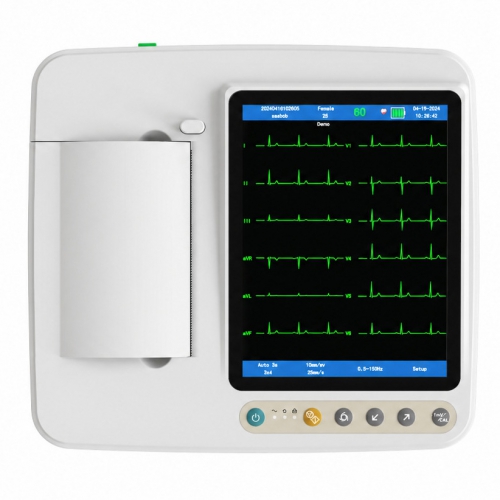

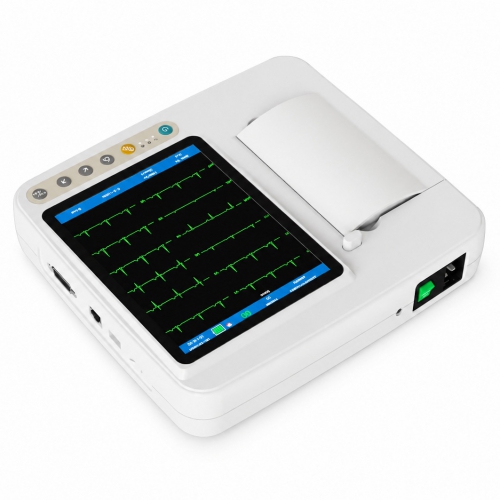

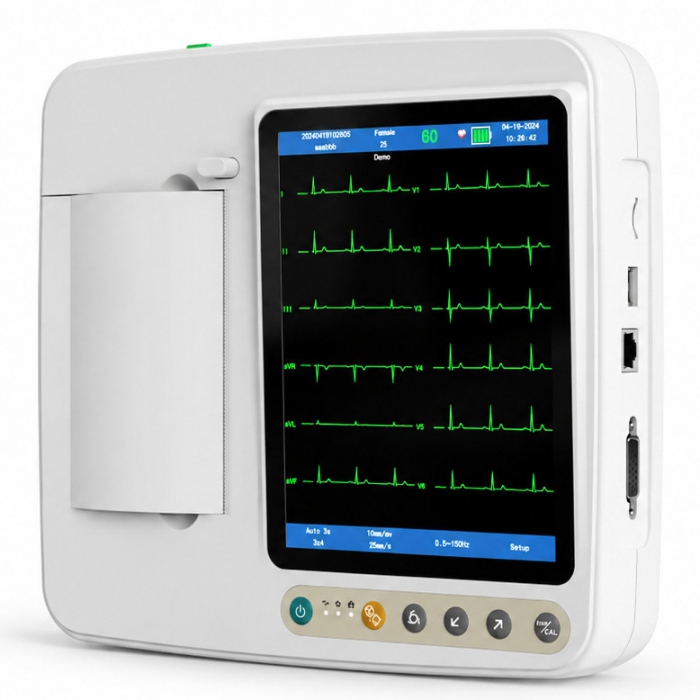

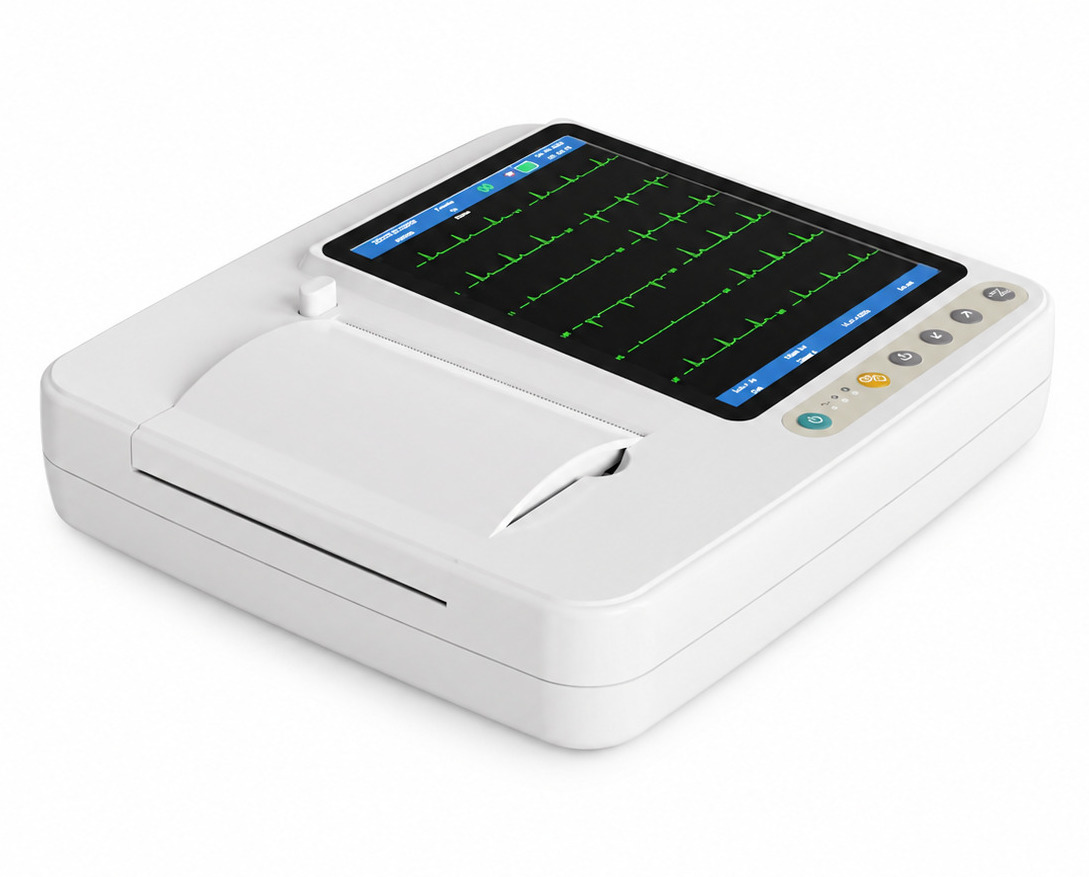

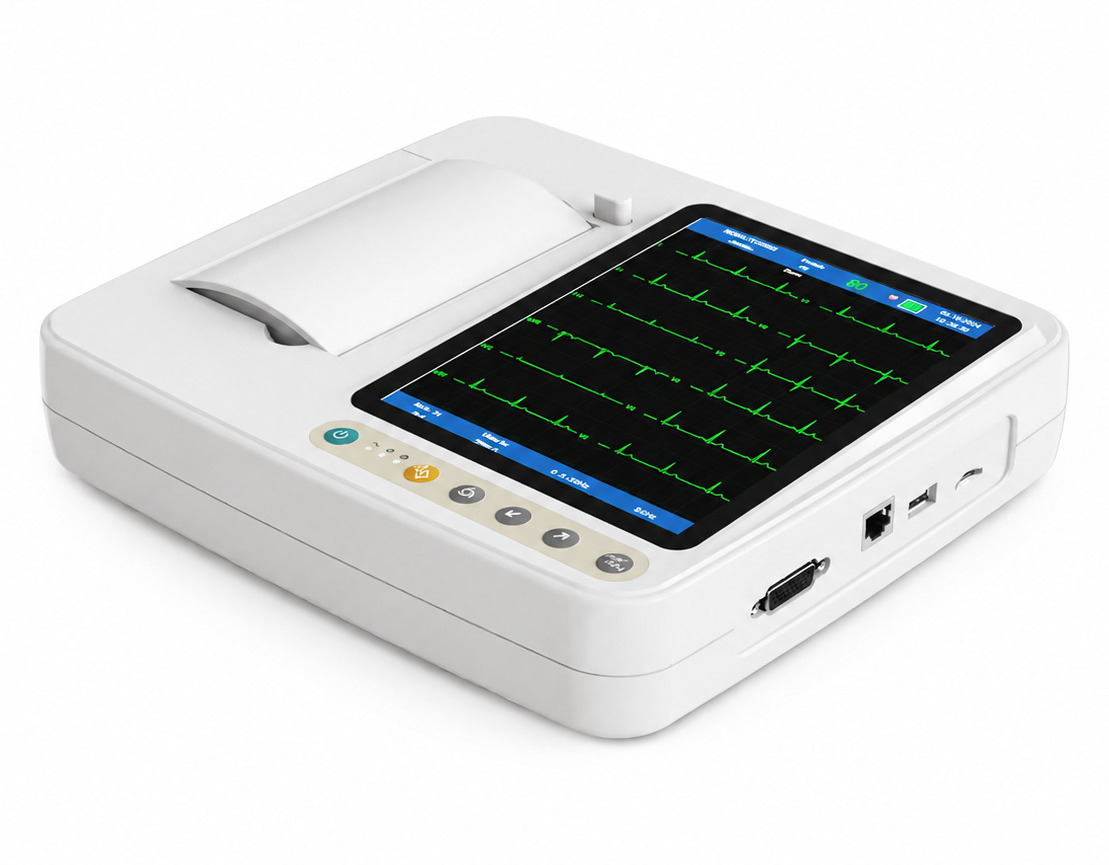

SINNOR ECG906 12-Lead Electrocardiograph ECG/EKG 6 Channels Display

SINNOR ECG906 12-Lead Electrocardiograph ECG/EKG 6 Channels Display
Item No. ADL004119
Brand:SINNOR
But It Now : $539.98
Voltage :

Plug :

Quantity :
Weight:0gram
Goods click count:2

Item Description Reviews

SINNOR ECG906 12-Lead Electrocardiograph ECG/EKG 6 Channels Display

Freature:

7inch(ECG-906A) 8inch(ECG-906B),touch screen, keypad input ways 6 channels ECG machine with automatic interpretation 112mm thermal recorder

Simultaneous 12 leads acquisition and 6-channels recording. Manual/Auto working Modes

TFT display 12 lead ECG wave & friendly menu setting.

100 patient information storage.

SD card storage.

120 seconds ECG wave freeze and replay function.

Lead-off detection and alert

Digital filtering, resisting baseline drift, AC and EMG interference

Built in rechargeable Li-ion battery, more than 3 hours continuously work. AC power supply at 90-240V,50/60Hz

Built in USB/RS232 interface(ECG working station software optional)

SPECIFICATIONS:

Lead: standard 12 leads

Lead acquisition: 16bit/24bit 1000Hz (synchronously 12 leads)

Printer: 112mm thermal recorder

Print speed: 5, 10,12.5, 25, 50mm/s (+3% )

Work modes: MANUAL, AUTO modes

Filter: AC FIter :50Hz / 60Hz;

EMG Filter : 35Hz / 45Hz;

Anti-Drift Filter : 0.15Hz (Adaptive)

CMMR: ≥100dB (with AC filter)

Input circuit: floating; protection circuit against defibrillator effect

Input Impedance: ≥50MQ

Input circuit current: ≤0.05µA

Input dynamic range: ±5mVpp

Patient current leakage :< 10uA

Calibrating voltage: 1mV±2%

Voltage tolerance:±600mV

Time constant: ≥3.2s

Frequency response: 0.05~150Hz(-3db)

Noise level: < 15uVp-p

Sensitivity valve: $20uV

Sensitivity: 2.5, 5,10,20mm/mV

Inter-channel Interference: ≤0.5mm

Package: 32×25×17cm

Gross Weight: 2.8KG

Package size:54×33×75cm(8 unit per carton) Gross weight 22KG
