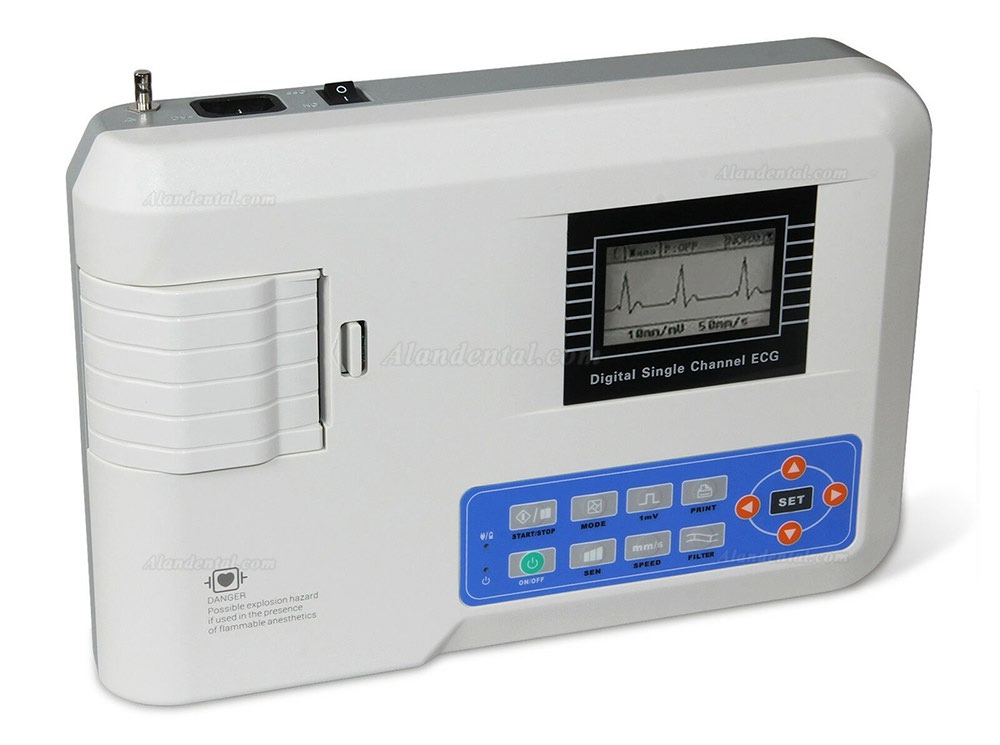

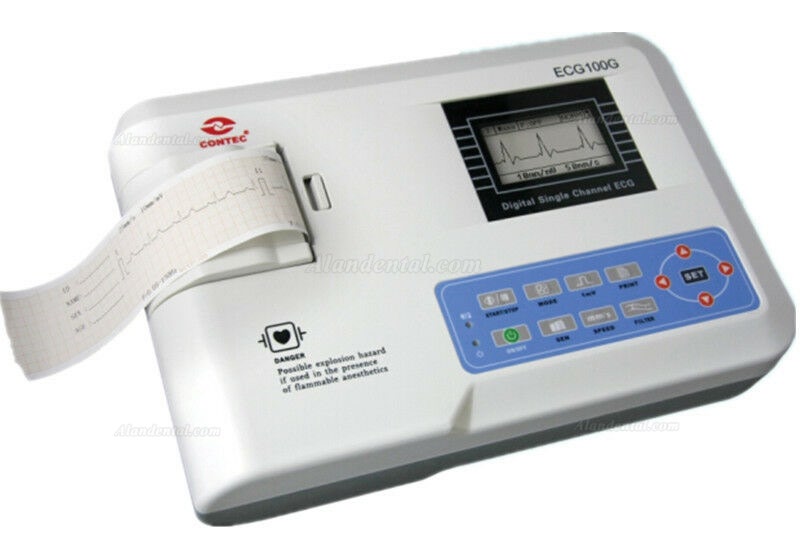

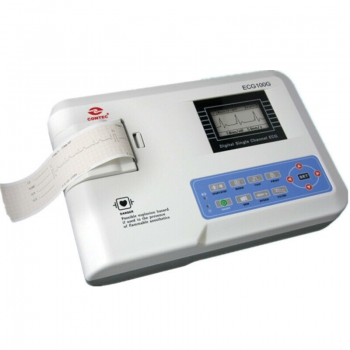

CONTEC ECG100G Digital 1-channel 12-lead Electrocardiograph ECG/EKG Machine

CONTEC ECG100G Digital 1-channel 12-lead Electrocardiograph ECG/EKG Machine



CONTEC Medical Systems 100% Warranty



Introduction

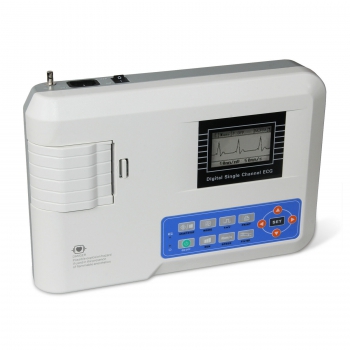

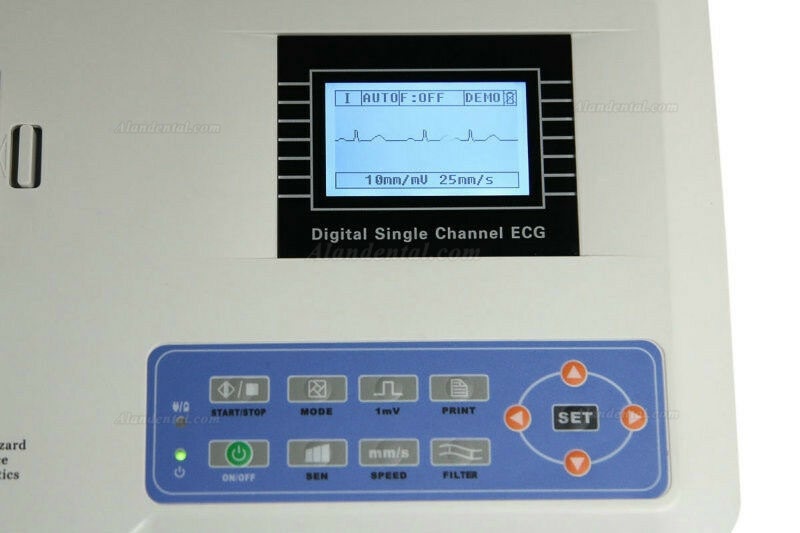

ECG100G is a kind of single channel electrocardiograph, which features ECG waveform by thermal printing system, prompting for "Lead off" or "Lack of paper", multi-language interface, ECG waveform recording in AUTO / Manual mode, convenient to operate



Function

1) Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.

2) Adopt high-resolution thermal printing system (8 dot / mm), no need for any adjustments. Recording frequency: up to 150Hz.

3) Real-time and continuously record the clear and accurate ECG waveform and annotation character (including lead mark, sensitivity, paper speed and filter state, etc.).

4) In AUTO mode, finish recording by pressing the button once, which improves work efficiency.

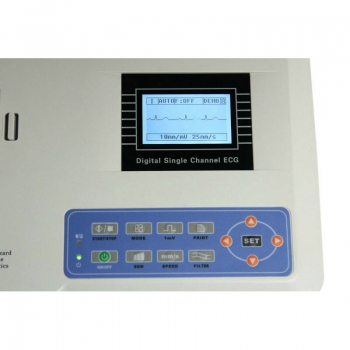

5) Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.

6) In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.



performance

Input mode: floating and defibrillation protection

Frequency response: 0.05Hz ~ 150Hz (-3dB ~ + 0.4dB)

CMRR:> 60dB,> 100dB (add filter)

Time constant: ≥ 3.2s

Patient leak current: <10μA

Calibration voltage: 1mV

Sensitivity: 5, 10, 20 mm / mV ± 5%, standard sensitivity: 10mm / mV ± 2%

Noise level: ≤15μVp-p

Input circuit current: ≤50nA

Input impedance: ≥50MΩ

Sampling accuracy: 12-bit

Safety classification: class I, type CF and defibrillation-proof applied part

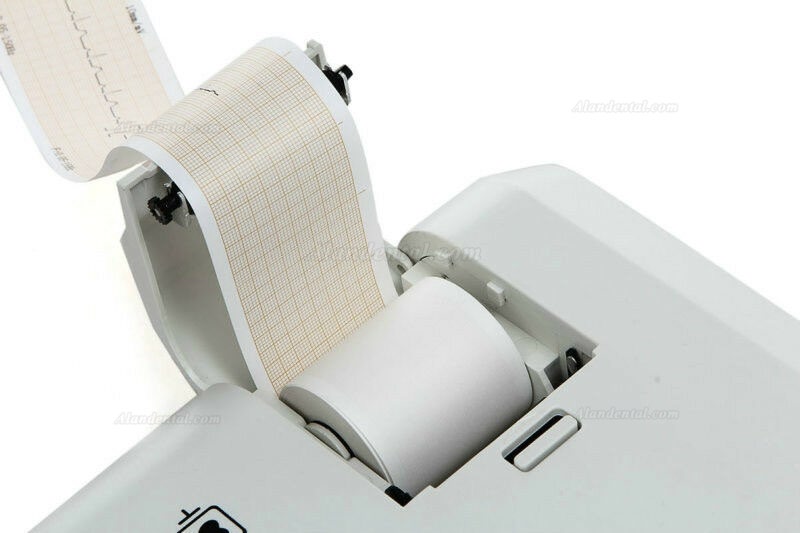

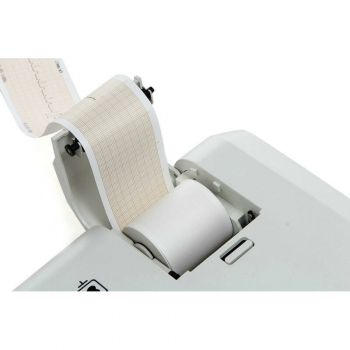

Recording mode: thermal printing system

Paper size: 50mm (W) × 20m (L)

Sampling frequency: 800Hz

EMG interference filter: 35Hz (-3dB)

Power frequency filter: AC 50Hz / 60Hz (-20dB)

Paper speed: 25, 50mm / s, ± 5%

Power supply:

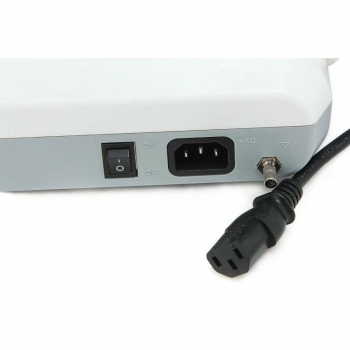

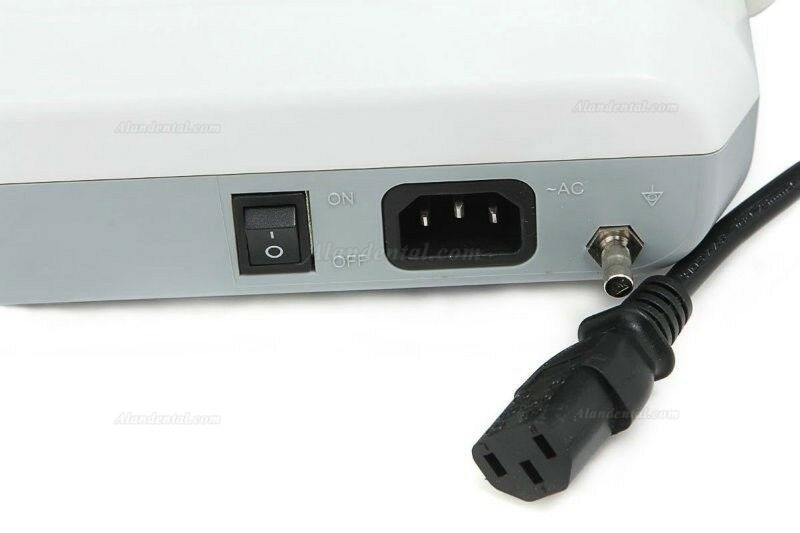

AC: 100V ~ 240V (50 / 60Hz)

DC: 7.4V / 2000mAh rechargeable lithium battery

Fuse specification: two AC time lag fuse (φ5 × 20mm), T1.6AL250V

Waterproof degree: IPX0

Working mode: continuous working

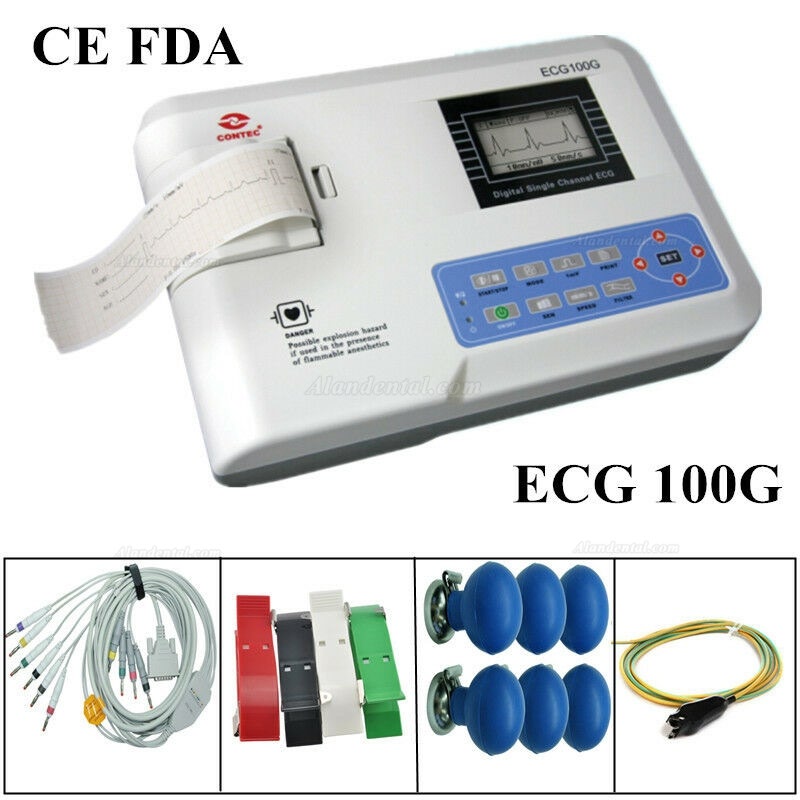

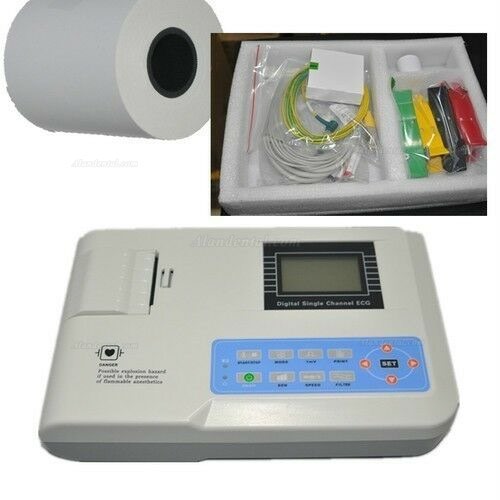

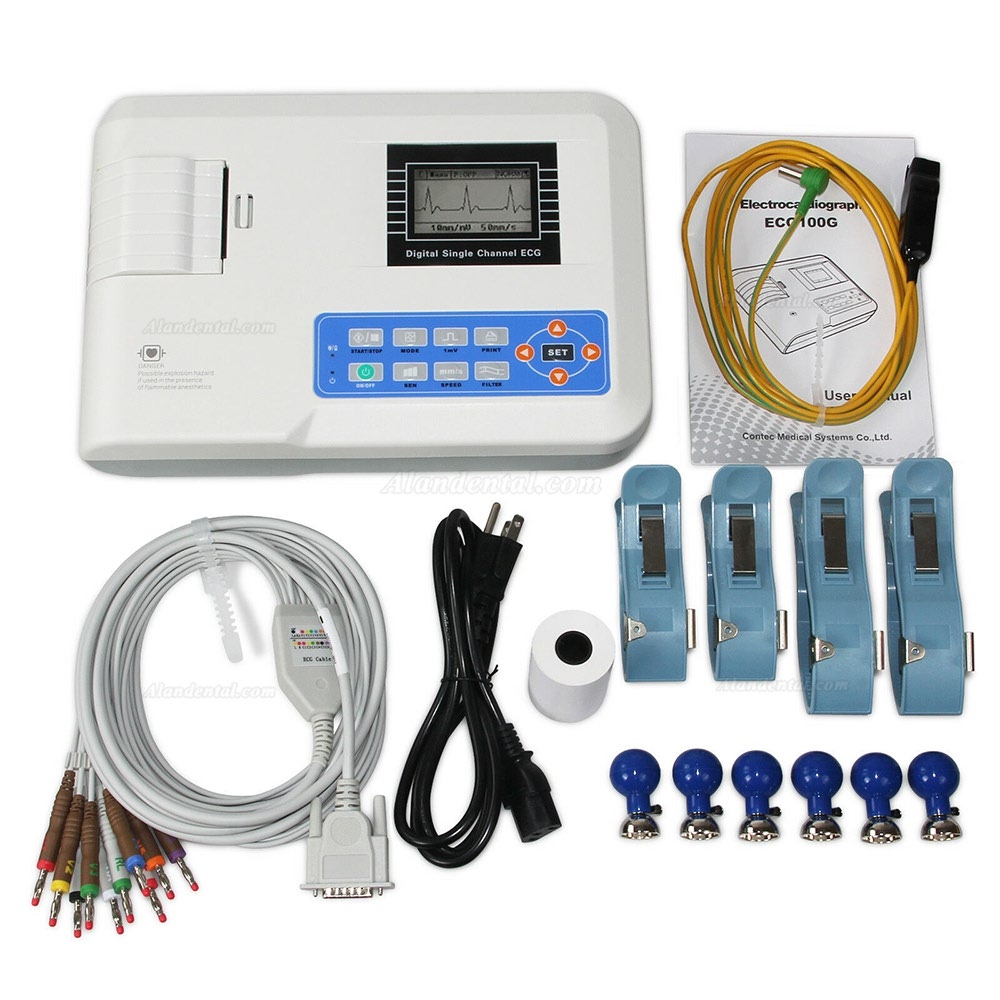

Accessories

Default:

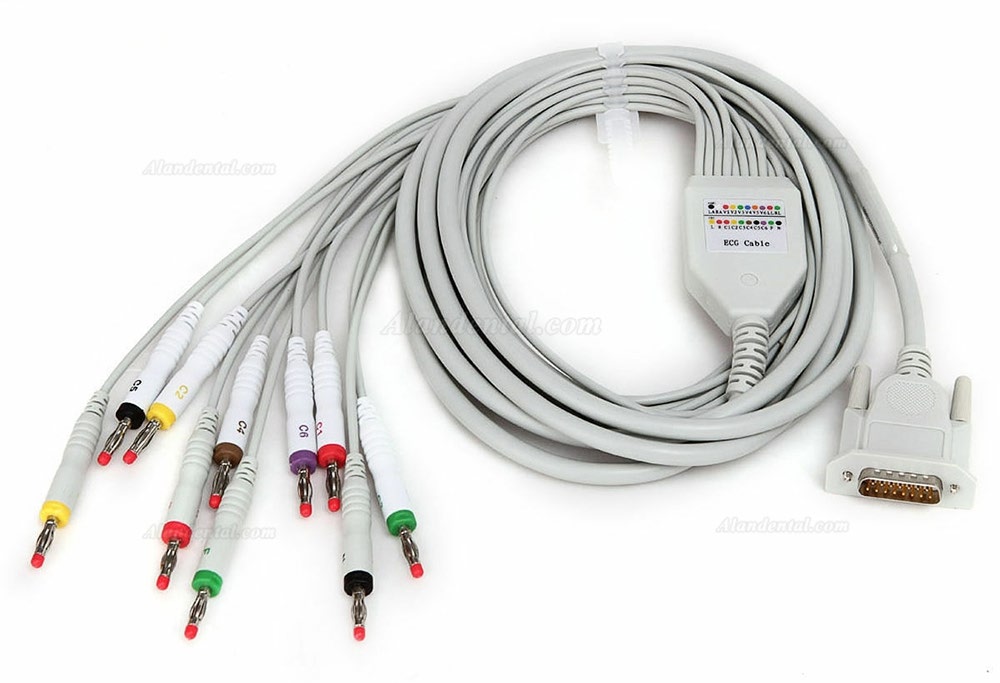

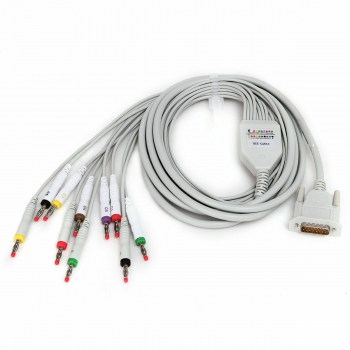

A lead cable

A limb electrode

A chest electrode

A thermal recording paper

A power cord

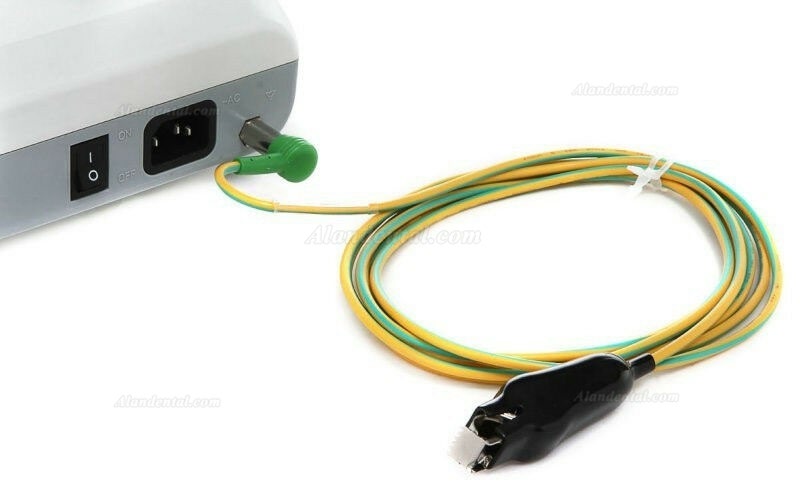

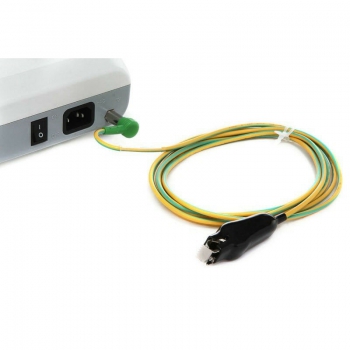

An earth wire

A user manual



optional:

ECG electrode

Certification

CE, FDA
