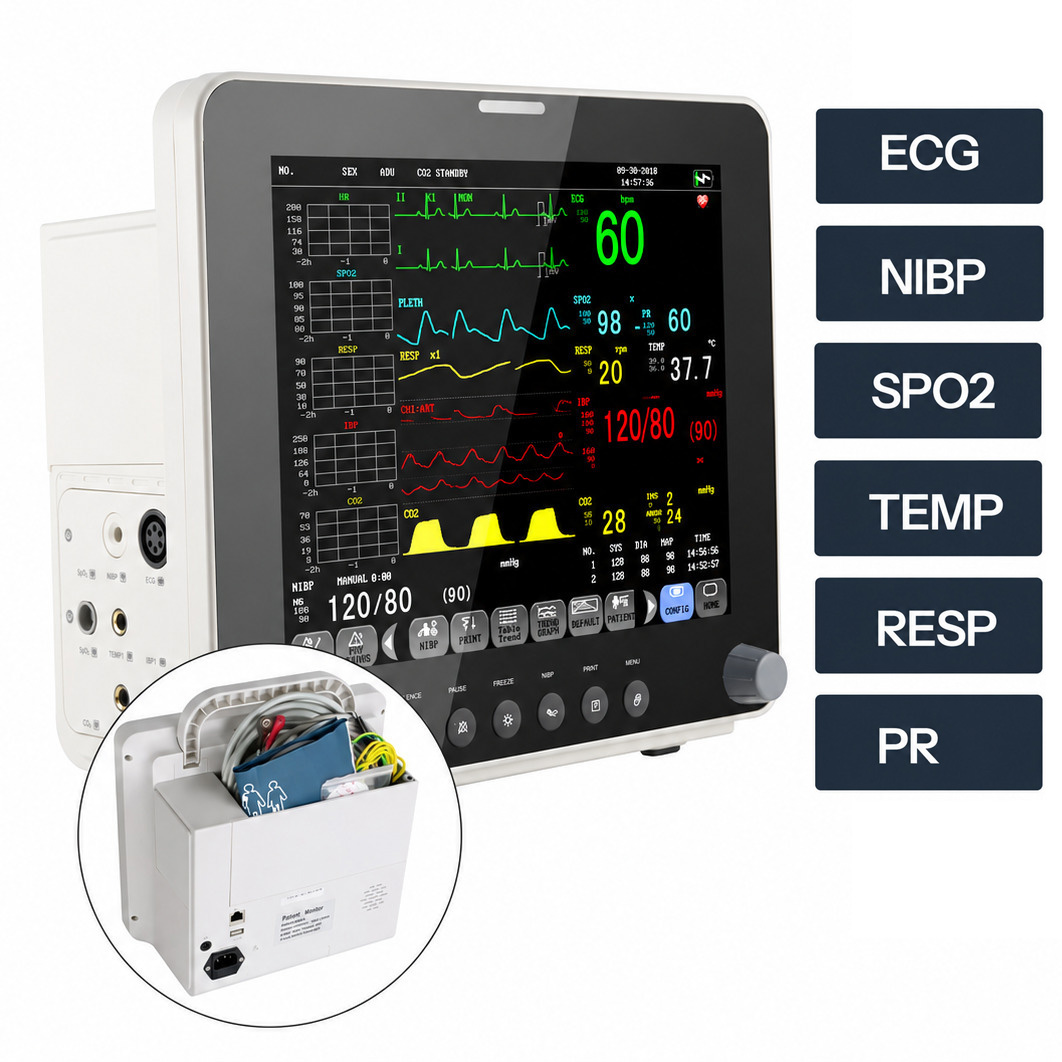

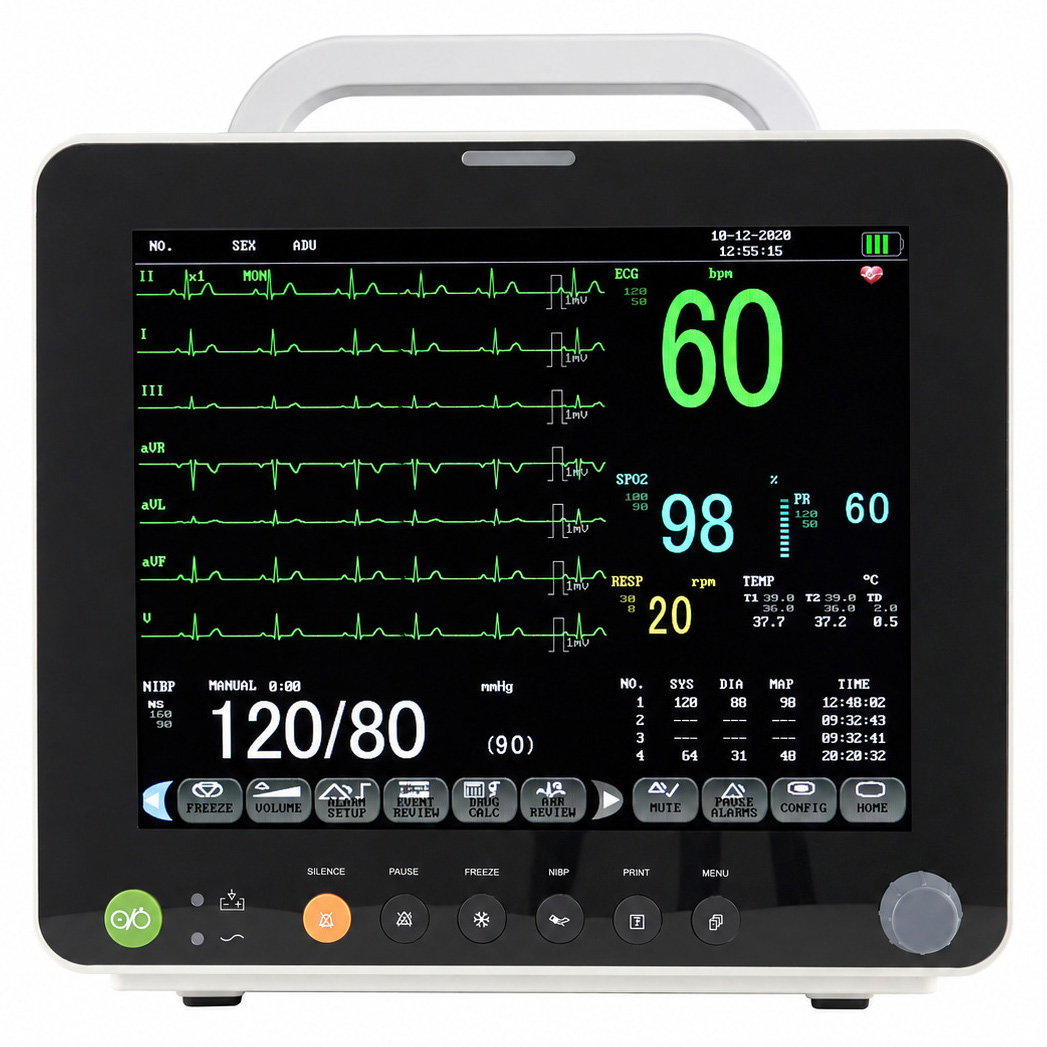

12 Inch Multi-parameter Patient Monitor ECG/RESP/TEMP/NIBP/SPO2/PR

12 Inch Multi-parameter Patient Monitor ECG/RESP/TEMP/NIBP/SPO2/PR

Features:

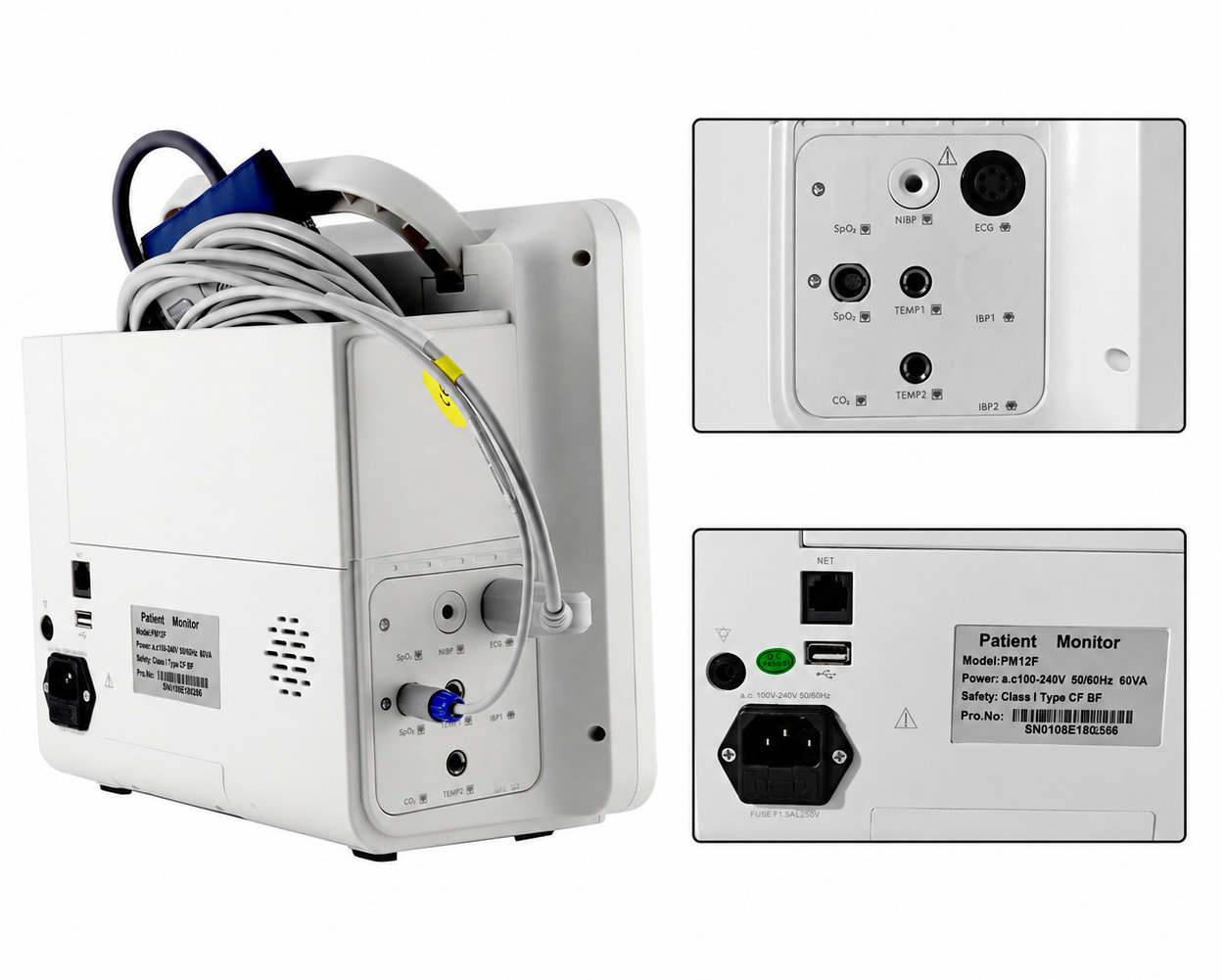

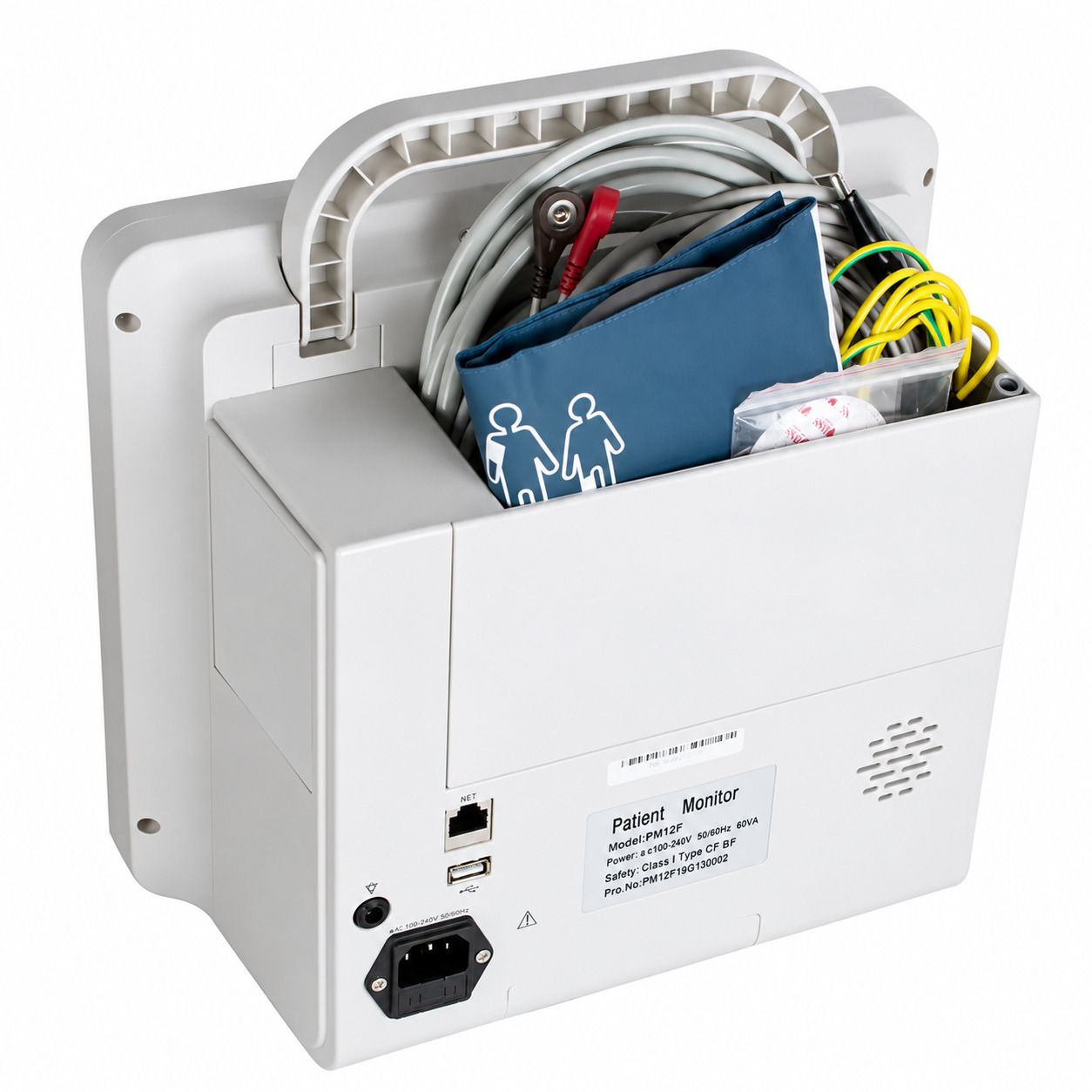

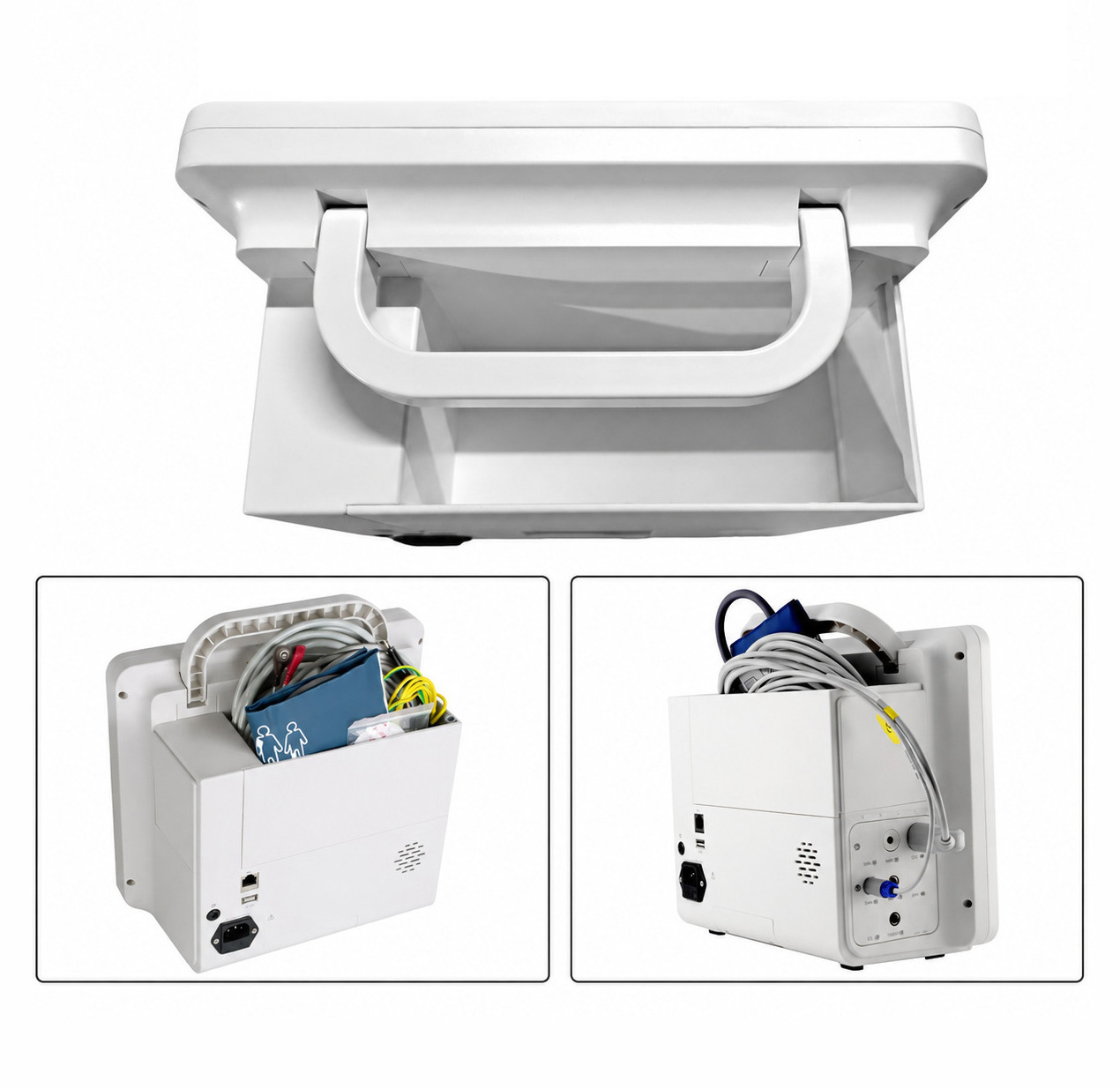

1. Unique accessory management cabinet

2. 12.1-inch high resolution color TFT display

3. USB interfaces support easy software upgrade and data transfer

4. Three Working Modes: Monitoring, Surgery and Diagnosis

5. Simple and friendly operating display interface.

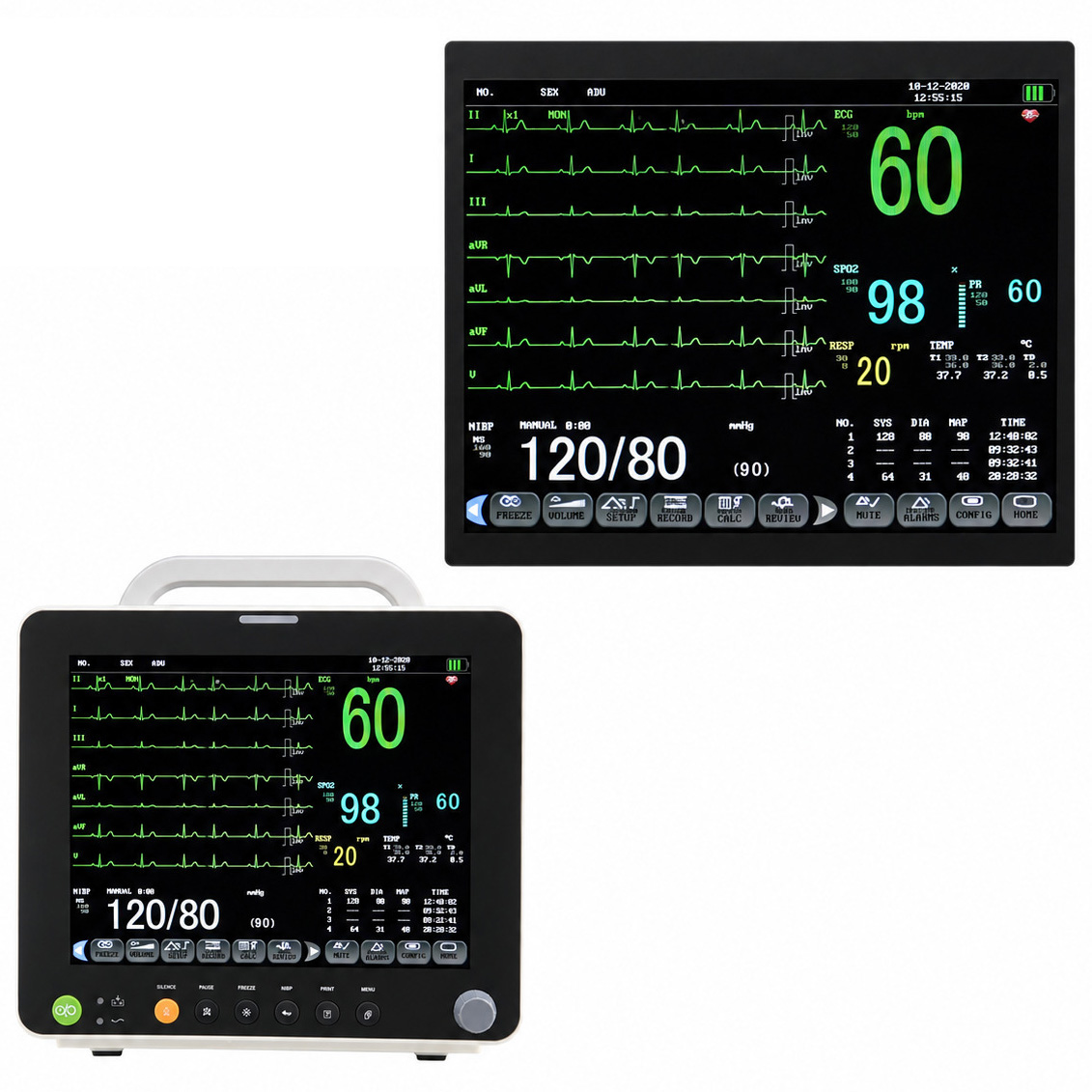

6. Multi-display modes suitable for different applications:

Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend.

7. Built-in battery for up to 3 hours of continuous work

Standard Parameters:

ECG, RESP, TEMP, NIBP, SPO2, PR

Technique Specifications:

ECG

1. Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)

2. Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV

3. Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)

① Resolution: 1 BPM

② Accuracy: ±1%

③ Sensitivity >200 uV(Peak to peak)

4. ST measurement range: -2.0 ~ +2.0 mV

① Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater

Other Range: unspecified

5. Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s

6. Bandwidth:

7. Diagnostic: 0.05~130 Hz

8. Monitor: 0.5~40 Hz

9. Surgery: 1~20 Hz

SPO2

1. Measuring Range: 0 ~ 100 %

2. Resolution: 1%

3. Accuracy: 70% ~ 100% (±2 %)

4. Pulse Rate: 20-250 BPM

5. Resolution: 1 BPM

6. Accuracy: 3 BPM

NIBP

1. Method: Oscillometry

2. Measure mode: Manual, Auto, STAT

3. Unit: mmHg, kPa

4. Measure and alarm range:

5.1 Adult Mode

① SYS    40 ~ 280 mmHg

② DIA   10 ~ 225 mmHg

③ MEAN    20 ~ 240 mmHg

5.2 Pediatric Mode

① SYS    40 ~ 220 mmHg

② DIA    10 ~ 160 mmHg

③ MEAN    20 ~ 170 mmHg

5.3 Neonatal Mode

① SYS    40 ~ 135 mmHg

② DIA    10 ~ 100 mmHg

③ MEAN    20 ~ 110 mmHg

6. Resolution: 1mmHg

7. Accuracy: 5mmHg

RESP

1. Method: Impedance between RA-LL or RALA

2. Measurement Range:

① Adult: 10 ~ 120 BrPM

② Neonatal / Pediatric: 7 ~ 150 BrPM

3. Resolution: 1 BrPM

4. Accuracy: 2 BrPM

TEMP

1. Measure and Alarm Range: 0 ~ 50℃

2. Resolution: 0.1℃

3. Accuracy: 0.1℃

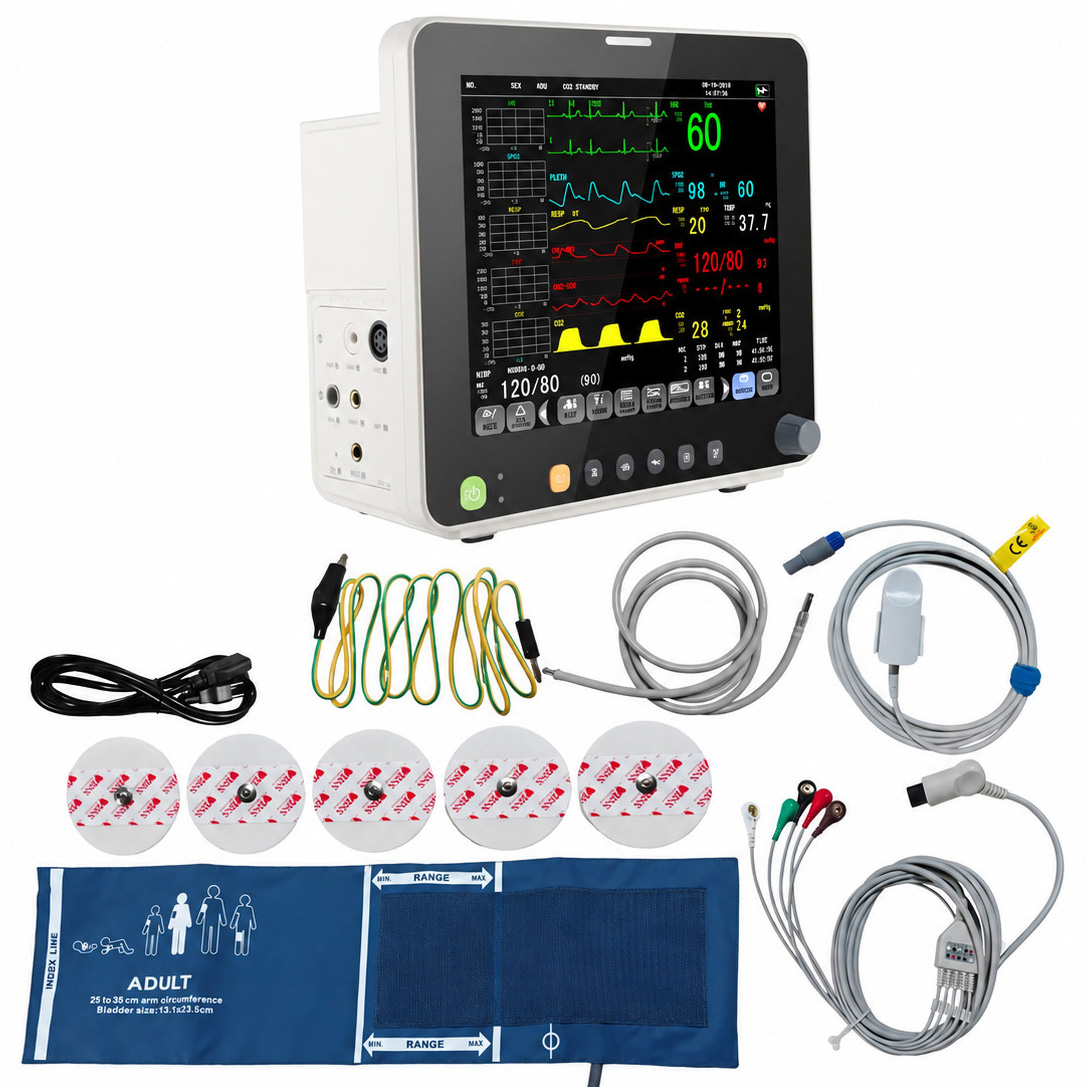

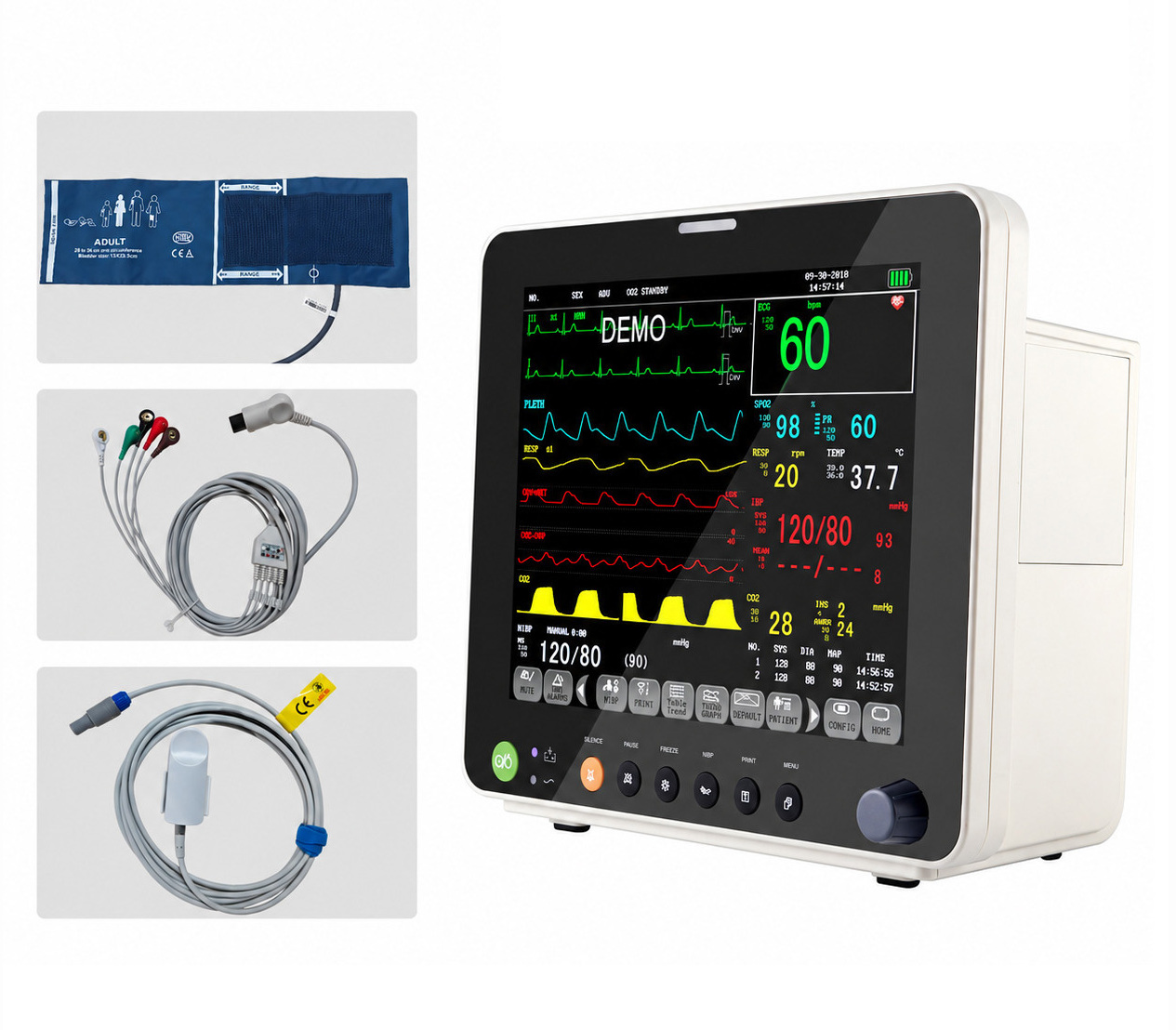

Standard Configurations:

Main Unit  *1

5-lead ECG Cable  *1

Disposable ECG Electrode  *5

Adult Spo2 Probe  *1

Adult NIBP Cuff  *1

NIBP Extension Tube  *1

Temperature Probe  *1

Power Cable  *1

User Manual  *1

Fuse  *3
