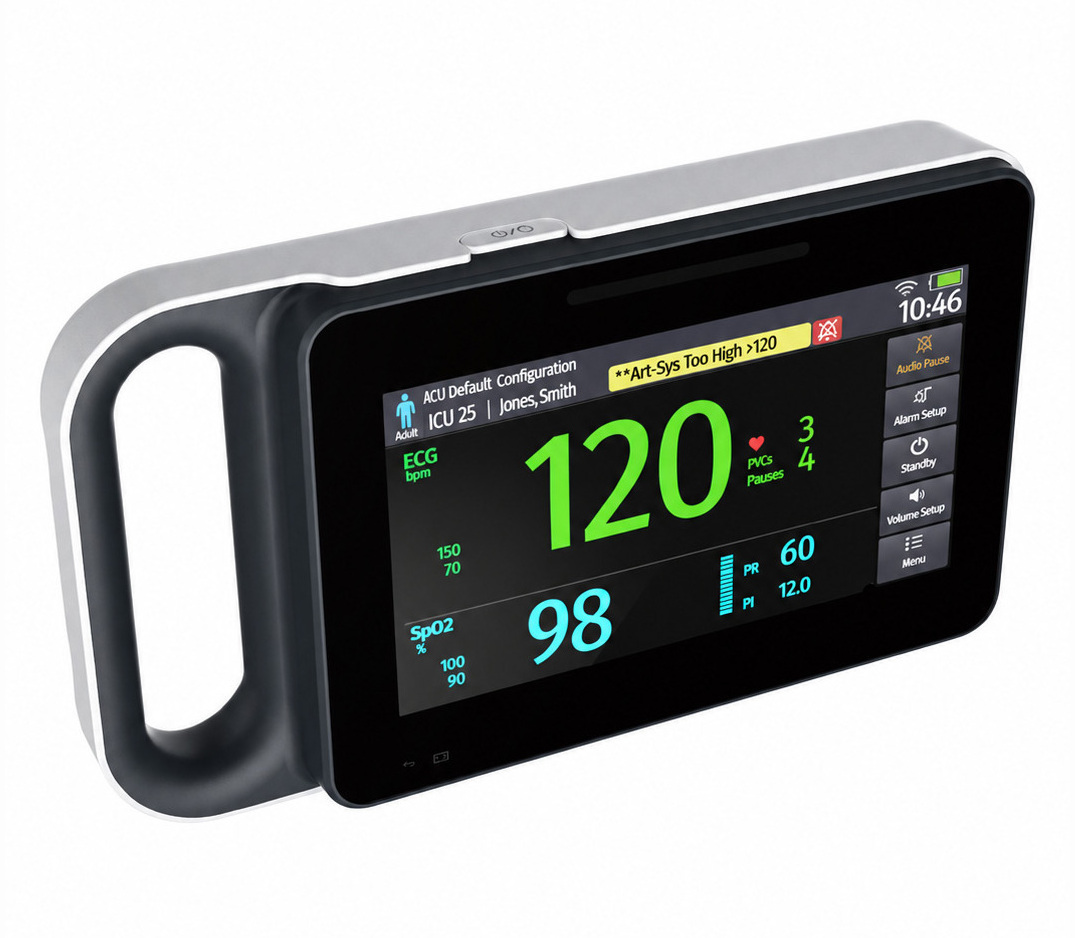

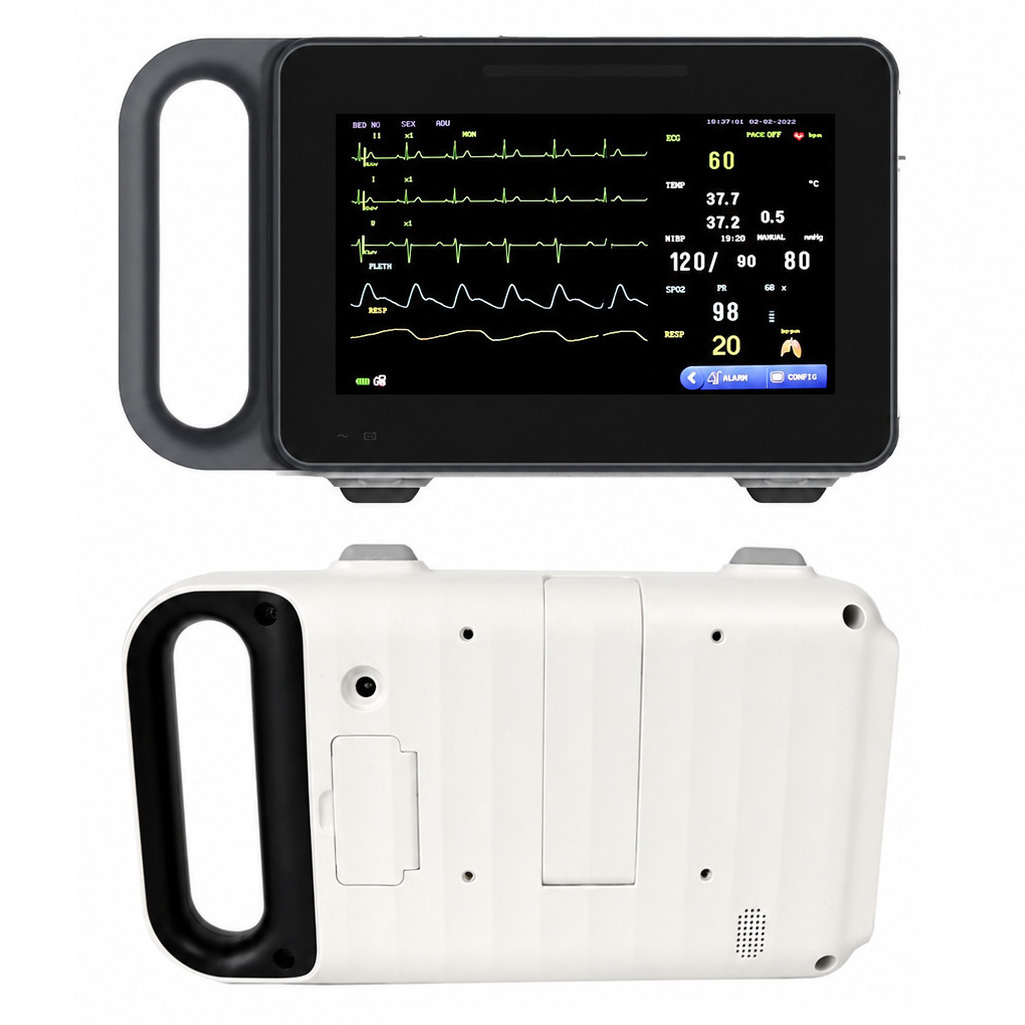

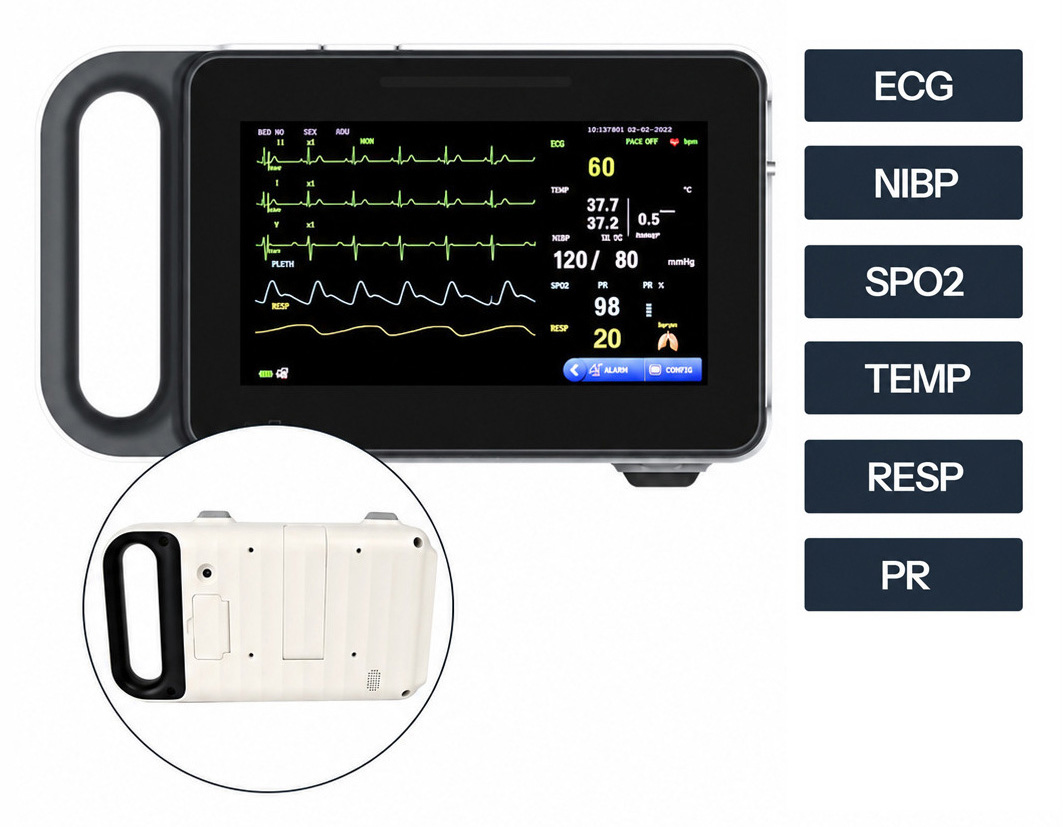

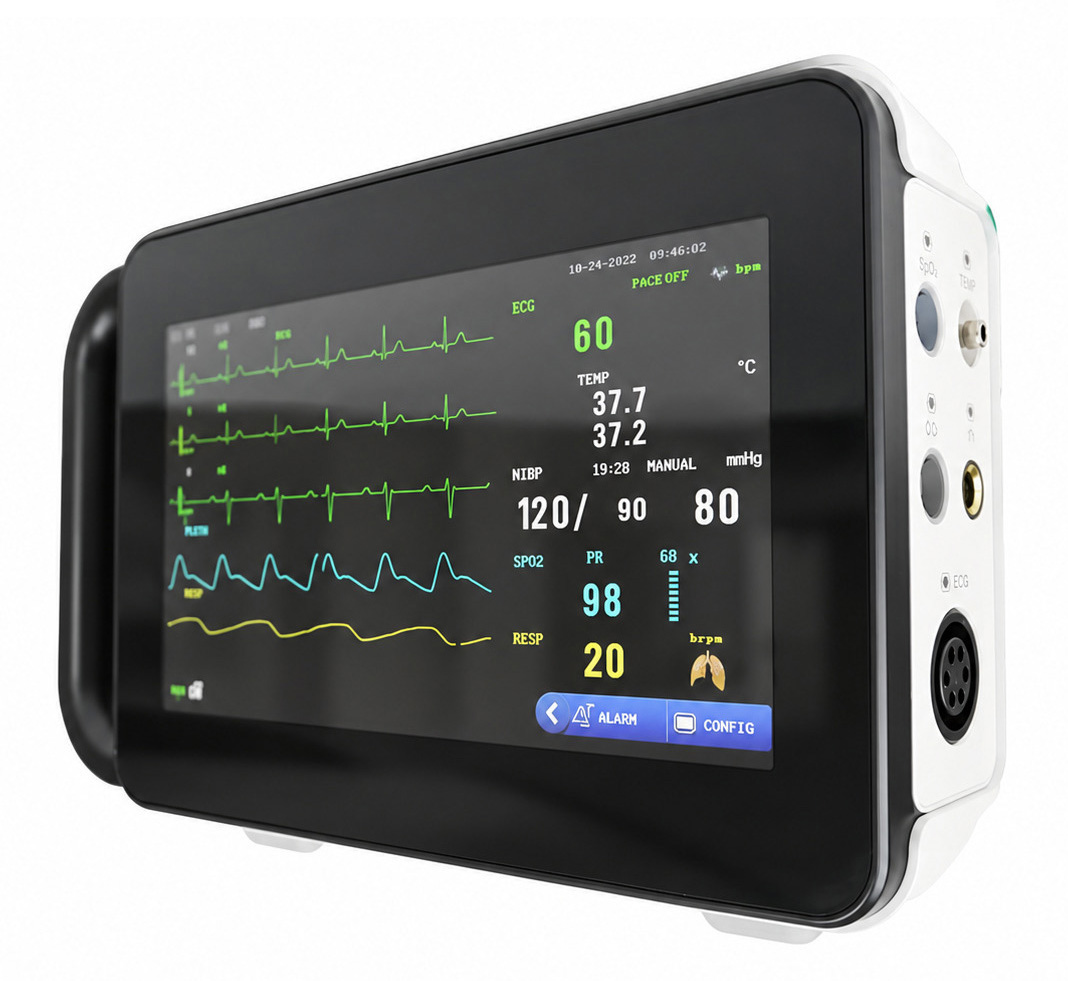

7 Inch Touch Screen Multi-parameter Patient Monitor ECG/RESP/TEMP/NIBP/SPO2/PR

7 Inch Touch Screen Multi-parameter Patient Monitor ECG/RESP/TEMP/NIBP/SPO2/PR

Features:

1. 7 inch screen with true color, wide viewing angle, high brightness LCD display.

2. Simple operating display interface.

3. Internal chargeable large capacity battery.

4. Playback and browse function for long term waveform and monitor data record.

5. Auto double alarm with audible and visible signals.

6. Anti-defibrillation, anti-interference from high frequency electric knife.

Standard Parameters:

ECG, RESP, TEMP, NIBP, SPO2, PR

Technique Specifications:

ECG

1.Lead Menuuration: Five lead ( I, II, III, aVR, aVL, aVF, V)

2.Gain: *0.25,0.5,1,2, automatic. Gain change per min was less than 0.66% / min, The total change in gain within 1h was less than ± 10%.

3.Heart rate: measuring range: ①15 to 300 bpm for adults (beat / min); ②Newborn / child 15-350 bpm (beat / min); ③Accuracy: ± 1% or ± 1 bpm, take the large one.

4.Heart rate alarm range：

①Upper limit (adult): 17-300 bpm

②Upper limit (neonate / child): 17 to 350 bpm

③Lower limit (adult): 15 ~ 298 bpm

④Lower limit (newborn / child): 15-348 bpm

⑤Resolution: 1 bpm

⑥Alarm limit error: ± 1% or ± 1 bpm, if large

5.ST segment detection and measurement

①Measuring range: -2.0 mV ~ + 2.0 mV

②Measurement accuracy: the measurement error between-0.02

RESP

1.Measurement method: RA-LL impedance method

2.Detection range of respiratory impedance: 0.3～3Ω

3.Baseline impedance range: 200～4000Ω

4.Tape width: 0.1～2.5Hz

5.Respiratory rate range: From 0 to 120 BrPM in adults

6.Children and newborns ranged from 0 to 150 BrPM

7.The measurement error shall be ± 2 BrPM within 7 BrPM to 120 BrPM.

SPO2

1.Measuring range: 0～100%

2.Resolution ratio: 1%

3.Accuracy: Within the range of 70% to 100%, the measurement error

shall be ± 2%; Measurement error is not defined from 0% to 69%

PR

1.measuring range: 25～250bpm

2.Resolution ratio: 1bpm

3.Accuracy: ±3bpm

4Refresh time: 1s

TEMP

1.Applicable temperature sensor: Body chamber probe / body temperature probe

2.Number of channels: 2 channel

3.Measuring range: 0～50℃

(The maximum allowable error of a complete thermometer is ±

0.2℃ from 25℃ to 45℃)

4.Resolution ratio: 0.1℃

5.Alarm accuracy: *0.1℃ (without probe error)

NIBP

1.Measurement method: Pulse wave oscillation

2.Work pattern: Manual / automatic

3.The measurement interval of the automatic measurement mode:1,2,3,4,5,10,15,30,60,90,120,180,240,480 min

4.Measurement time of the continuous: 5 Minutes

5.Measuring range

5.1Adult

① SYS: 40～270mmHg

② DIA: 10～210mmHg

③ MEAN: 20～230mmHg

5.2Children

① SYS: 40～200mmHg

② DIA: 10～150mmHg

③ MEAN: 20～165mmHg

5.3Neonatus

① SYS: 40～135mmHg

② DIA: 10～95mmHg

③ MEAN: 20～110mmHg

6.Static pressure Measuring range: 0～300mmHg (0-40kPa)

7.Static pressure precision: ±3mmHg

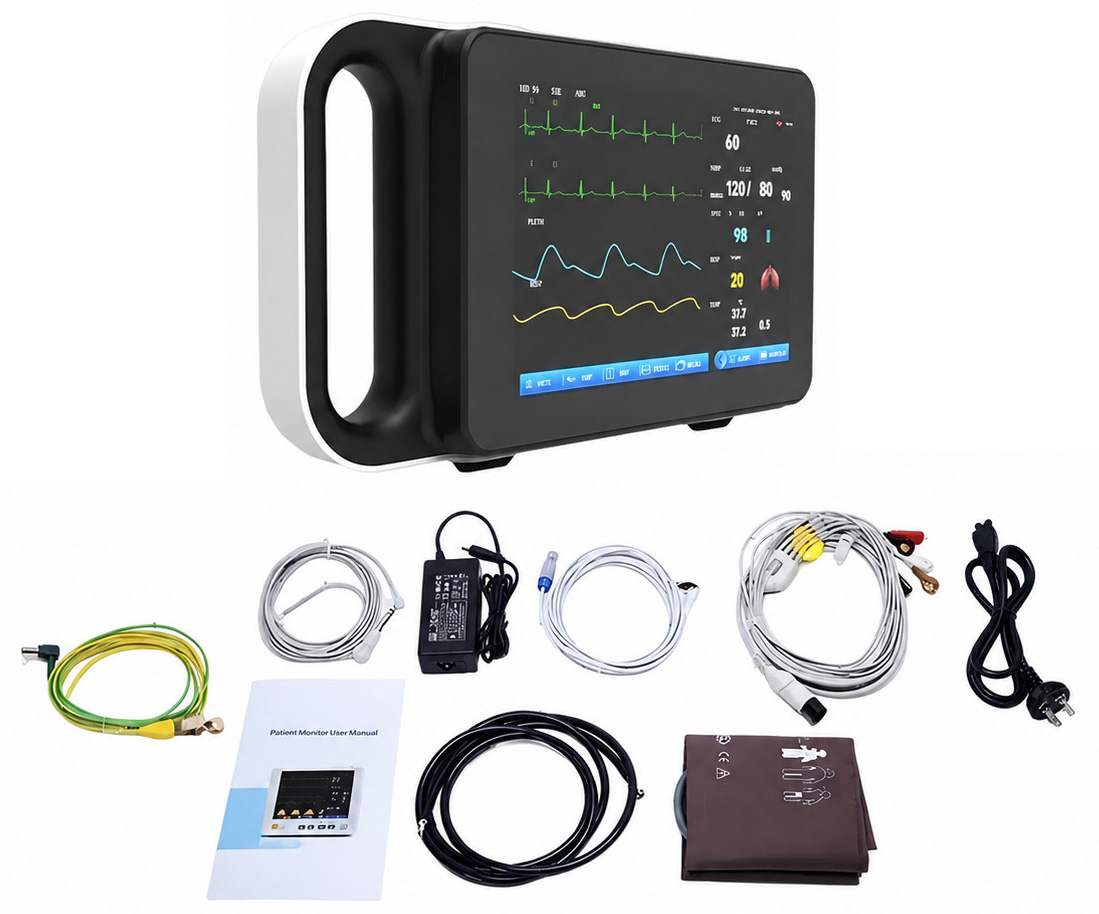

Accessories Display

1. ECG electrodes*5

2. Power cord*1

3. Blood pressure extension tube*1

4. ECG lead wire*1

5. Ground wire*1

6. Temperature probe*1

7. Instructions*1

8. Blood pressure cuff*1

9. Oxygen probe*1
