Dental Digital X-Ray Sensor Dental DS530/DS550 Image RVG X-Ray Sensor IP68 Proof

Dental Digital X-Ray Sensor Dental DS530/DS550 Image RVG X-Ray Sensor IP68 Proof
Item No. ADL003594
Reviews: 5 stars, 0 reviews
Brand:Alan Dental
Manuals and Documentation:

Dental DS530/DS560 X-Ray Sensor User Manual.pdf

DS530/DS550 Software System Manual.pdf
- EOFY sales 2026:
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till June 30th,2026

But It Now : $698.98
Model :

Quantity :

Following the purchase of goods to reach the number that they can enjoy a range of preferential prices

2-9	10-Max
$685.98	$665.98
Large Order :

Weight:0gram
Goods click count:1403

Item Description Reviews

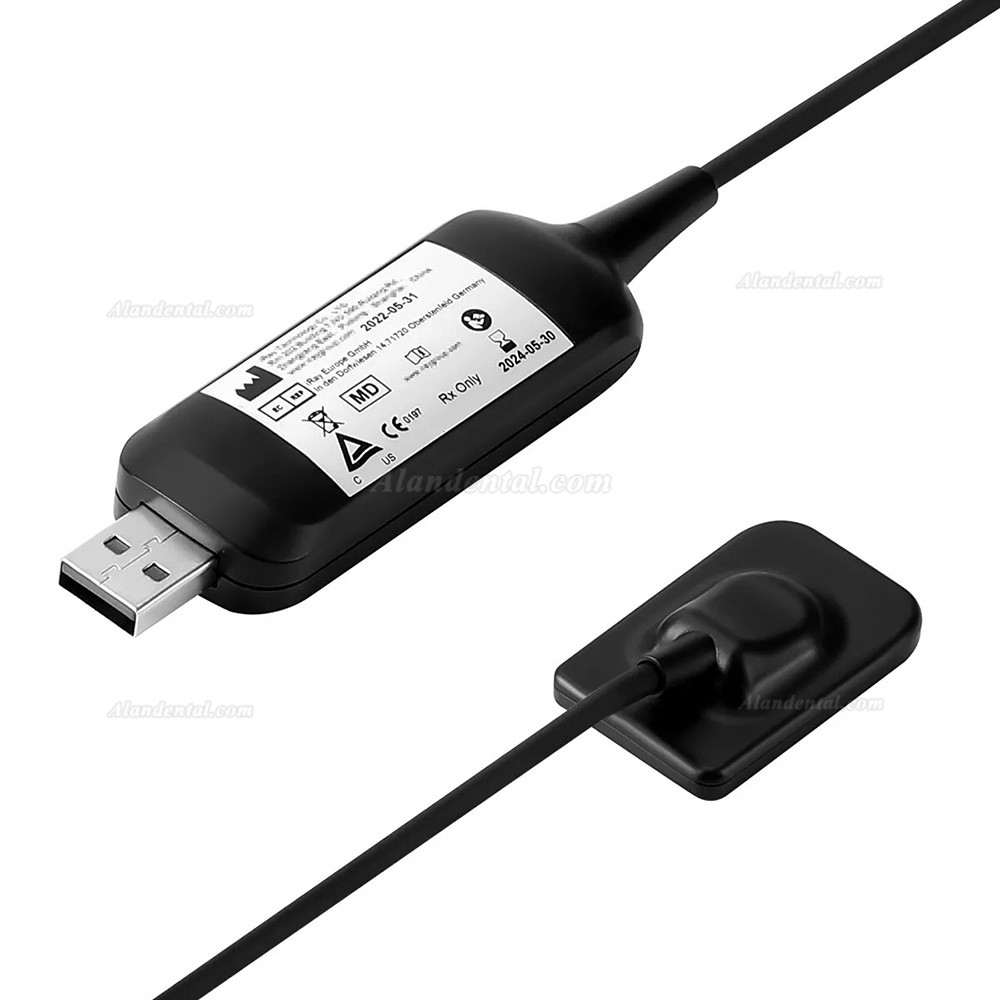

Dental Digital X-Ray Sensor Dental DS530/DS550 Image RVG X-Ray Sensor IP68 Proof

Feature:

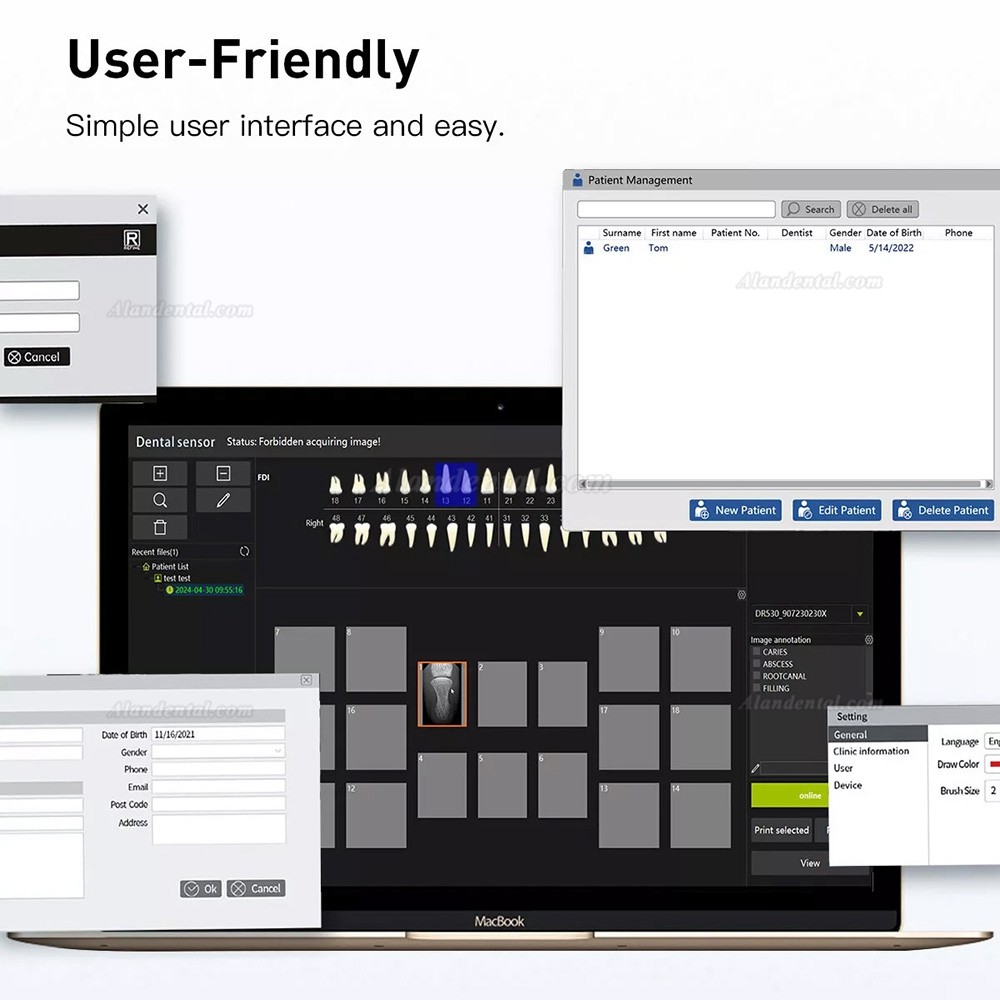

1. If there's only one device, you may select "Single-User"installation. If the sensor is connected to multiple device, select "Host"for the device connected with the sensor and other devices select "Extension"to install, to achieve multi-machine sharing.

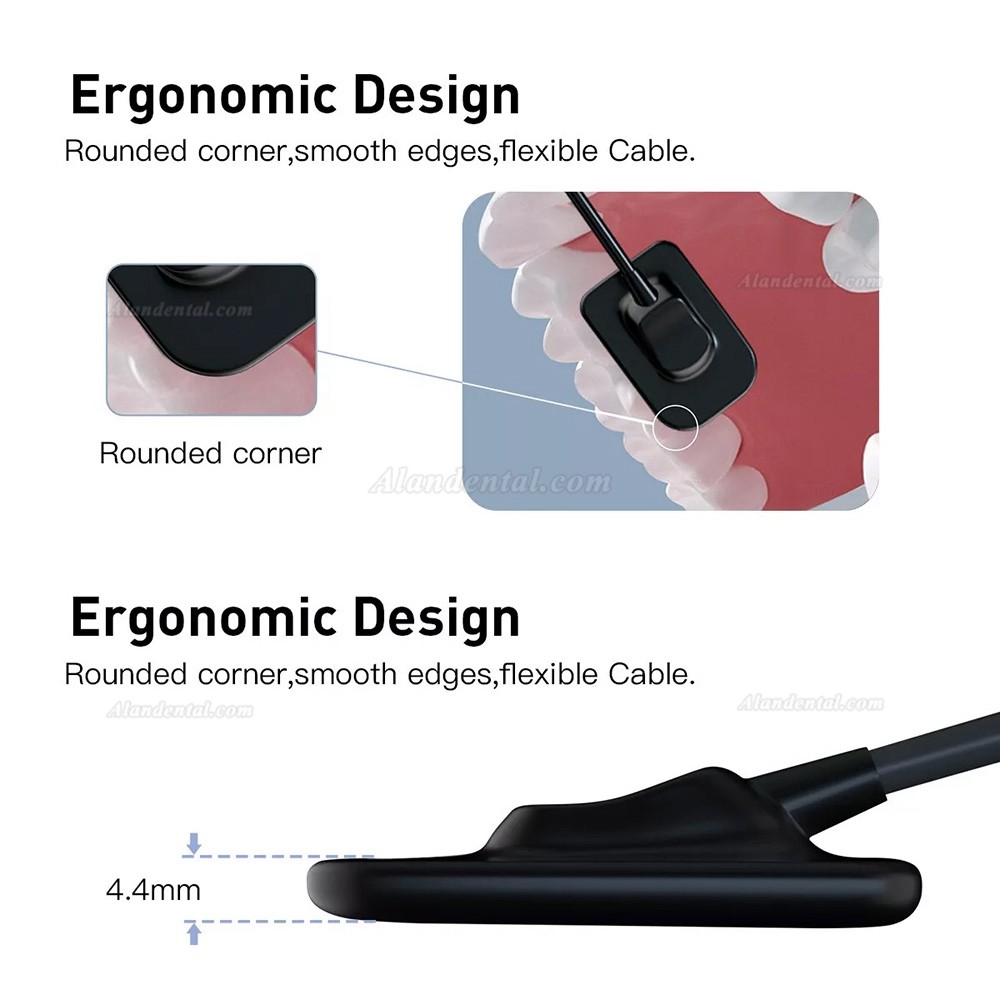

2. The sensor is available in two sizes, with rounded corners and a thickness of only 4.4mm, making it more comfortable to use

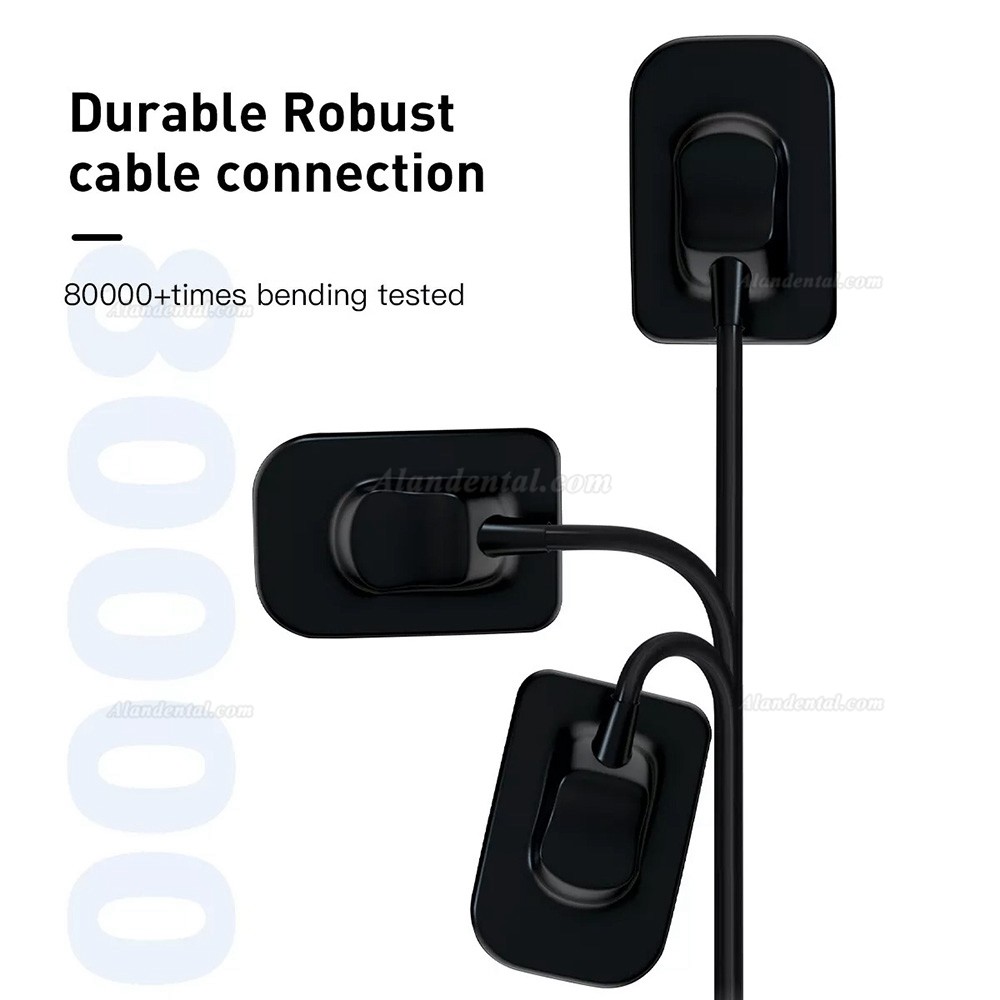

3. Cables are durable, have been tested for 80,000+ bends.

4. CMOS detector technology with CSI scintillator.

5. Compatible with different X-ray generators, easy to use

6. No consumables and more cost-effective than traditional film.

Hardware and software requirement：

Processor ：1.0GHz or above

Memory ：2GB or above

Hard disk ：64GB or above

Display resolution ：1440*900 or above

USB port ：USB2.0

Operating system ：Windows 7、Windows10、Windows11

Technical parameter:

Model	DS530	DS550
Detector Technology	APS CMOS
Scintillator type	DIRECT-GROWTH CESIUM IODIDE
Theoretical Resolution	25lp/mm
True Resolution	Actual：14-16 Ip/mm（High sensitivity） 18-20 Ip/mm( high resolution)
Pixel size（μm）	20
Cord length（m）	Standard 3m, Optional 5m(If you need a 5m cable, please contact customer service in advance)
Exposure mode	SMART AED mode
Accessory function	Support the Twain Protocol
Operating System	Windows 7 and above，32/64bit
Pixel Matrix	（1.5M）1000×1500	（2.34M）1300×1800

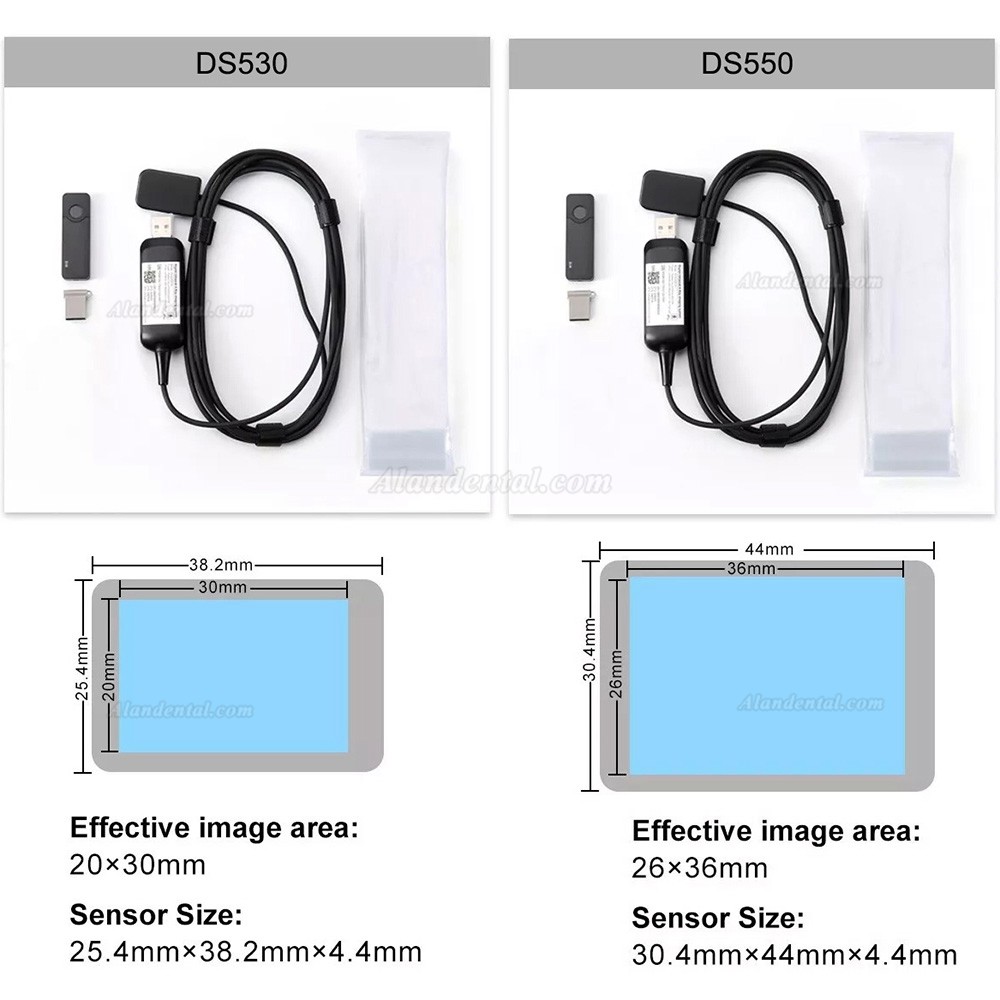

Active Area(mm)	20*30	26*36
Mechanical Size(mm)	25.438.24.4	30.4444.4
Data interface	USB 2.0
AD Conversion(bit)	16bits，65535

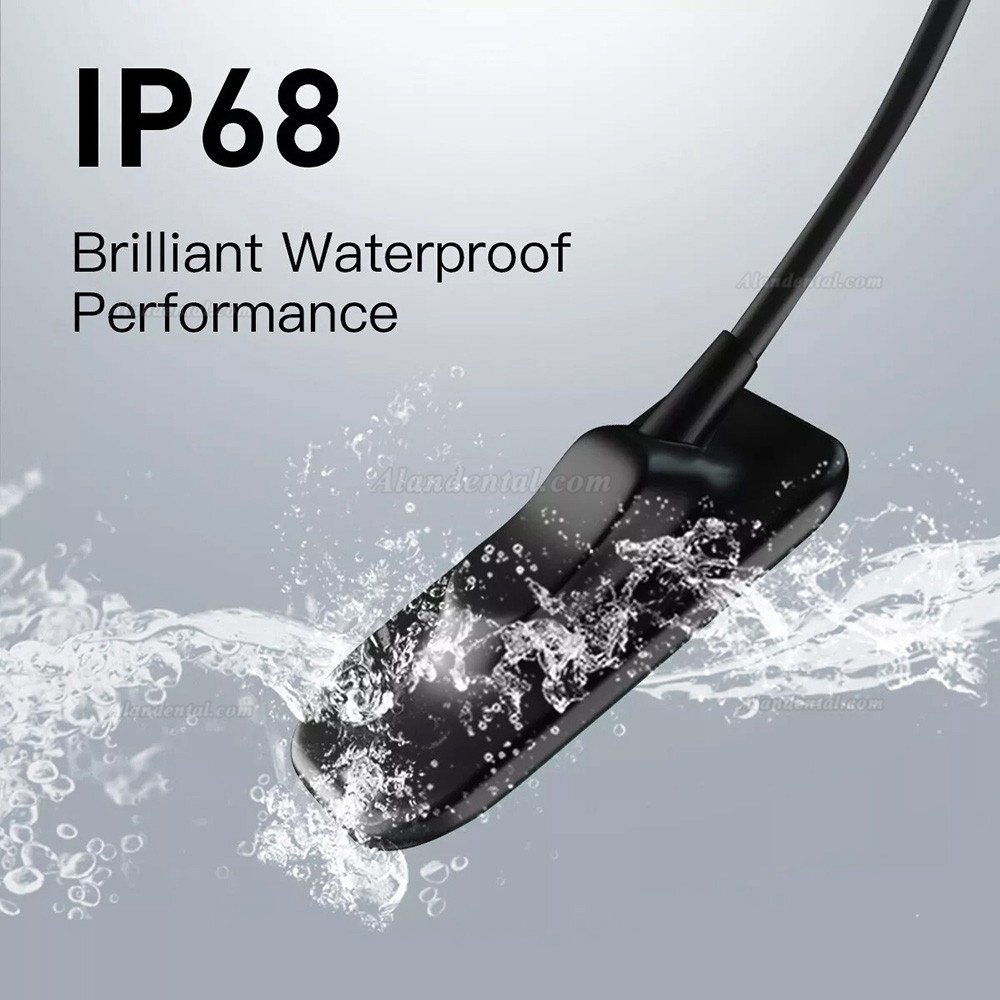

Protection	IP68 for Soak disinfection

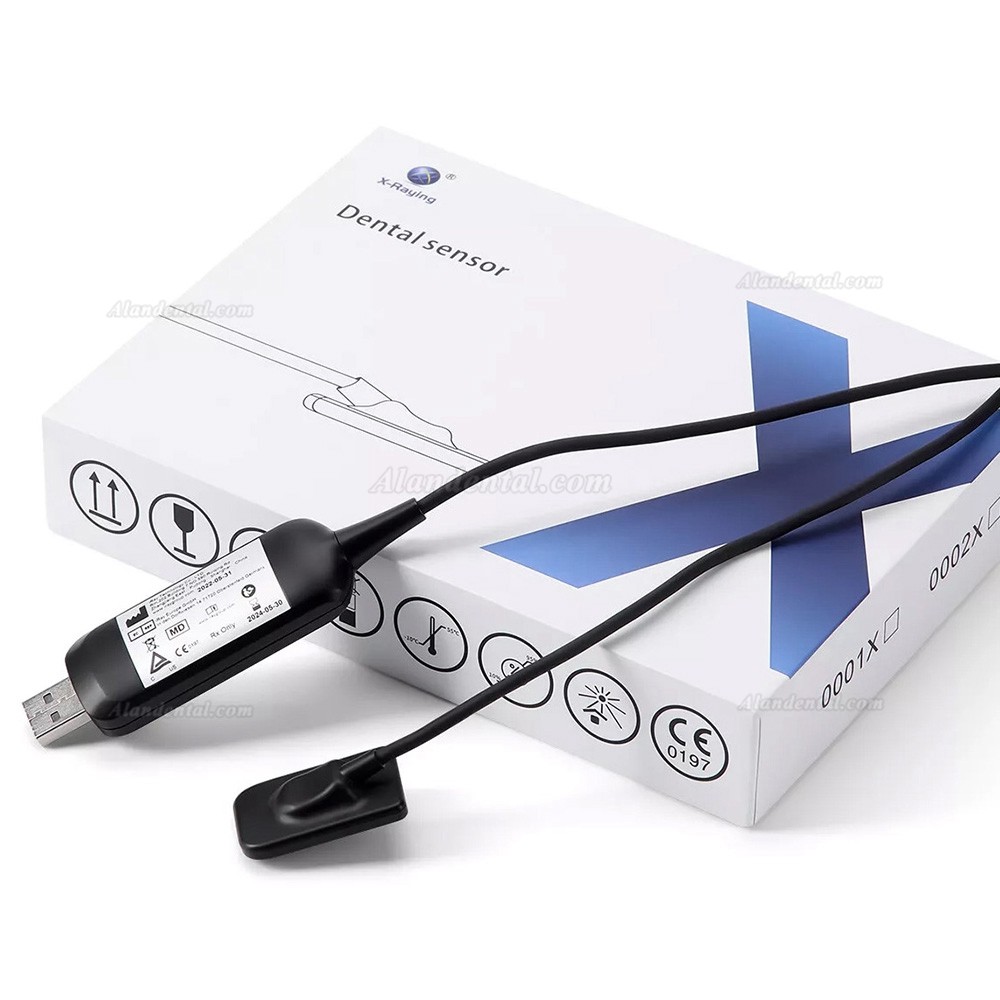

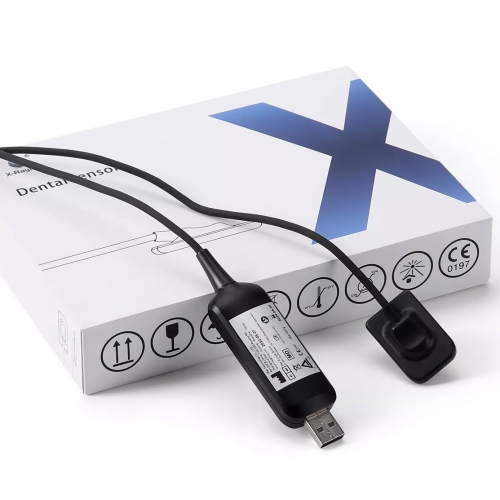

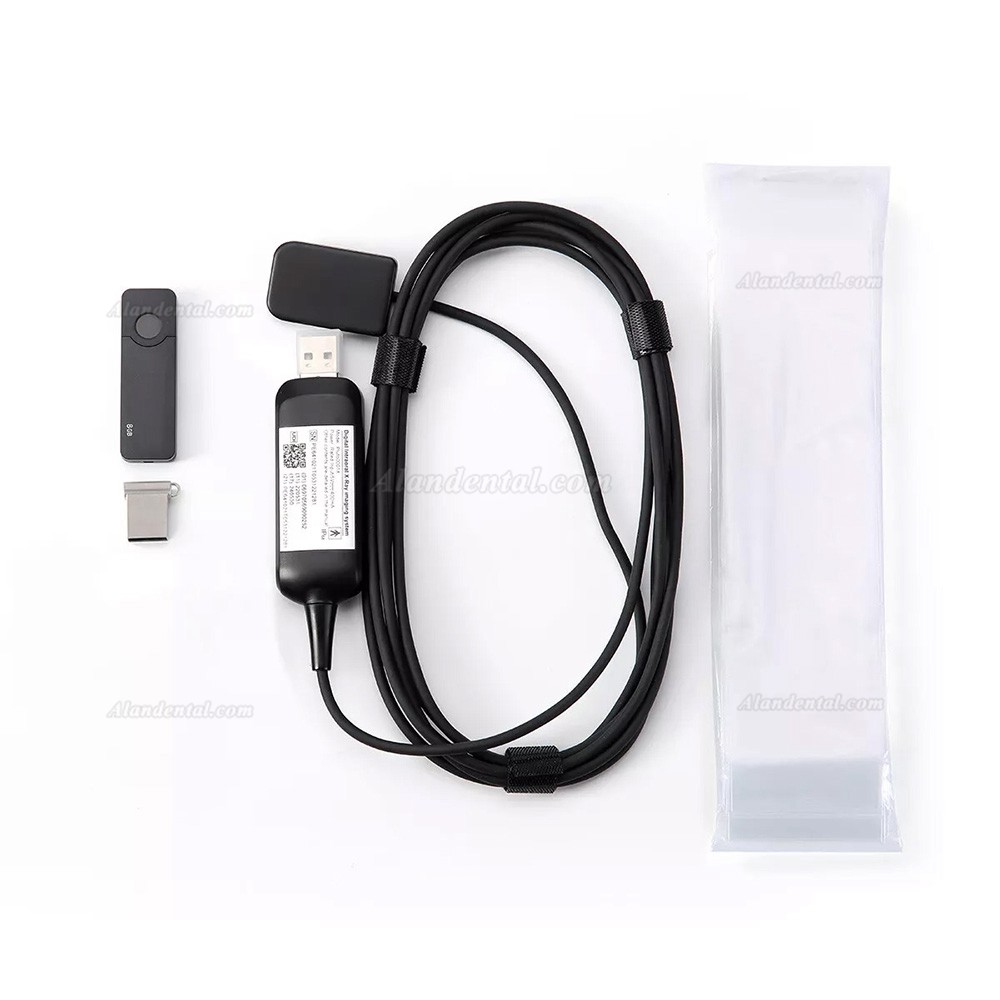

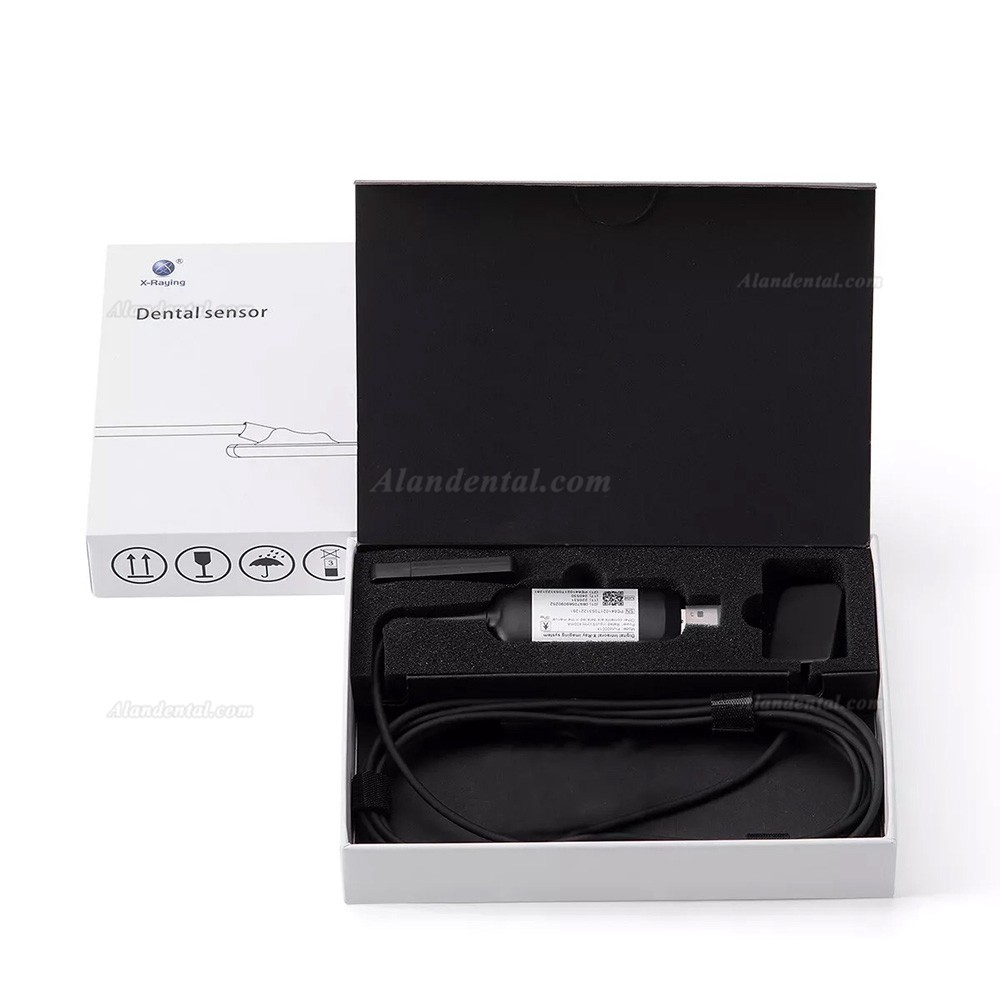

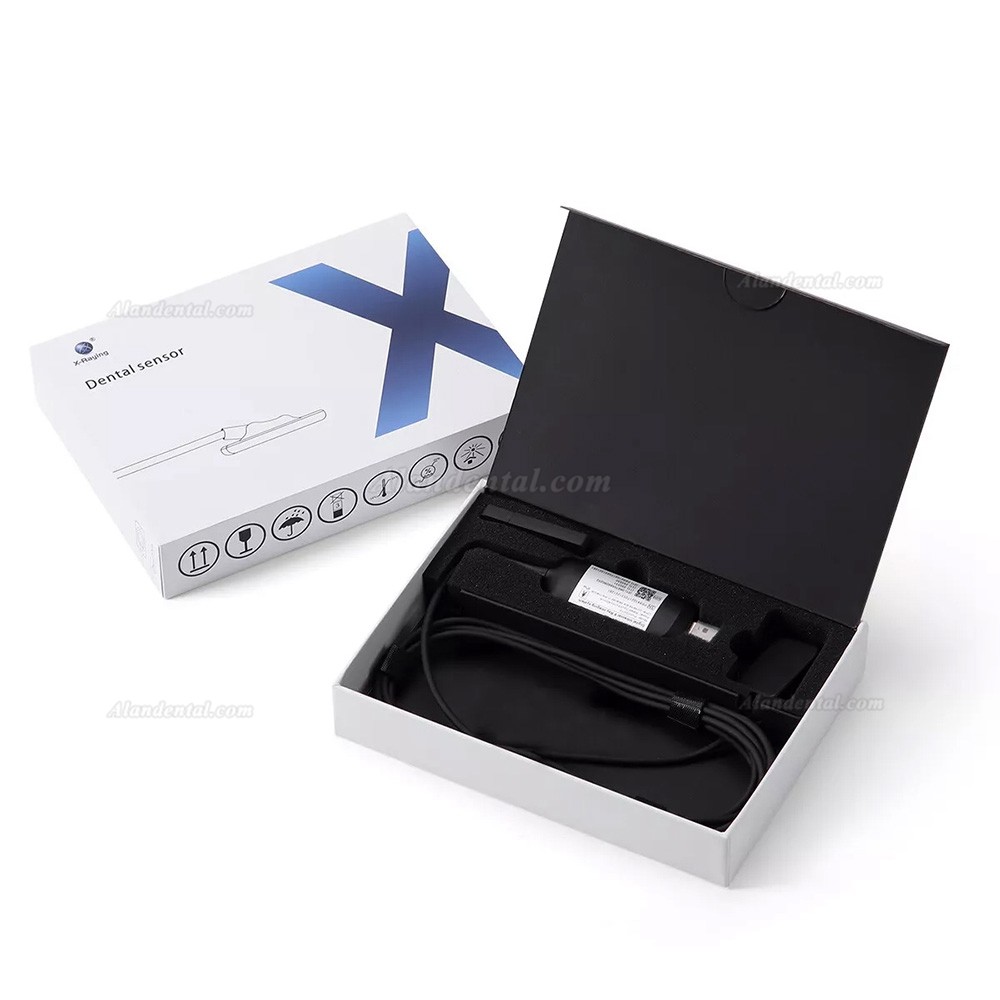

Packing list：

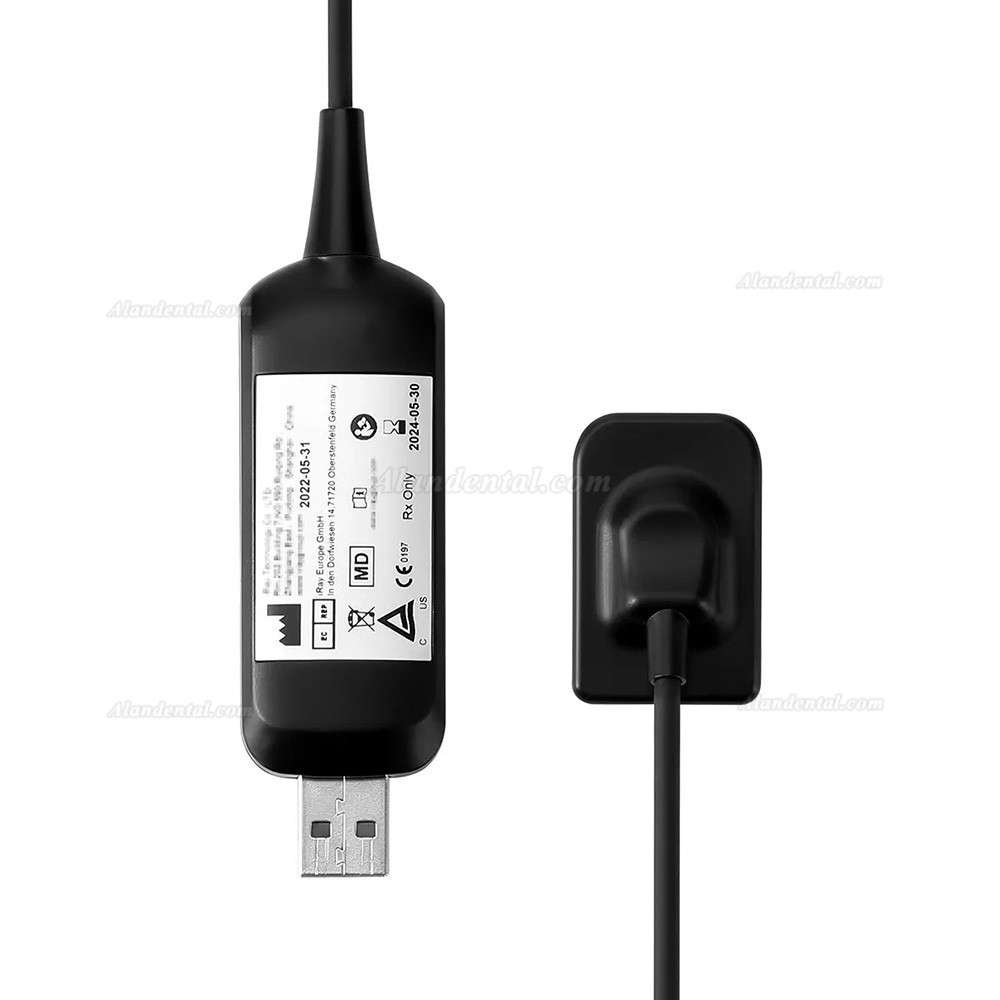

1. Sensor

2. USB flash disk (Software)

3. Protective sleeve
