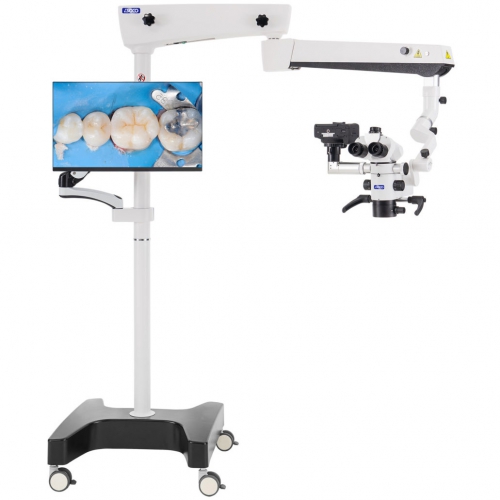

SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)
Item Description Reviews

SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)





Feature

1. Apochromatic optical system design, high-quality imported optical lens, multilayer nano-optical coating,5-speed magnification.

2. Lighting using color rendering index of more than 95% of imported LED bulb.

3. Microscope support using optimized mechanical structure design, Germany imported gas spring, high-quality imported Medical mute casters

 SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)


 SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)

Greater vision and clarity

Multi-layer optical lens from Germany , multi-layer nano-optical coating, 5-speed (3.2x 5x, 8x, 12.8x, 20x) magnification, makes it clear and acute in each multiple. A mong them, the eyepiece uses a 12.5x wide-angle eyepiece to provide a large field of view and 3D stereo imaging. The diopter is +6~-6. The height of the eye cup is adjustable, and the operator wearing the glasses can work comfortably out of the glasses.




 SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)

Apochromatic Optical System

The SOCO SCM600 dental microscopes uses apochromatic optical system to correct the refraction of different wavelengths of red, green and blue visible light, ensuring no chromatic aberration. Multi-layer optical lens from Germany , multi-layer nano-optical coating.



New lighting concept

Equipped the lighting system with LED to provide you with high-quality lighting, regardless of color resolution or color temperature is close to natural daylight, cost-effective, no maintenance.



SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)

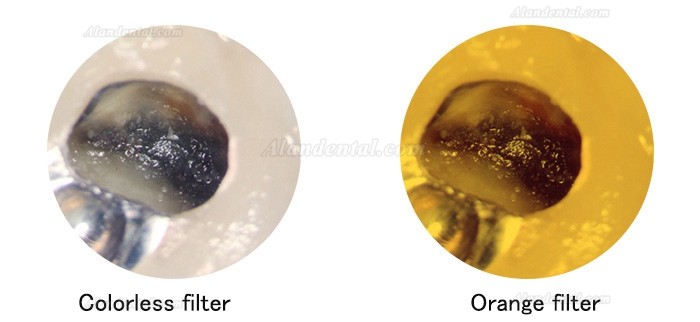

The colorless filter image is clearer, and the image color is close to the state under natural light with less distortion.

The orange filter delays the curing of light-curing resin materials and prolongs the operation time.


 SOCO SCM600UL Dental Operation Microscopes (ULTIMATE)

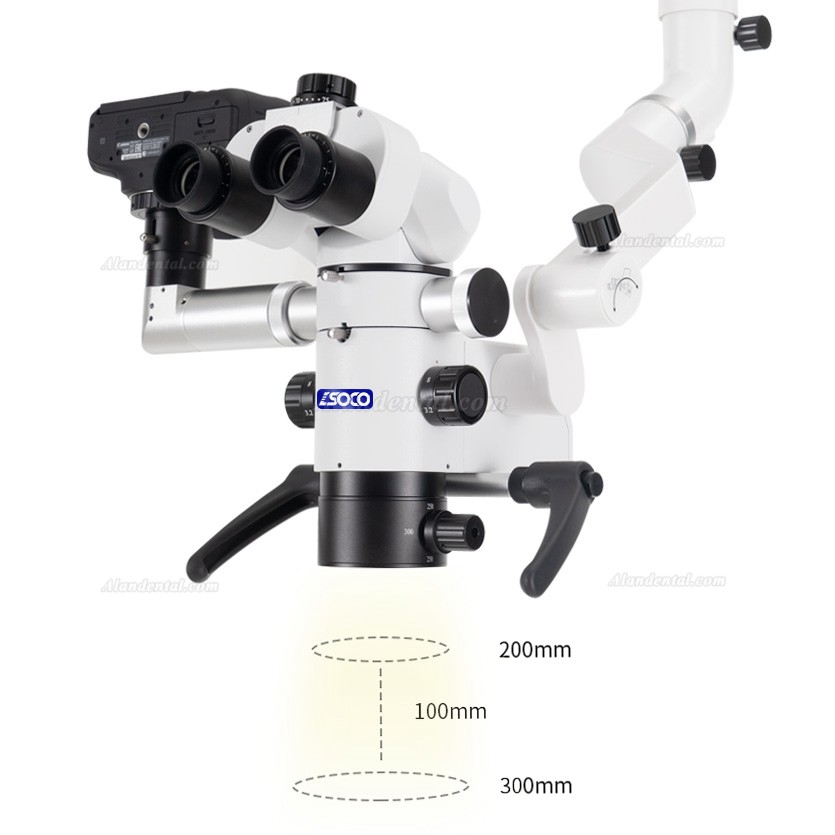

Continuous zoom large objective

Continuous zoom range is 200-300 mm, high, The zoom range of up to 100 mm covers almost all of them. The working distance of oral therapy only needs to adjust the zoom knob. lt's easy to focus anywhere without having to. Change the position of the SOCO SM600 endontic microscopes or your seat.

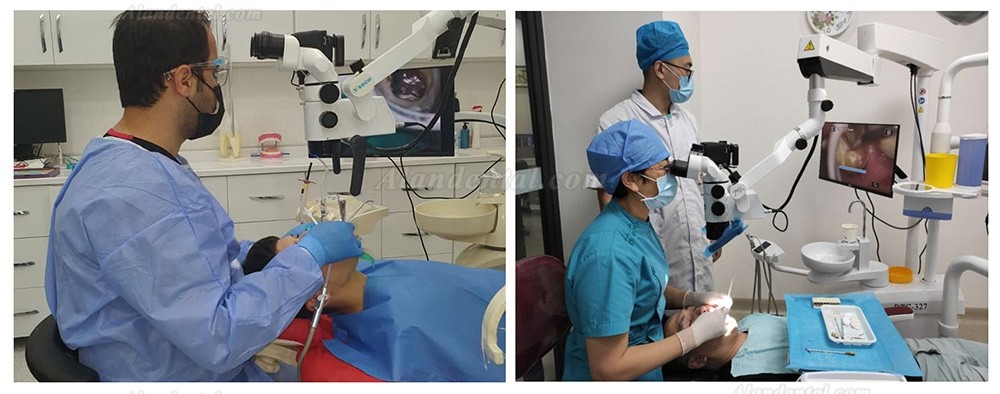

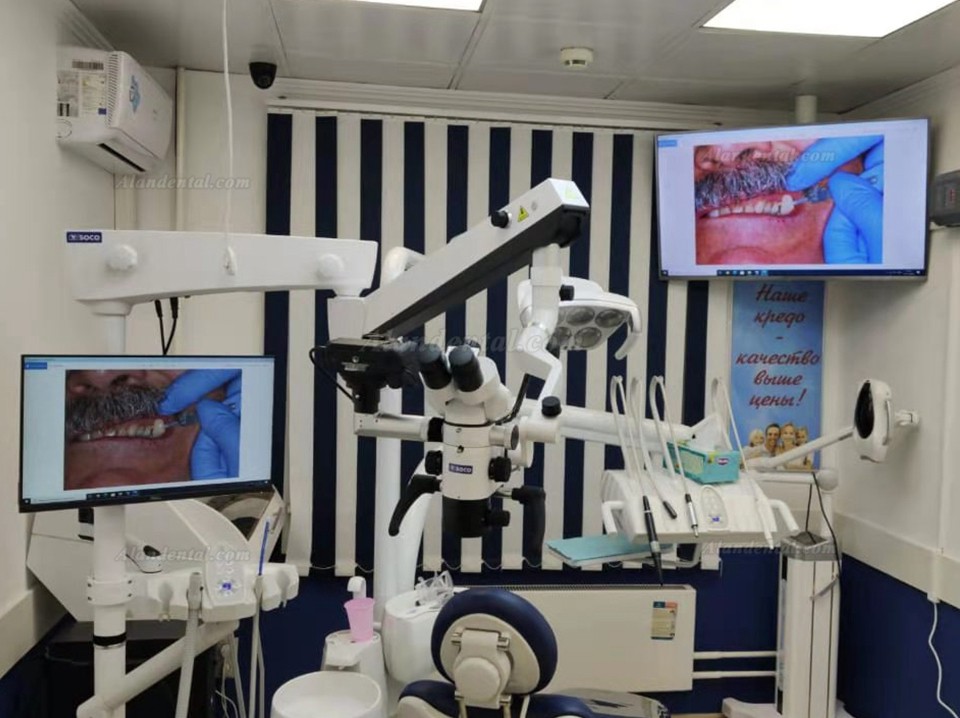

Better communication, more powerful persuasiveness

With clear pictures and videos clips, your clinical concerns are more intuitive and clear when communicating with patients.

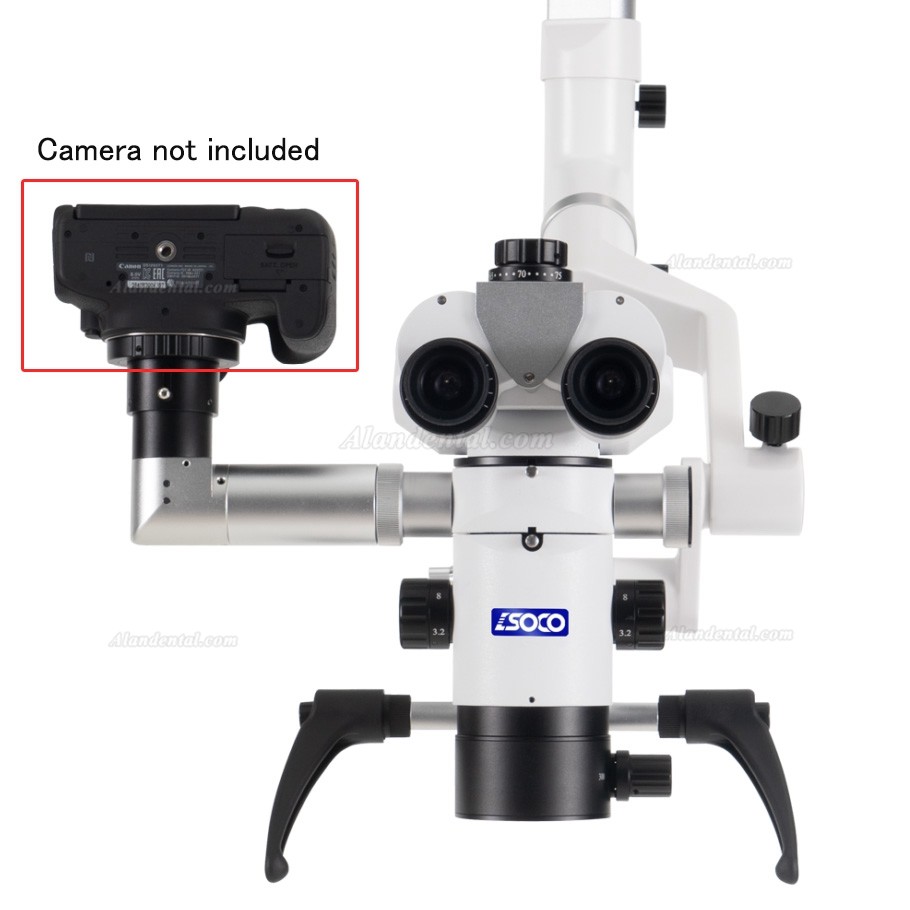

Advantages of external HD camera system

01. A full HD camera system: Sharp detail, high resolution images.

02. The camera function: take pictures at any time during treatment or switch to video recording mode.

03. Real-time video transmission system: continuous real-time video signal streaming, viewing through terminal devices.

04. lmage data storage: stored in an USB flash drive at any time, transmitted to a compatible management device of patient.

05. HDMI full digital output port

06. The foot switch: take HD pictures at any time during surgery




Humanized engineering design

While you are treating patients, we pay more attention to your own comfort. Back pain is almost the feeling you feel after working every day.

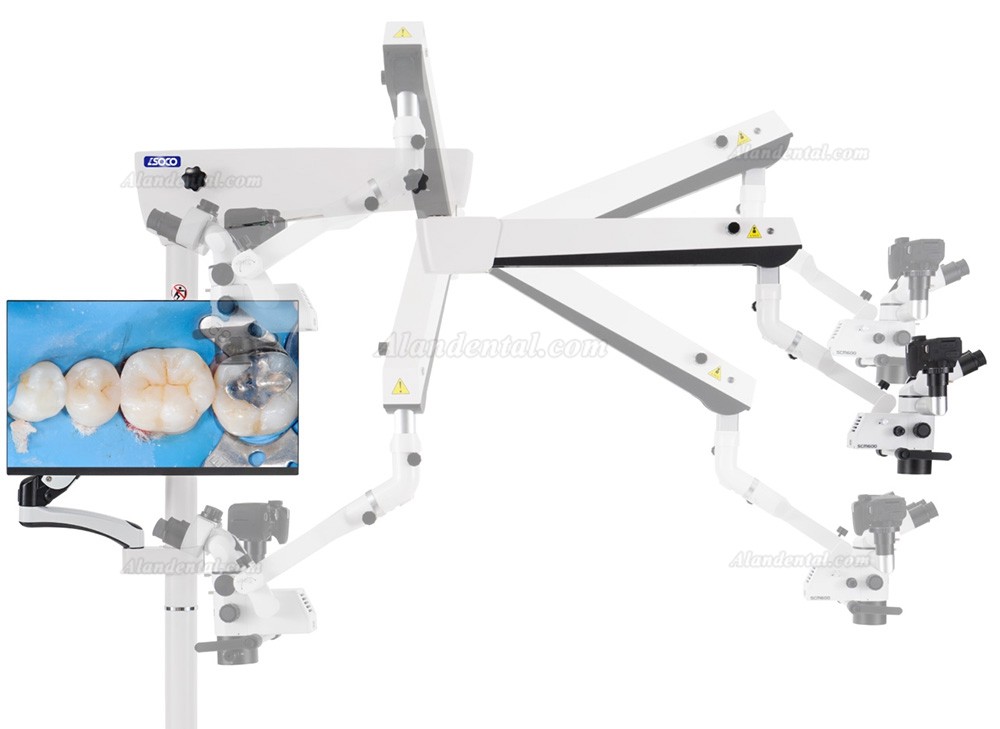

Due to its wide range of telescopic characteristics, it can adapt to the operator's various angles and different demand of position.

The overall left and right (0-60°) adjustable tilt design, German imported gas spring, and optimized mechanical structure swing arm.

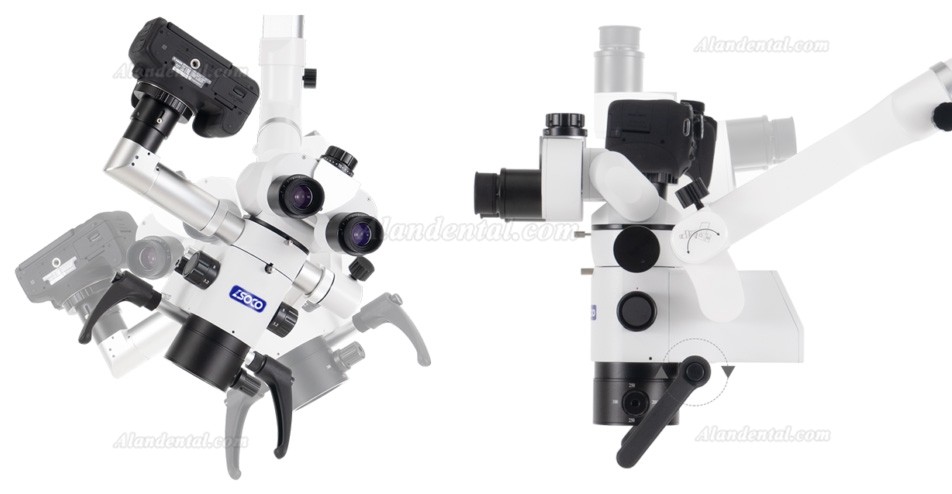

The handle angle can be adjusted at 360°, and the eyepiece tube can be adjusted from 0 to 180°.

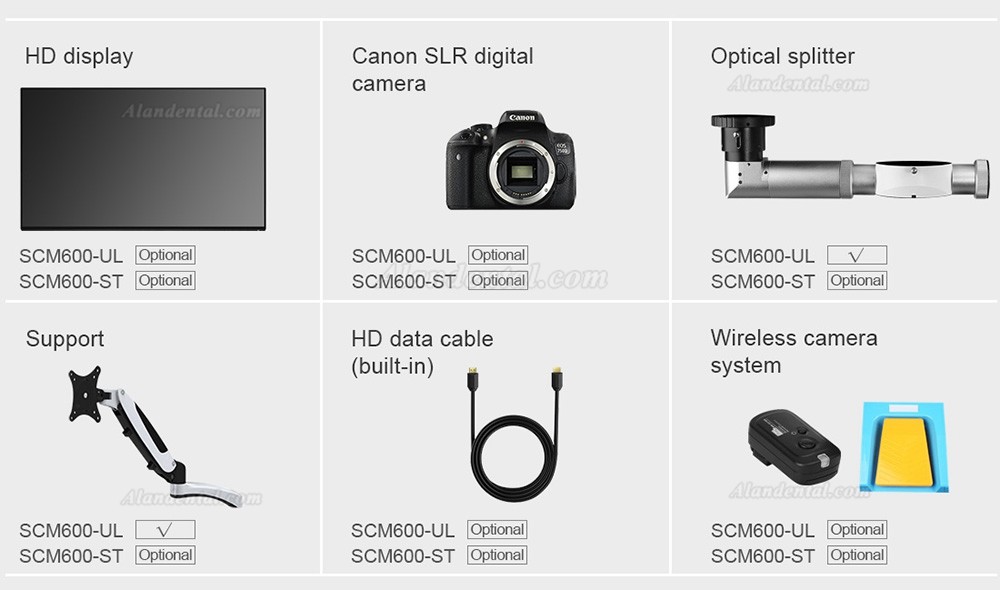

Different configurations meet your different needs

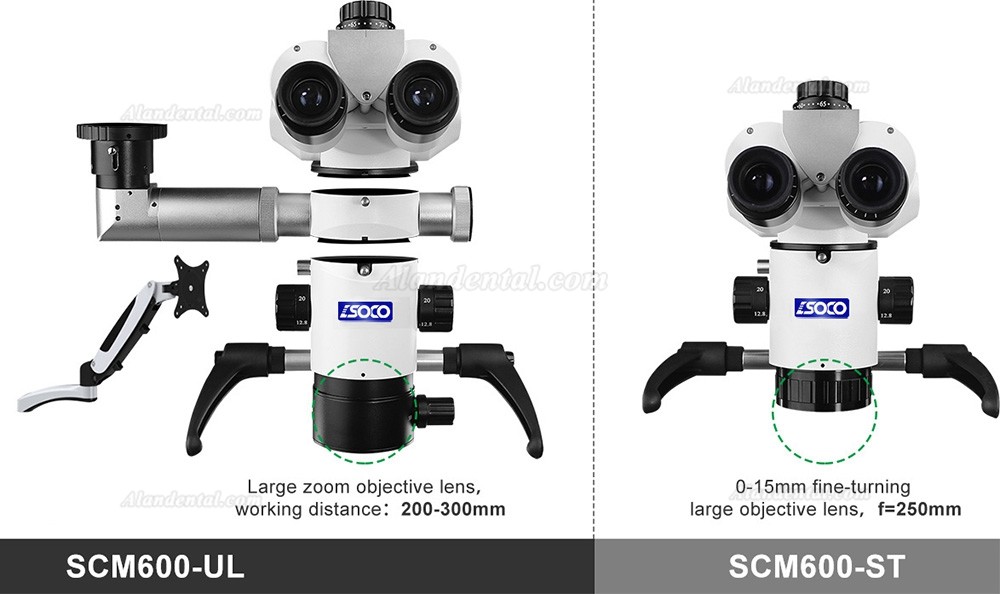

The difference between scm600-ul and scm600-st is that UL has an external image system and a zoom large objective lens, and ST has no external image system and zoom large objective lens.

UL : They prefer doctors who have no experience in operating microscopes. St can be equipped with zoom lens and external imaging system, which can be upgraded to UL version

ST : More likely to have experience in the microscope in dentistry

SOCO SCM600UL Dental Operation Microscopes (ULTIMATE) Unboxing and Installing Video

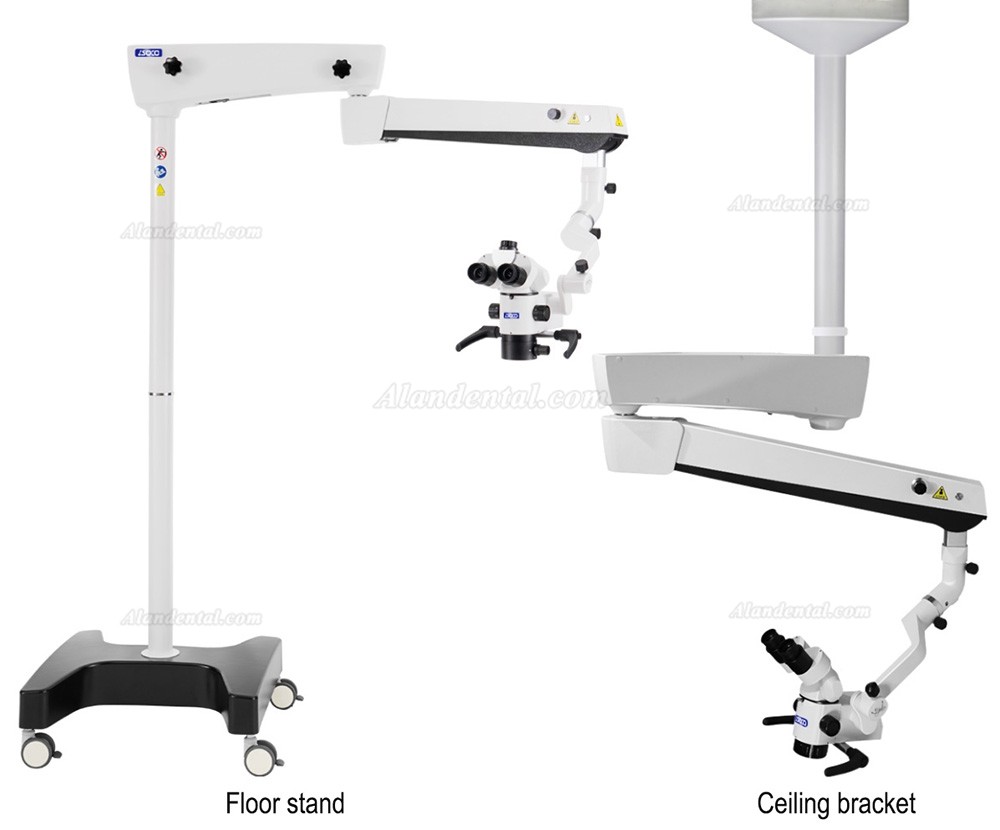

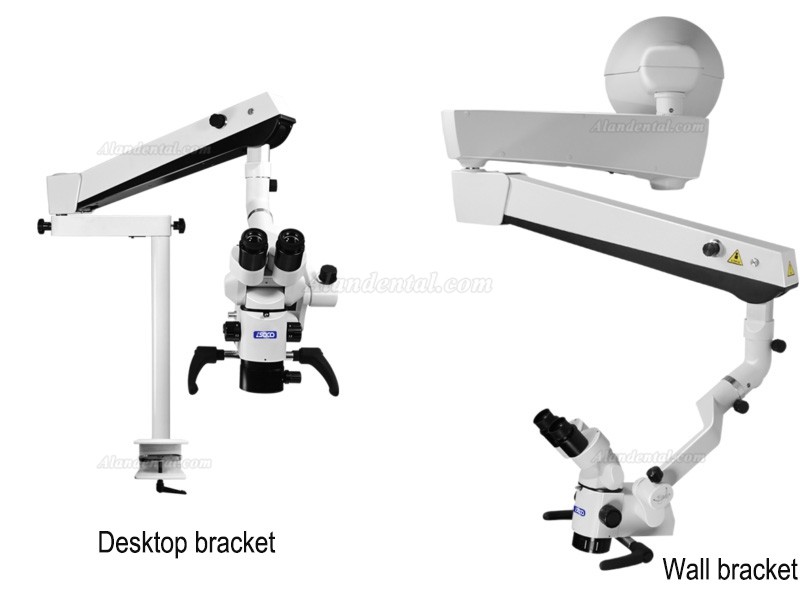

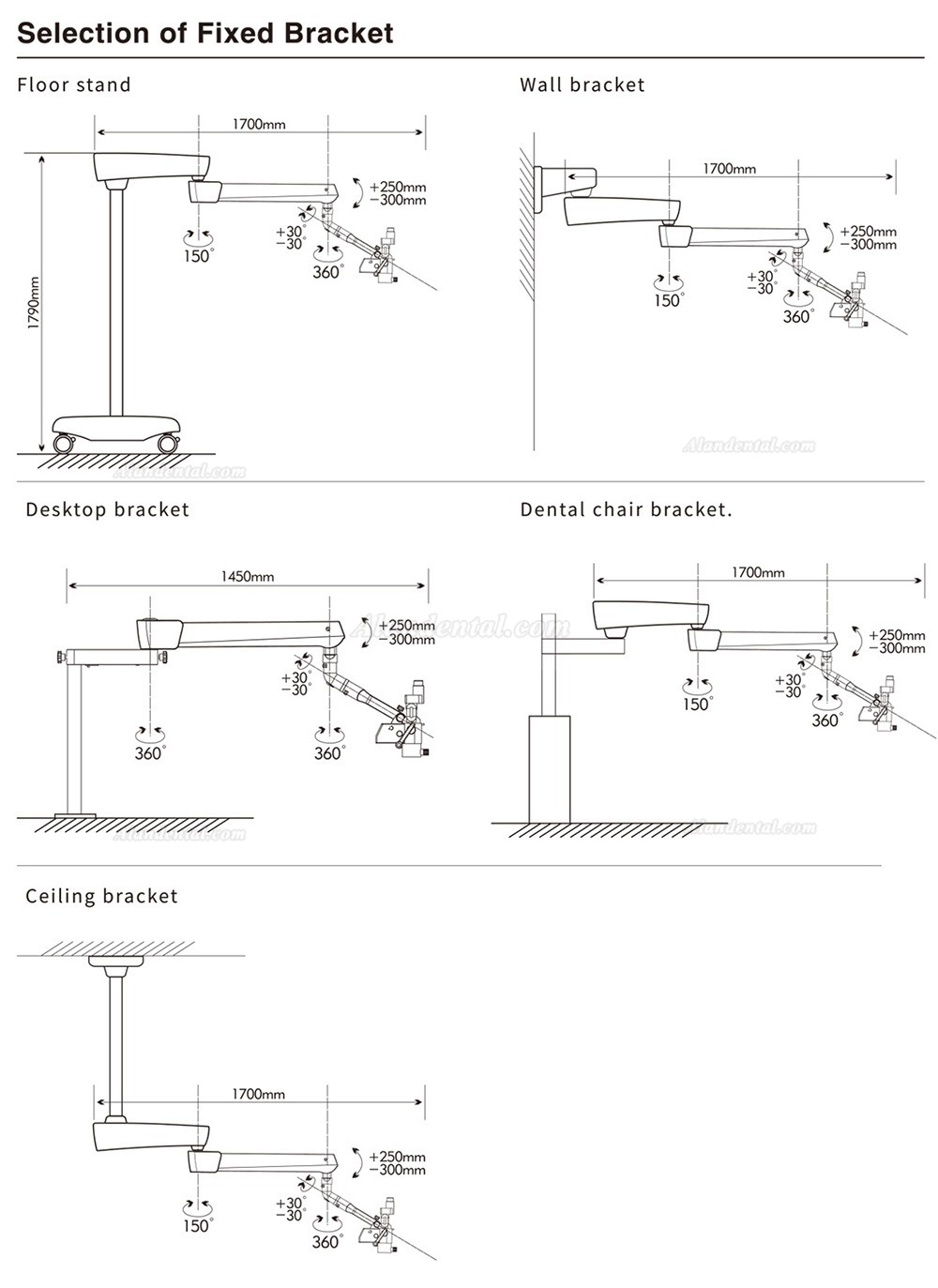

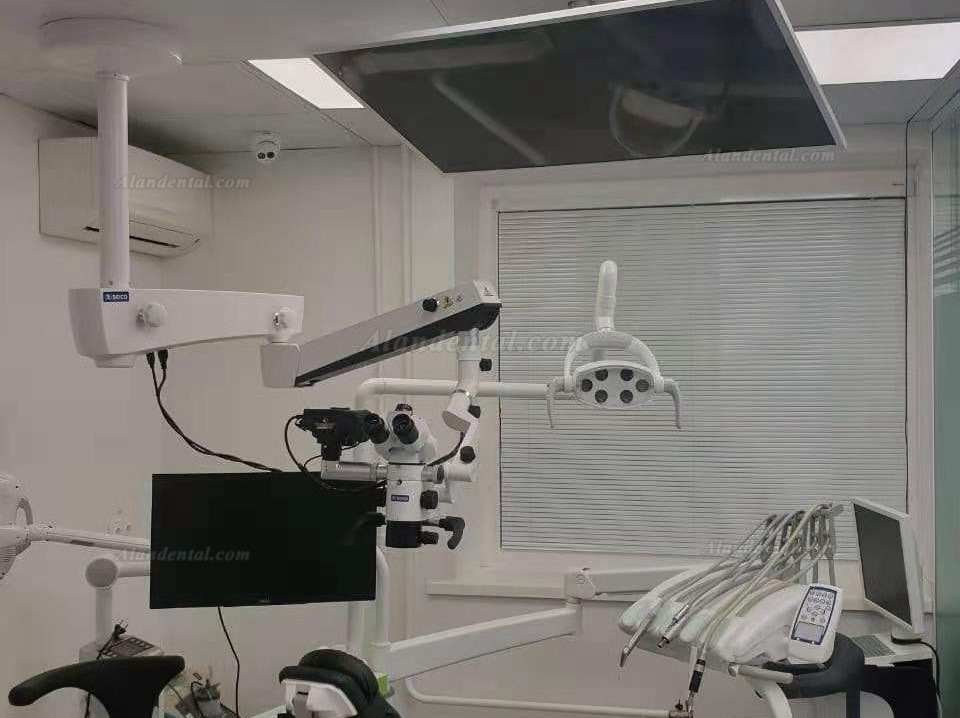

In addition to floor-standing dental microscopes, we also provide wall-mounted, ceiling-mounted, and desktop-mounted dental microscopes. If you need a dental microscope of other installation types, please contact our customer service.


Technical Parameters and Configuration

Standard Configuration      Optional Configuration

  SCM600 STANDARD SCM600 ULTIMATE
Optical System Apochromatic optical system
Magnification System Five-step Zoom: Magnification factor: 0.4x, 0.6x, 1x, 1.6x, 2.5x
Total Magnification: 1.8x-19.1x
Binocular Tube 0°-180° Variable Angle Binocular Tube with interpupillary adjustment mechanism, Interpupillary distance adjustable from 55-75
High eye point 12.5x Wide-Angle Eyepiece, adjustable eye cup height, diopter compensation range +7D
Zoom System Zoom objective lens with variable working distance of 200-415mm
Lighting System Integrated true color LED illumination with color temperature 5700K, color rendering index >90%, illuminance 65,000Lux
Integrated orange filter, green filter; white spot light modes in three sizes: large, medium, and small.
External Hd Imaging System Interface 3-in-1 Beamsplitter: 45° extender, pendulum system, integrated beamsplitter with a split ratio of 2:8 or 5:5
Digital Camera Tube: Knob-style camera focus adjustment
Bracket system Imported German Gas Spring
Two-stage Locking Mechanism for the Swivel Arm
Load Adjustment Mechanism for the Balance Arm
Balance Arm Equipped with a Locking Mechanism, Capable of 320° Rotation and a Vertical Travel Range of 480mm (Up/Down)
Maximum Arm Clear Span: 1655mm
Integrated Base with 3-inch silent medical casters, base size: 590x590mm

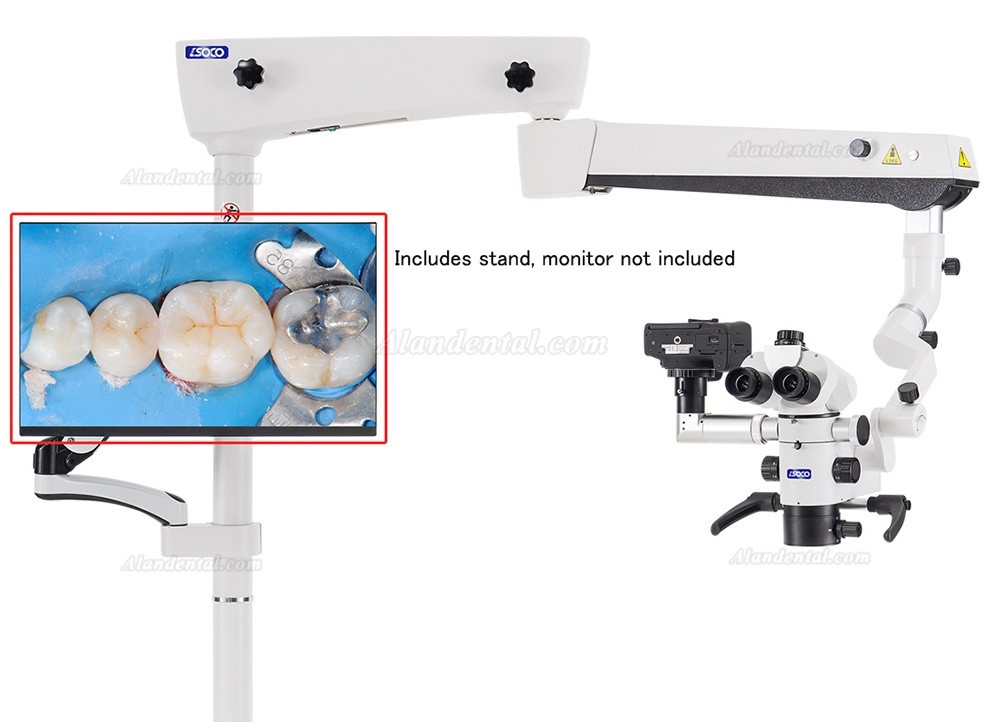

Accessories Monitor Bracket
24-inch HD Monitor
27-inch 4K UHD Monitor
Camera (Optional Camera Brands: Canon, Sony)
Direct Camera Power Supply
Wireless Photography System
Objective Lens Protective Cover
  Built-in high-definition data cable
