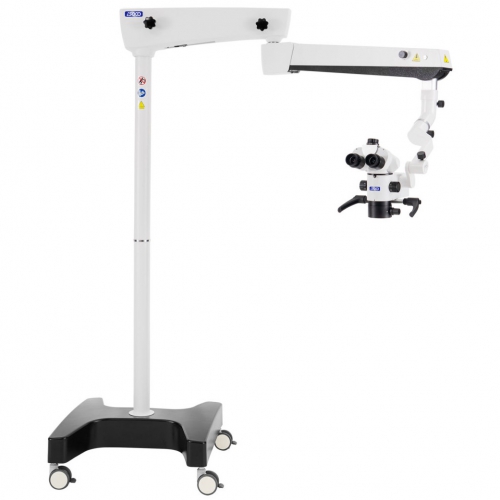

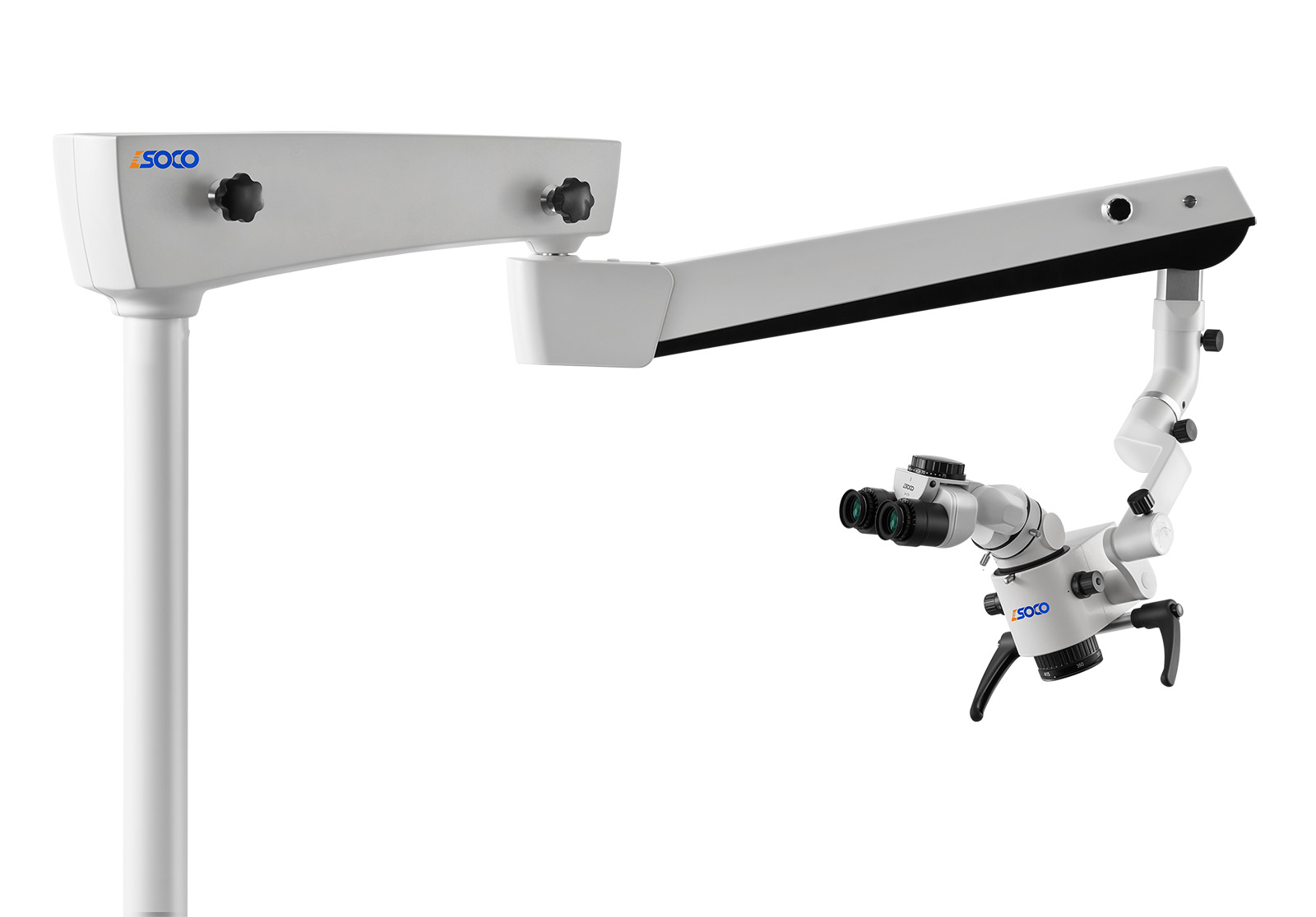

SOCO SCM600ST Dental Operation Microscopes (STANDARD)

SOCO SCM600ST Dental Operation Microscopes (STANDARD)

Greater vision and clarity

Multi-layer optical lens from Germany , multi-layer nano-optical coating, 5-speed (0.4x、0.6x、1x、1.6x、2.5x) magnification,makes it clear and acute in each multiple. A mong them, the eyepiece uses a 12.5x wide-angle eyepiece to provide a large field of view and 3D stereo imaging. The diopter is +7~-7. The height of the eye cup is adjustable, and the operator wearing the glasses can work comfortably out of the glasses.

 Apochromatic Optical System

The microscope uses apochromatic optical system to correct the refraction of different wavelengths of red, green and blue visible light, ensuring no chromatic aberration. Multi-layer optical lens from Germany , multi-layer nano-optical coating.

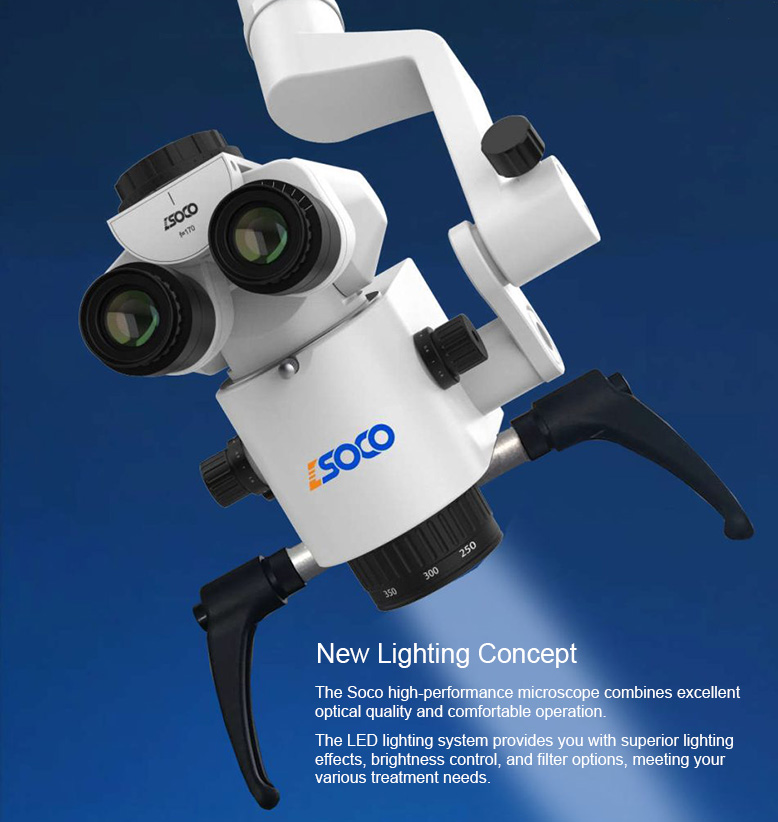

New lighting concept

The Soco high-performance microscope combines excellent optical quality and comfortable operation.

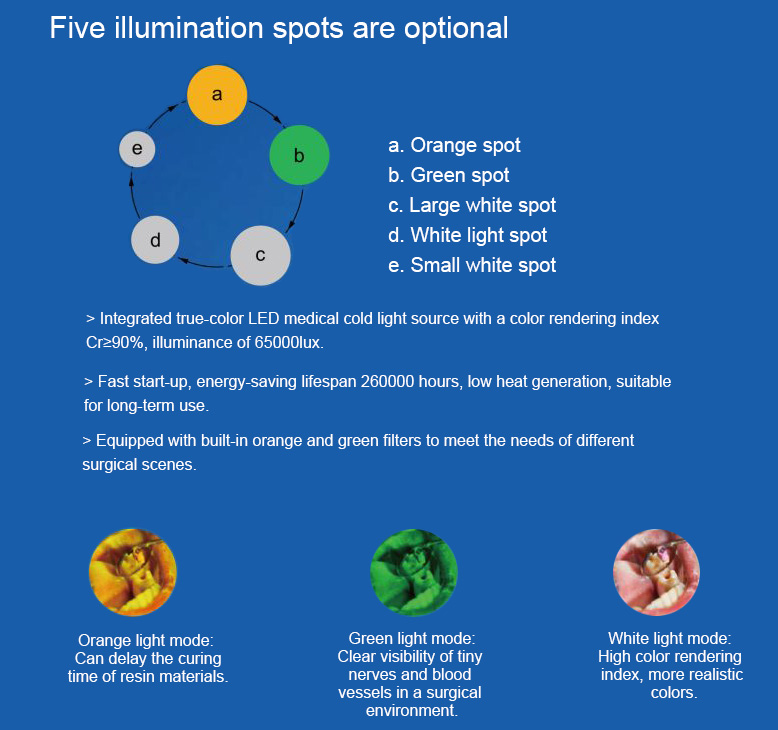

The LED lighting system provides you with superior lighting effects, brightness control, and filter options, meeting your various treatment needs.

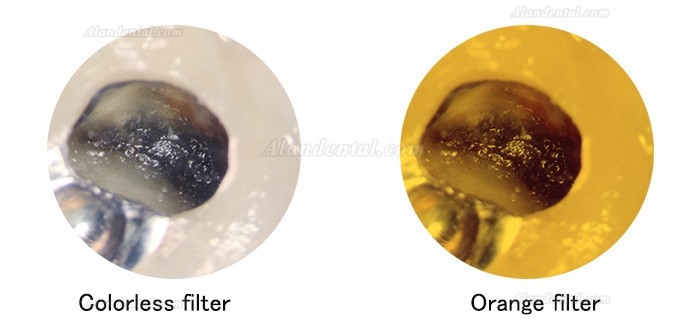

The colorless filter image is clearer, and the imagecolor is close to the state under natural light with less distortion.

The orange filter delays the curing of light-curing resin materials and prolongs the operation time.

Superior Optical Performance

High-definition vision, precise operation, significantly improving the success rate and safety of surgery.

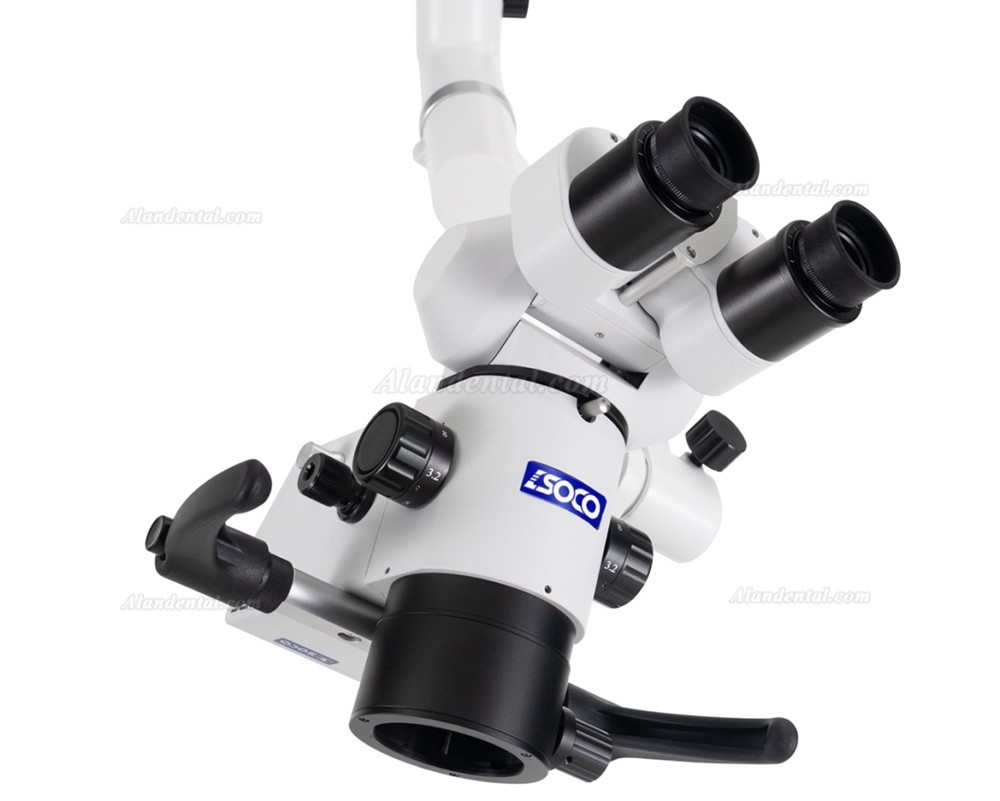

High-definition 12.5X wide-angle eyepiece

The wide-angle eyepiece provides a larger field of view, making observation easier and facilitating the rapid and accurate design of hyperopia refractive correction.

Five-step magnification (0.4-2.5)

Total magnification range: 1.8x-19.1x Can meet different treatment needs.

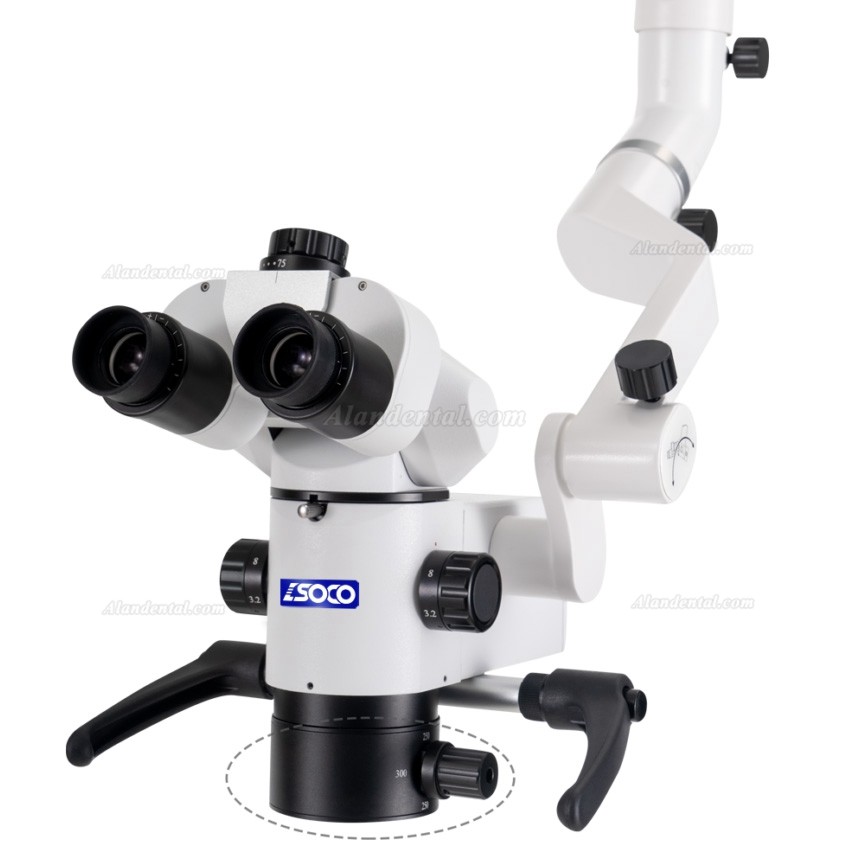

Large zoom travel, working distance 200-415mm

Covers the entire oral depth, suitable for all dental specialties, providing doctors with more flexible clinical applications.

German-imported optical glass, multi-layer coating process for achromatic optical system design using

German-imported special optical glass (EDGlass) with unique optical properties: lower dispersion, higher transmittance, extremely high transparency, helping to reducel color aberration in images, providing clearer and sharper images.

Lenses are coated with anti-reflective coatings and multi-layer coating materials via advanced E-beam Evaporation processing technology. which reduces light reflection.l increases transmittance, and prevents glare.

During the assembly of microscopes, each lens is subject to strict surface inspection and accuracy testing to ensure the opticalperformance of the finished product.

Humanized engineering design

While you are treating patients, we pay more attention to your own comfort. Back pain is almost the feeling you feel after working every day. Due to its wide range of telescopic characteristics, it can adapt to the operator's various angles and different demand of position.

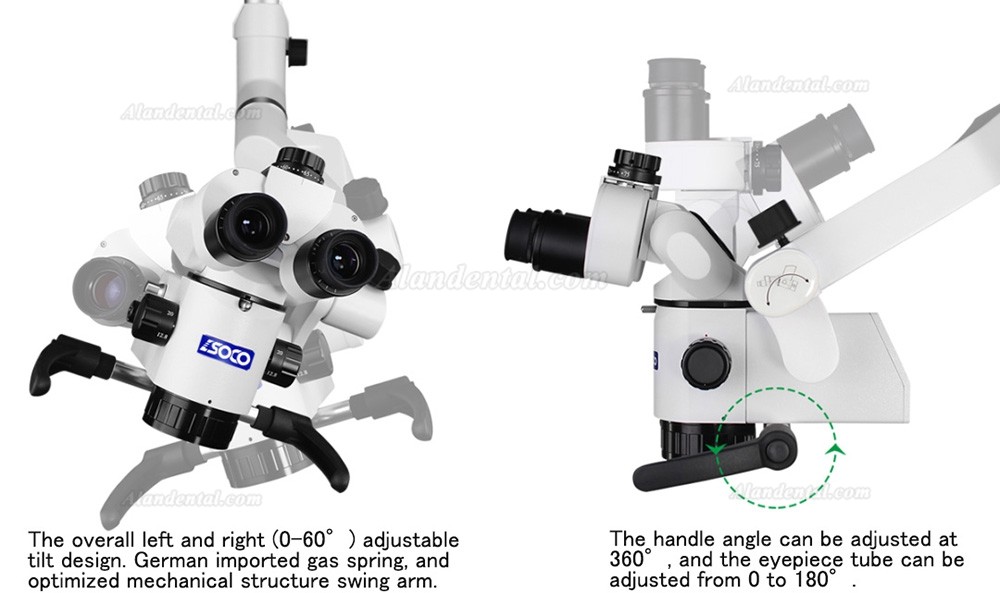

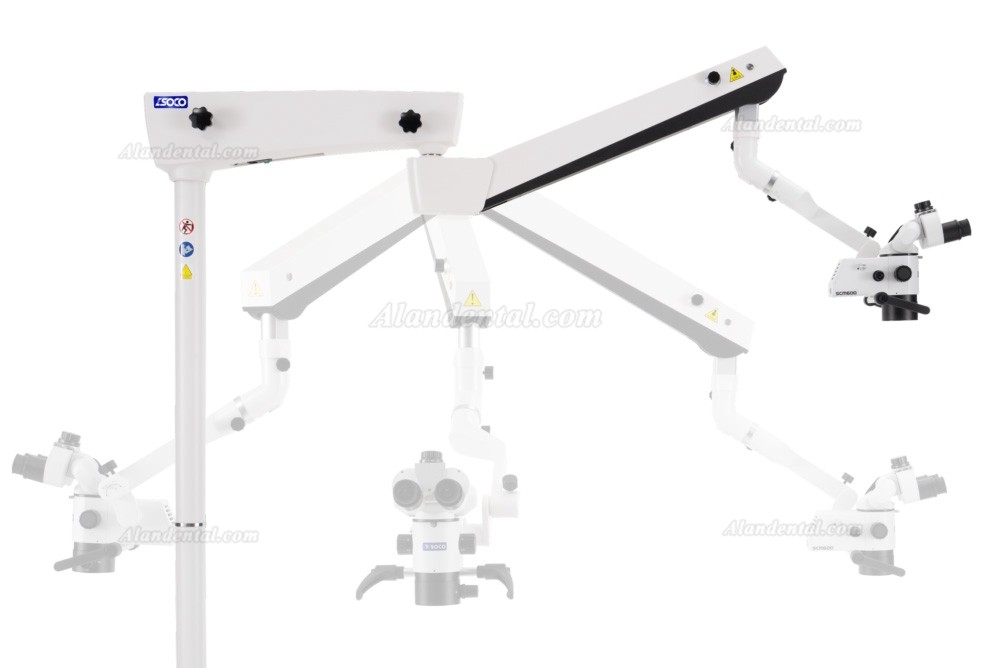

The overall left and right (0-60°) adjustable tilt design, German imported gas spring, and optimized mechanical structure swing arm.

The handle angle can be adjusted at 360°, and the eyepiece tube can be adjusted from 0 to 180°.

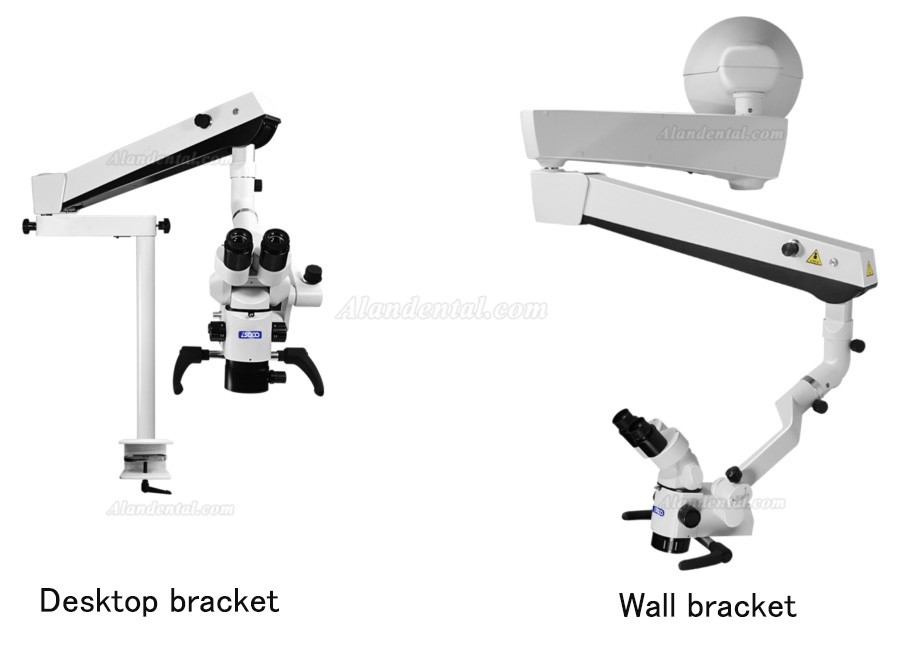

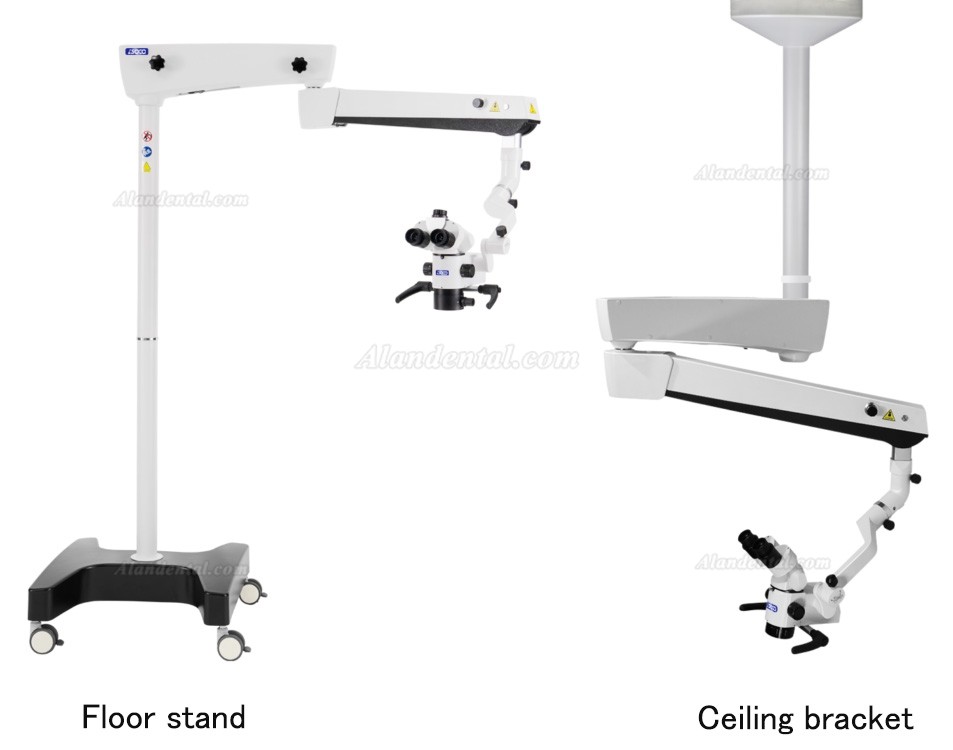

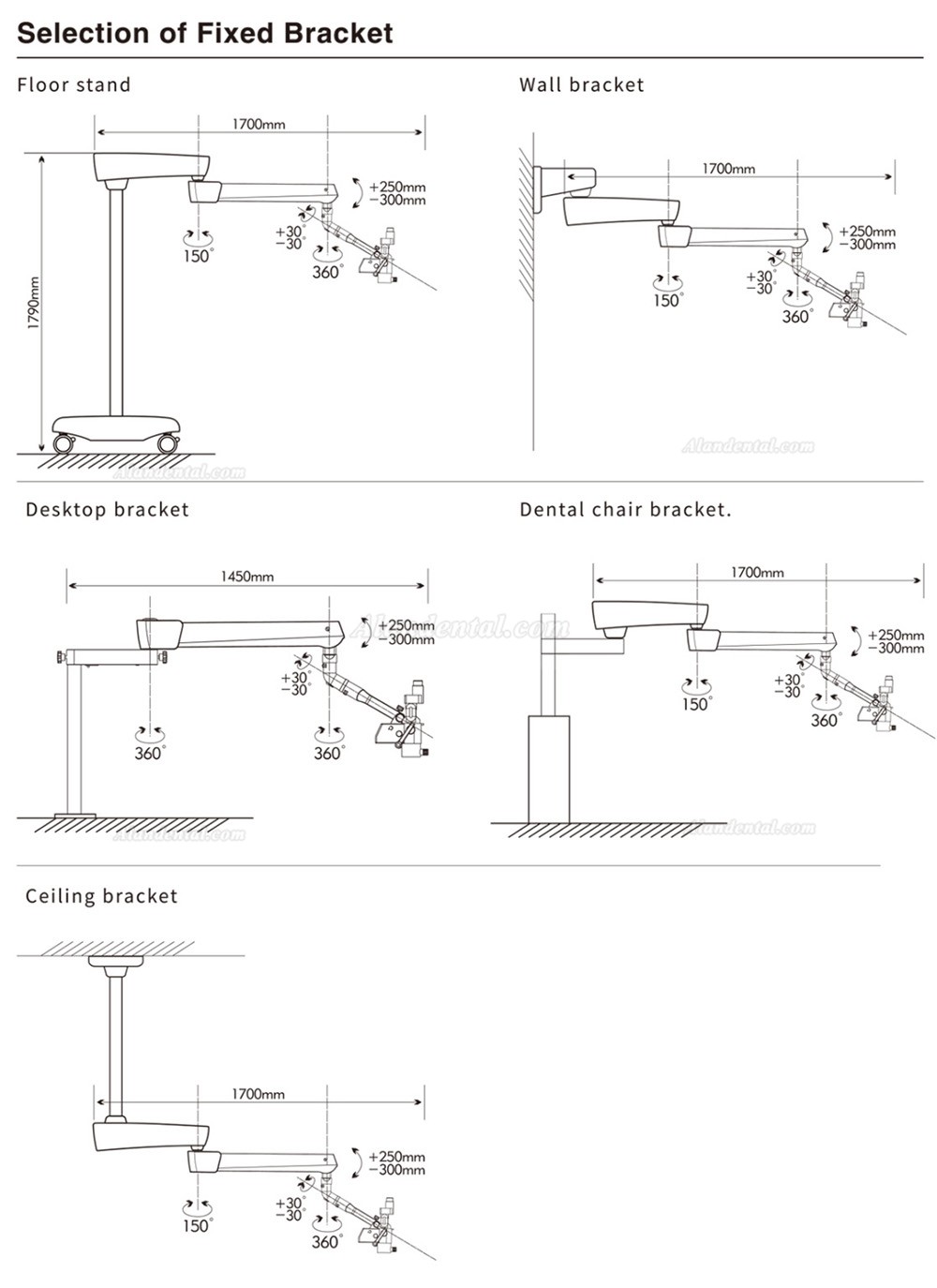

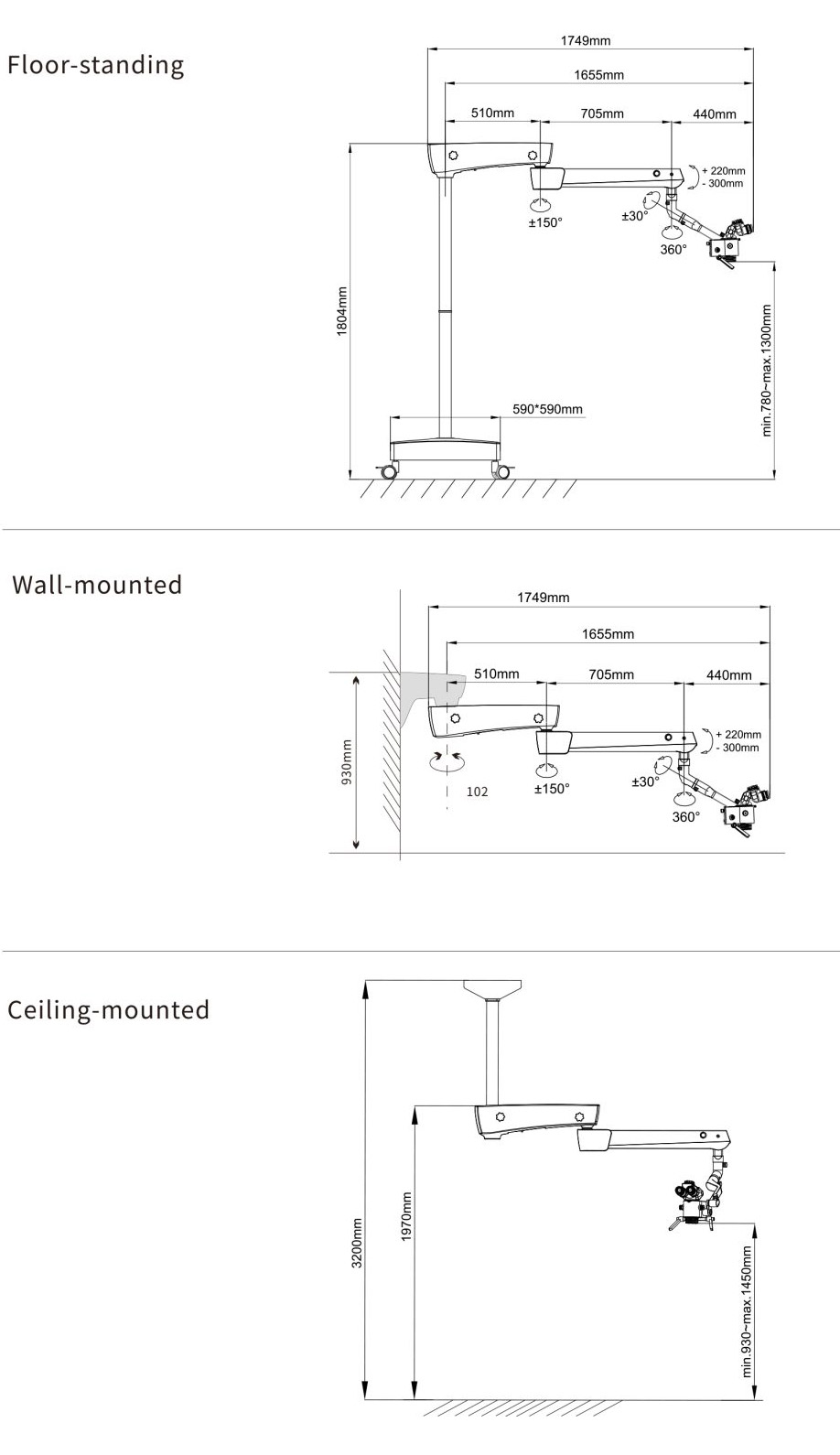

Various Mounting Bracket Diagrams of SCM600 Bracket

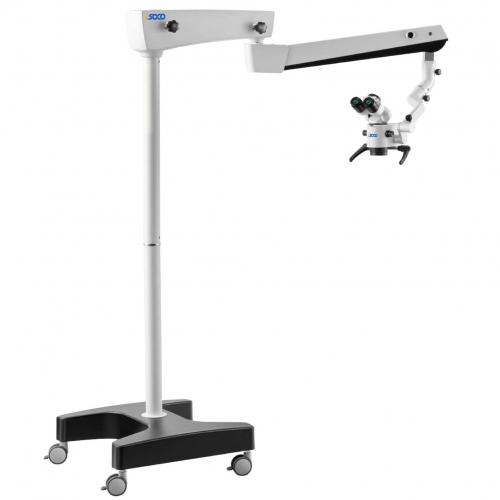

The bracket system can be customized with various installation methods. You can choose floor-standing, wall-mounted, or ceiling-mounted options based on the spatial structure and usage scenarios of the clinic. The simplified diagrams for various installation methods are as shown in the figure.

Reliable logistics service

At present, our products have been sold to more than 80 countries and regions around the world. We have reliable logistics services to ensure that the goods can reach your region accurately

Technical Parameters and Configuration

●Standard Configuration      ○Optional Configuration
