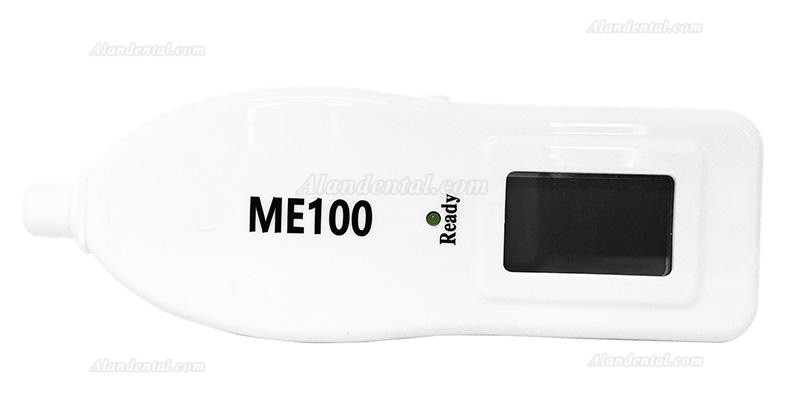

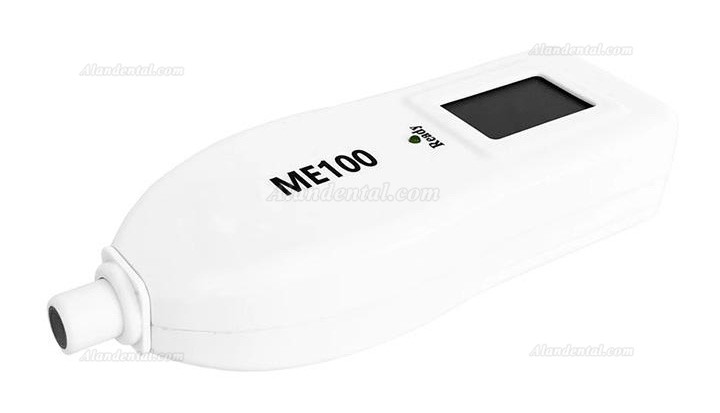

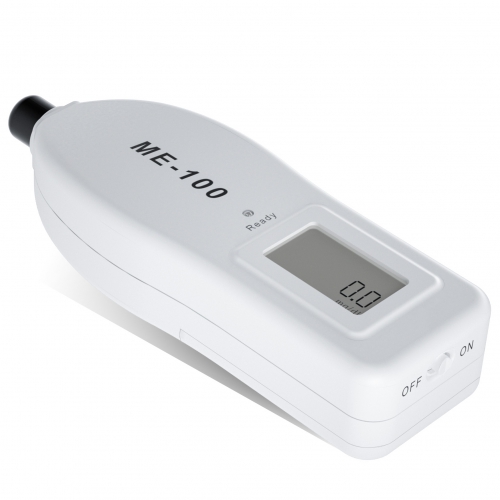

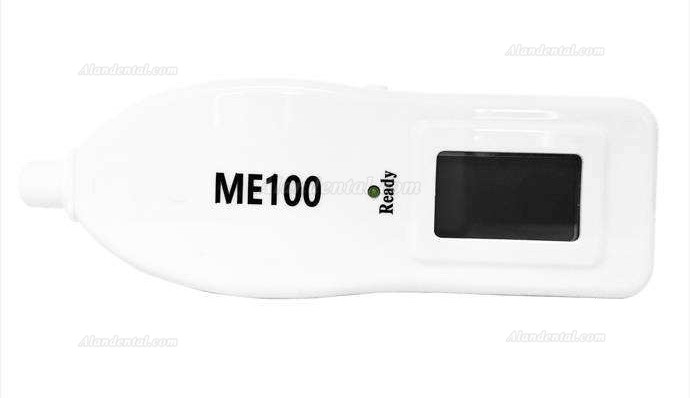

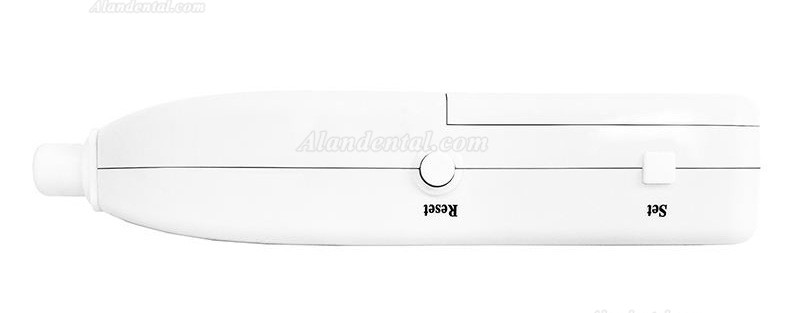

Model: ME100
Display mode: LCD display
Reading mode: Direct reading
Measurement mode: Light reflection type
Switching function of measuring unit: Optional setting of μmol/L or mg/dL
Average measurement function: 1–9 times average measurement
READY indicator function: "READY" indicator light indicates the test can be carried out
Data correction function: Measurement results can be compared with the standard calibration board or reference instrument
Data storage function: Stores 20 groups of data
Battery: AA 1.5V ×2 battery, low power prompt, replaceable when power runs out
Weight: about 150g net weight
Warm Tip:
1. The instrument uses internal direct current. To avoid interference, keep the instrument away from cell phones, computers, printers, and similar devices, or use aluminum foil as an isolation device.
2. Place the probe vertically on the measurement site. Press down gently. Once you hear the "click" sound, read the display.
3. After the test, turn off the power (OFF).
4. Whether testing newborns or checking calibration boards, the fiber optic probe should be placed completely on the measured position. There should be no gap between the probe and the skin or calibration plate.
5. The optical fiber probe should not collide with sharp objects. Do not drop or hit the instrument. Periodically clean the probe surface with ethanol.
Measuring Method: Multiple measurements (2–3 times) recommended; take the average.
