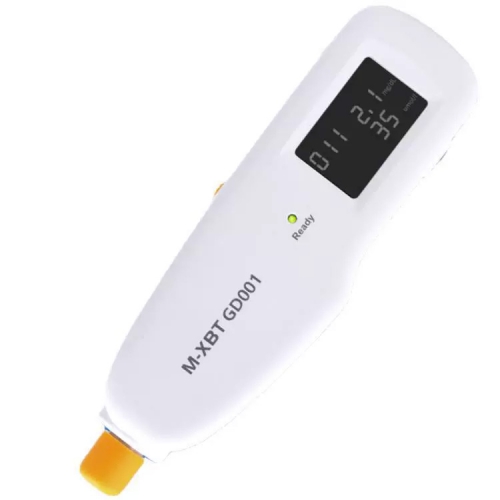

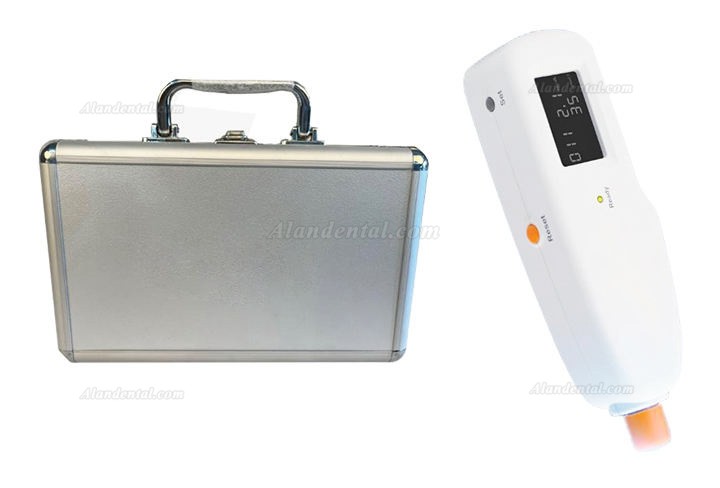

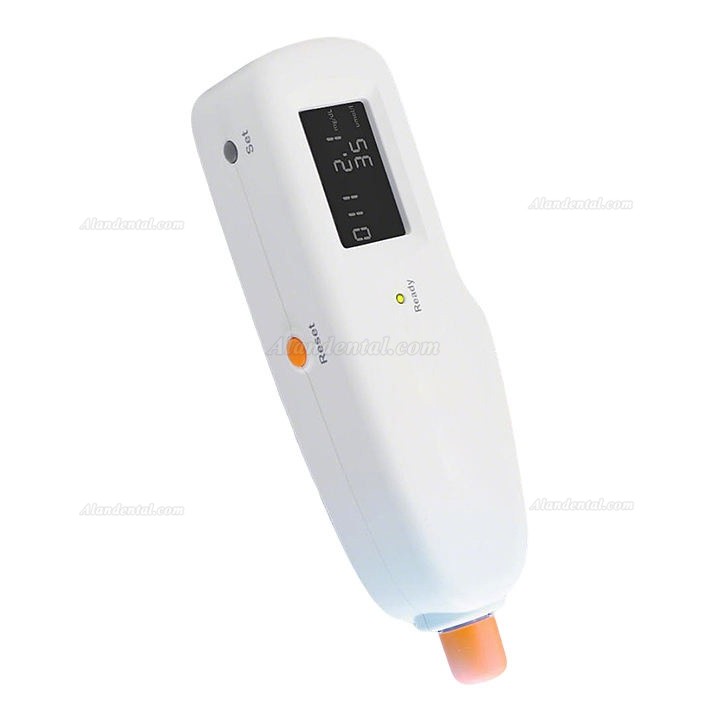

M-XBT GD001 Handheld Neonatal Transcutaneous Bilirubin Jaundice Tester

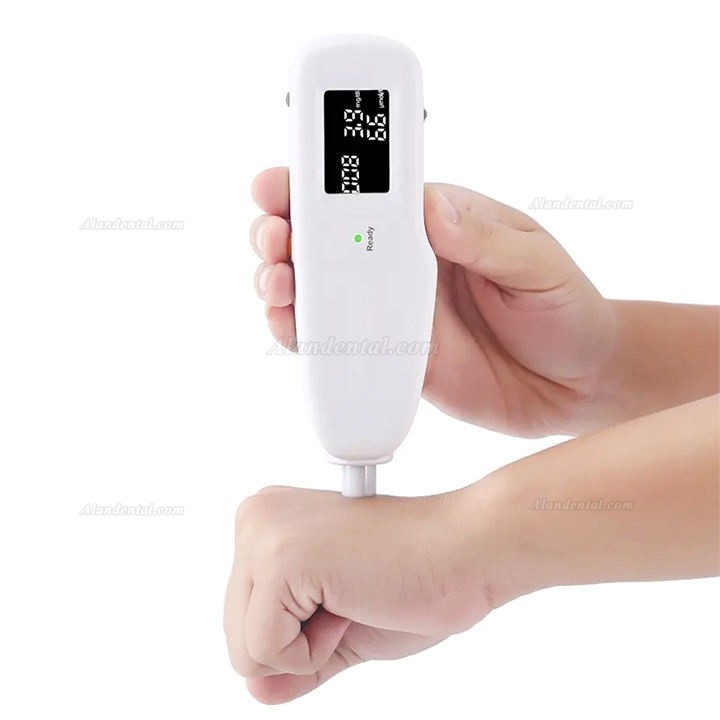

The percutaneous jaundice detector GD001 is a kind of handheld instrument used for clinical dynamic monitoring of neonatal jaundice.The detector detects the concentration of bilirubin in the subcutaneous tissue of newborns through the light wave difference between blue light wave (450nm) and green light wave (550nm). Painless and non-invasive, it can avoid newborns' pain caused by blood sampling and facilitate the operation of medical staff. Featuring accurate detection, fast and safe detection, small size, light weight, long service life, low energy consumption, convenient use and maintenance, etc., the detector has integrated electronic, optical and information processing technologies.



Specification Model: GD-001

Weight: 250g

Dimensions: 179mm*55mm*38mm

Display mode: LED LCD display, display size 38.8mm*24.5mm

Test method: light reflectance

Measuring range: (0-25mg/dl) or (0-425mol /L)

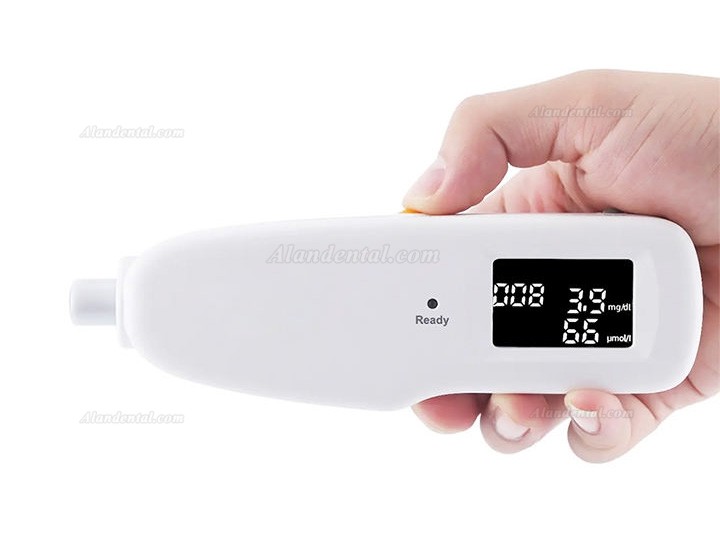

Measurement unit: dual unit display at the same time (mg/dL, umol/L), read directly

Measurement error: ±1.5mg/dL or 25.5umol/L

Data storage: Store 25 sets of data

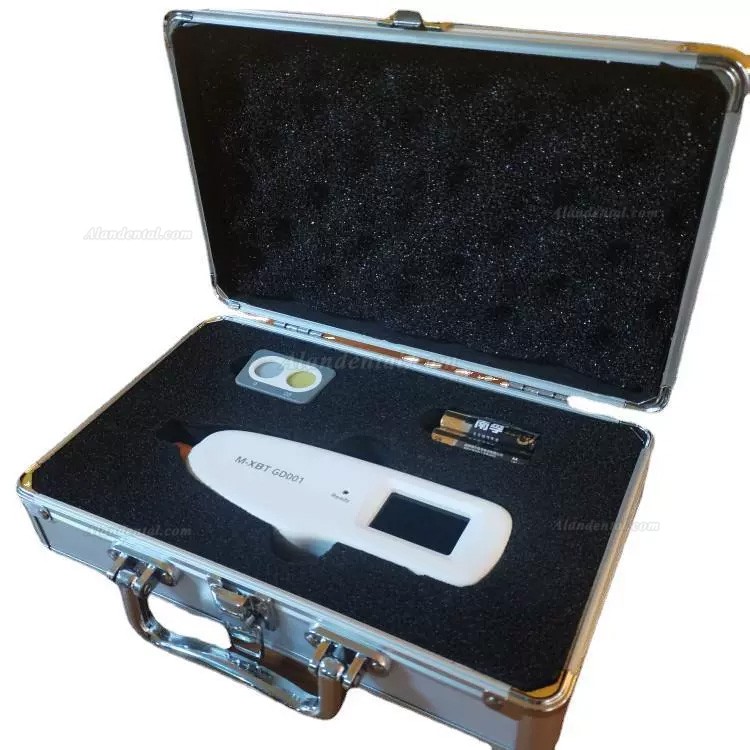

Check color disk: 0&20 check color disk

Average measurement: 1-9 average measurements can be set

Automatic shutdown: 3 minutes no operation, automatic shutdown

Night display: LCD display, with backlight, visible during the day, can see clearly at night.



1.Black people and people with dark skin can't use this machine. Because the skin color is too dark and the jaundice device cannot detect it. Basically, none of the jaundice instruments on the market can be used on black skin.

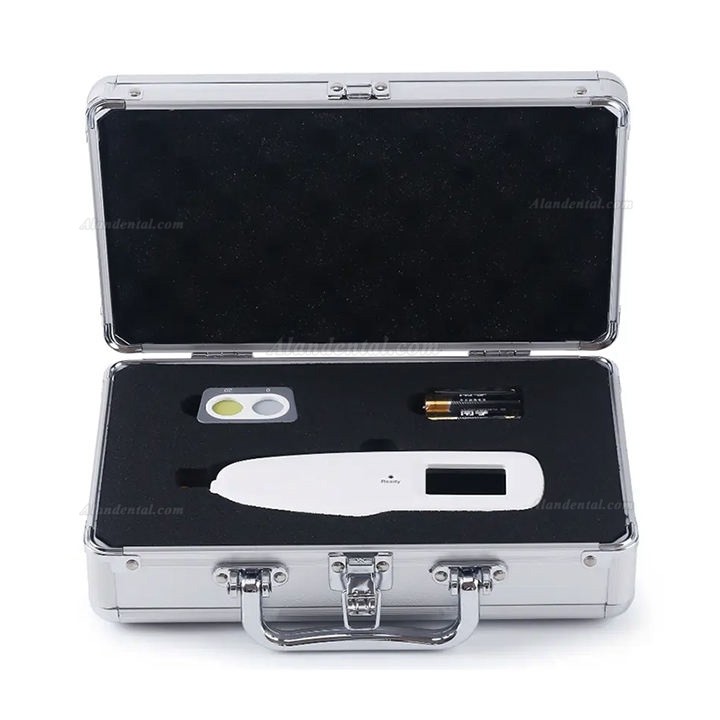

Note: common dry cell battery is not included! But you can buy the common two ordinary AA batteries at any local store.
