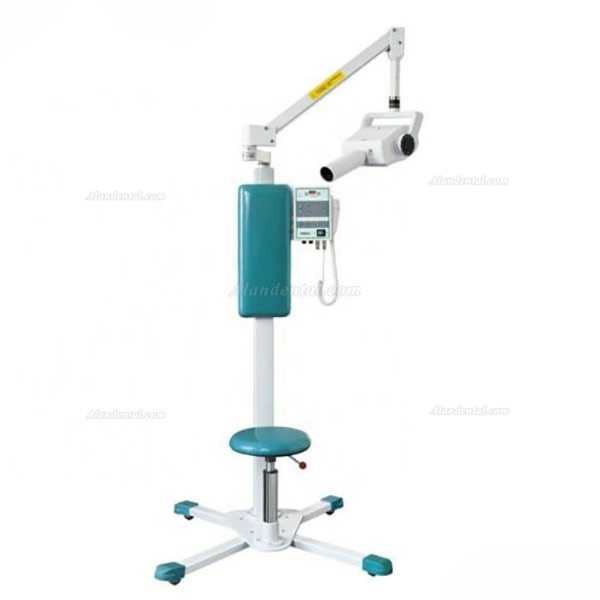

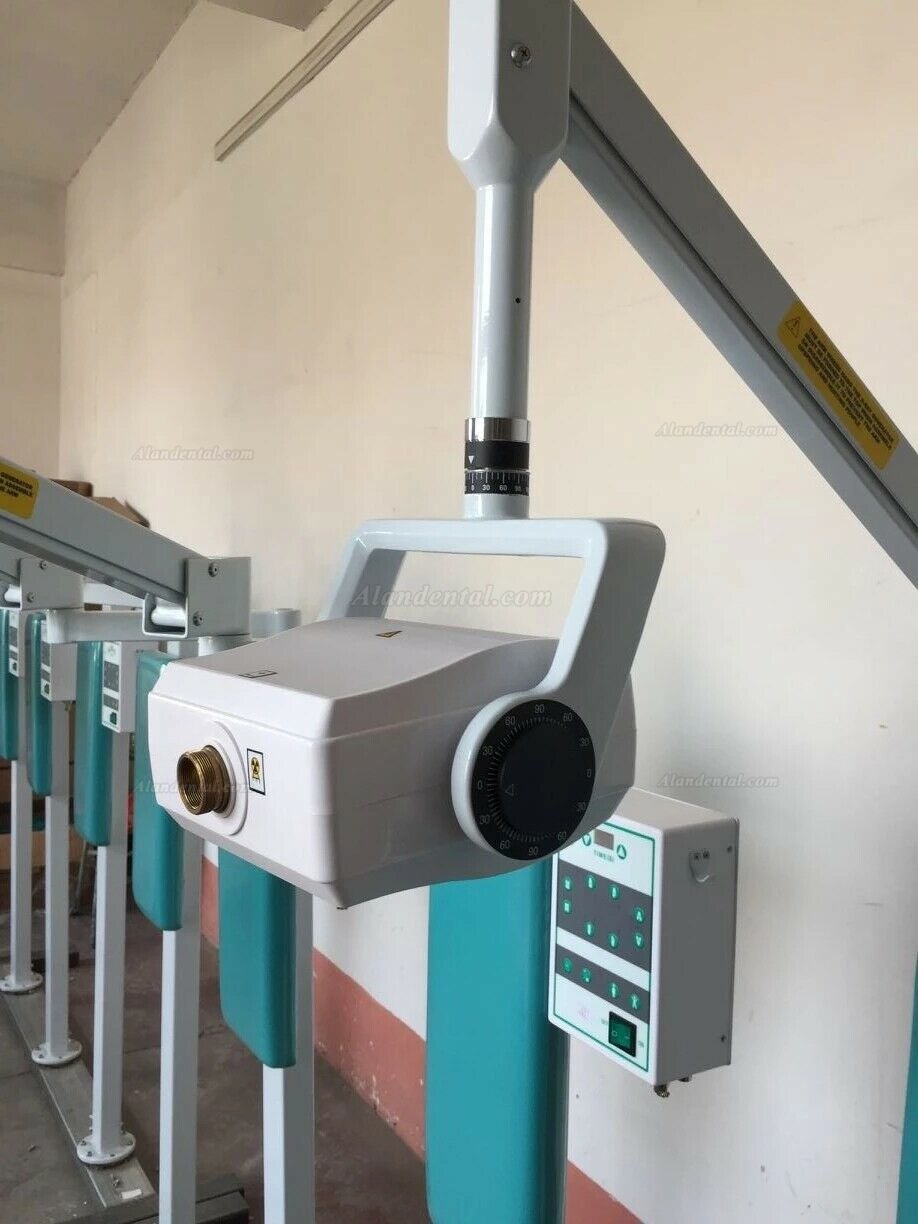

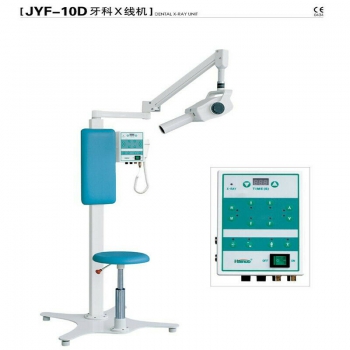

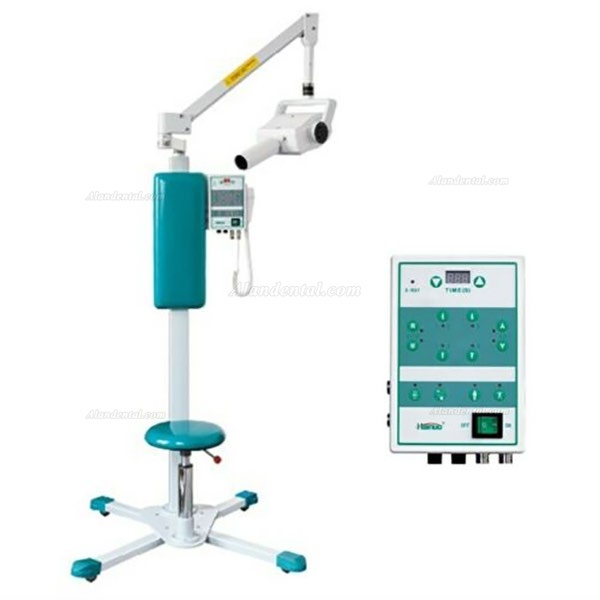

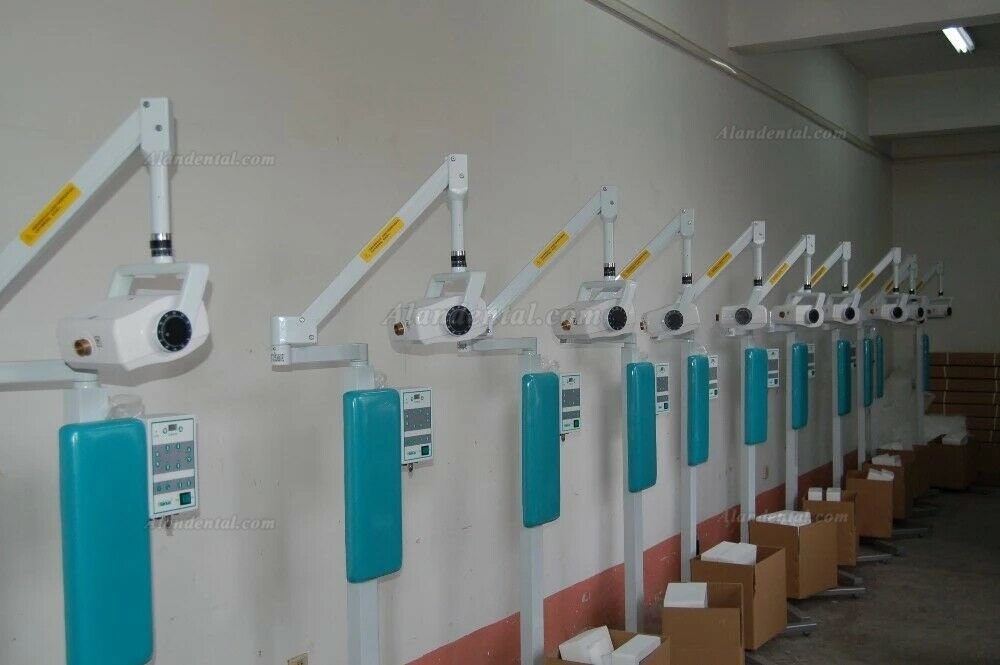

Dental Mobile X-ray Machine Vertical Dental X-Ray Unit Moving Type JYF-10D

Dental Mobile X-ray Machine Vertical Dental X-Ray Unit Moving Type JYF-10D

Features:

1. Clear imaging with low-leakage radiation, just 1% of the national standard.

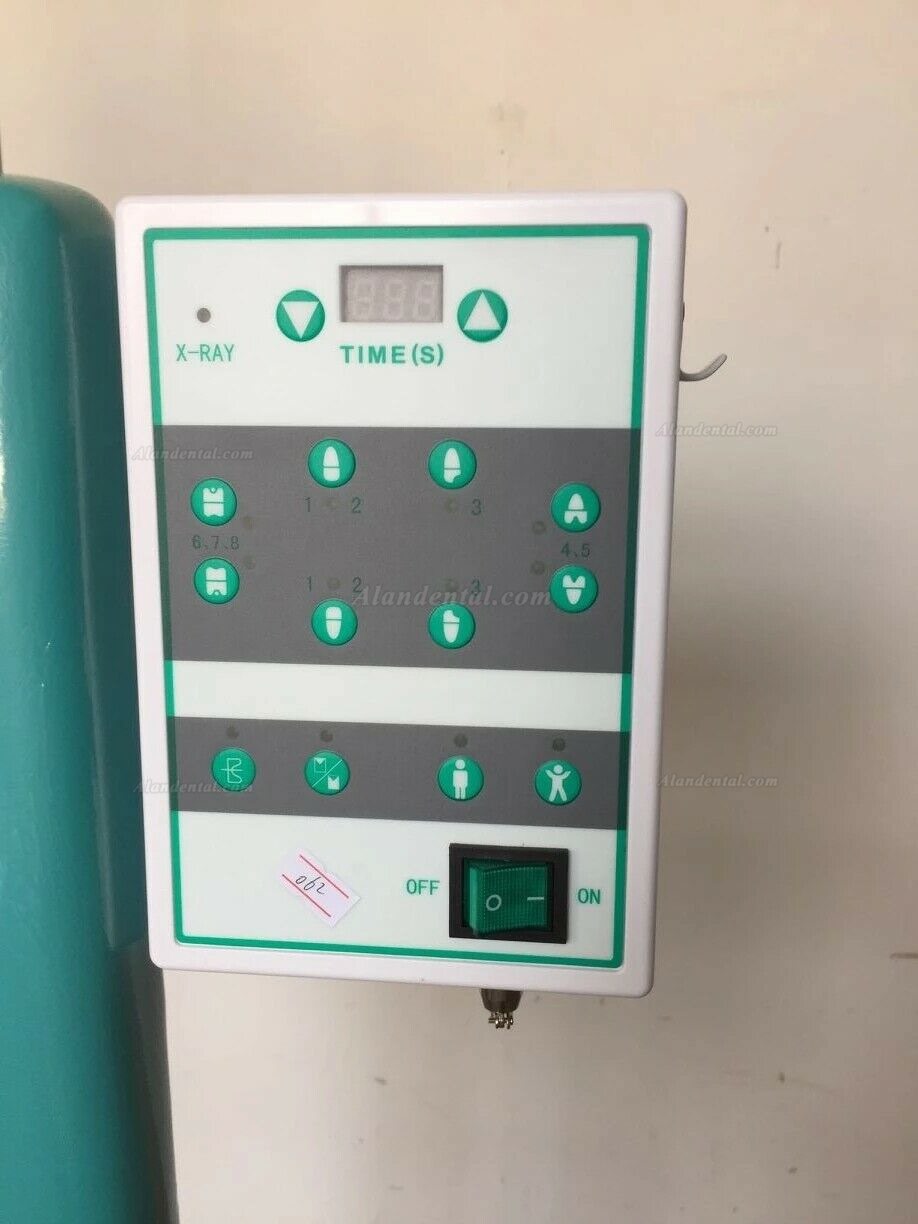

2. Microcomputer-controlled, one-button exposure parameter selection.

3. One-minute imaging for fast and convenient diagnosis.

4. Pneumatic up-and-down seat adjustment.

5. Compatible with digital imaging systems for the oral cavity.

Specification:

Power supply: AC220V+10%,50Hz,1KVA, 110V, 60Hz

Tube voltage: 60kVp

Tube current: 8mA

Focus size: 1.5mm

Total filtration: 2.5mmAL

Exposure time: 0.2-4sec

Leak radiation: Outside one meter<0.002mGy/h(National standard:0.25mGy/h)

Optional:Tube current: 0.5mA     Focus size:0.8mm

G.W. 48KG

Package: 143*57*30cm

Precautions

1. In order to operate safe, must be installed properly good ground.

2. X-ray machine due to small thermal capacity is limited, should pay attention to intermittent operation is recommended.

3. The machine only during exposure, will produce X-rays, power-off state does not produce X-rays.

4. The machine is in the correct use, any unforeseen circumstances, please immediately cut off the power operator, discontinue use. After the maintenance manual standards, it can be used again.

5. The machine factory, each X-ray device is equipped with the following specifications: 1.0 / 0.5mm aluminum each one.

6. When disassembling the machine each time, first disassemble the nose and then split the other member.

8. After each use the machine, arm recovery highest point, the position of the head is placed equilibrium position.

9. After each use, disinfect and clean the end of the X-ray tube that is close to the patient.

10. The weekly machine surface with a dry cloth to clean, inspect each connector contact.

11. Note that the machine maintenance and inspection indicator that shows whether the knobs, switches, remote control is working properly; X-ray source assembly if possible oil leakage; when the X-ray source assemblies exposure, abnormal noise; mechanical portions of the fastening screws loosening the like.

12. The machine rated capacity of 1.1kW, please use the greater than 1.5kW power supply capacity or grid. If the regional grid voltage is not normal, we recommend supporting more than 1.5KW industrial regulator, to prevent damage to the machine voltage is not normal, reducing machine life.
