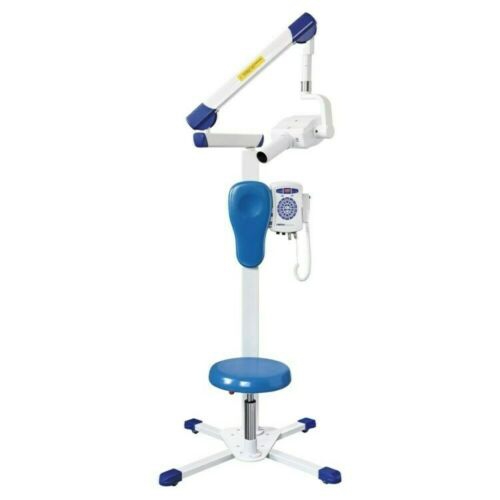

Dental Mobile X-ray Machine Moving Type Dental X-Ray Unit JYF-10D New Type

Dental Mobile X-ray Machine Moving Type Dental X-Ray Unit JYF-10D New Type

Feature::

1. PTC heating rods, automatic temperature.

2. Wrong operation or damaged parts will be automatic alarm function.

3. Features automatic shutdown function; the machine will automatically power off and shut down if not used for an extended period.

4. Both dental films and digital dental imaging systems can be used.

Parameter:

1. Input voltage:110V

2. Power:500W

3. Indentation width: 10mm

4. Maximum sealing width: 300mm

5. Sealing speed: 7.5meter / minute

6. Sealing temperature: 220 ° C

7. Packing size: 460 * 350 * 220mm

8. Gross Weight: 6kg

Package Included:

1 x Set of Dental Sealing Machine(Sterilization Pouches is not included)

Specifications:

Power supply:    220V±10%,50HZ,1KVA 110V, 60HZ

Tube voltage:    70KV

Tube current:    8mA

Focus size:    0.8mm

Total filtration: 2.5mmAL

Exposure time: 0.2-4s

Leak radiation: outside one meter≦0.002mGy/h, (national standard:0.25mGy/h)

Package size: 152*57*26(cm)

Net weight: 57kg

Precautions:

1. In order to ensure safety in operation and use, good ground lead must be installed well.

2. Because small X-ray machine’s thermal capacity is limited, attention should be paid to making the machine work intermittently.

3. Only during exposure process this machine will produce X-rays. It won’t produce X-rays in power-off state, neither in power-on state as long as not in exposure.

4. If any unforeseen circumstances occur during correct use, operators should cut off the power immediately and stop using the machine. It cannot be used again until it is overhauled and qualified.

5. Before leaving the factory, each X-ray device is equipped with an additional filter plate with the following specifications: 1.0/0.5mm aluminum sheets.

6. Every time when disassembling the machine, disassemble the head first and then other parts.

8. Every time after using the machine, recover the cross arm to the highest point, and then place the machine head in an equilibrium position.

9. Every time after using, sterilize and clean beam tube end that contacts the patient with medical alcohol.

10. Clean the machine surface with a dry cloth every week and inspect whether the connectors contact well.

11. Pay attention to machine maintenance. Check whether the indicator lights, display, rotary knob, switch, and remote control work normally; whether the X-ray source modules leak oil; whether when X-ray source modules expose produces any abnormal noise; or whether fixed screws in the mechanical part loose, and the like.

13. The rated capacity of the machine is 1.1kw. Please select power supply or power grid with a power supply capacity greater than 1.5kw. If network voltage in this region is abnormal, we recommend matching 1.5KW or higher industrial voltage stabilizer, to prevent damage to the machine and reduced machine life due to abnormal voltage.
