FY Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley With Infrared Sensor 120W-220W

FY Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley With Infrared Sensor 120W-220W
Item No. ADL002450
Brand:Alan Dental
Manuals and Documentation:

FY 30FSI Series UV Disinfection Trolley User Manaul.pdf
But It Now : $989.99
Voltage :

Power :

Accessoires :
No spare uv bulb [ $0.00]
Spare UV bulb *1 [+ $70.00]
Spare UV bulb *2 [+ $140.00]
Spare UV bulb *3 [+ $210.00]

Quantity :
Weight:0gram
Goods click count:2683

Item Description Reviews

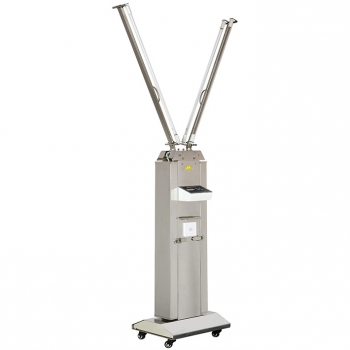

FY Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley With Infrared Sensor 120W-220W

FY-30FSI / 50FSI is equipped with 4 UV lamps (30W or 55W each) and emits ultraviolet light at 253.7nm. It includes a timer adjustable from 0 to 1440 minutes.

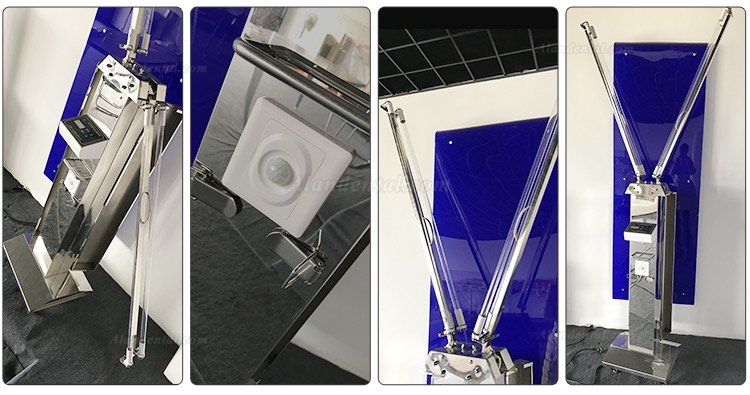

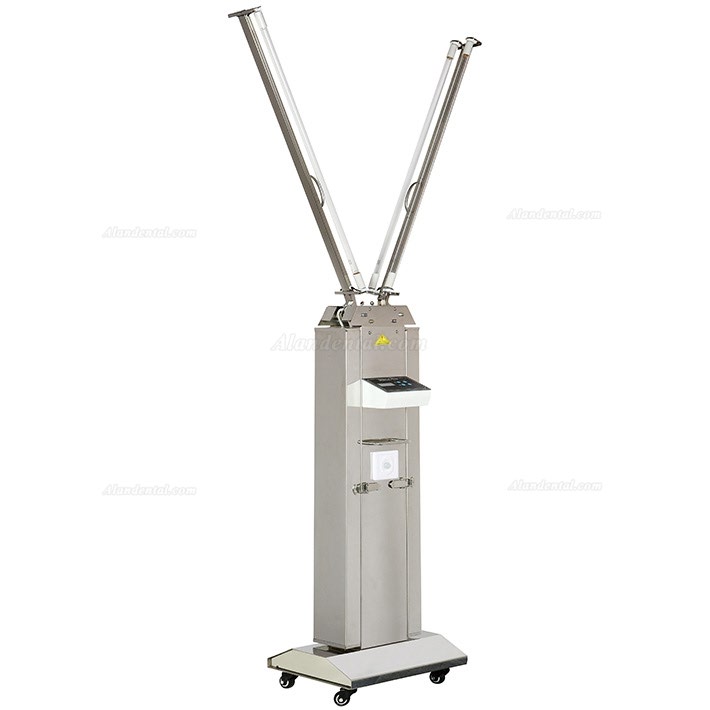

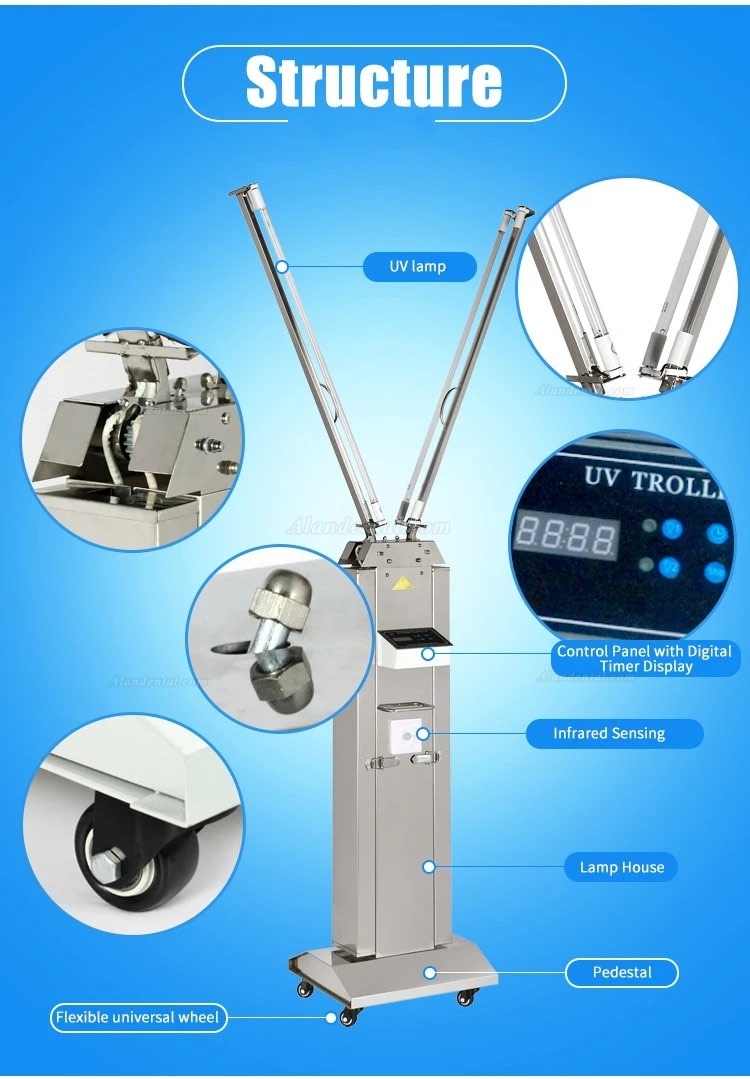

The unit is made of stainless steel with a four-tube structure.

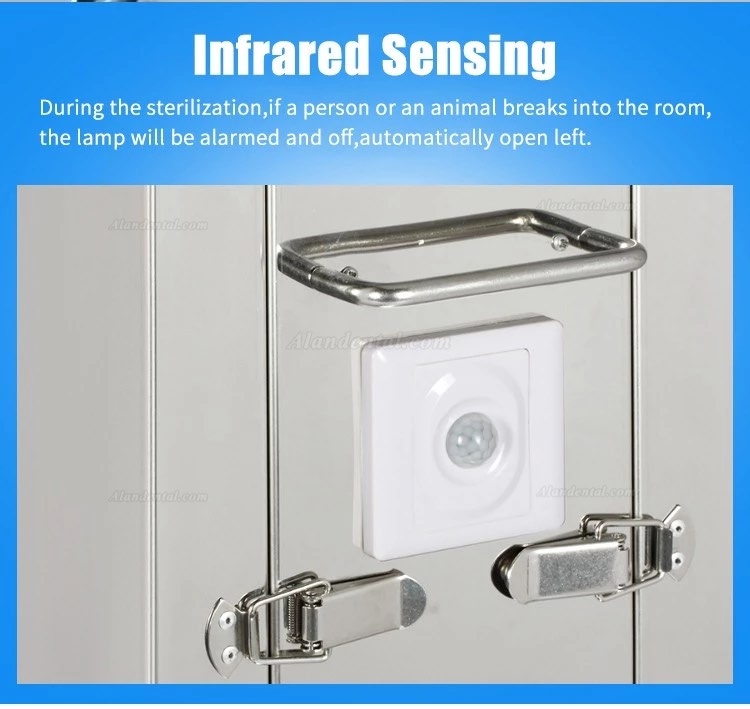

Infrared sensor: If motion is detected during operation, the unit gives an alarm and turns off automatically. The unit resumes when the area is clear.

Technical parameters:

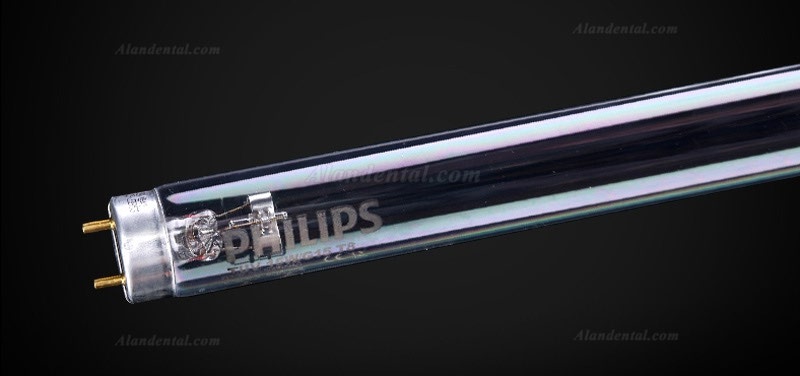

1. Tube Power: 30W×4 or 55W×4

2. Number of tubes: 4

3. Room size: 60 m²

4. Voltage: 220V±10%, Frequency: 50Hz±10%

5. Input power: 180VA

6. UV wavelength: 253.7nm

7. Irradiance: ≥428 µW/cm²

8. Movable and foldable design; tubes can be concealed inside. Adjustable angles: 30°, 60°, 90°, 135°, 180°.

9. Timer: 0–1440 min.

Usage Instruction:

1. Install the base with location hole and reed switch.

2. Open the protection door.

3. Lift the lamp arm and adjust to 90°, 135°, or 180°.

4. Insert the plug, press 'ON', and set the timer (0–120 min).

5. Leave the room immediately after setting the timer.

6. After the cycle completes, press 'OFF'.

7. Set the timer to 'OFF'.

8. Hold down 'adjustable button 3' to fold the lamp arm into the box.

9. Close the protection door.

Safety Considerations:

1. Clean the room before using the UV room device.

2. Place the unit in the center of the room or where UV light can reach more surfaces.

3. Arrange items to be exposed to UV light. Place frequently touched items closer to the unit.

4. Plug in and set the timer. The system has a 15-second delay upon timer setting. UV light will turn on after 15 seconds. (Suggested minimum: 30 minutes for a 30 m² area.)

5. When using in pet or animal rooms, ensure pets do not touch the unit. Use shading cloth to cover pets' eyes and skin.

6. The unit pauses and UV light turns off if motion is detected. It resumes when the area is clear.

7. "Lamp 1" controls 1 lamp; "Lamp 2" controls the other 1 lamp.

8. Open the window and ventilate for 10 minutes after use.

9. Wipe the lamps with a dry cloth after use. Stow the arms in the arm compartments.

10. Replace the lamp when UV illumination is less than 70% or after 2000 hours of use.
