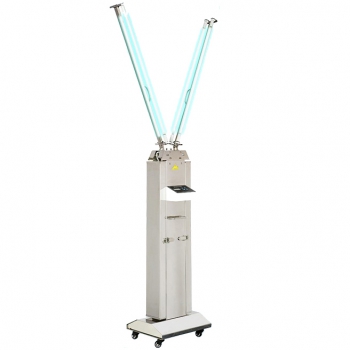

FY 120W-220W Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley

FY 120W-220W Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley
Item No. ADL002449
Brand:Alan Dental
Manuals and Documentation:

FY 30FSI Series UV Disinfection Trolley User Manaul.pdf
But It Now : $965.99
Voltage :

Plug :

Power :

Accessoires :
No spare uv bulb [ $0.00]
Spare UV bulb *1 [+ $70.00]
Spare UV bulb *2 [+ $140.00]
Spare UV bulb *3 [+ $210.00]

Quantity :
Weight:0gram
Goods click count:2511

Item Description Reviews

FY 120W-220W Portable UV+Ozone Disinfection Lamp Stainless Steel Trolley

Technical parameters:

1. Tube Power: 30W×4 or 55W×4

2. Number of tubes: 4

3. Room size: 60 m²

4. Voltage: 220V±10%, Frequency: 50Hz±10%

5. Input power: 180VA

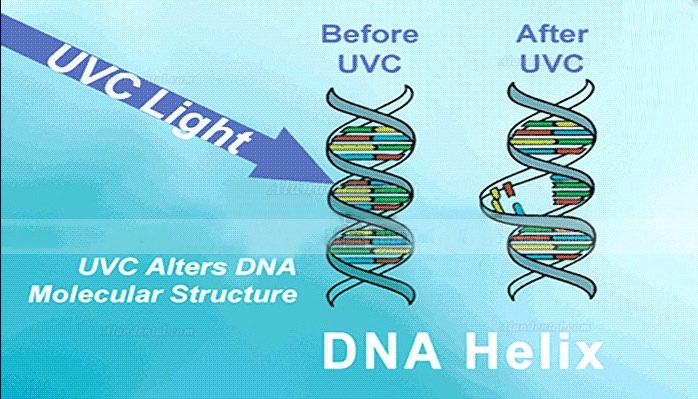

6. UV wavelength: 253.7nm

7. Irradiance: ≥428 µW/cm²

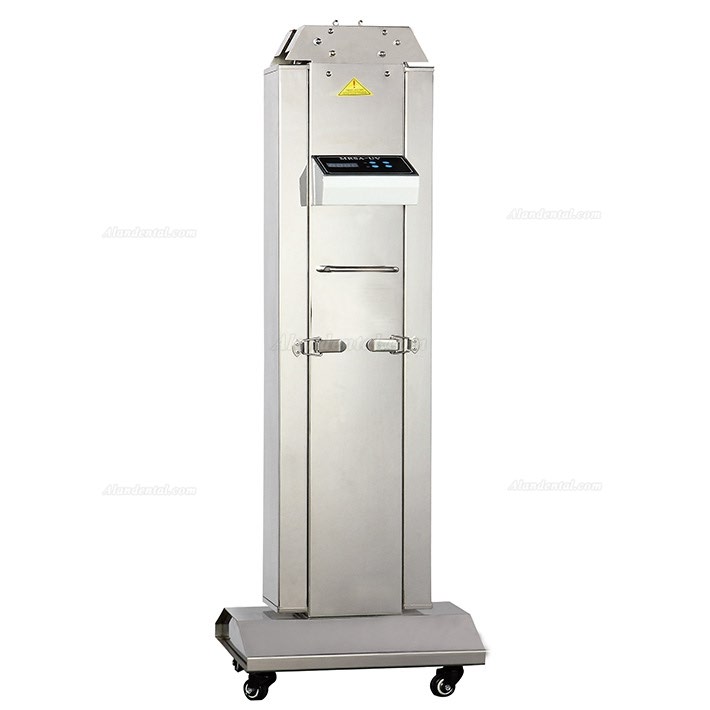

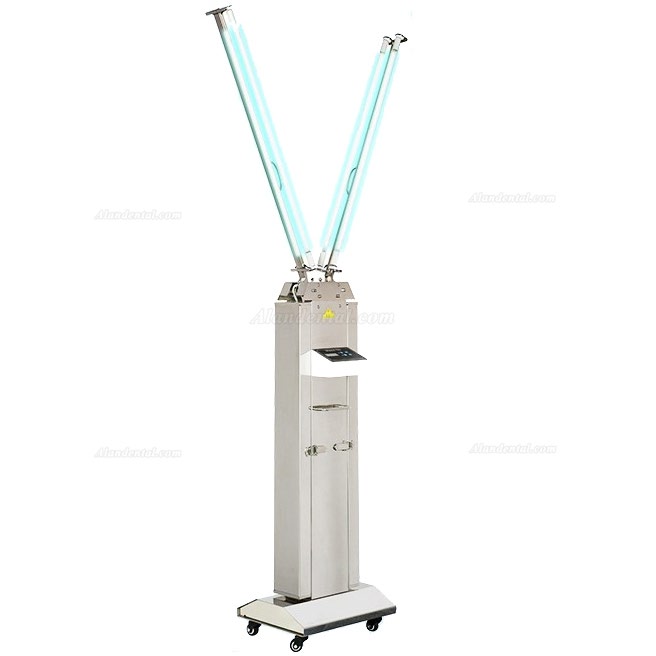

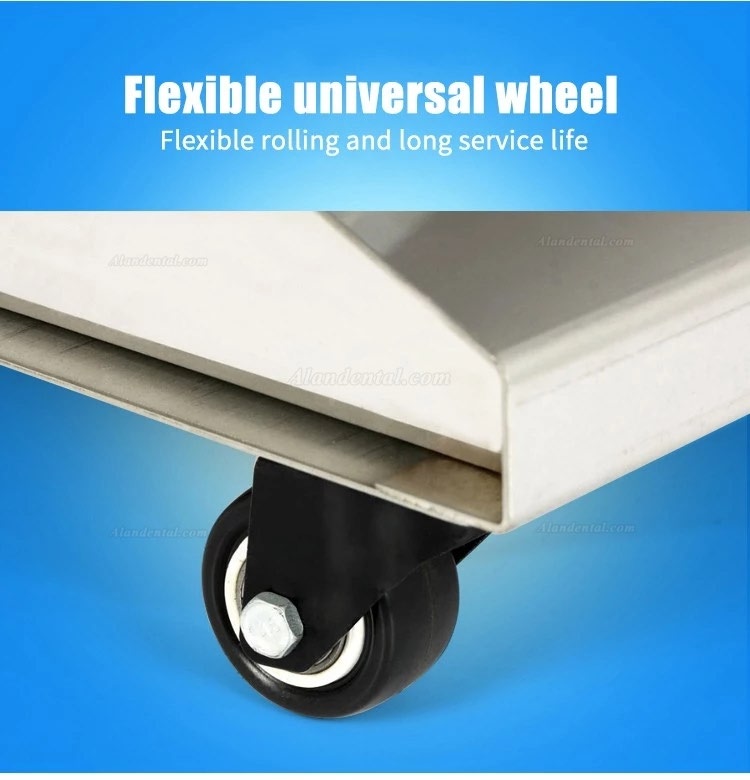

8. Movable and foldable design; tubes can be concealed inside. Adjustable angles: 30°, 60°, 90°, 135°, 180°.

9. Timer: 0–1440 min.

Usage Instruction:

1. Install the base with location hole and reed switch.

2. Open the protection door.

3. Lift the lamp arm and adjust to 90°, 135°, or 180°.

4. Insert the plug, press 'ON', and set the timer (0–120 min).

5. Leave the room immediately after setting the timer.

6. After the cycle completes, press 'OFF'.

7. Set the timer to 'OFF'.

8. Hold down 'adjustable button 3' to fold the lamp arm into the box.

9. Close the protection door.

Safety Considerations:

1. Clean the room before using the UV room device.

2. Place the unit in the center of the room or where UV light can reach more surfaces.

3. Arrange items to be exposed to UV light. Place frequently touched items closer to the unit.

4. Plug in and set the timer. The system has a 15-second delay upon timer setting. UV light will turn on after 15 seconds. (Suggested minimum: 30 minutes for a 30 m² area.)

5. When using in pet or animal rooms, ensure pets do not touch the unit. Use shading cloth to cover pets' eyes and skin.

6. "Lamp 1" controls 1 lamp; "Lamp 2" controls the other 1 lamp.

7. Open the window and ventilate for 10 minutes after use.

8. Wipe the lamps with a dry cloth after use. Stow the arms in the arm compartments.

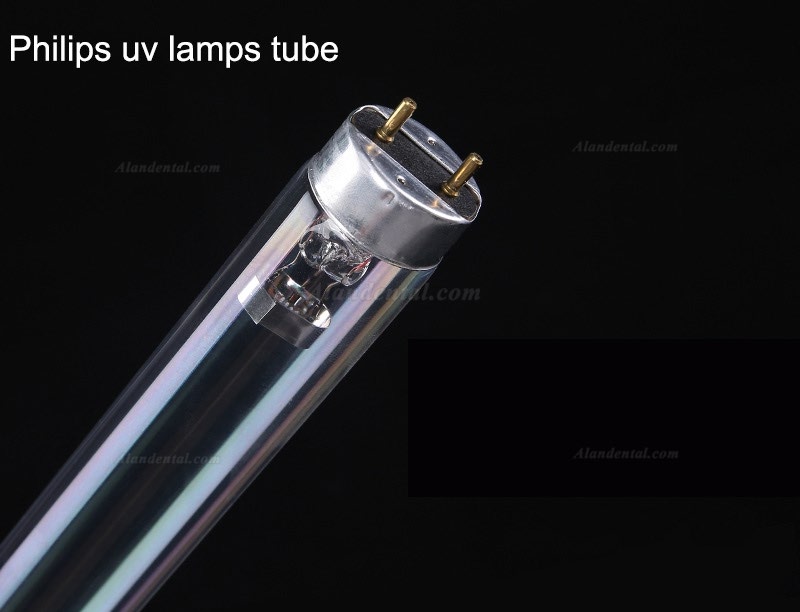

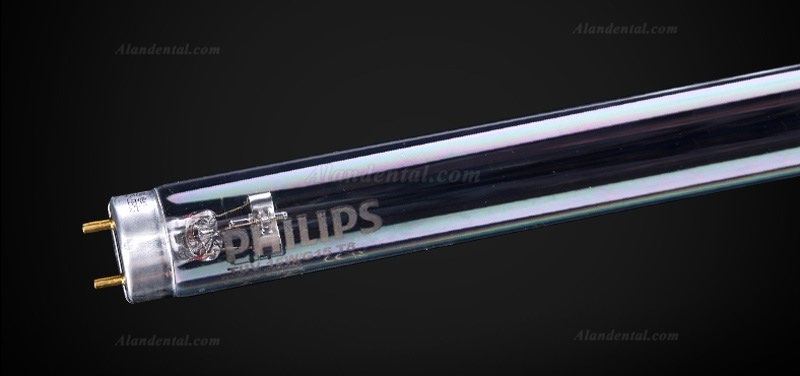

9. Replace the lamp when UV illumination is less than 70% or after 2000 hours of use.
