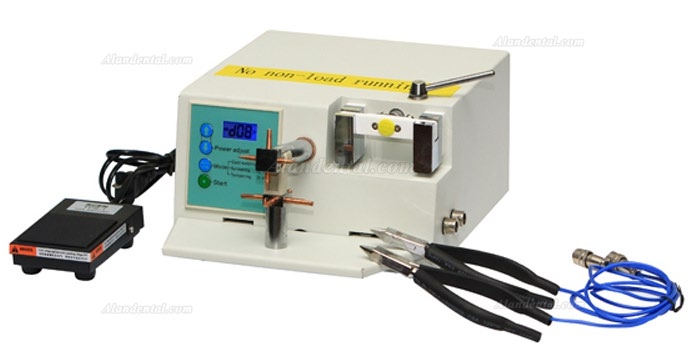

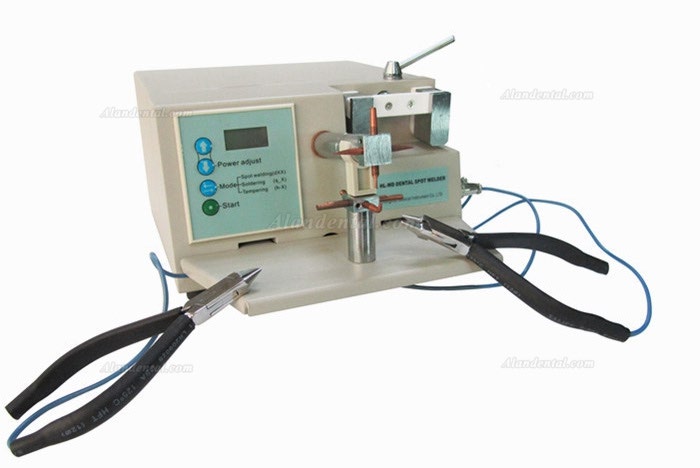

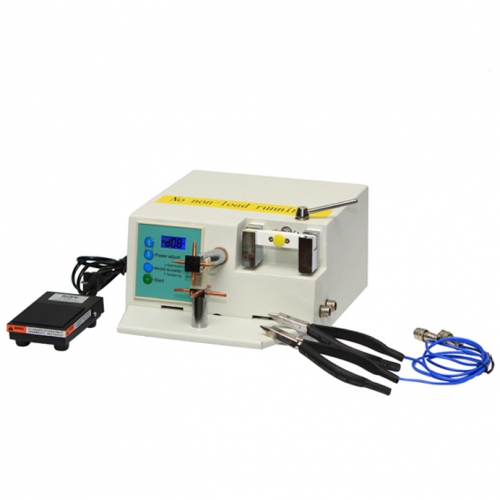

Zoneray HL-WD-III Dental Spot Welder Heat Treatment Orthodontic Arch Wire Forming

Zoneray HL-WD-III Dental Spot Welder Heat Treatment Orthodontic Arch Wire Forming



1. Introduction

The product agrees to EN ISO13485:2003+AC 2009 standard,which is approved by the system authentication of TÜV Rheinland LTD, and also gained the CE certificate.



2. Technique Parameter

Power supply:

AC 110V, 60 Hz

AC 120V, 60 Hz

AC 220V, 50 Hz

AC 230V, 50 Hz

AC 240V, 50 Hz



Power:maximum instantaneous current 20A

Transformer output power:2000W, output voltage: 5V

Incorrect operation alarm:when operation condition don’t accord with SET mode, the display shows Error beep.

Security type:belong to classⅠ, type B

Transformer overheating protection:85°C

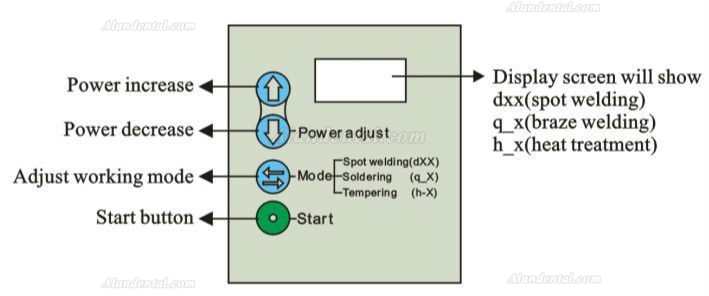

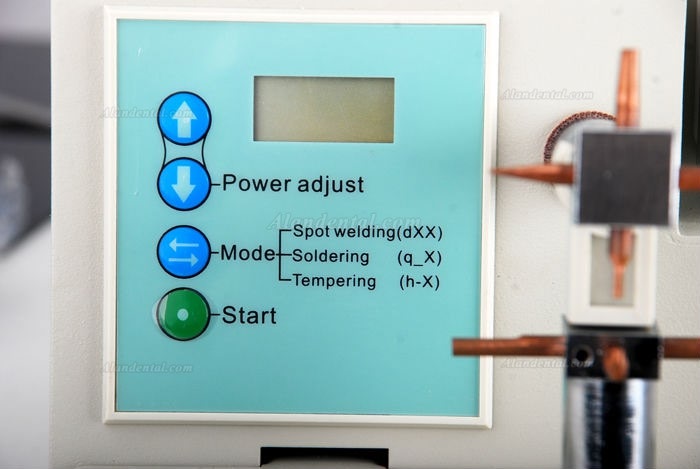

Energy regulation:

Spot welding (dxx) 1~30

Braze welding (q_x) 1~9

Heat treatment (h_x) 1~9



Dimensions of weldment:Diameter 0.2mm~1.8mm stainless steel wire

Fuse:Diameter 5×20mm, 20A

Environment conditions:temperature 5°C~40°C, Relative humidity ≤80%

Storage condition:temperature -10°C~55°C, Relative humidity ≤80%



3. Applicant

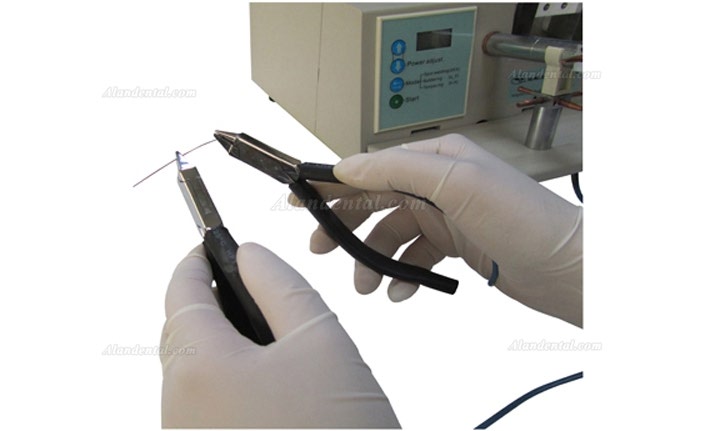

Multi-functional spot welding used for welding stainless steel wire, stainless steel sheet, also be used for heat treatment of arch wire materials forming in dental orthodontics and treatment.



4.Packing list

Main machine X1

Power cord  X1

Foot switch  X1

Fuse 20A X1

Function clamps X2

State block X1

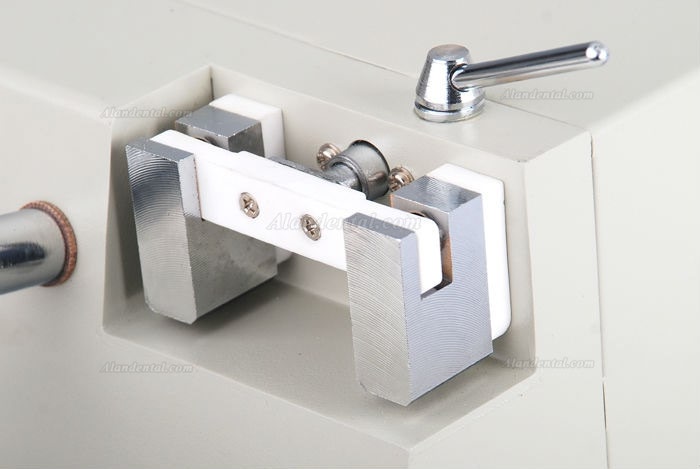

Heat treatment clamp holder X1

Certificate X1

Warranty card X1

Manual X1

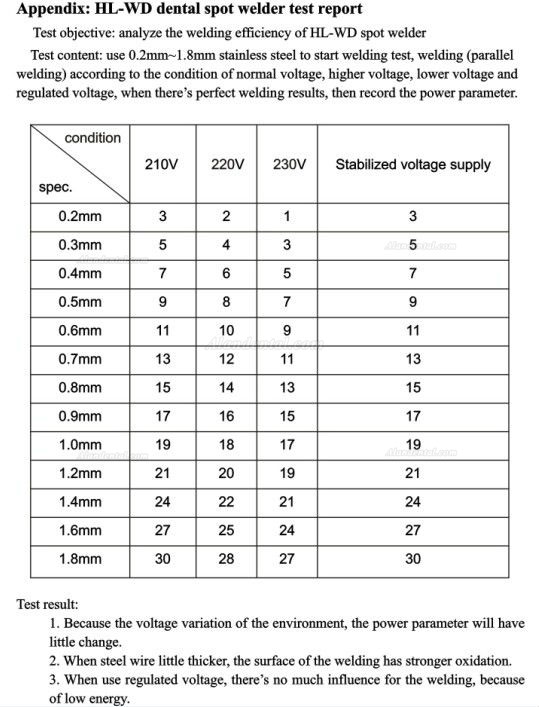

5.Test report
