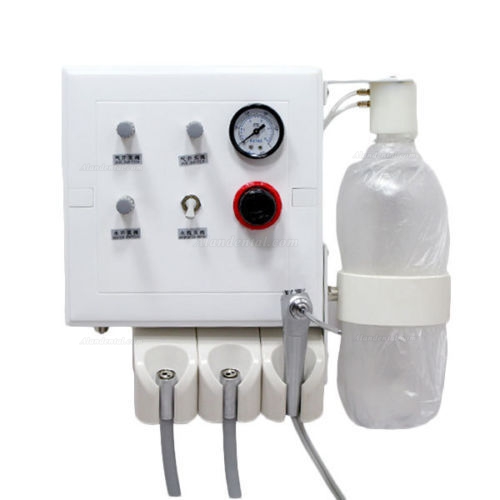

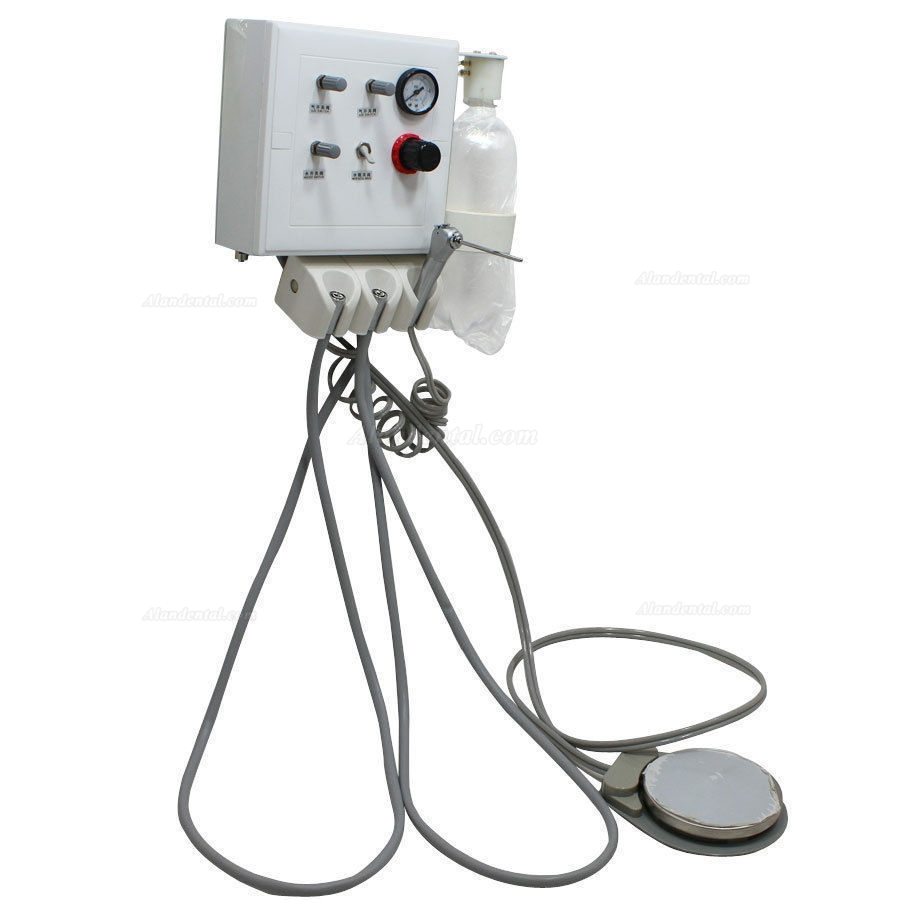

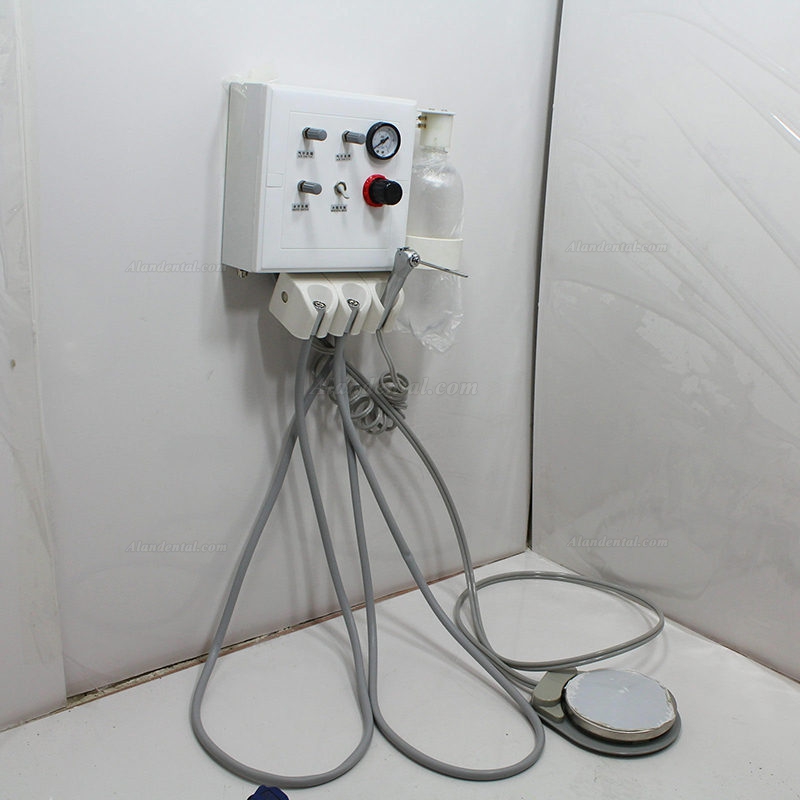

Wall-Mount Dental Unit with 3-way Syringe+ 2 Handpiece Tubes

Wall-Mount Dental Unit with 3-way Syringe+ 2 Handpiece Tubes

(This item does not include handpiece)

Technical parameters:

Control way : Pneumatic control

Handpiece interface : International universal interface

Air pressure input: 4-8kg

Air pressure outout: 0-5kg

Water pressure input: 2kg

Water pressure output: 0-2kg

Dimensions: 300X175X300(mm)

Weight: 3.53KG

SKU: XNE-D-8-01-M4

Instructions for Use

1. Connection

Connect the air source to the quick-connect interface; connect the water source to the interface. Connect external accessories and equipment as needed. Turn on the water and air switches. After use, turn off the air and water sources.

2. Use

When connecting a high-speed dental handpiece, adjust the air pressure to 0.2 and adjust the cooling water to a fine mist consistency for handpiece operation. When connecting a sandblasting gun, adjust the air pressure to 0.3 and use an appropriate amount of water. After use, turn off the sandblasting gun first, then stop sandblasting. When connecting a descaling device, adjust the air pressure to 0.3 and adjust the water flow to make the descaling device vibrate.

When connecting a low-speed dental handpiece, use the maximum pressure regulator and adjust the air pressure to 0.4. Users do not need to use equipment with an air pressure higher than 0.3; normal use is fine with an air pressure lower than 0.3.
