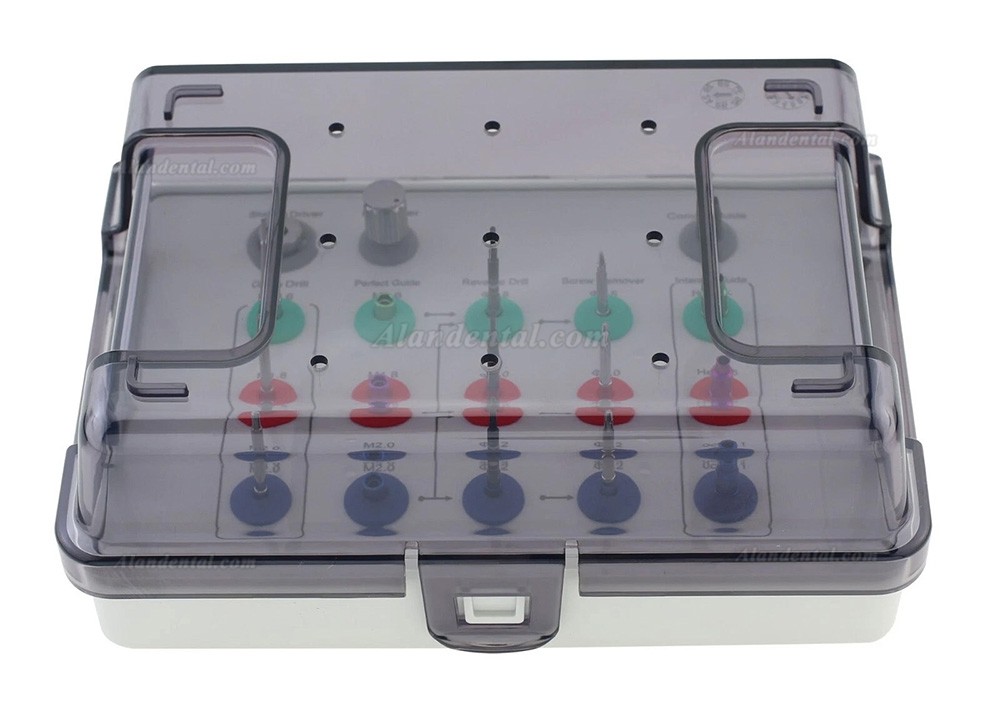

Universal Implant Fractured Screw Removal Kit Compatible Neobiotech SR Repair Tool

Universal Implant Fractured Screw Removal Kit Compatible Neobiotech SR Repair Tool
Item No. ADL003827
Brand:Alan Dental
But It Now : $469.98
Quantity :
Weight:0gram
Goods click count:553

Item Description Reviews

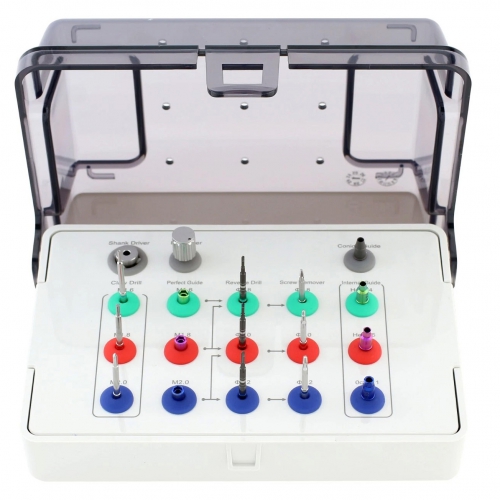

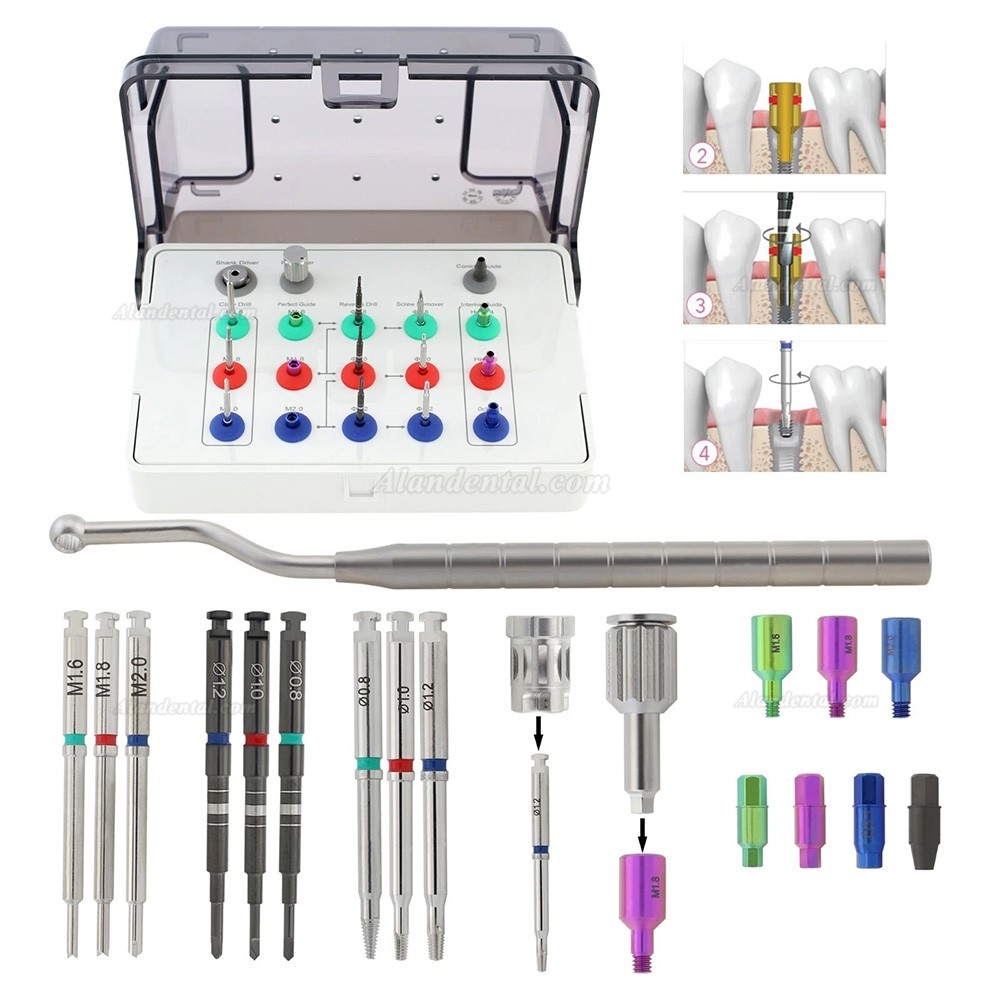

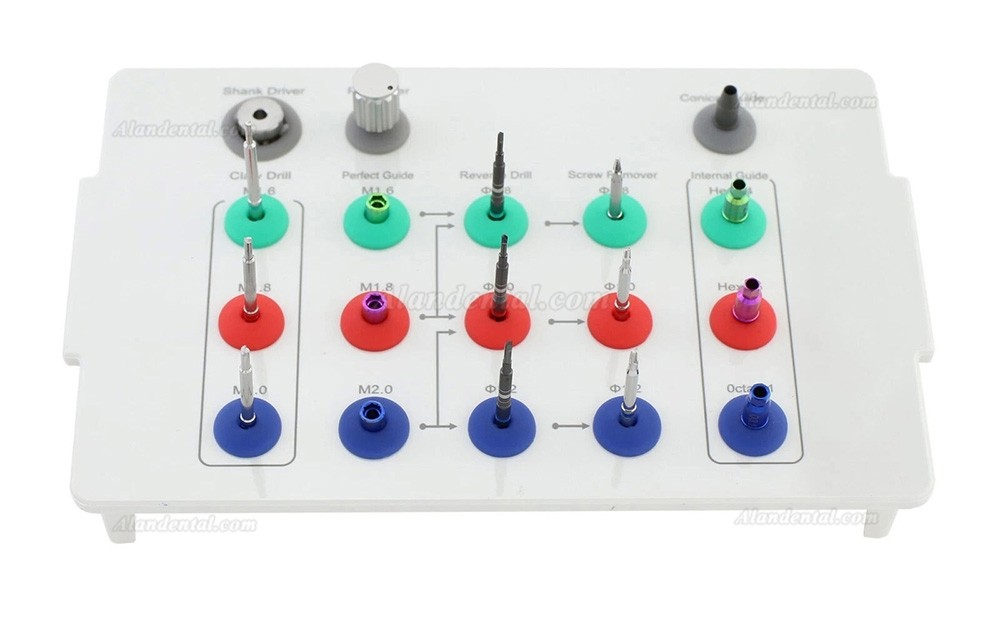

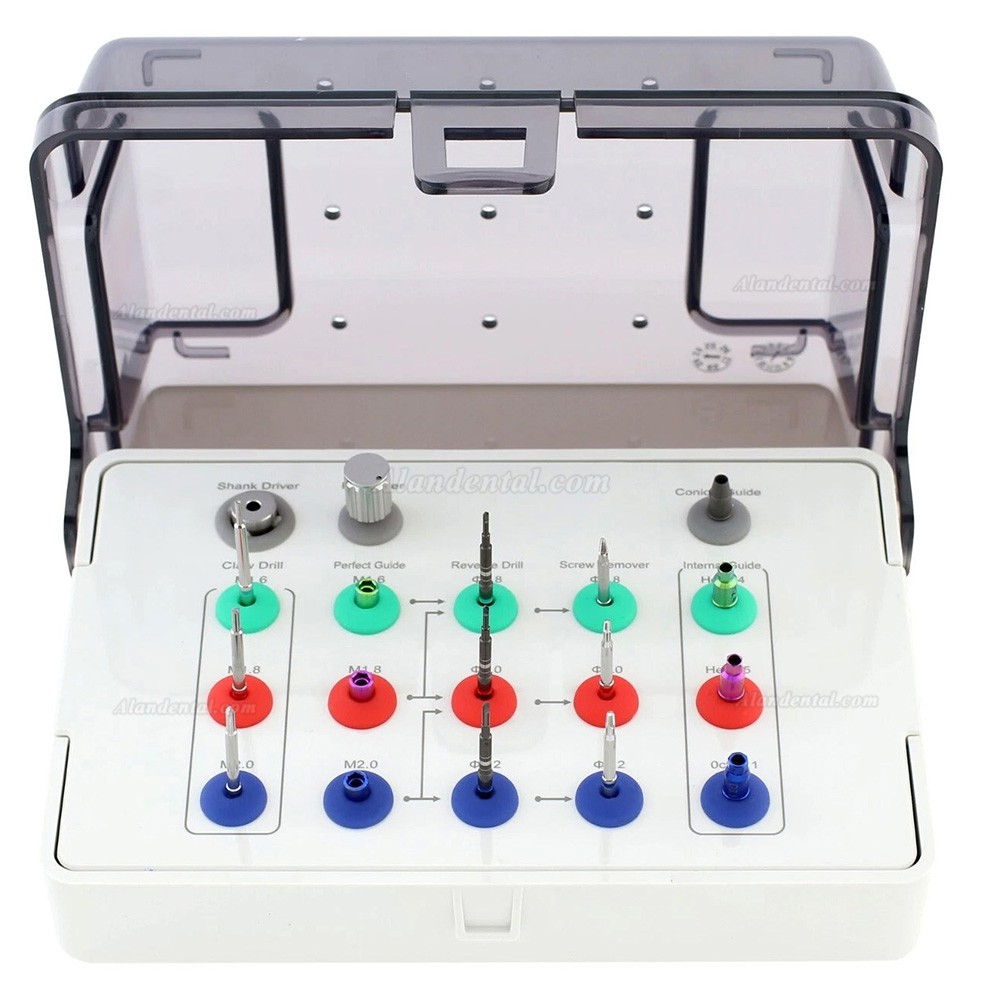

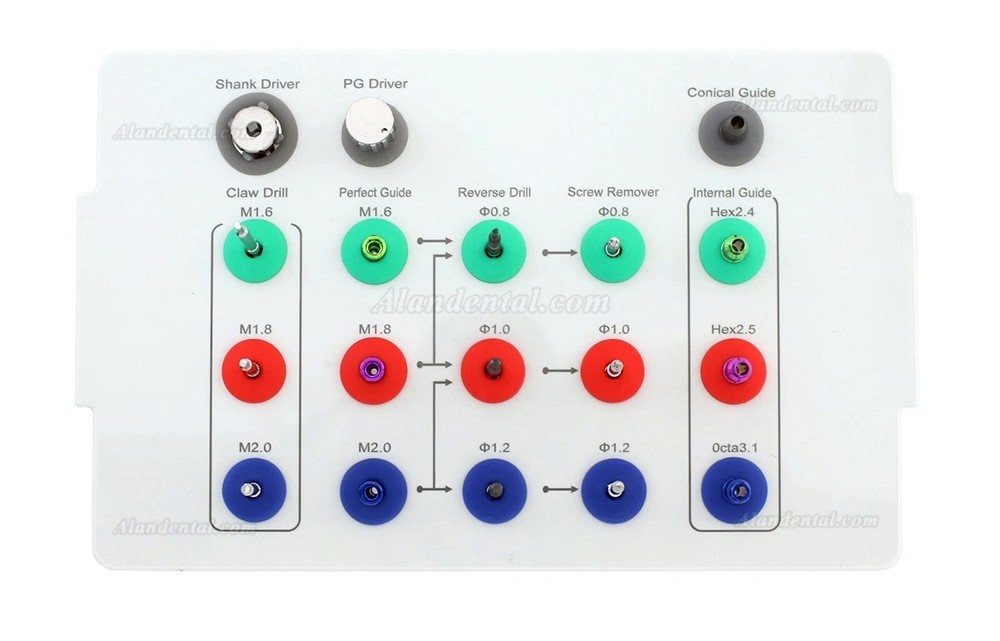

Universal Implant Fractured Screw Removal Kit Compatible Neobiotech SR Repair Tool

This kit is designed to remove implant screws of various sizes.

Features:

This kit is composed of various tools designed for removal of fractured screws. (1,200 RPM without irrigation.)

Designed to remove a fractured screw while supporting the fixture position.

Procedure can typically be completed in about 3 minutes.

Designed to remove fractured screws from different implant systems.

Stuck screws can be removed with a ratchet.

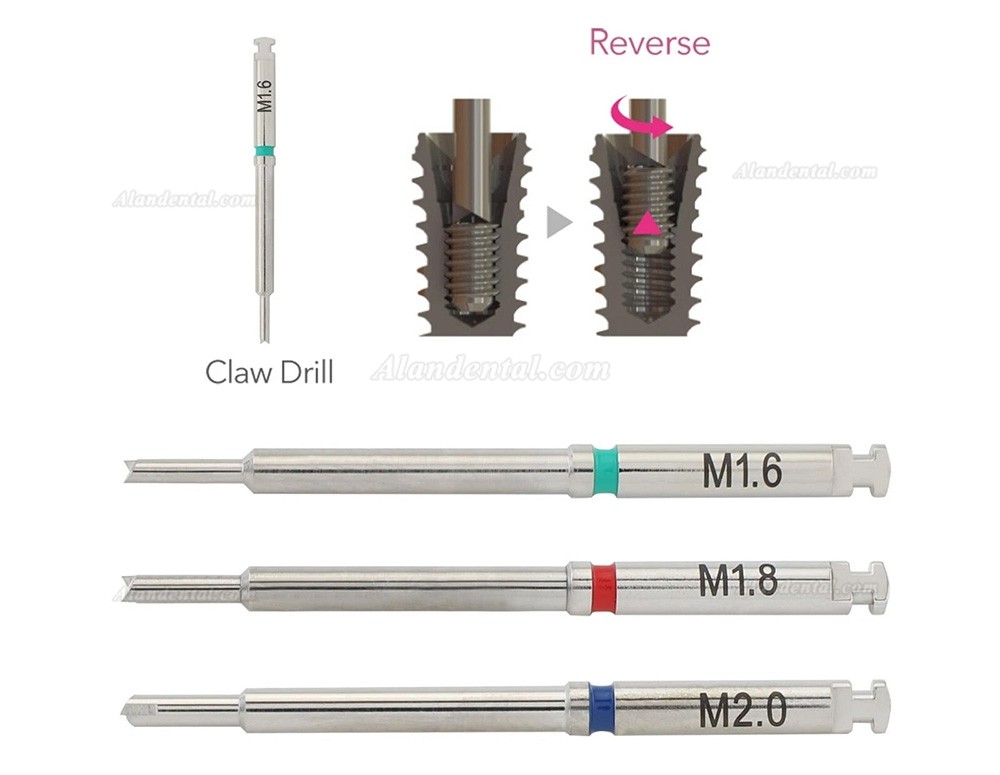

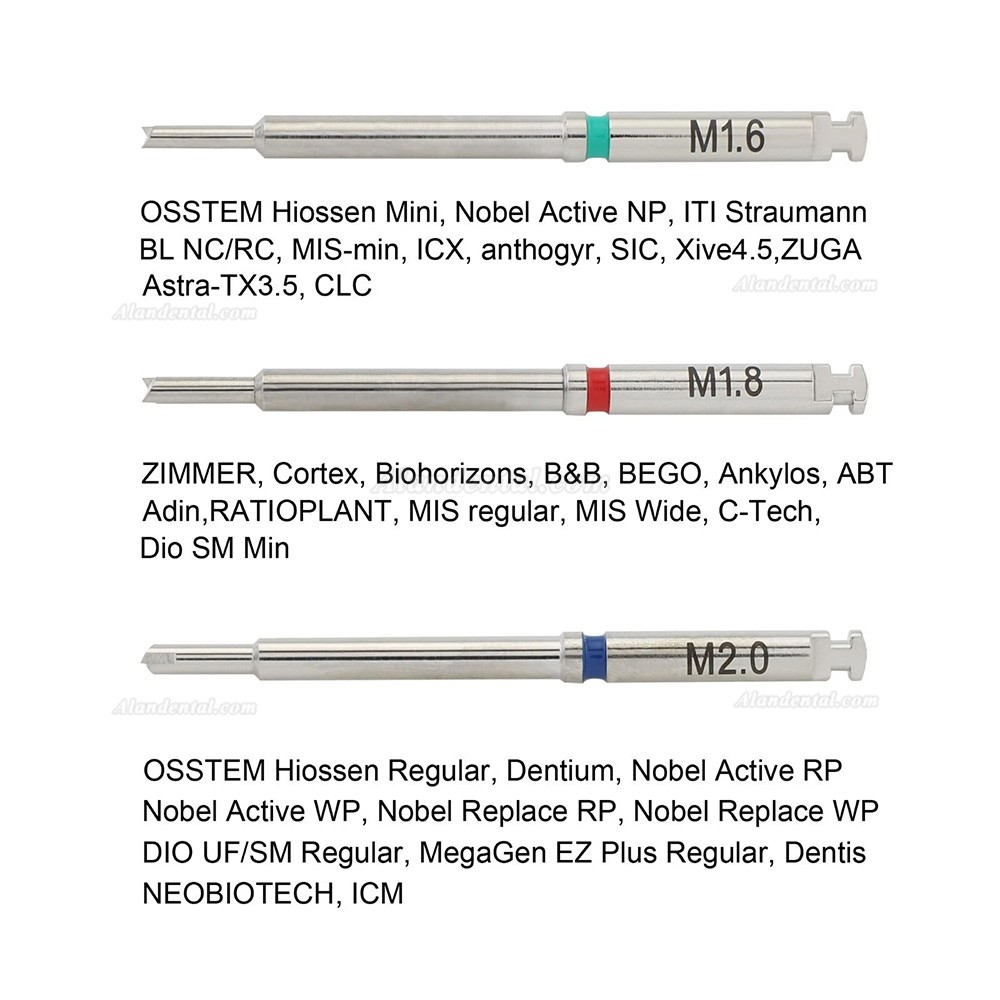

1. Claw

This is a surgical tool designed to remove a screw that has fractured inside the fixture.

After selecting the size appropriate for the screw to be removed, it is used by connecting a guide to the fixture (Conical/Internal/External Guide). It is then connected to the Shank Driver, and the fractured screw can be removed by rotating by hand in the reverse direction. If the fractured screw cannot be removed using the Claw, it can be removed using the Reverse Drill and the Screw Remover.

Products Name Fractured Screw size

Claw Drill M1.6 M1.6

Claw Drill M1.8 M1.8

Claw Drill M2.0 M2.0

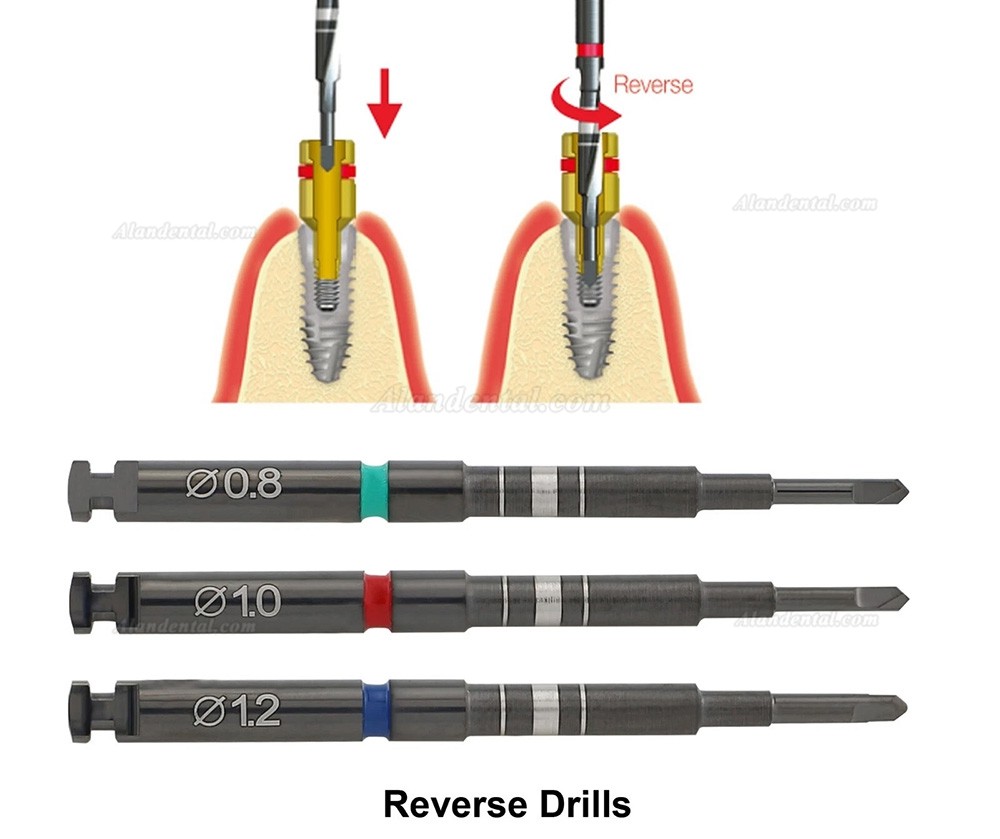

2. Reverse Drill

- This is a tool designed to create a hole on the fractured face of the screw for use with the Screw Remover.

- After selecting the appropriate Reverse Drill for the size of the screw to be removed, it is used by connecting a guide for the fixture (Perfect/Conical/Internal/External Guide). The depth of the drill can be adjusted from 1 mm to 3 mm, as the drill body has markings.

- Although different manufacturers produce different sizes of abutment screws, they typically utilize screws of size M1.6, M1.8, M2.0, or M2.5, except in rare cases. ("M" stands for a metric screw. The number indicates the external size of the screw. For example, "M1.6 Screw" indicates a metric screw with an external diameter of 1.6 mm.)

Products Name Fractured Screw size

Reverse Drill φ0.8 M1.4 /M1.6

Reverse Drill φ1.0 M1.8

Reverse Drill φ1.2 M2.0

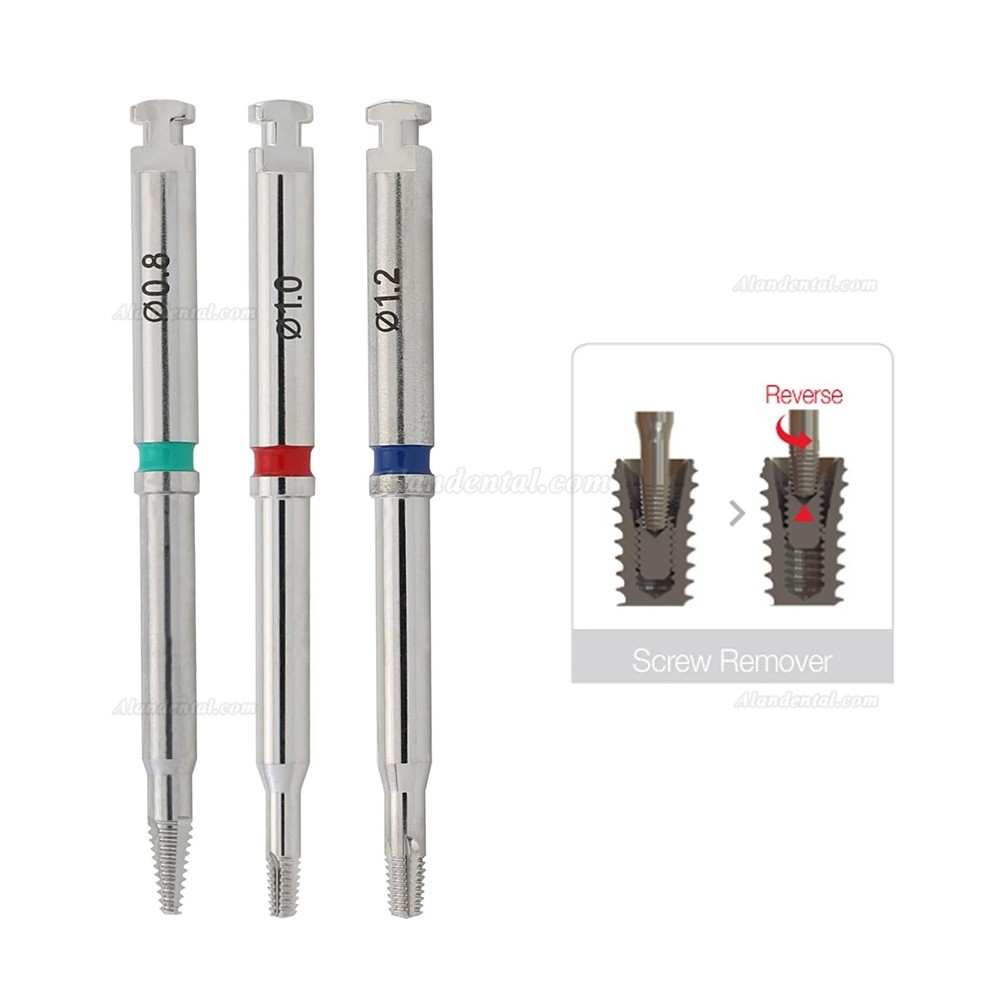

3. Screw Remover

- This is a device designed to remove a fractured screw. Insert a Screw Remover appropriate for the size of the hole formed using the Reverse Drill, and rotate at a low speed (at or below 80 rpm) in the reverse direction.

- The Screw Remover is designed in a tapered shape to increase friction as it turns, which can help loosen the screw.

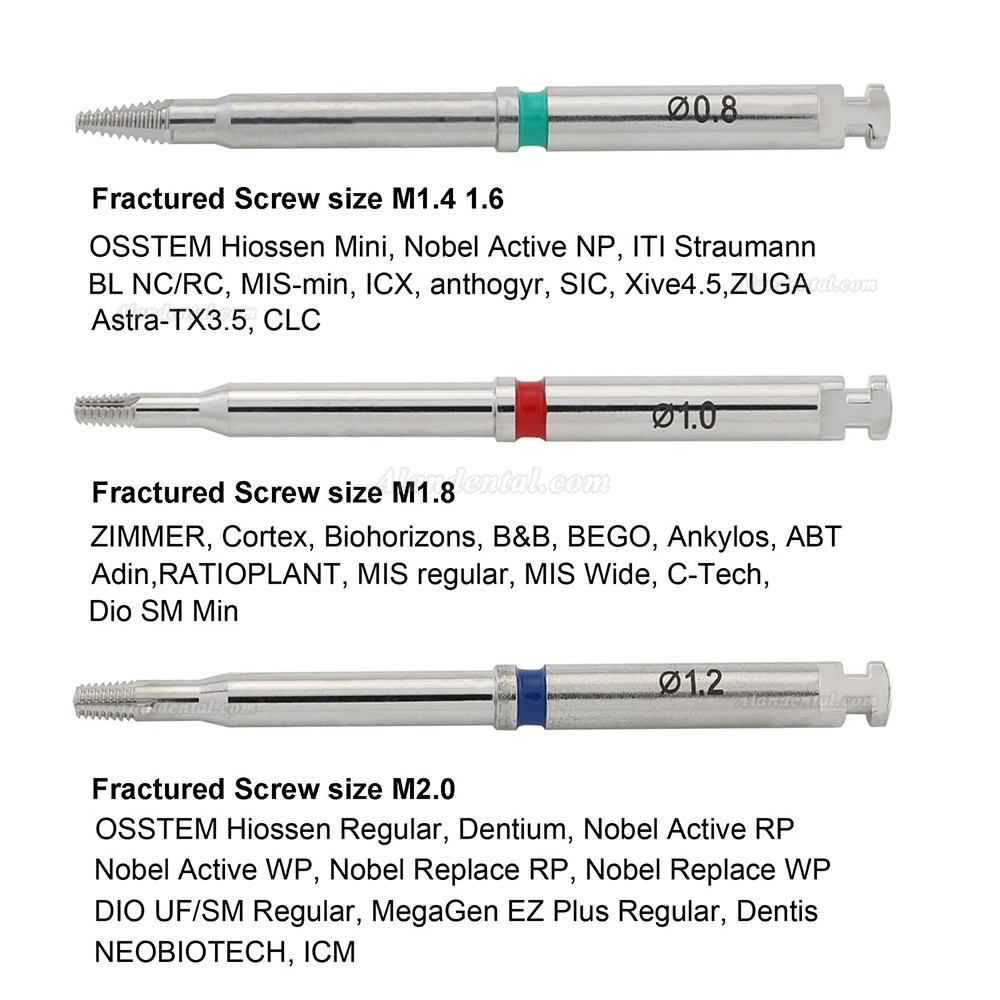

Products Name Fractured Screw size

Screw Remover φ0.8 M1.4 /M1.6

Screw Remover φ1.0 M1.8

Screw Remover φ1.2 M2.0

4. Shank Driver

- This is a surgical tool designed to be connected to the Screw Remover to allow use by hand, torque wrench, or ratchet.

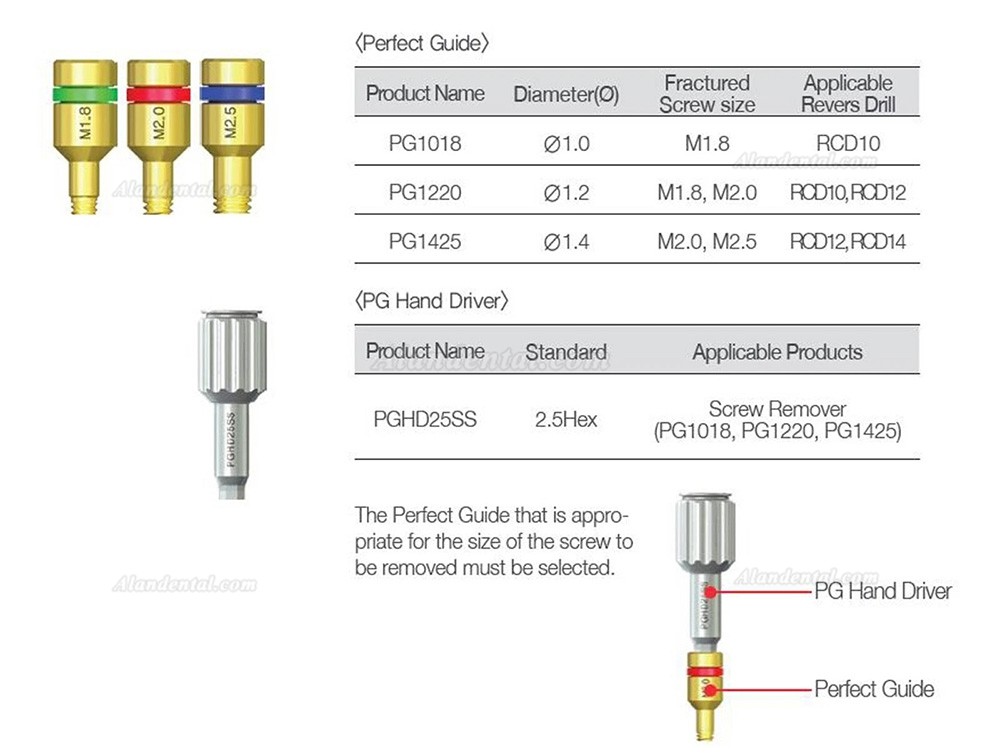

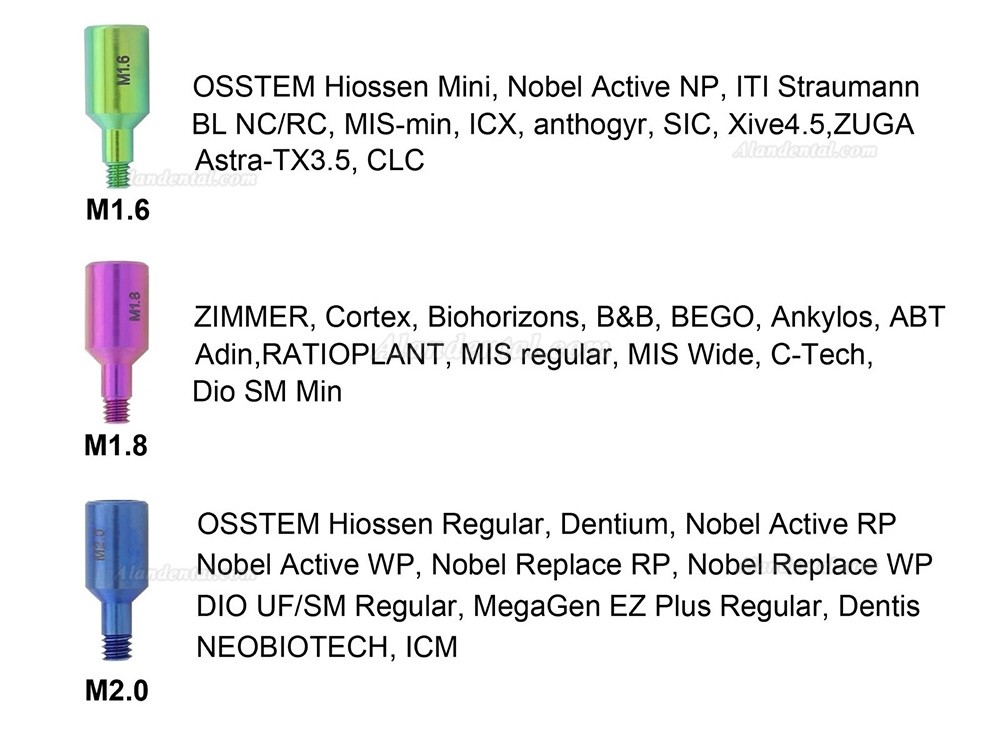

5. Perfect Guide & PG Hand Driver

- The Perfect Guide acts as a guide for the Reverse Drill. It is used when the screw is fractured at the lower part of the female screw inside the fixture. It is connected to the PG Hand Driver and is directly applied to the fixture female screw.

- The Perfect Guide has a stop structure inside that limits the Reverse Drill from drilling more than 2 mm.

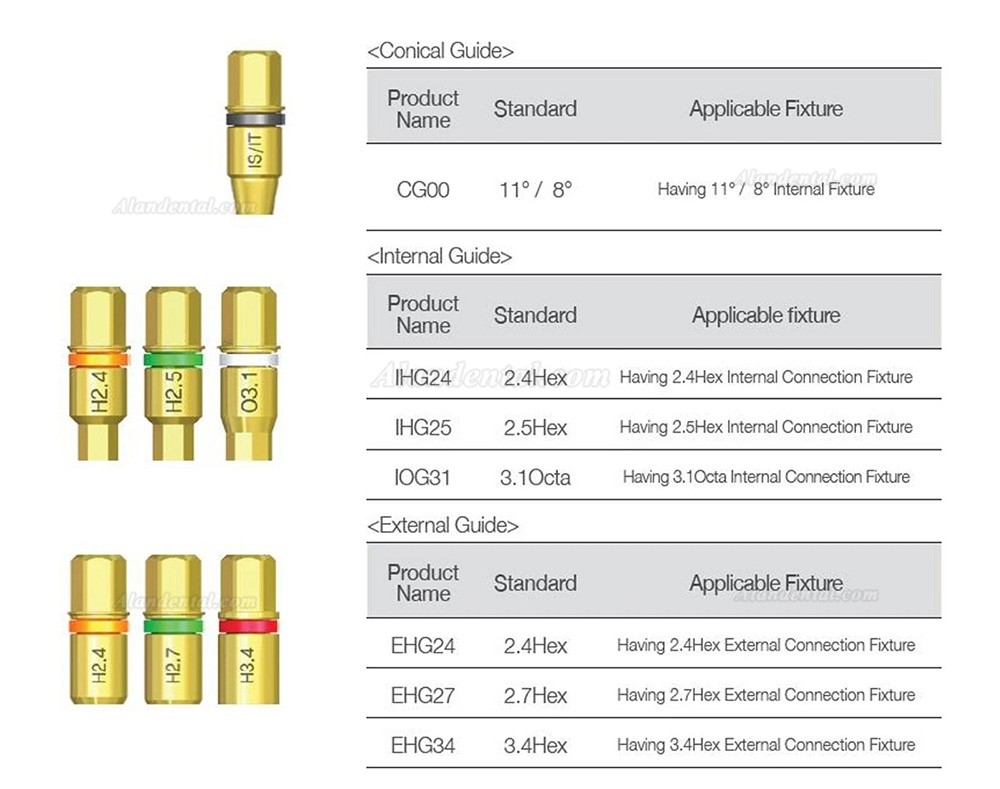

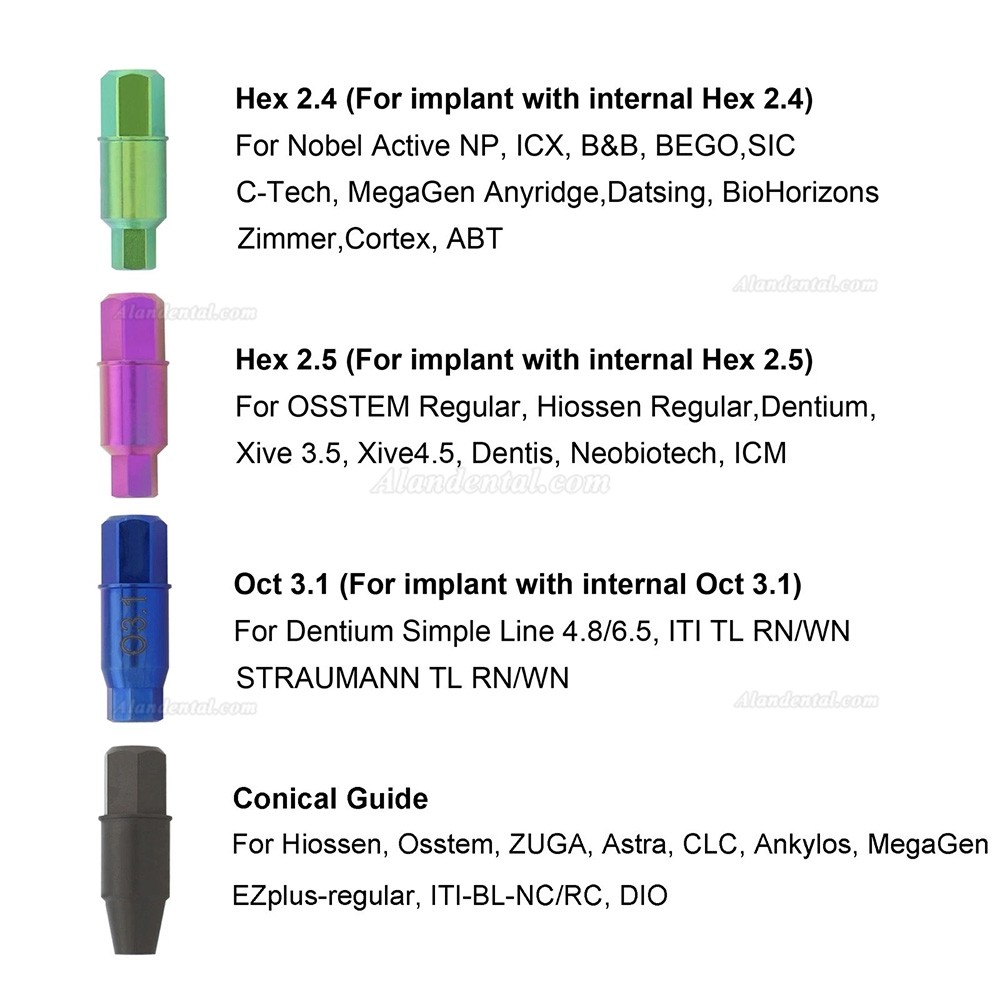

6. Conical, Internal, External Guide

- These act as the guide when using the Reverse Drill. They are used when the Perfect Guide cannot be used, or if the screw was fractured at a location deeper than 2 mm into the lower part of the female screw inside the fixture.

- The guide appropriate for connecting to the fixture should be selected.

7. SR Driver Holder

This can be affixed to the fixture by connecting it to the 3.5 Double Hex part of the Conical, Internal, or External Guide.
