JTT Dental Lab Brushless Micro Motor Micromotor Handpiece Polishing 30-50K RPM

JTT BLDC Micromotor Dental Lab Handpiece Polishing 30-50K RPM /HP65 Brushless

CHARACTERISTICS:
High-precision manufacturing, with a high degree  of coaxial output, using brushless DC motor technology, digital intelligent control, brushless maintenance-free, non commutation spark, more power, more torque, higher speed, longer life, quieter. Intelligent closed-loop control, speed closed loop control. Touch keypad, the operation more comfortable and convenient. Ergonomic design, feel comfortable, the appearance of small, more texture.

SPECIFICATIONS:
Motor：BLDC Motor
RPM：0-30000 / 0-50000RPM
MAX. torque：7.8Ncm

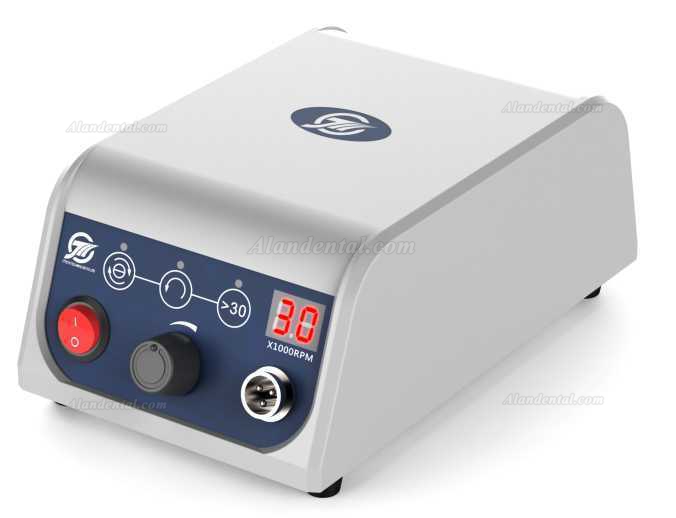

Controller Size:  21.5*12.5*8cm

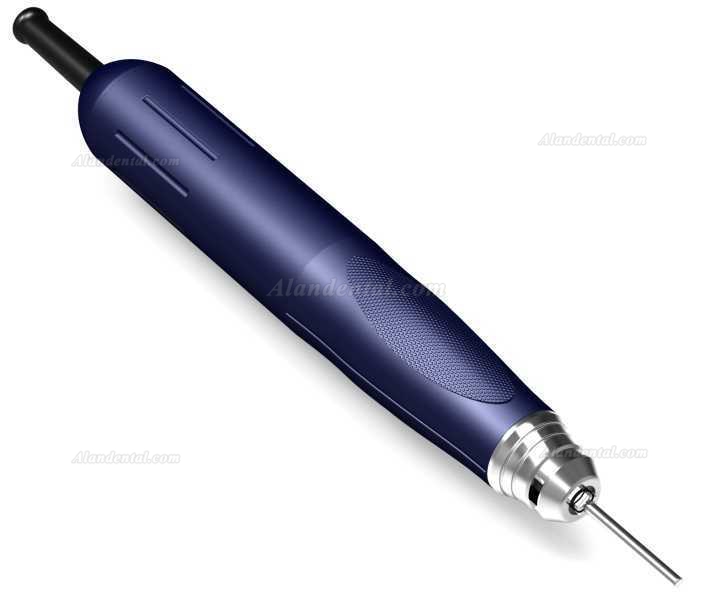

Handpiece Size： L155*￠24mm
Handpiece weight：183g
Handpiece cable length： 1.5m
Concentricity： 0.02mm
Input Power: 300W
Input Voltage: AC110V/AC220V/AC240V (Depends on customer's location)

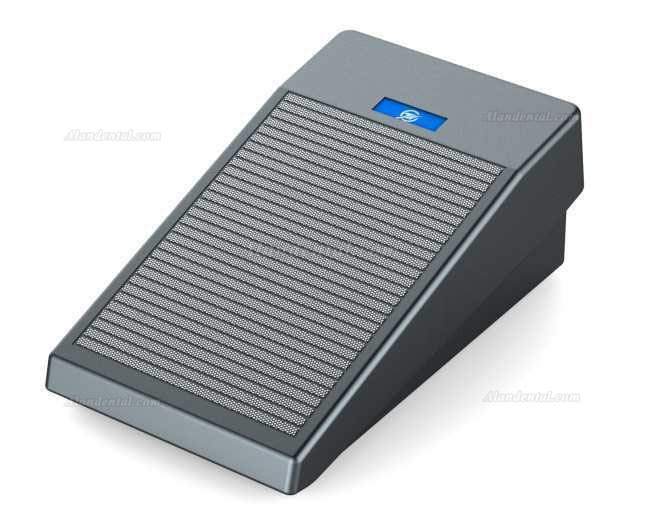

Speed foot pedal

Attention：
1．The machine has intelligent protection function. It can protect itself from without plugged in handpiece, the motor damage, controller failure and the over-temperature. When the protection occurs first turn off the power switch, check the condition of each part carefully, and then use it.
2．Please supply the AC110V or AC220V according to your model, otherwise it may cause the controller to burn down.
3．If the machine does not work, check the power cord, handpiece, pedal is plugged or not. Fuse on the power socket burned or not. If it is over-temperature protection, please turn of power switch and wait to reduce the temperature before use.
4．Please turn off the power switch when you do not want to use the machine.
5．Please try to protect the handpiece, the handpiece is very sophisticated equipment, and regularly to remove and clean the chuck and the hollow shaft of placing the chuck.
6．Do not use the controller for other devices, otherwise it will cause the controller not working properly or damaged.

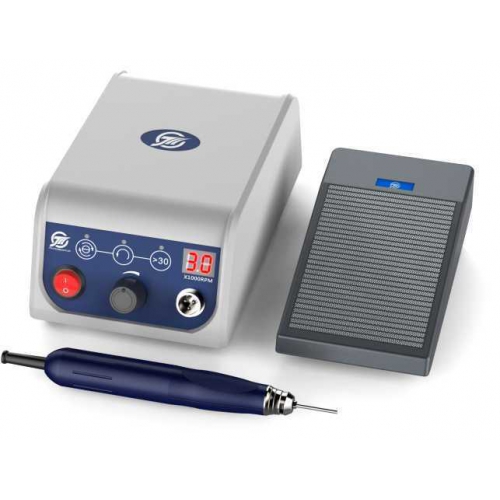

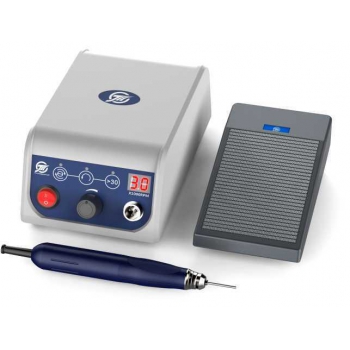

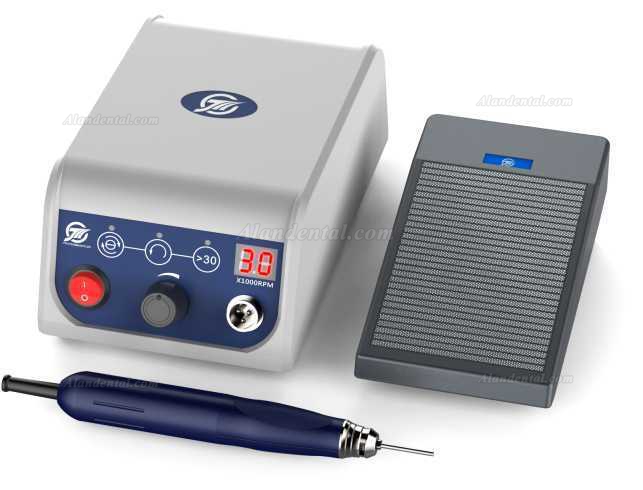

Included:
Motor: 1PCS
Foot Pedal: 1PCS
Handpiece: 1PCS
Holder: 1PCS
Disassembling Tool: 1PCS
User Manual: 1PCS

Package:
Carton
