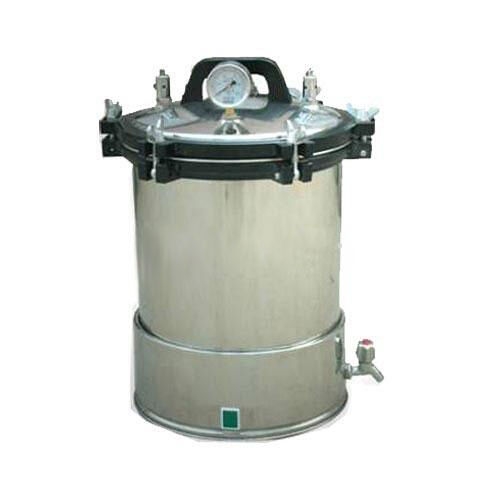

JIBIMED® YX-24LD Portable Autoclave Sterilizer 24L

JIBIMED® YX-24LD Portable Autoclave Sterilizer 24L
Item No. YX-24LD
Brand:JIBIMED

But It Now : $461.99
Voltage :

Plug :

Quantity :

Following the purchase of goods to reach the number that they can enjoy a range of preferential prices

3-4	5-9	10-Max
$452.99	$439.99	$424.99
Large Order :

Weight:0gram
Goods click count:4946

Item Description Reviews

JIBIMED® YX-24LD Portable Autoclave Sterilizer 24L

Features:

1. The lid is equipped with a safety valve and an air releasing valve. When the steam pressure exceeds 0.16 MPa, the safety valve releases excess pressure. The lid is also equipped with a pressure gauge with pressure and temperature readings.

2. The product is heated by an immersed electrothermal tube. Liquefied petroleum gas and a coal stove can also be used as heating sources.

3. The container and drum are made of stainless steel 0Cr18Ni9Ti.

Specifications:

Sterilizing volume: 24L

Working pressure: 0.14 -0.16 MPa

Working temperature: 126℃

Max. safety pressure: 0.165Mpa

Heat average: ≤±1℃

Power / consumption: AC220V.110V 50Hz / 2KW

Dimension: 410×410×630 mm

G.W/N. W: 19/17 KG

Safety protection device:

1. This unit is a steam pressure vessel. Avoid impact during use and do not exceed the rated pressure. If the pressure gauge pointer reaches 0.165 MPa and the safety valve does not exhaust, stop using the unit and check the safety valve.

2. The pointer should be at the zero position before using the pressure gauge. Otherwise, the gauge may have failed and should be repaired or replaced. The pressure gauge should be calibrated 1–2 times per year.

3. Drain the water inside the container and the condensed water below the sieve plate. Wipe off water and deposits on the electrothermal tube. The gasket is subject to wear. If it does not work well, check whether it has become aged and hard, and replace it as needed.

Maintenance:

l. To ensure the reliability of the sterilization effect chemical indicating piece of biologic indicating piece must be put into the sterilization chamber, together with the: objects to be sterilized. After sterilizing, the sterilization effect can be checked.

2. Safety valve and the exhaust valve are on the top, Safety valve must be checked once every year If it is in malfunction, replace it. If the safety valve is in malfunction during use and the pressure keeps increasing, the power supply must be cut to ensure a safe use.

3. The rubber seal ring is easily aged. If aging causes leakage, the seal ring should be replaced in time.

4. The pressure meter must be standardization every year.

5. The machine must be keeping clean, and protecting the incrustant occurs on the surface, often method is wash it with distilling water once a week.

6. If the overheat protector be damaged, you just take of the round cover on the bottom, and change the protector.
