Dental High Low Speed Handpiece Kit 4 Holes

Dental High Low Speed Handpiece Kit 4 Holes
Item No. ADL003860
Brand:Alan Dental
- EOFY sales 2026:
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till June 30th,2026
But It Now : $135.98
Quantity :
Weight:0gram
Goods click count:428

Item Description Reviews

Dental High Low Speed Handpiece Kit 4 Holes

Features

E-type connector

Wrench type

Precise technology, Steady, no vibration while revolving, offering a steady operation.

Suitable for any E-type handpiece accords with ISO standard

135°C Autoclavable, suitable for both steam and chemical autoclave

Specifications:

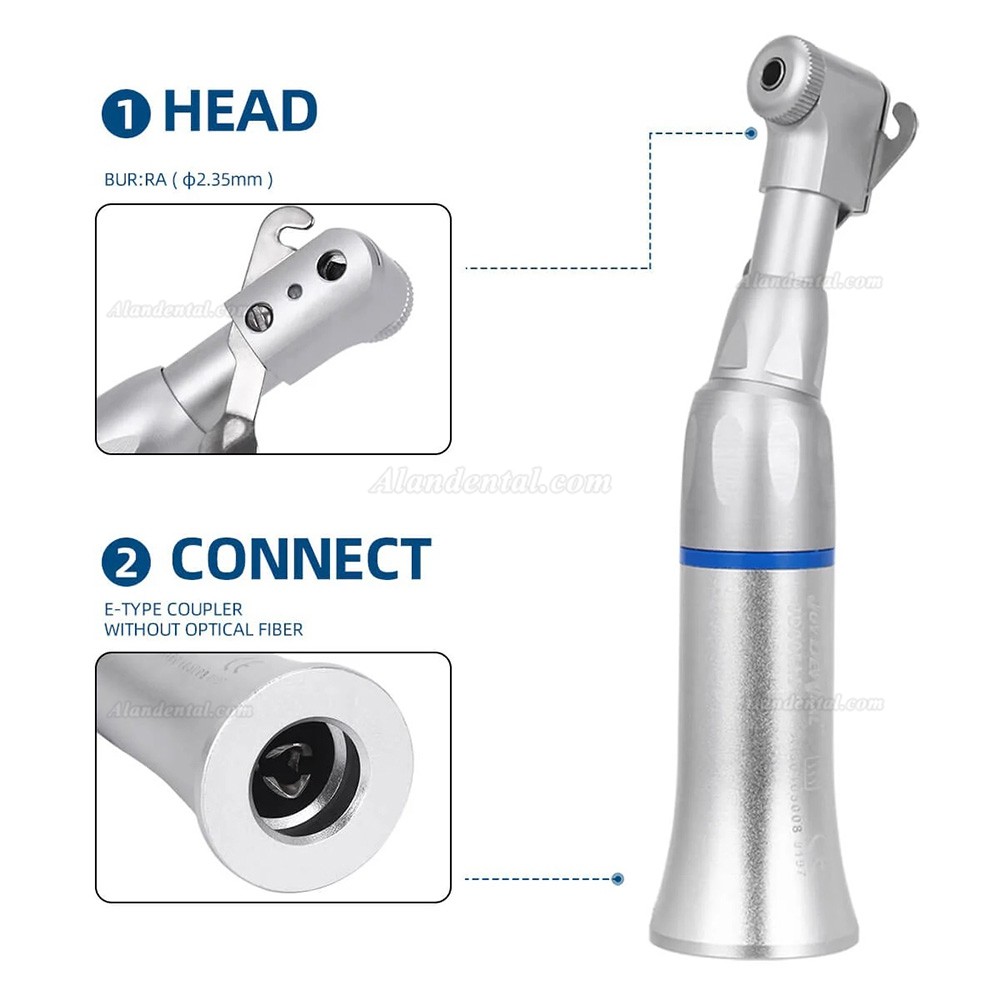

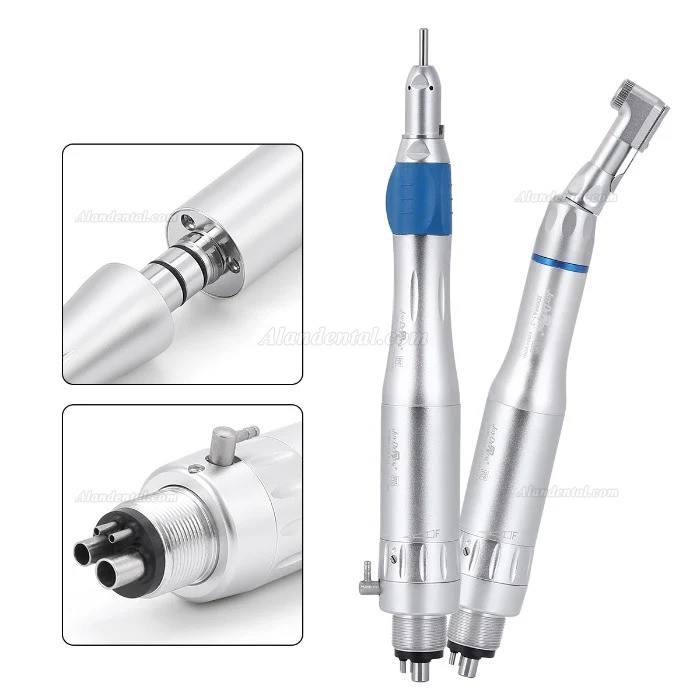

Contra angle handpiece:

Low Speed 22,000-27,000 rpm.

The shank of the instrument mounted therein is 2.35 mm.

Fastening of the instruments with a turning latch.

Autoclavable 135°C

For any lab or E-type motors

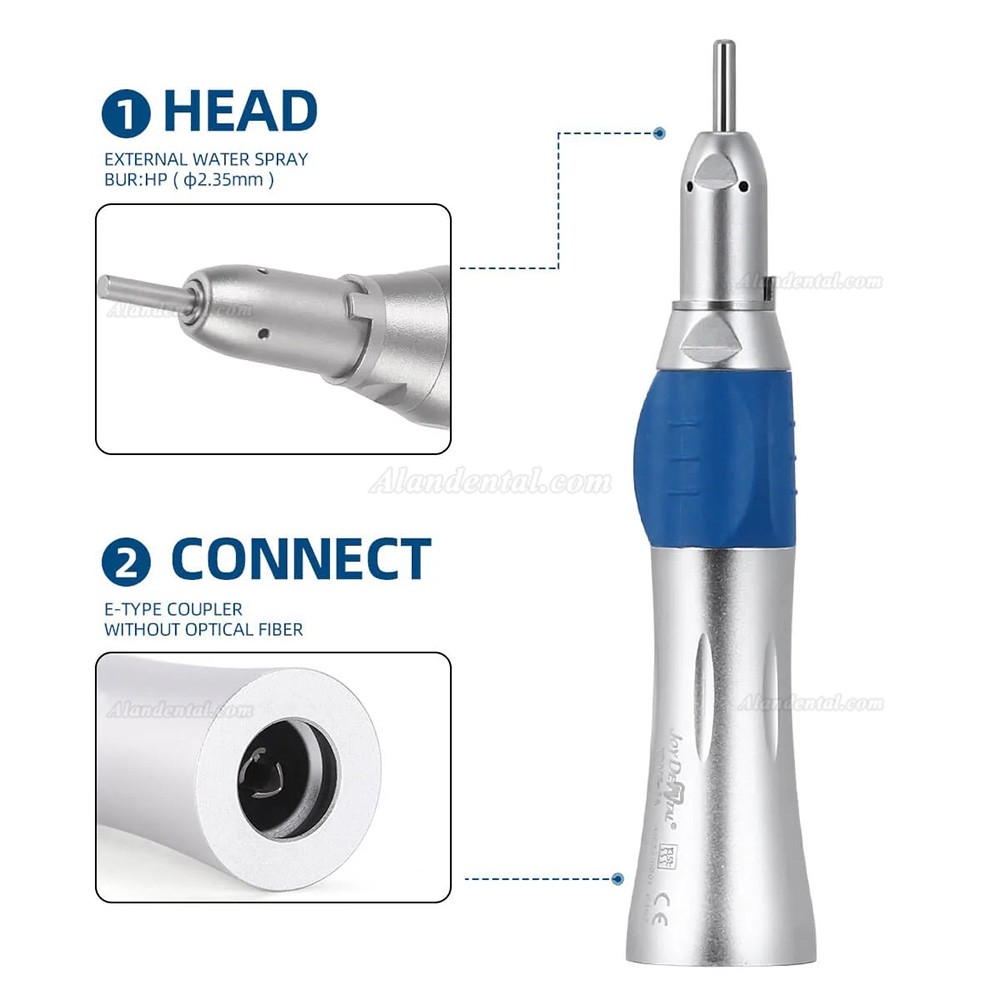

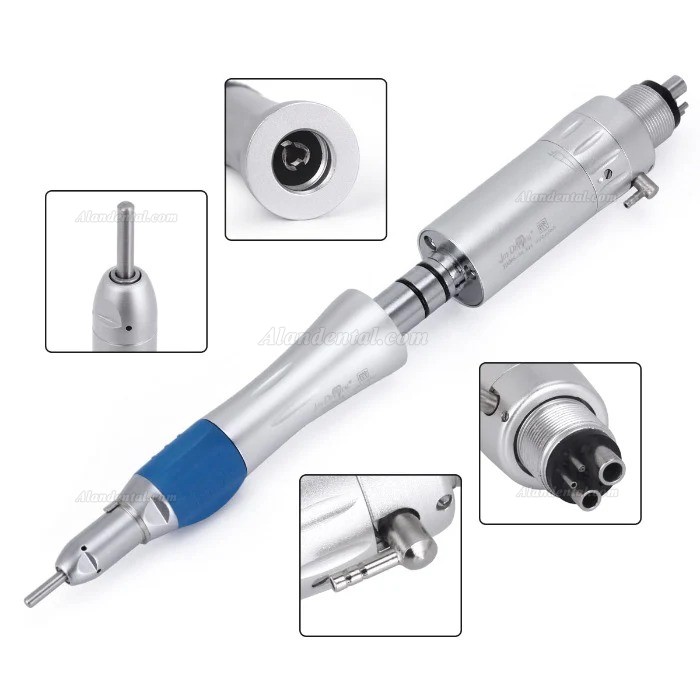

Straight Nosecone:

Working pressure: 0.3MPa.

0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).

Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise).

Noise: ≤68dB

Air consumption: about 56L/min

Ratio: 1:1

Max speed of contra angle: 25000rpm/min.

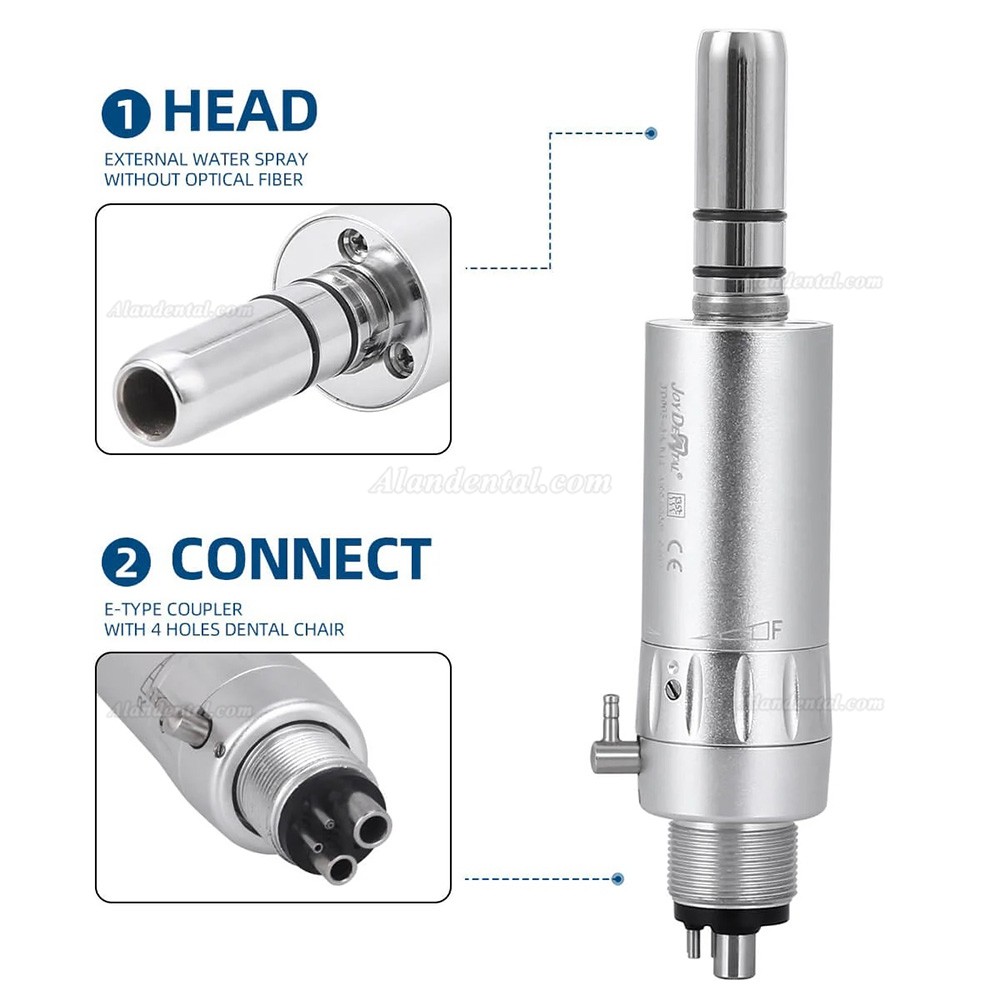

Air Mortor:

Supply air pressure: 245-392KPa (2.5-4kgf/CM2)

1:1 Direct Drive

2/4 Holes

Max speed 20,000 min-1

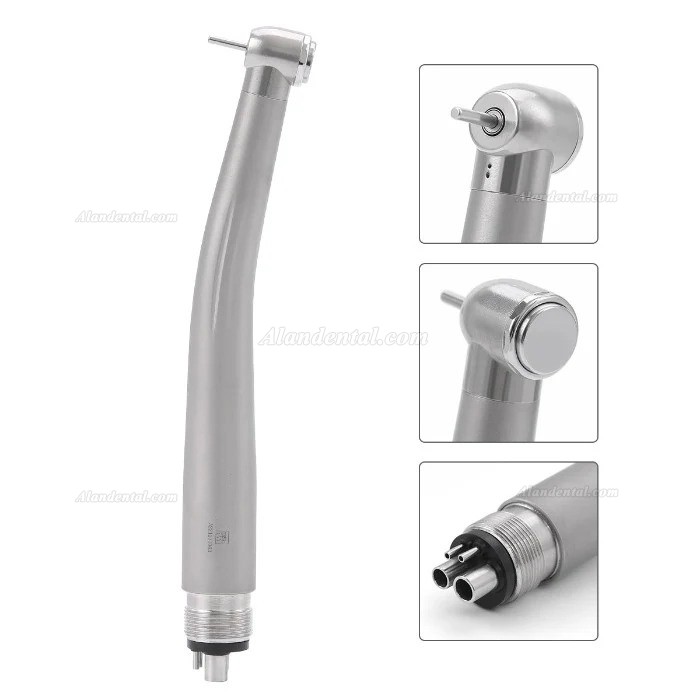

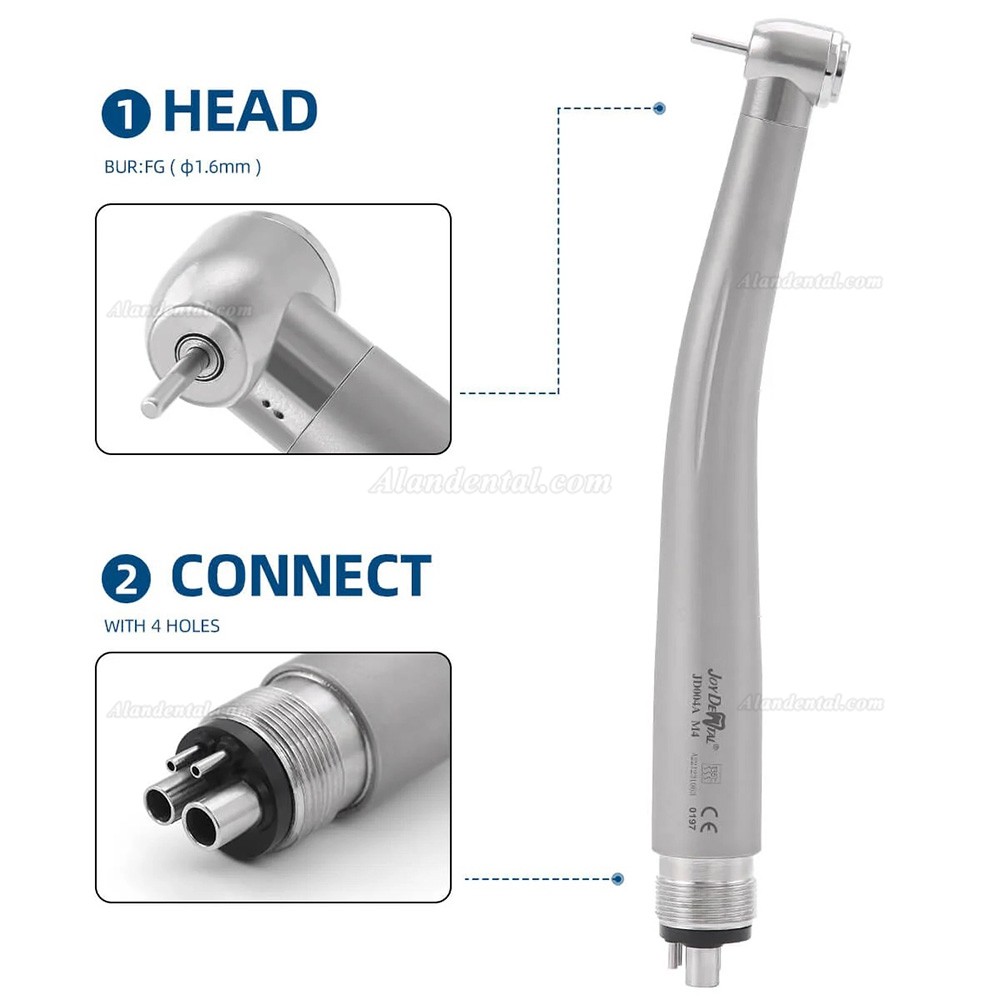

High Speed Handpiece:

Description: Standard Push button type, high speed handpiece, Single-way water spray

Needle Change Type: Push button

Air Pressure: 180~250 KPa (1.8~2.5 kgf/cm2)

Water Pressure: 198Kpa (2 kg)

Rotation Speed: 370,000-420,000 rpm

Head Hight: 13.14 mm

Head Diameter: φ11.2 mm

Bur Applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

Noise: ≤70dB

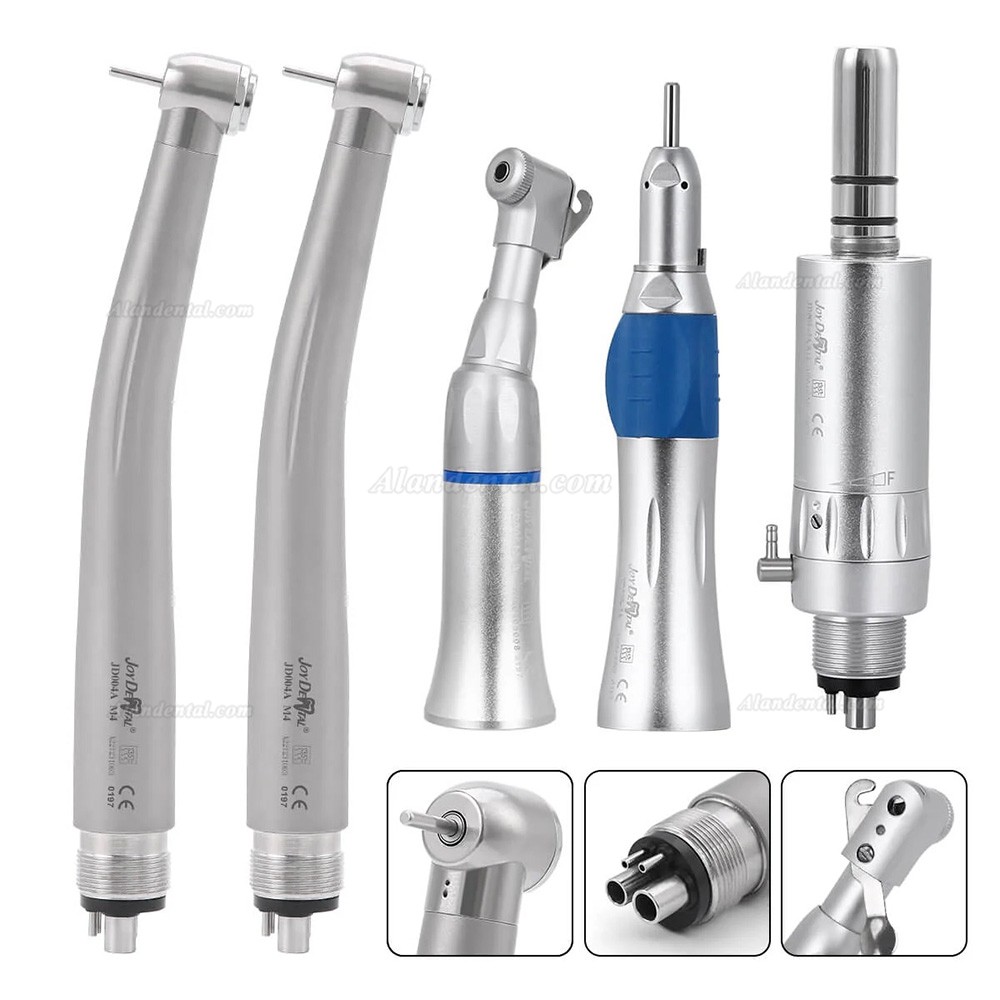

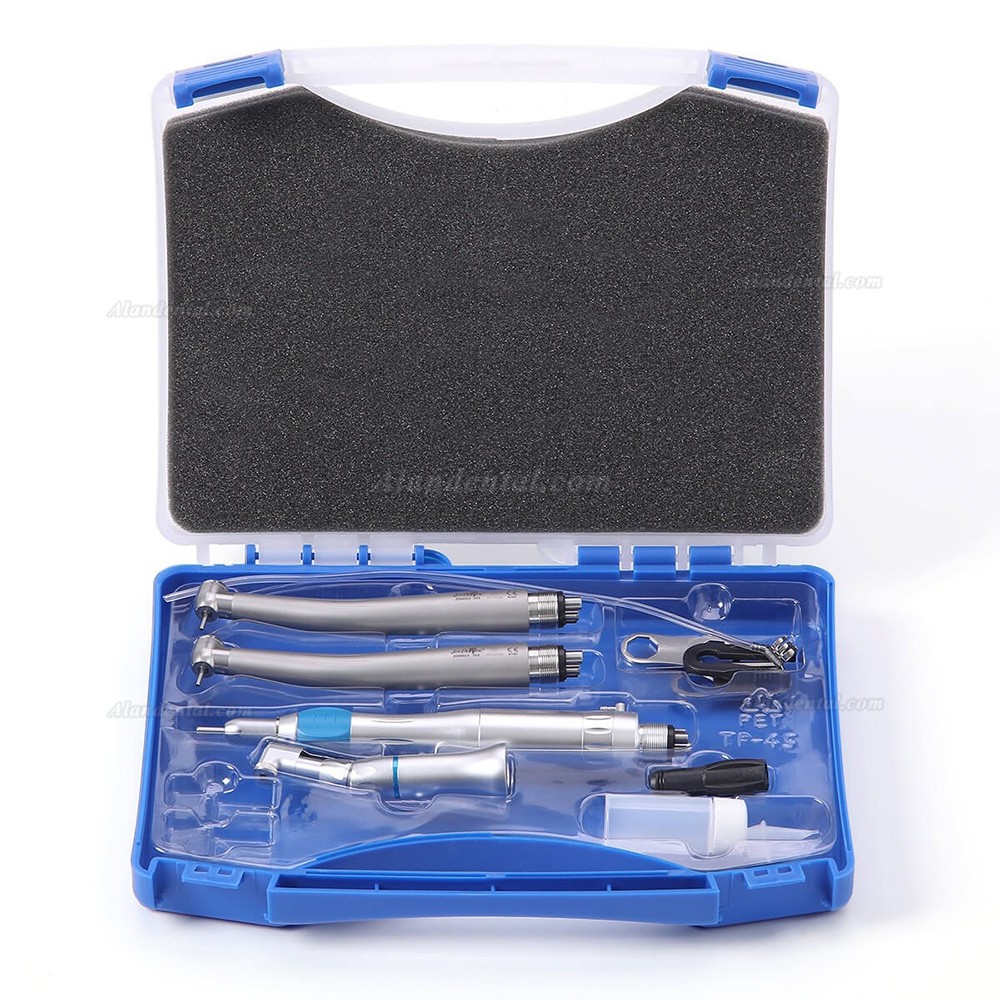

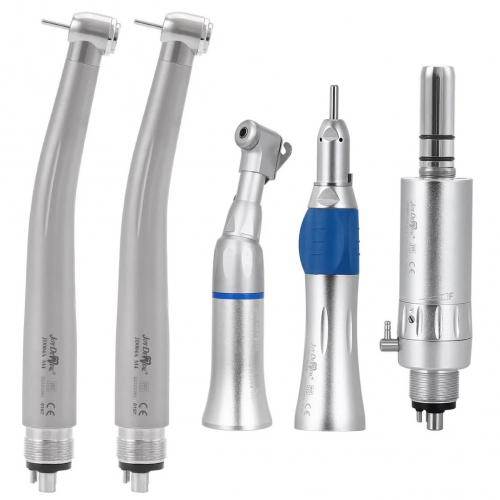

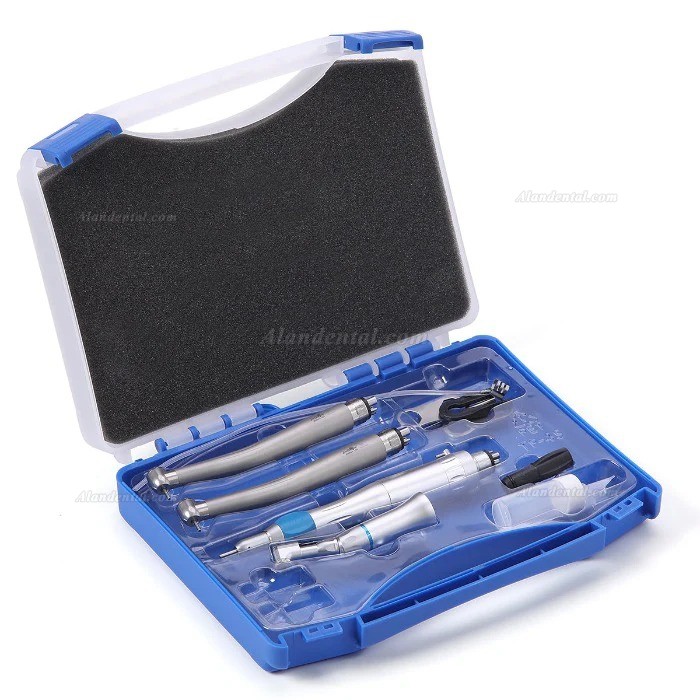

Packing List:

High speed handpiece push button 2/4 Holes: 2 Pcs

E-type air motor 2/4 Holes: 1 Pc

Straight nose cone: 1 Pc

Contra Angle handpiece: 1 Pc

Water spray nozzle: 1 Pc

Oil spray nozzle: 1 Pc

CAP Spanner: 2 Pcs
