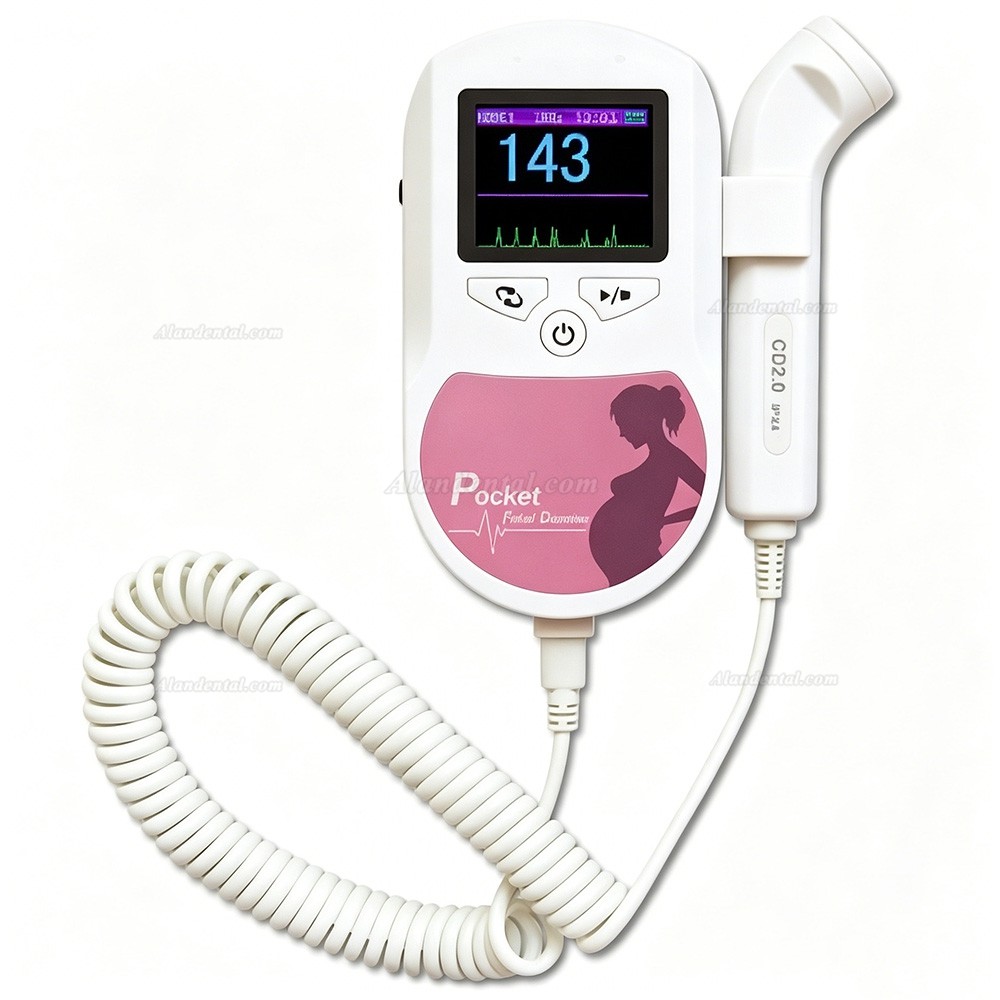

CONTEC Sonoline C2 Baby Sound Monitor Pocket Fetal Doppler
Features
Beautiful shape, portable, easy operation.
Real-time clock display Three test modes: real-time, average, manual.
Chinese and English display and adjust.
The probe has bending structure which is easy to operate andcan increase the ease of the pregnant women, incarnating the humane design.
The probe can be changeable.

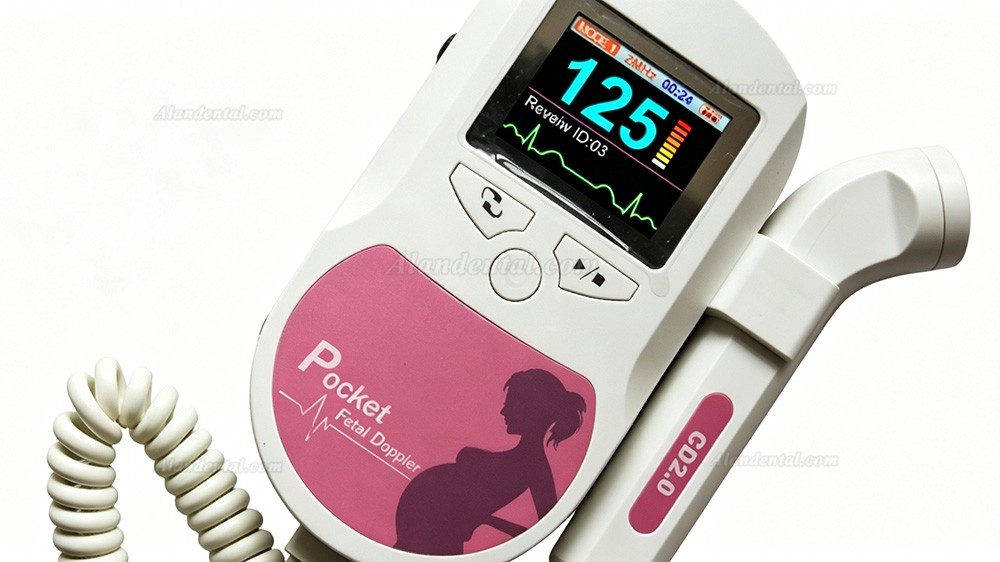

FHR values, bar graph and heartbeat waveform color screen display.
Alarming in red when the FHR range is out of the normal range.
Memory and review.
Observe the heart rate trend graph by PC software, manage the memory cases.
Battery status indicator.
Built-in speaker.
Output for headphone.
Auto power-off when there is no operation in one minute.
Performance
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type CF applied part
Display: 1.77'262K TFT display
FHR Measuring Range: 50 BPM ~240 ВPM (ВPM: beat per minute)
Resolution: 1 BPM
Accuracy: +2 BPM
Power Consumption: <1W
Voltage: DC 3.0 v

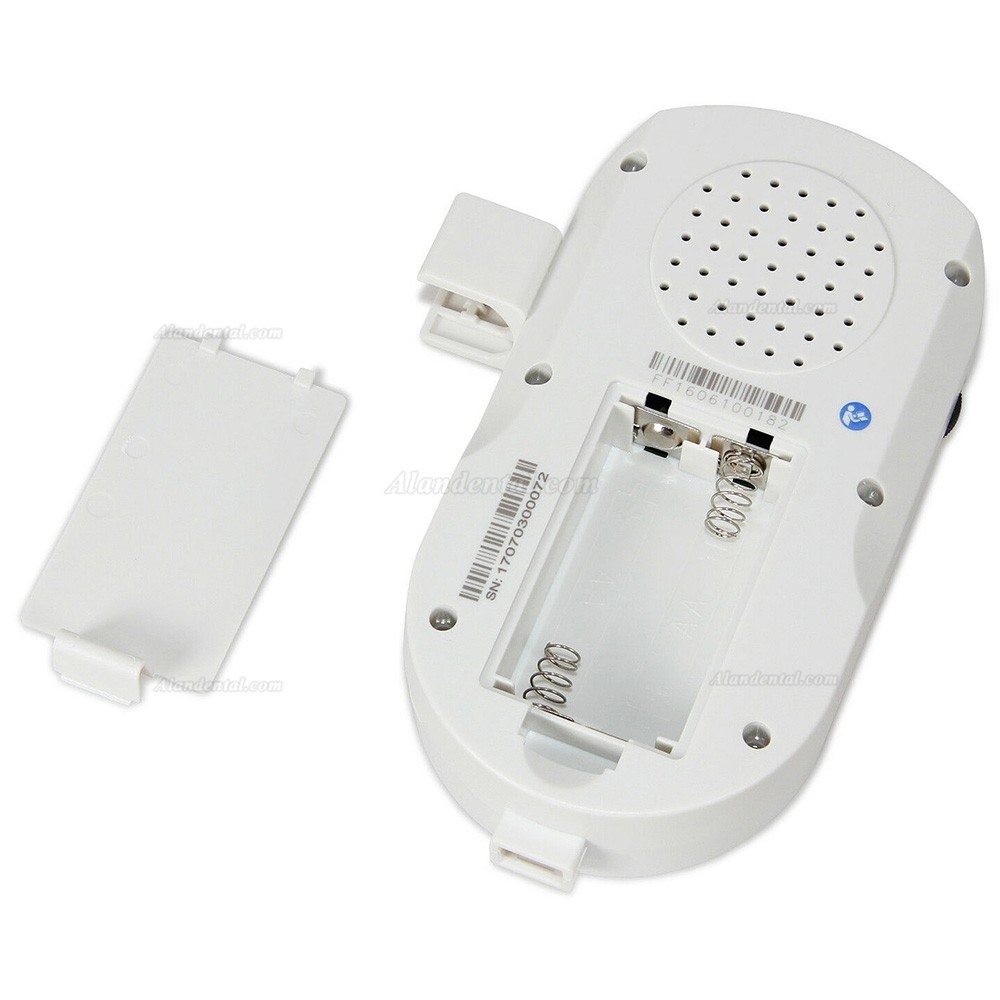

Power Supply: Two pieces of 1.5 V DC battery
Suitable Using Range: Suitable for use after the 12th week of pregnancy
Probe
Nominal Frequency: 2.0 MHz
Working Frequency: 2.0 MHz + 10%
Ultrasound Output Power: P < 20 mW
Negative Peak Sound Pressure: p_<1MPa
Working Mode: Continuous wave doppler
Effective Radiating Area of Transducer: < 157mm?
Physical characteristic
Dimension:(L) 135 mm x (W) 92 mm x (H) 29 mm
Weight: About 245g (including batteries)
