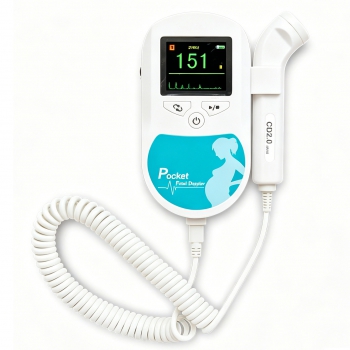

Baby Sound Monitor Sonoline C Pocket Fetal Doppler

Baby Sound Monitor Sonoline C Pocket Fetal Doppler

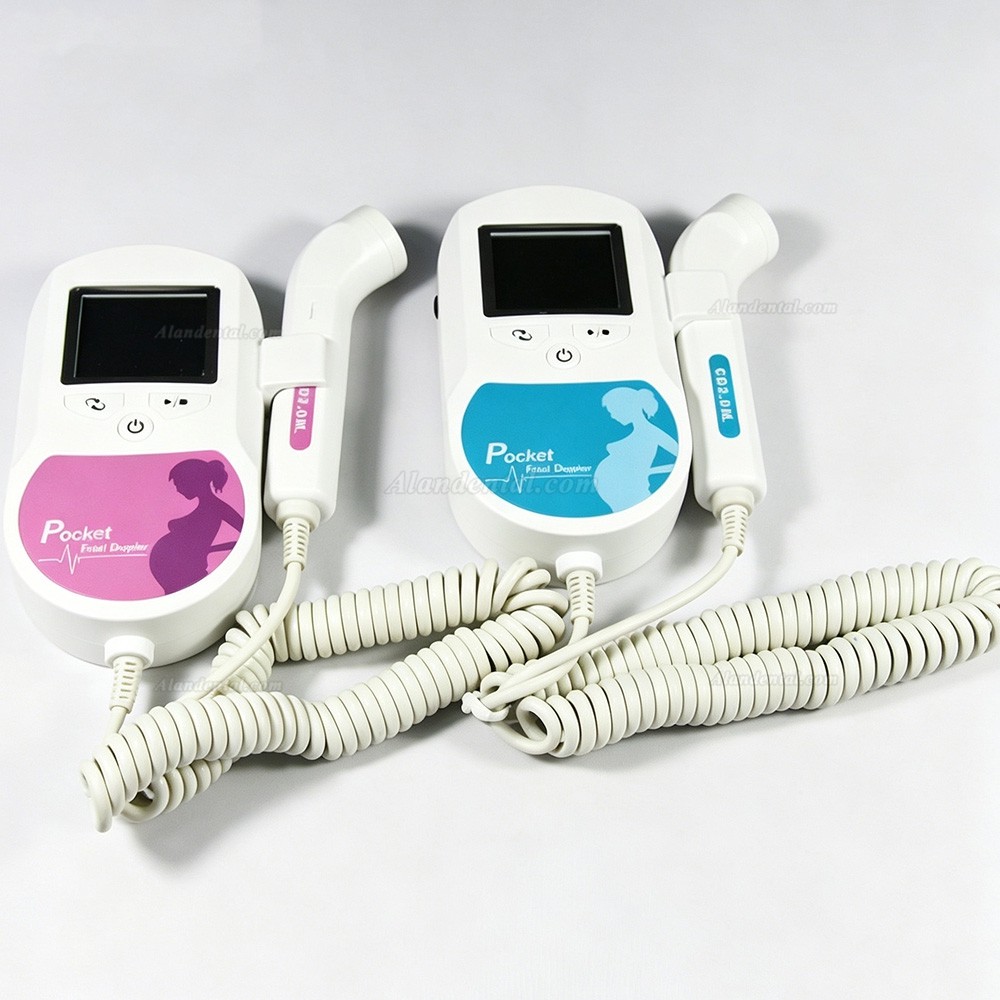

Sonoline C Pocket Fetal Doppler is a hand-held fetal heart rate detecting device adopted Doppler theory. It can be used in hospital and clinic for daily self-check by pregnant woman. The device adopts color LCD screen of high resolution, which can display the fetal heartbeat waveform and calculate the FHR value.

Features

Delicate and compact design, portable and easy to use.

Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanized design.

Three working mode: Real-time FHR Display Mode, Averaged FHR Dis-play Mode and Manual Mode.

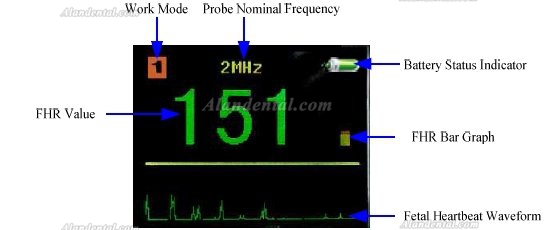

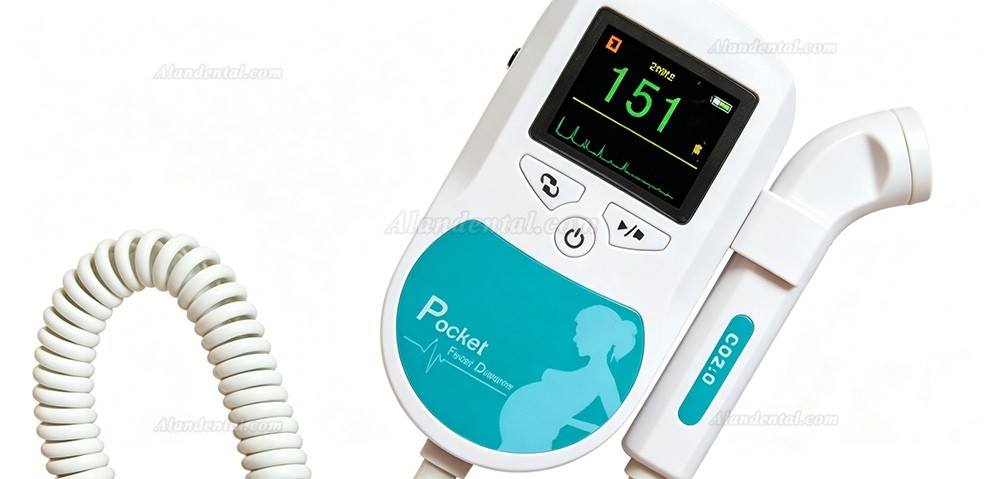

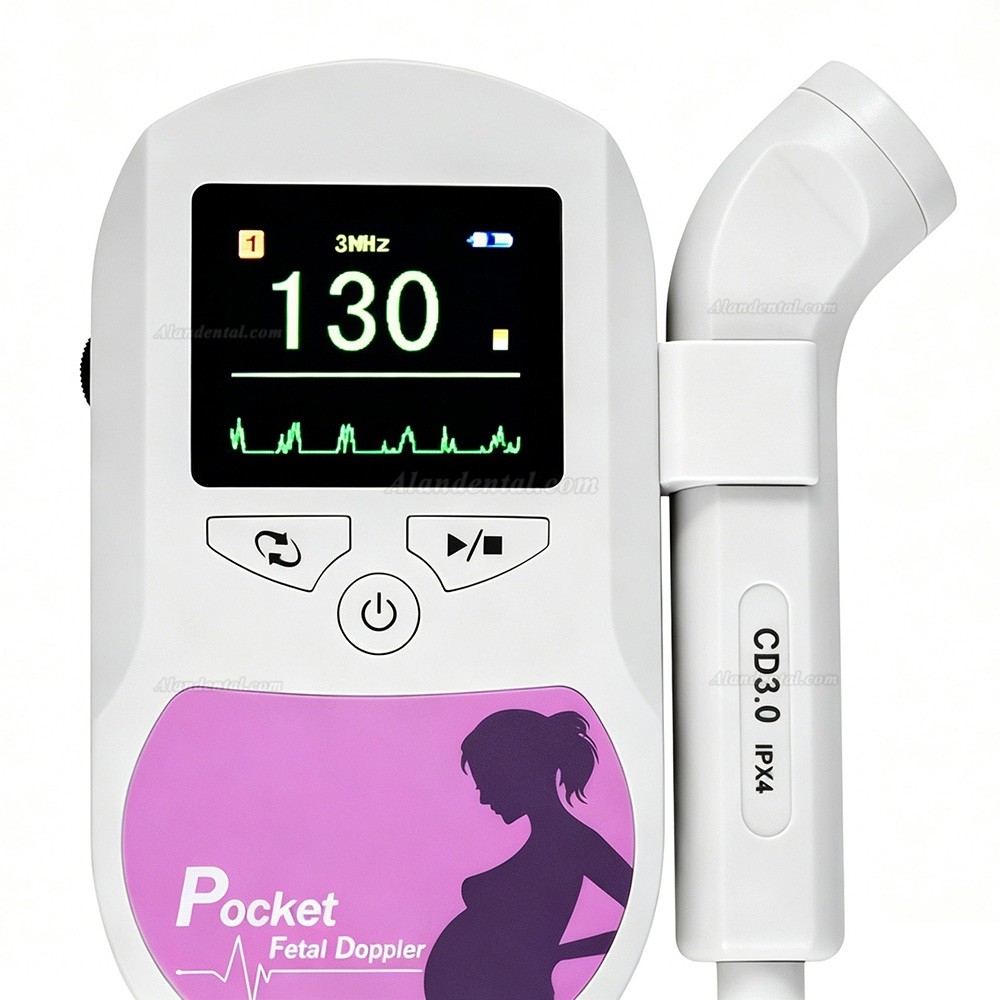

FHR values, bar graph and heartbeat waveform color display.

Alarming in red when the FHR value is out of the normal range.

Probe falls off detection, battery status indication.

Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute.

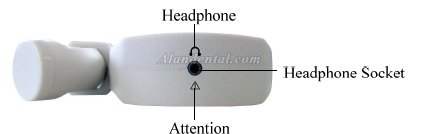

Audio interface: Can be connected to other recording devices by re-cording cable, record fetal heart sound in real-time.

Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use.

Physical characteristic

Dimension: 135 mm(L) x92 mm(W)x29 mm(H)

Weight: about 245 g (with battery)

Performance

Safety classification: internally powered equipment, type CF ap-plied part

Display: 1.77262K TFT

Range of fetal heartrate: 50 BPM ~ 240 BРM (BPM: beats per minute)

Resolution: 1 BPM

Accuracy: 2 BPM

Power consumption: <1w

Rated operational voltage: DC3 V

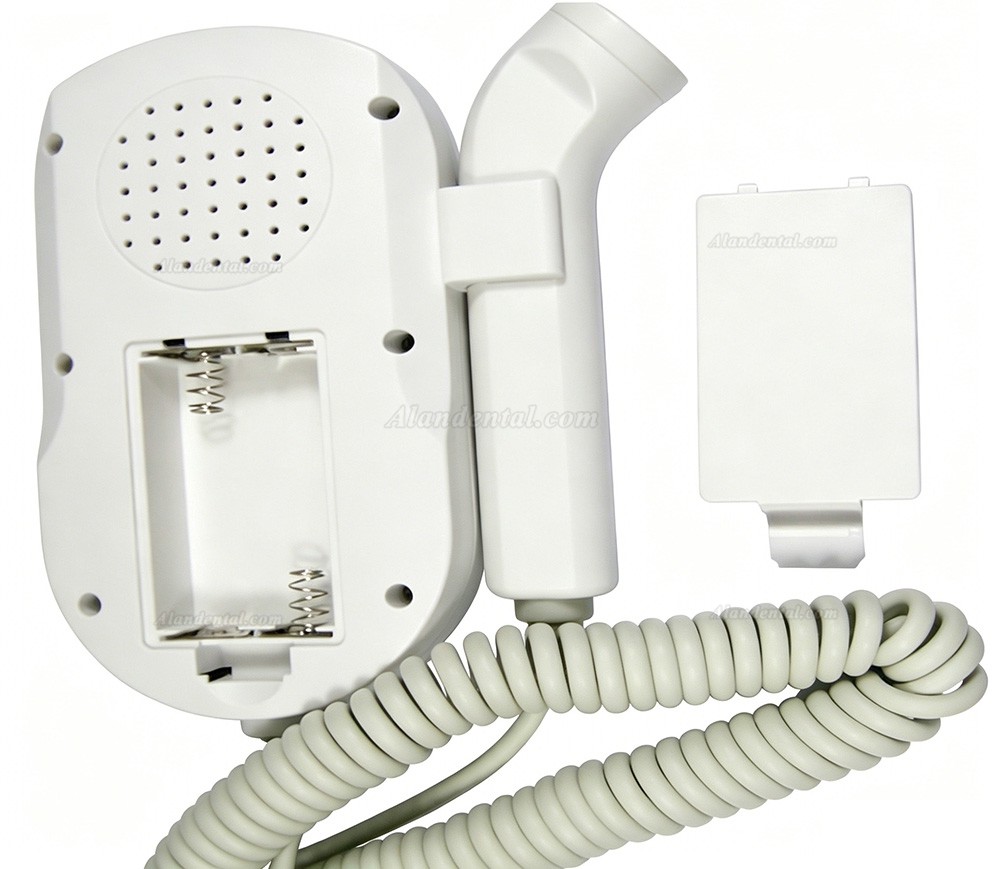

Battery: two 1.5V batteries (type: AA LR6)

Probe

Nominal Frequency(2MHz probe): 2.0 MHz

Working Frequency(2MHz probe): 2.0 MHz 10%

Ultrasonic Output Power: P < 20 mW

Negative Peak Sound Pressure: P_<1MPa

Output Beam Intensity: lob < 20 mW/cm*

Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm

Working Mode: Continuous wave doppler

Effective Radiating Area of Transducer: < 157 mm
