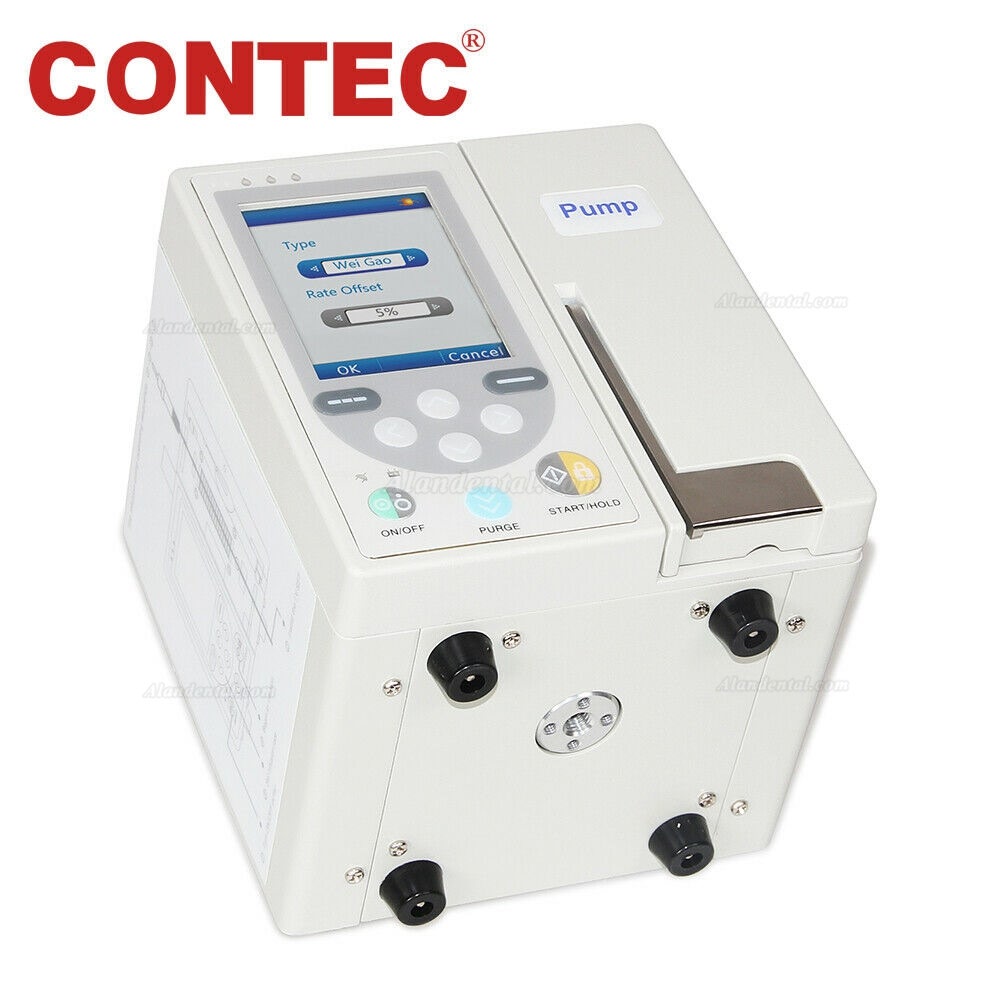

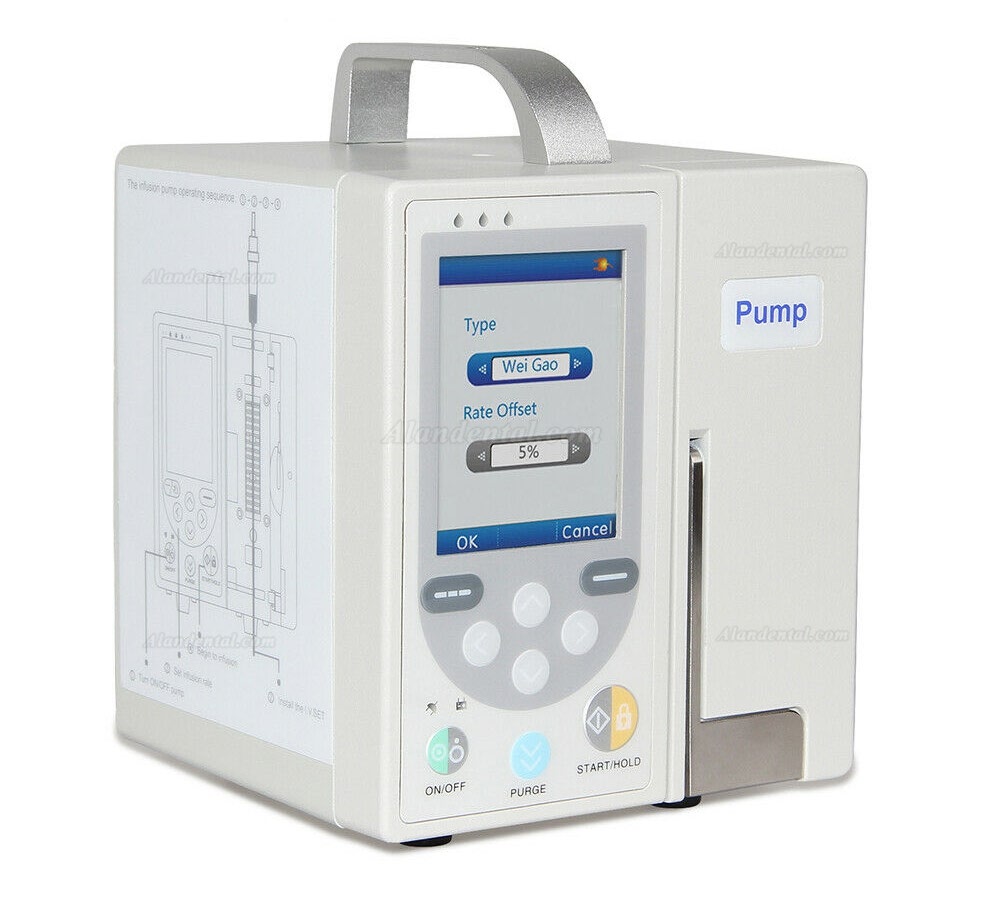

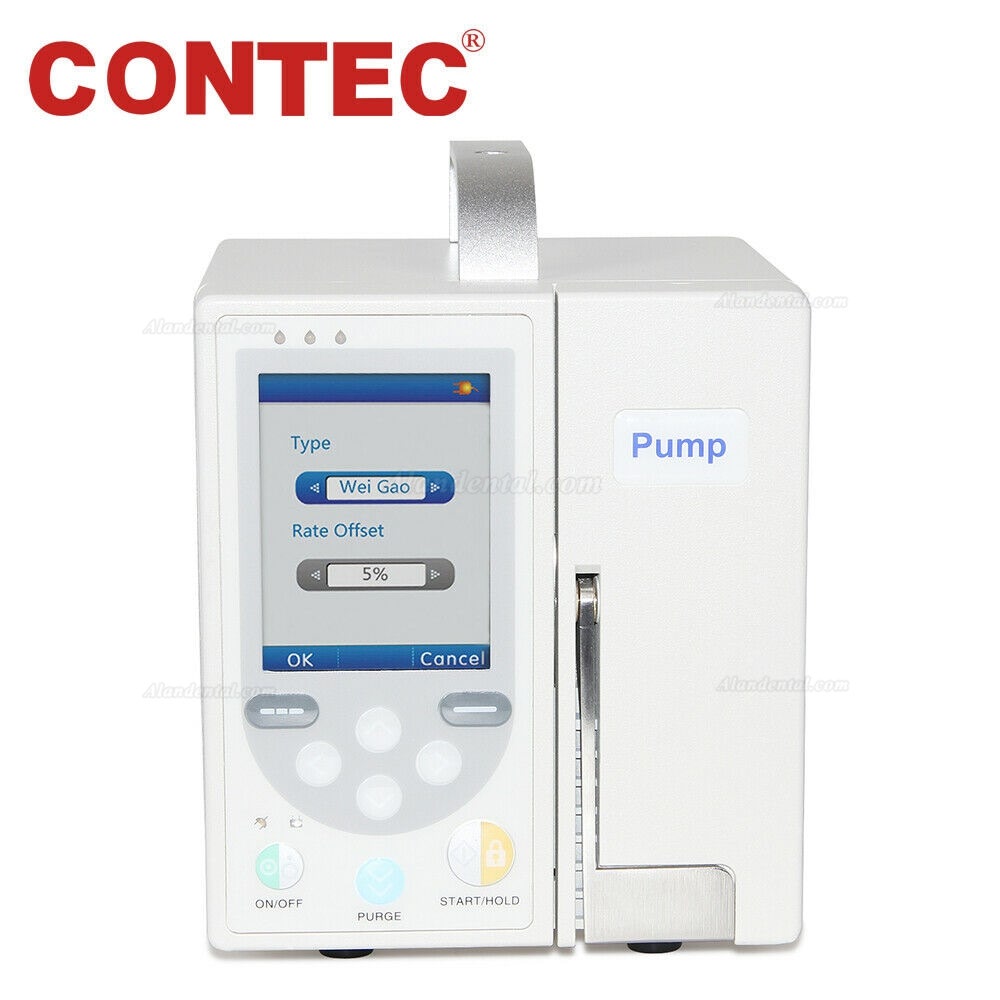

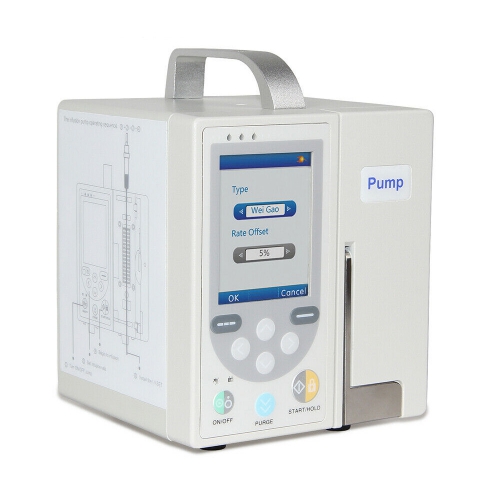

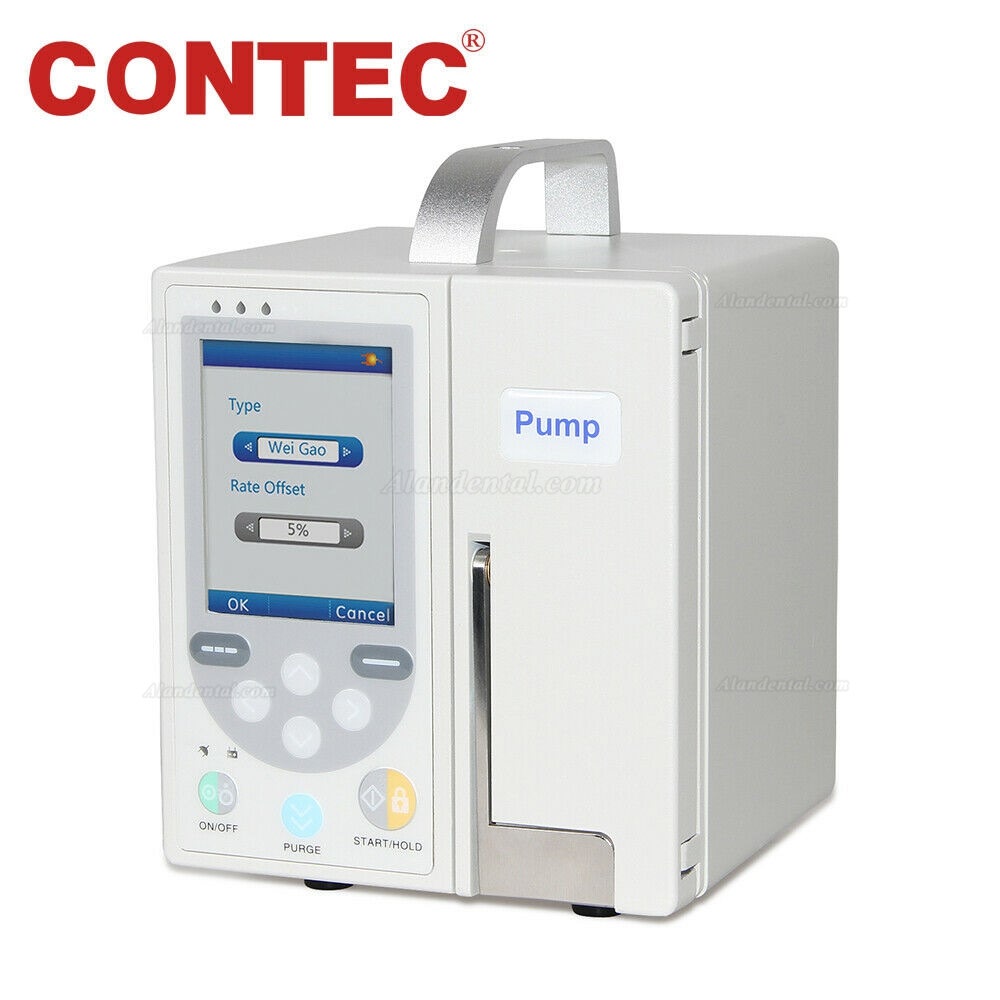

CONTEC SP750 Volumetric Infusion Pump IV Fluid Control Syringe Pump, Alarm, LCD

CONTEC SP750 Volumetric Infusion Pump IV Fluid Control Syringe Pump, Alarm, LCD

Function

1. Flow rate control based on configured infusion settings.

2. Supports calibration for compatible IV sets. Infusion parameters can be configured through the pump interface.

3. 3.5-inch TFT LCD display.

4. Keypad-based operation.

5. Displays the estimated remaining infusion time during operation.

6. Includes an infusion start reminder function.

7. Alarm notifications include occlusion, air bubble detection, door-open status, motor fault, and other system notifications.

8. Air bubble detection and pressure alarm thresholds can be adjusted by authorized personnel according to available settings.

9. The IV-set clamp helps limit unintended fluid flow when the pump door is opened.

10. Anti-bolus function helps limit bolus delivery following the release of an occlusion.

11. Infusion stops when designated alarms are activated. NEAR END, KVO, and LOW BATTERY notifications follow their respective operating settings.

12. Adjustable alarm volume.

13. Supports AC/DC power input and includes a built-in lithium battery.

14. Compact aluminum housing.

15. USB port for software maintenance and updates by technical personnel.

16. The mounting bracket supports multiple installation orientations on an infusion pole.

17. Configured infusion parameters can be retained after the device is powered off.

Performance

◆ Type: volumetric infusion pump

◆ Infusion rate: 1~699ml/h, increment: 1ml/h

◆ Total volume: 1~9999ml/h, increment: 1ml/h

◆ Accuracy: ±5%(use the IV set calibrated)

◆ KVO rate:1~5ml/h(it can be adjusted by professional medical personnel)

◆ Display information: flow rate, total volume, accumulated infusion volume, residual time

◆ Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion, infusion reminder, communication failure and motor failure.

◆ Air bubble detector: ultrasonic

◆ Sensitivity for air bubble detector: 0.01~0.14ml(it can be adjusted by professional medical personnel)

◆ Sensitivity for pressure sensor: 1~7 grades(it can be adjusted by professional medical personnel)

◆ Safety classification: class I, type BF applied part

◆ Waterproof degree: IPX1

◆ Working mode: continuous working

◆ Power supply: AC:100~240V, 50/60Hz or DC: 12V

Rechargeable Li-polymer battery, 7.4 V/3500mAh

Special safety measures:

◆ Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.

◆ Air bubble detector with high accuracy prevents air bubbles from entering patient’s body.

◆ Pressure sensor prevents occlusion for IV set.

◆ A.B.S system, when the high-voltage occlusion alarm appears, stop infusing immediately, and eliminate the pressure of the IV set automatically, which prevents instantaneous high-dose injection from the sudden obstruction disappearing.

◆ Infusion parameters during infusing are protected against being changed arbitrarily.

◆ With password protection function(in system parameter setting and IV set type interface).

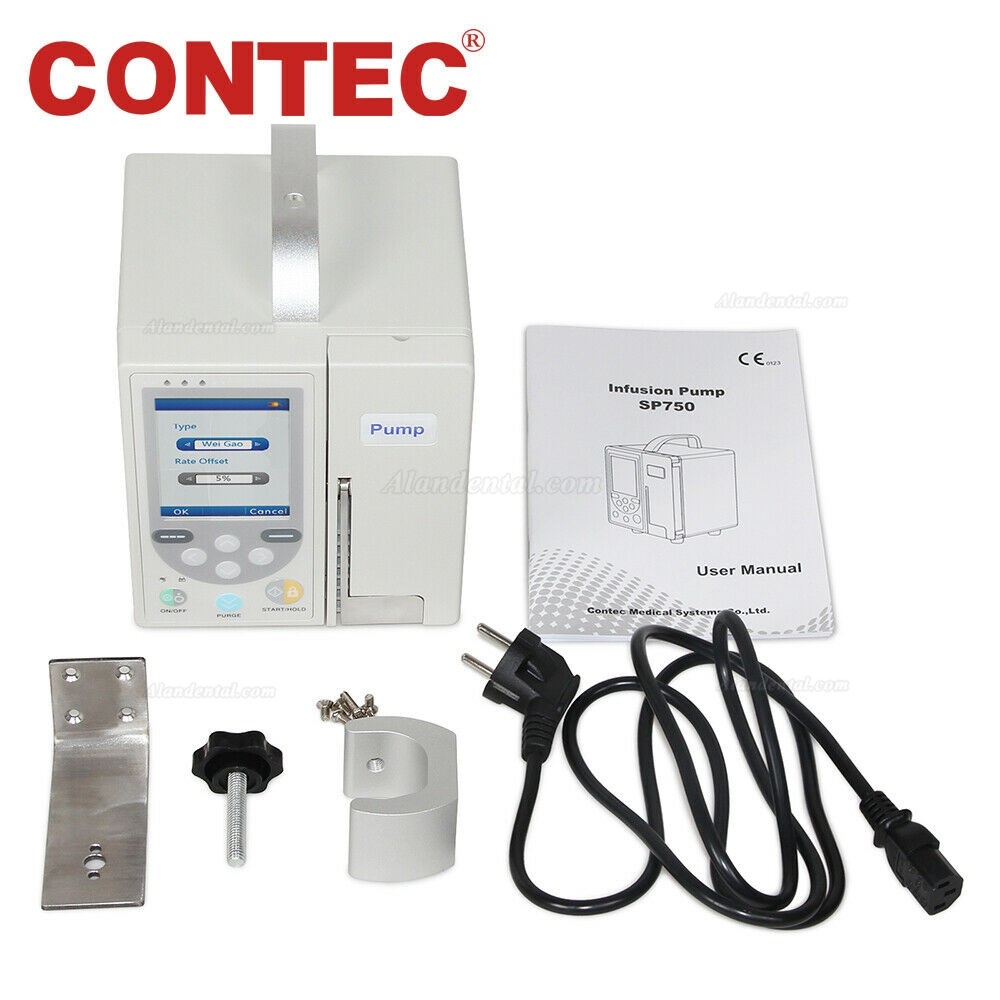

Accessories

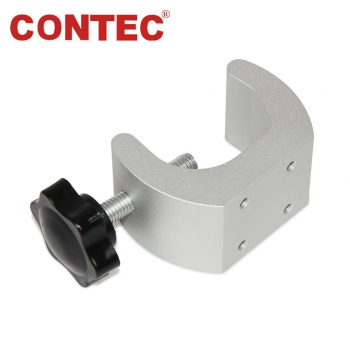

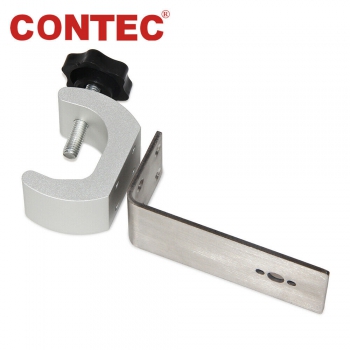

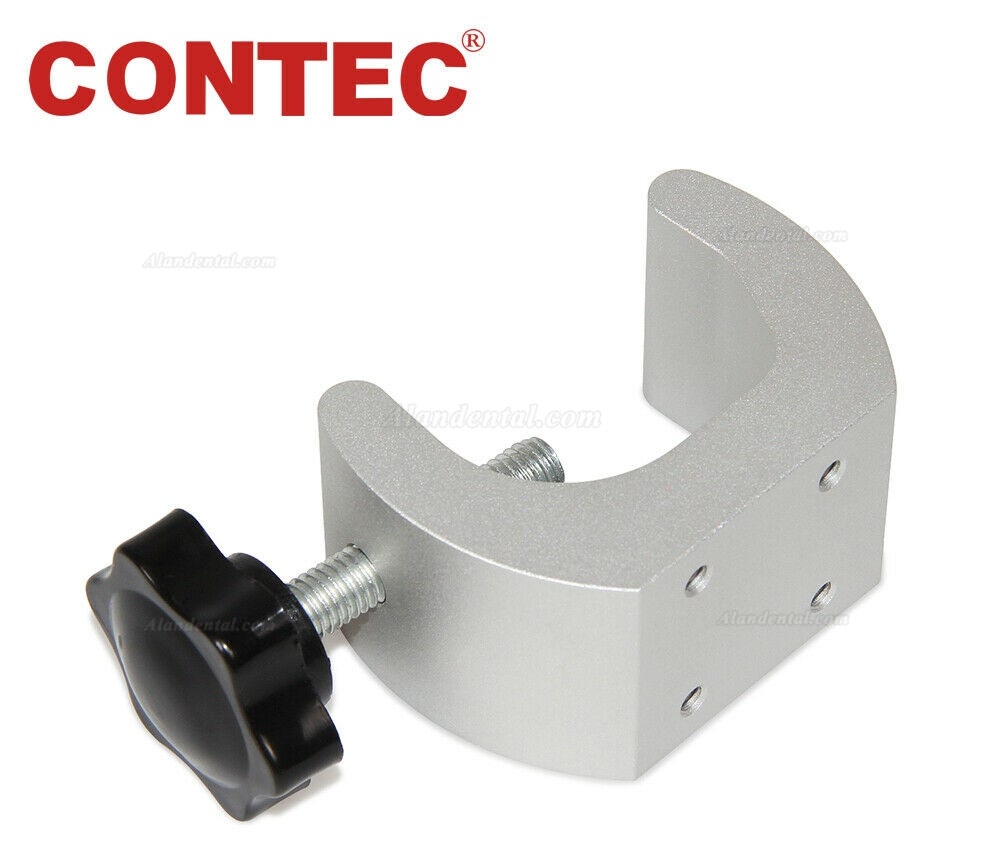

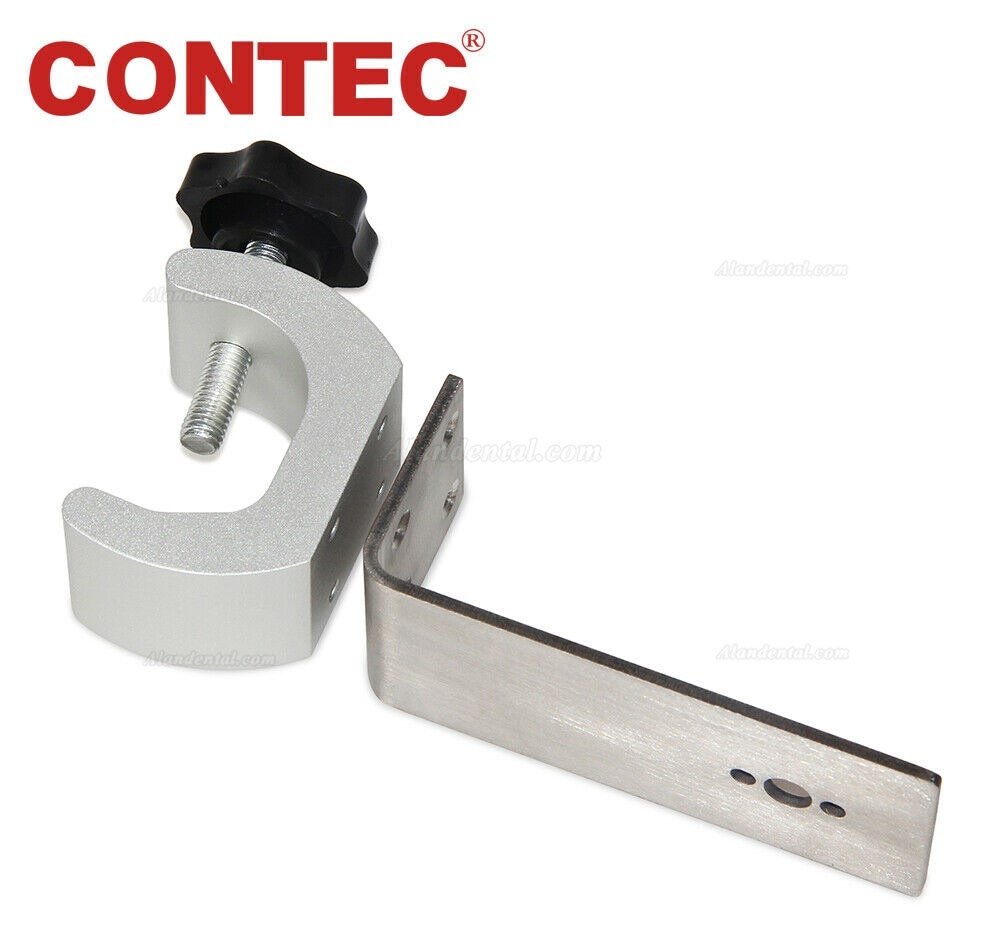

◆ A versatile bracket

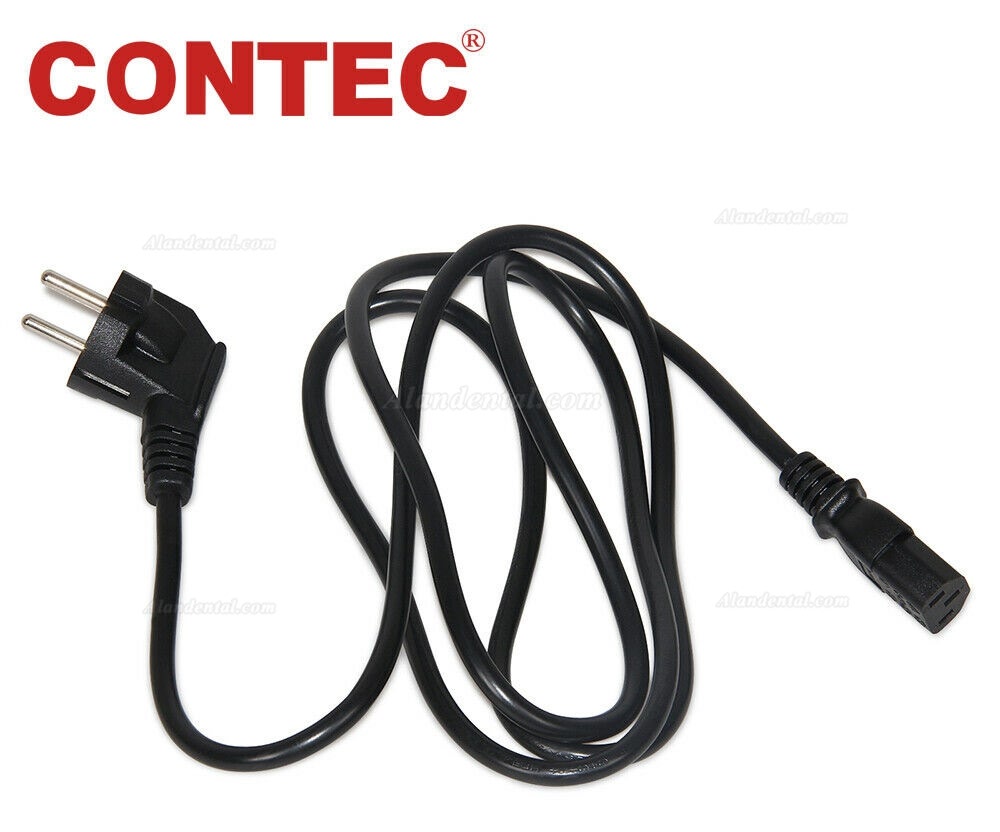

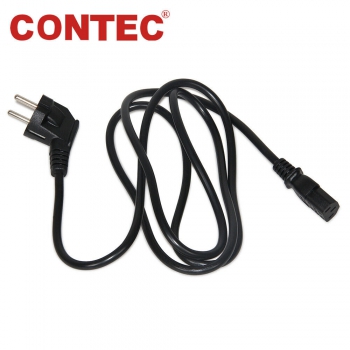

◆ A power cord

◆ A user Manual

Physical characteristic

Dimension: 197 mm(L)×145 mm(W)×135 mm(H)

Weight: 2 Kg
