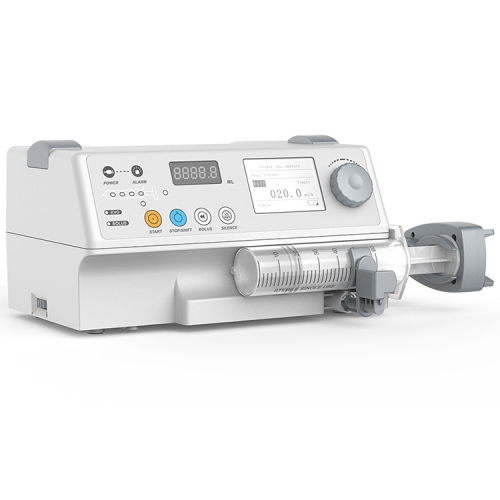

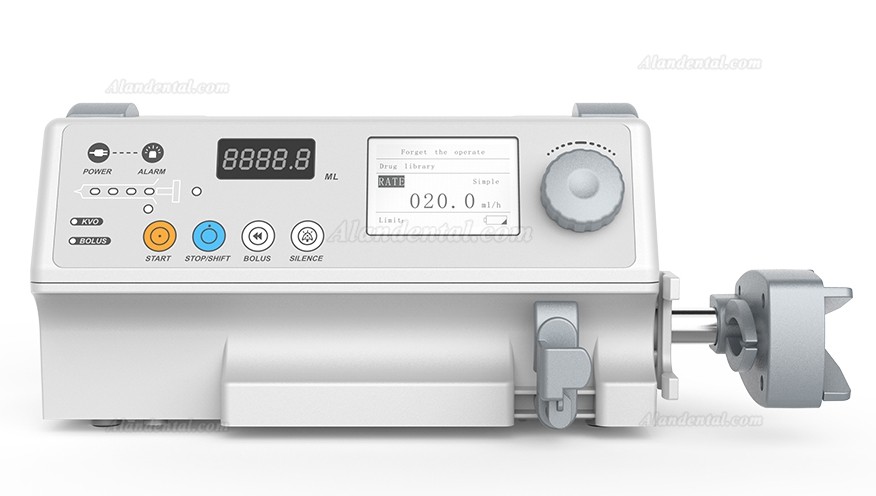

Byond Single Channel Syringe Pump with LCD Display and Visual Alarm BYZ-810D

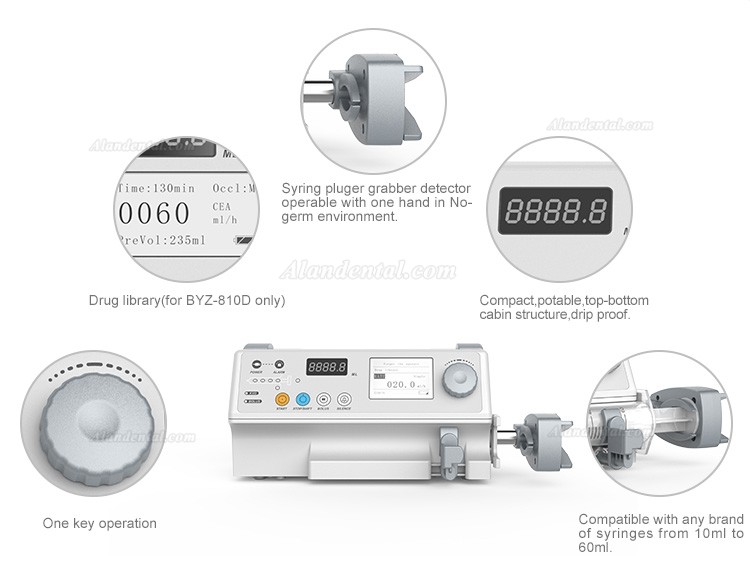

Features of Single Channel Syringe Pump

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;

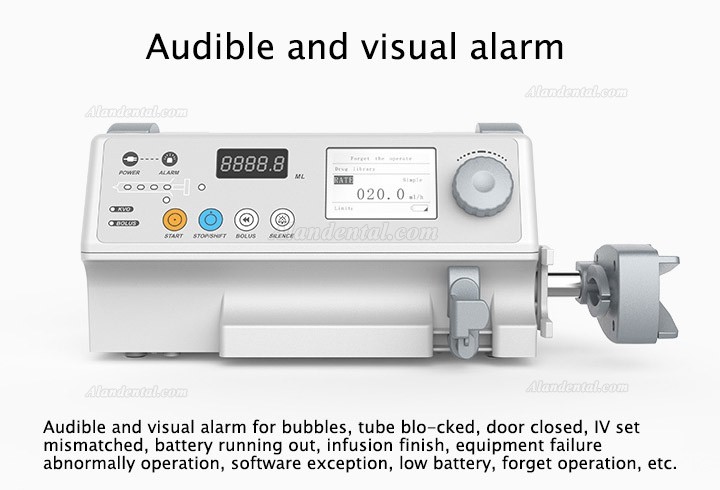

2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;

3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;

4. Preset solution volume to greatly reduce the workload of nurses;

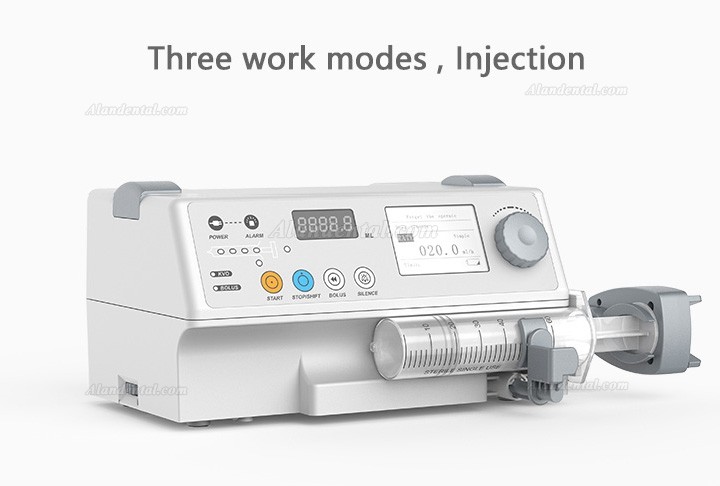

5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;

6. Three levels of occlusion: high, medium and low;

7. Purge and Bolus function;

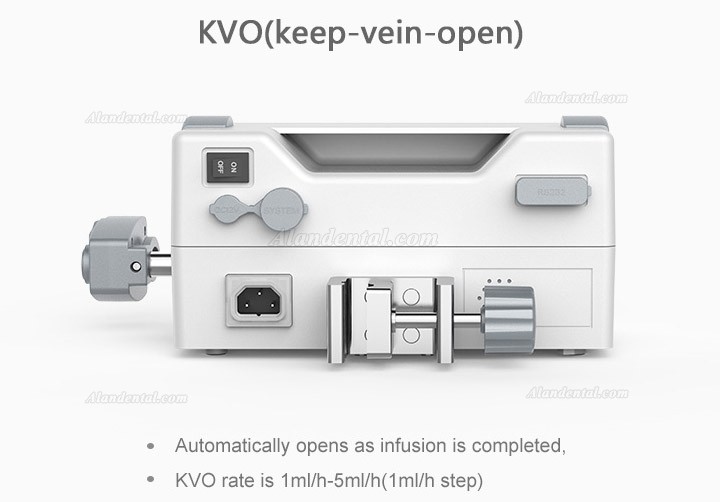

8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h (0.1ml/h step);

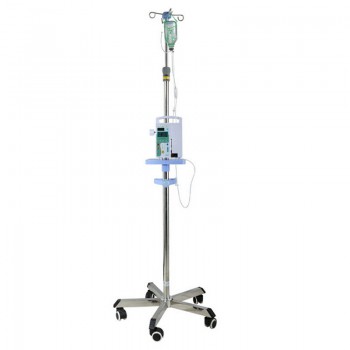

9. Freely stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;

10. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;

11. One-key operation makes setup easy and simple;

12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;

13. Automatically record the settings of last injection;

14. BYZ-810D can store 2000pcs of injection records and it has a drug library;

Rate: 50/60ml Syringe: 0.1ml/h-999.9ml/h (0.1ml/h step)

1,000ml/h-1,500ml/h (1ml/h step)

30ml Syringe: 0.1ml/h-900.0ml/h (0.1ml/h step)

20ml Syringe: 0.1ml/h-600.0ml/h (0.1ml/h step)

10ml Syringe: 0.1ml/h-300.0ml/h (0.1ml/h step)

Flow Rate Accuracy: Within ±3% (after correct calibration)

Mechanical precision: Within ±2%

Bolus Rate: 50/60ml Syringe: 1,200ml/h

30 ml Syringe: 720ml/h

20 ml Syringe: 480ml/h

10 ml Syringe: 240ml/h

Purge Rate: 50/60ml Syringe: 1,500ml/h

30ml Syringe: 900ml/h

20ml Syringe: 600ml/h

10ml Syringe: 300ml/h

Volume Limit: 0.1ml-9999.9ml (0.1ml step)

Total Injection Volume: 0.1ml-9999.9ml (0.1ml step)

Occlusion of Single Channel Syringe Pump:

High: 800mmHg ±200mmHg (106.7kPa±26.7kPa)

Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa)

Low: 300mmHg ±100mmHg (40.7kPa± 13.3kPa )

Alarms: Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.

Power Source: AC 100V-240V, 50/60Hz;

Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup

KVO rate: 1ml/h

Fuse: F1AL/250/60V, 2pcs inside

Power Consumption: 30VA

IP Classification: IPX4

Equipment Classification: Class II, internal power supply, Type CF

Operating Condition:

Ambient temperature: +5℃——+40℃

Transport & Storage Condition:

Ambient temperature:-30℃——+55℃

Relative humidity: ≤95%

Dimension: 280mm (L) ×210mm (W) ×130mm(H)

BYOND Single Channel Syringe Pump LCD Display Audible and visual alarm BYZ-810
