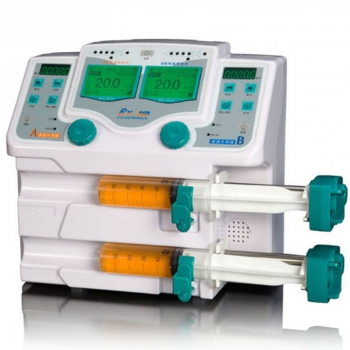

Byond BYZ-810T Double Channel Syringe Pump with LCD Display and Visual Alarm
  • Byond BYZ-810T Double Channel Syringe Pump with LCD Display and Visual Alarm

  • Item No. BYZ-810T
  • Reviews: 5 stars, 0 reviews
  • Brand:Beyond
  • Market price:$1553.99
    But It Now : $941.99
    Quantity :

  • Weight:0gram
  • Goods click count:1280
Item Description Reviews

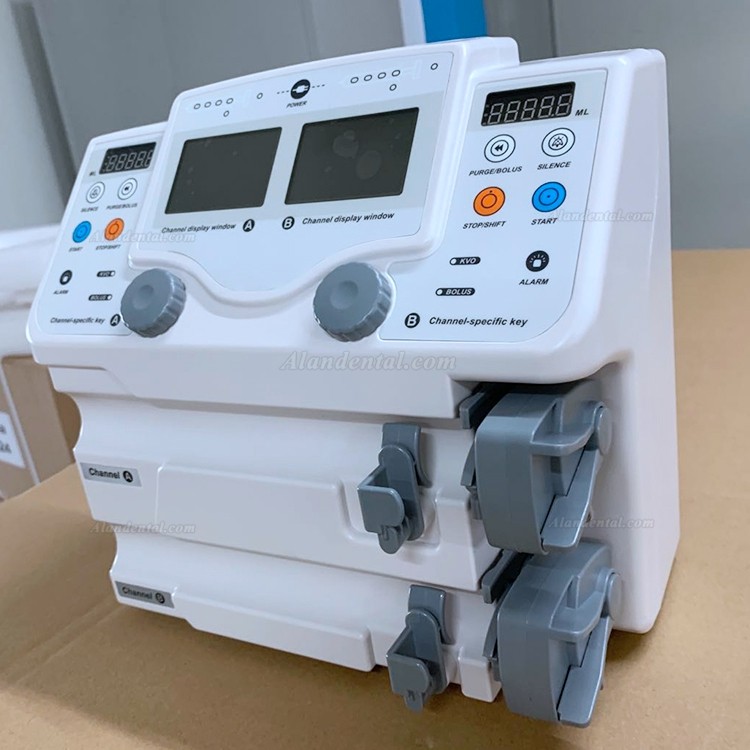

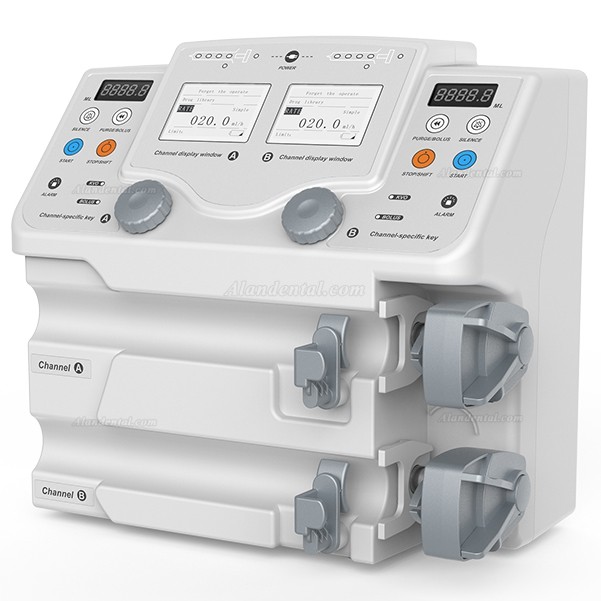

Byond BYZ-810T Double Channel Syringe Pump with LCD Display and Visual Alarm


Features of Dual Channel Syringe Pump

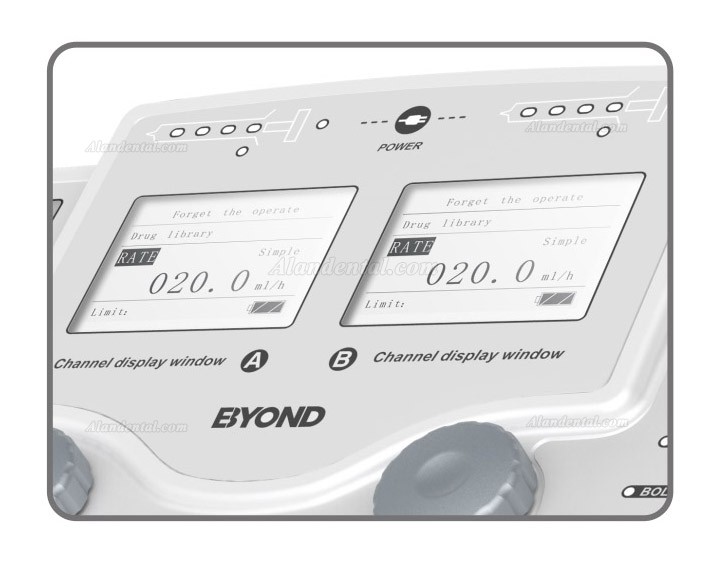

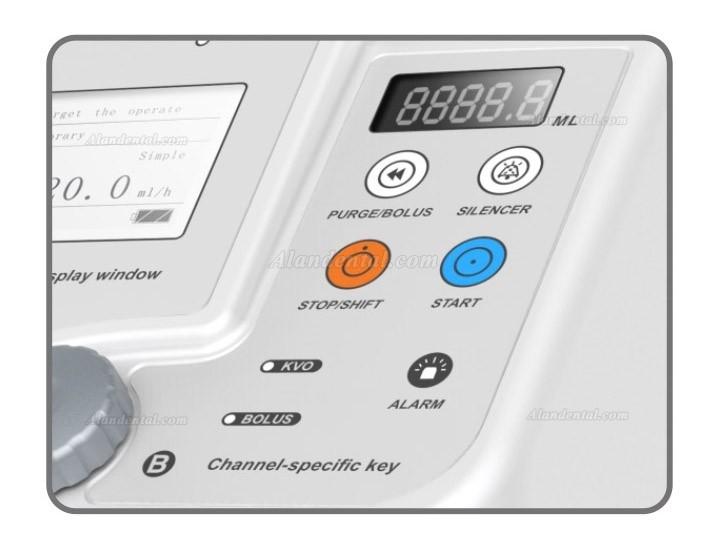

1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3. The syringe pump can be operated separately and compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed; KVO rate is 1ml/h;
9. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;
10. One-key operation makes setup easy and simple;

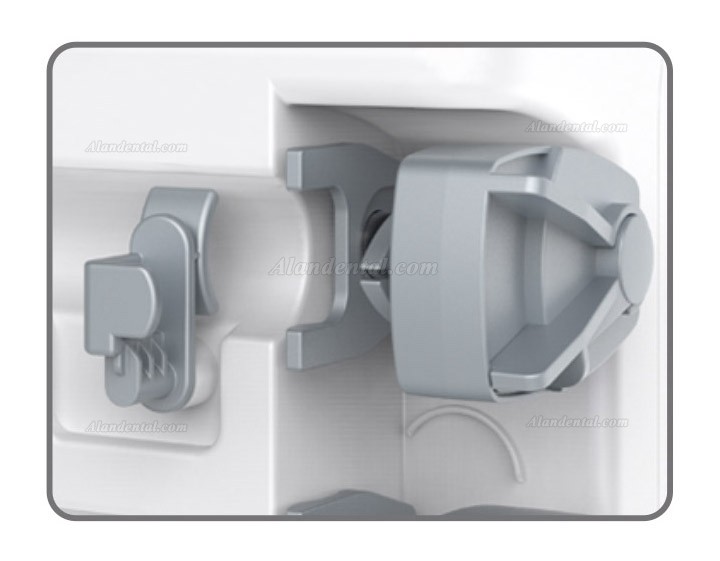

11. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
12. Automatically record the settings of last injection;

Specification of Dual Channel Syringe Pump:
Rate: 50/60ml Syringe: 0.1ml/h-999.9ml/h (0.1ml/h step)
1,000ml/h-1,500ml/h (1ml/h step)
30ml Syringe: 0.1ml/h-900.0ml/h (0.1ml/h step)
20ml Syringe: 0.1ml/h-600.0ml/h (0.1ml/h step)
10ml Syringe: 0.1ml/h-300.0ml/h (0.1ml/h step)
Flow Rate Accuracy: Within ±3% (after correct calibration)
Mechanical precision: Within ±2%
Bolus Rate: 50/60ml Syringe: 1,200ml/h
30 ml Syringe: 720ml/h
20 ml Syringe: 480ml/h
10 ml Syringe: 240ml/h
Purge Rate: 50/60ml Syringe: 1,500ml/h
30ml Syringe: 900ml/h
20ml Syringe: 600ml/h
10ml Syringe: 300ml/h
Volume Limit: 0.1ml-9999.9ml (0.1ml step)
Total Injection Volume: 0.1ml-9999.9ml (0.1ml step)
Occlusion of Dual Channel Syringe Pump:
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa)
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa)
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa)
Alarms: Injection soon finish, end of injection, occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc.
Power Source: AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
KVO rate: 1ml/h
Fuse: F1AL/250/60V, 2pcs inside
Power Consumption: 30VA
IP Classification: IPX4
Equipment Classification: Class II, internal power supply, Type CF
Operating Condition: Ambient temperature: +5℃--+40℃
Transport & Storage Condition: Ambient temperature:-30℃--+55℃
Relative humidity: ≤95%
Dimension: 280mm (L) ×210mm (W) ×130mm(H)
