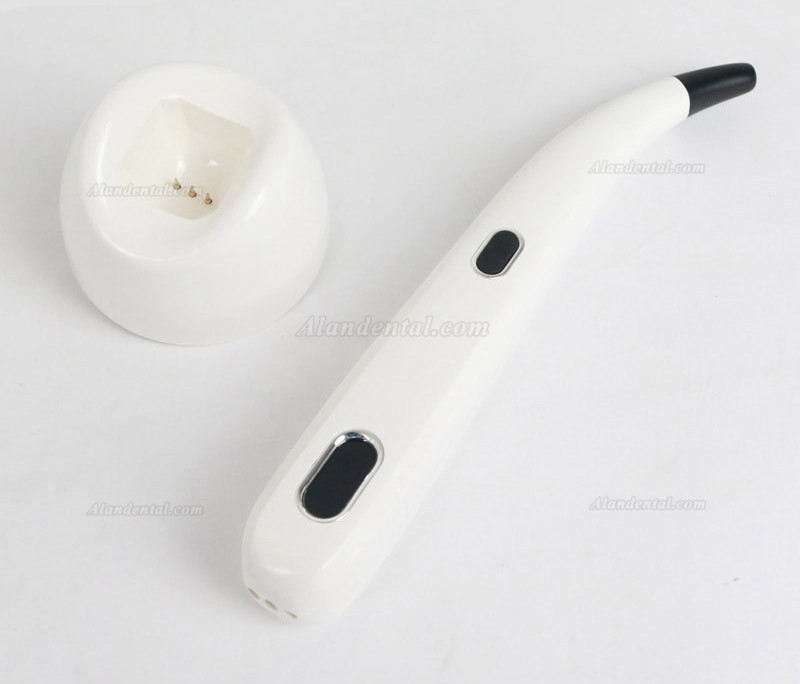

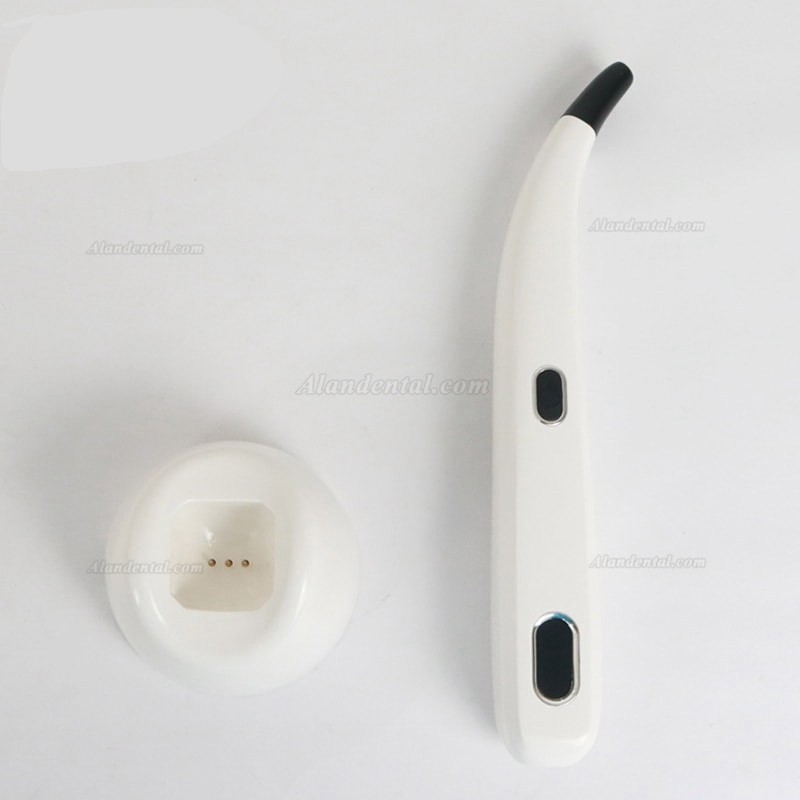

WJ WJ-DC-001 Dental Implant Stability Tester Implant Stability Monitor Meter





Mobility measuring instrument is used to measure the stability of oral or craniofacial implants. It is a complete diagnostic system for judging the stability of implants. It provides dental doctors with accurate, consistent and reliable Measuring tool; in the past, dentists often used experience to judge the weight-bearing period of implant treatment.

Mobility measuring instrument can help dental doctors to scientifically judge the best time for implant weight, and it is an ideal auxiliary tool; it can accurately measure the initial stability of implants. In the two-stage implant surgery today, it can perform Two measurements; and quite accurate, it can detect the degree of osseointegration at any time to determine a good weight-bearing period.

ISQ monitor is an instrument for measuring the stability (ISQ) of dental and craniofacial implants. The instrument measures the resonance frequency of a measurement pin "MulTipeg" and presents it as an ISQ' value. The ISQ value, 1-100, reflects the stability of the implant - the higher the value, the more stable the implant.The instrument measures the ISQ-value with a precision of +/- 1 ISQ unit. When mounted onto an implant, the MulTipeg resonance frequency can vary up to 2 ISQ units depending on the tightening torque.



1.Higher efficiency, easier operation

2.Better appearance, easier storage

3.Less noise, less interference

4.Measurements are more precise, especially for low stability measurements;



Product model: WJ-DC-001

Input power: 5VDC 1VA

Charger input: 100~240VAC 5V

Charger safety level: EN 60601-1-1 level

Instrument safety level: EN 60601-ME class1/EMC 60601-2. Class B;
