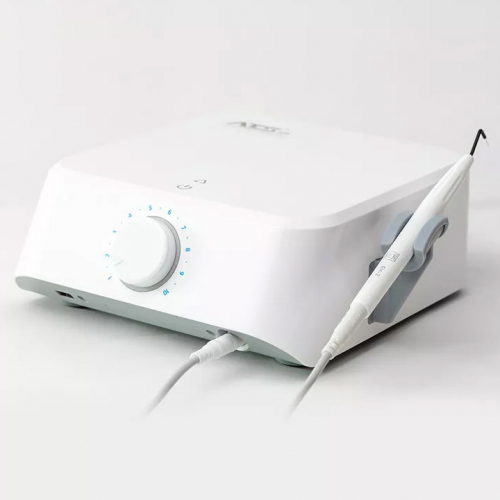

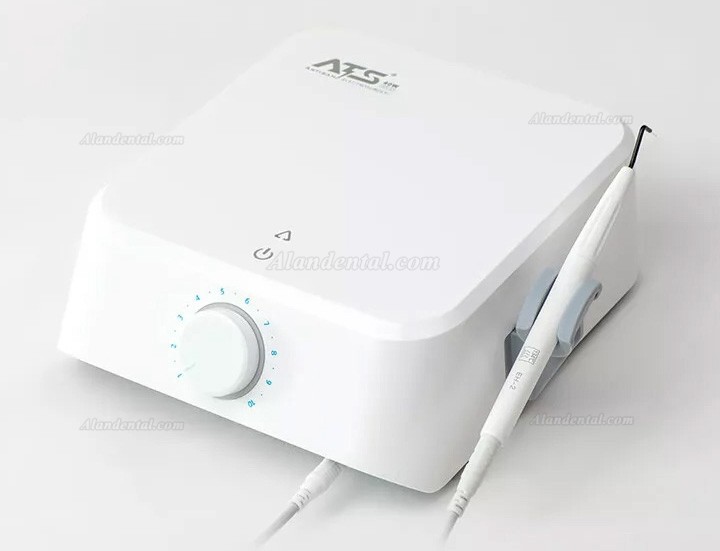

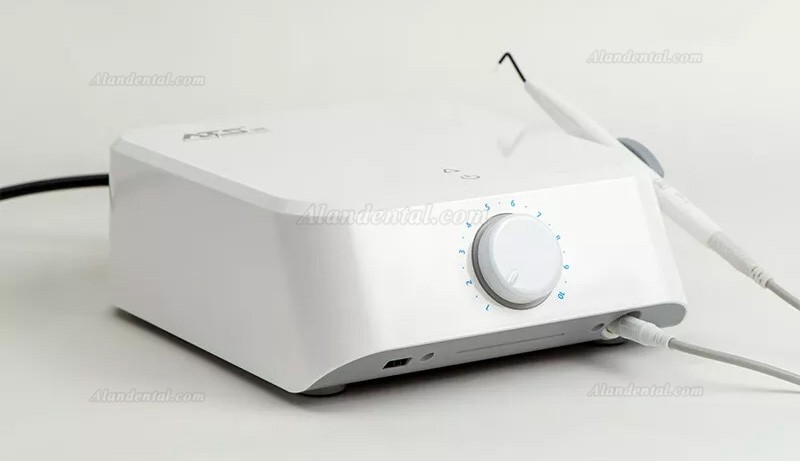

Neway ATS-S1 Dental High-Frequency Electrosurgery Unit 40W with 7 Electrodes Tip

Neway ATS-S1 Dental High-Frequency Electrosurgery Unit 40W with 7 Electrodes Tip
Item No. ADL003612
Brand:Neway
But It Now : $1041.98
Voltage :

Plug :

Quantity :
Weight:0gram
Goods click count:2523

Item Description Reviews

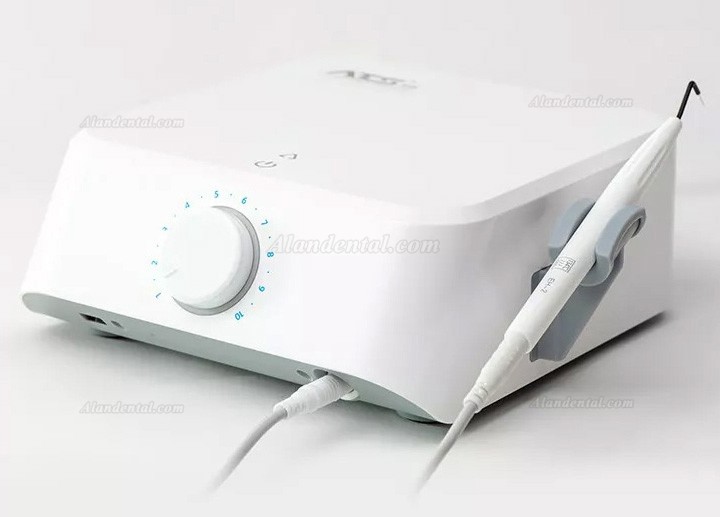

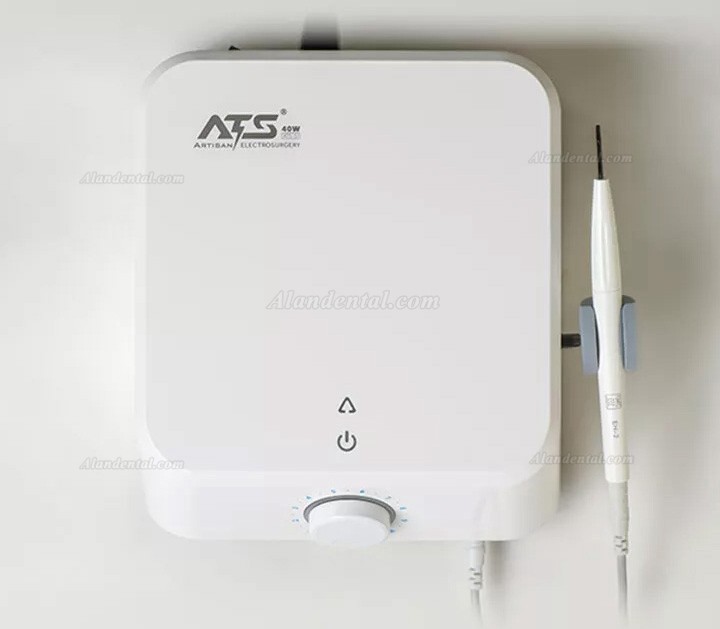

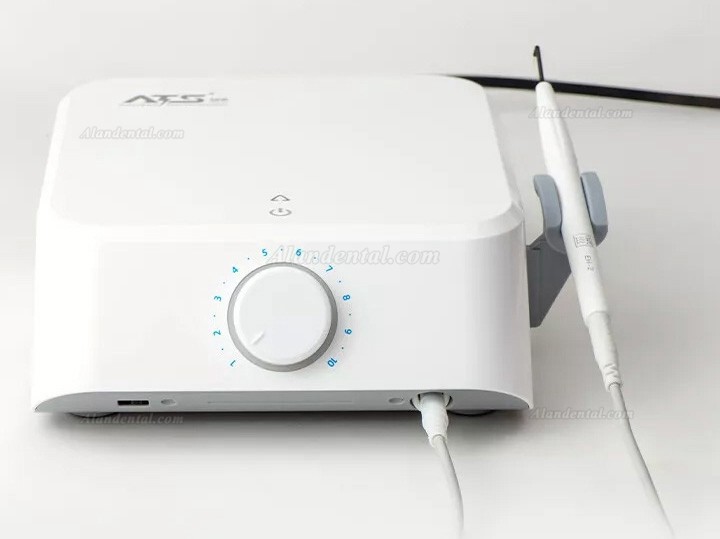

Neway ATS-S1 Dental High-Frequency Electrosurgery Unit 40W with 7 Electrodes Tip

Feature

Intelligent coagulation mode.

Controlled and filtered for the current: constant and precise current for safer operation.

Rapid and precise surgical hand movements: wide range of electrode options,.

Extensive clinical applications: dental implants, orthodonticsperiodontal surgery, maxillofacial surgery.

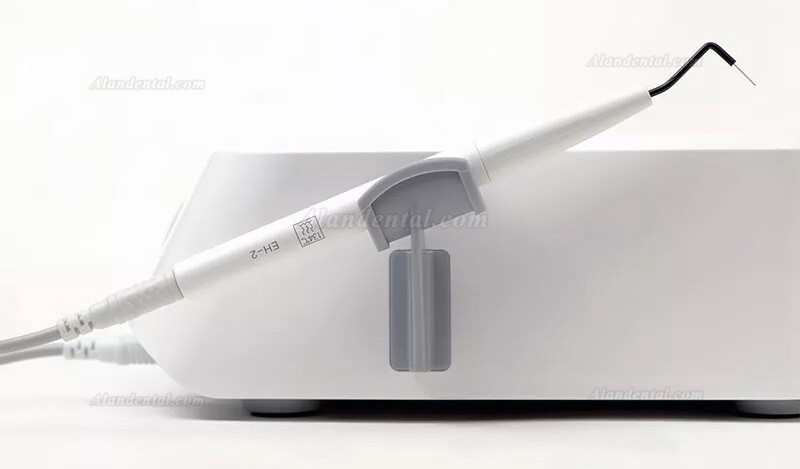

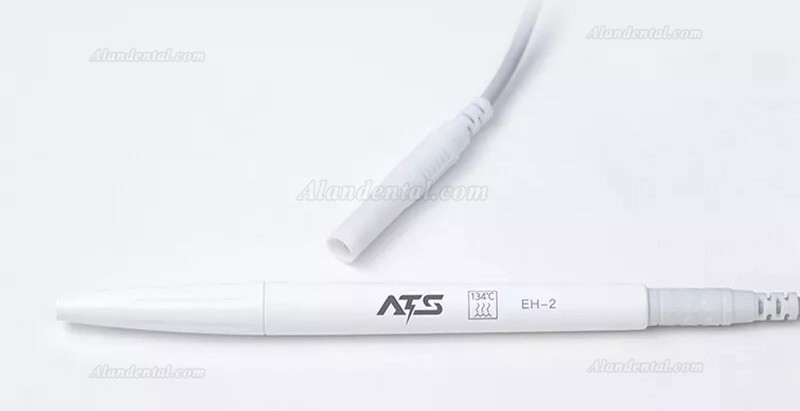

Light handpiece, detachable, can withstandhigh-temperature and high-pressure sterilization.

Simple-to-mount electrodes are insulated by a sheath, only the active part is contactwith soft tissue. to avoid injury to non-surgical area tissue.

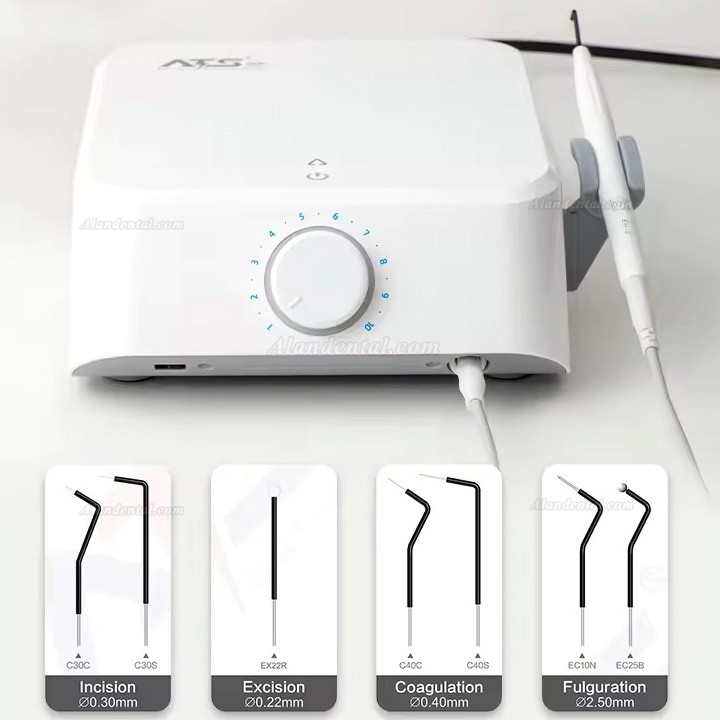

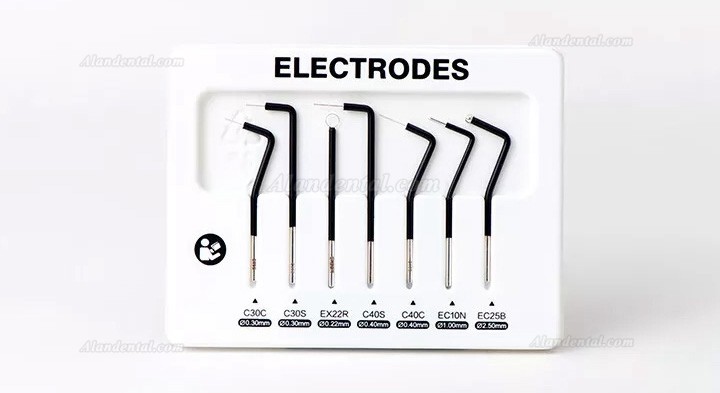

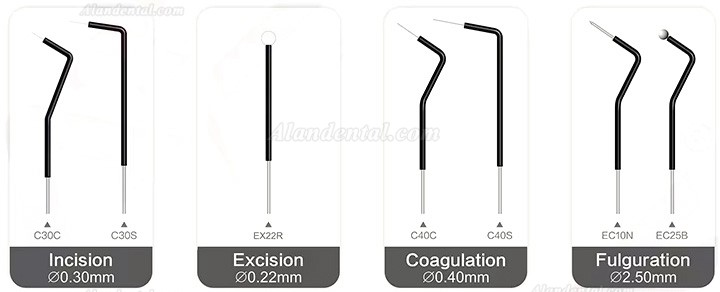

Electrodes classification: 7 types hyperfine electrodes of different shapes and diameters.

Technical specifications

Product Name: Electrosurgery Unit

Product Model: ATS-S1

Main Unit Weight: 1.3kg

Main Unit Dimensions: 21x 18x 8cm

Net Weight: 1.85kg

Gross Weight: 2.5kg

Package Dimensions: 25.5 x 24.1 x 18.5cm

Supply Voltage:110/220V 50/60Hz

Max Power Output: 40W10%

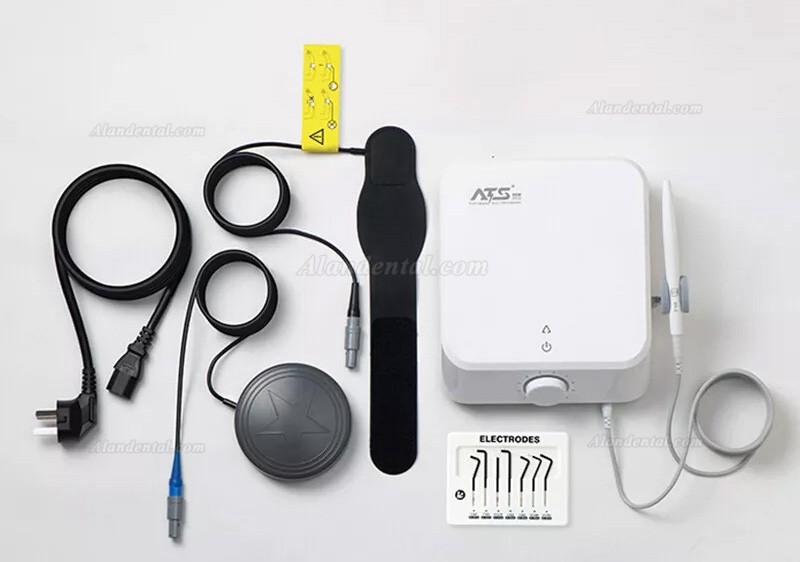

Accessories parameters

Main Unit x 1unit

Electrode x 7pcs/box

Electrode Holder (with cord) x 1set

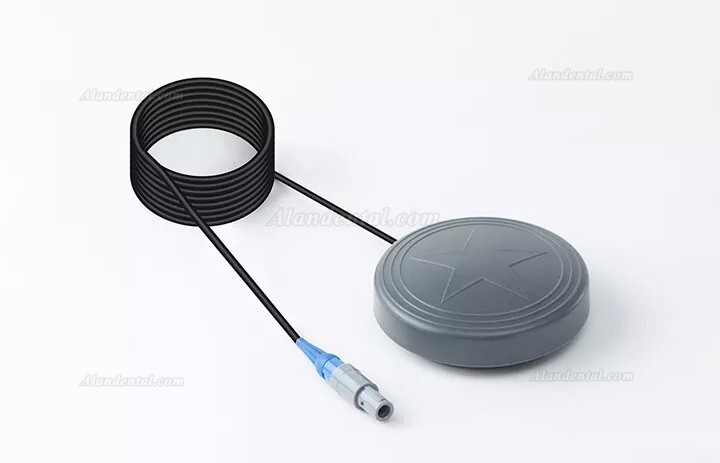

Wired Footswitch x 1pc

Power Cable (with grounding) x 1pc

Electrode Holder Silicone Pad x 2pcs

Bracelet (Neutral Electrode) x 1pc

User Manual x 1pc

Warranty Card x 1pc

Packing List x 1pc

Quick Guide x 1pc

Handpiece Stand x 1pc

ES-20 Electrosurgery Unit VS ATS-S1 Electrosurgery Unit

Model	ES-20	ATS-S1
Market Entry Year	2022	2024
Clinical Testing Duration	12 months	16 months
Power	30W±10%	40W±10%
Control Knobs	2	1
Cutting	Linearly adjustable power	Linearly adjustable power
Coagulation	Adjustable	Intelligent adjustment
Grounding Pad	Velcro wristband	Velcro wristband
Handle	Heat sterilizable (integrated, non-detachable)	Heat sterilizable (handle detachable for sterilization)
Handle Connection Cable	Integrated, non-detachable	Handle detachable for sterilization
Electrodes	7 (universal)	7 (universal)
Volume Switch	-	Switchable
Footswitch	Small footswitch	Large footswitch
Device Dimensions	233233106mm	21018080mm
Packaging Dimensions	370370170mm	255241185mm
Net Weight	1.5KG	1.3KG
Gross Weight	3.2KG	2.7KG
Operating Frequency	1.2MHz ± 10%	1.2MHz ± 10%
Maximum Output Voltage	400V+10%	550V
Peak Factor	1.7±10%	1.7±10%
Input Power	170VA	170VA
Main Fuse	T2AL 250V	T2AL 250V
Circuit Board Fuse	TO.5AL 250V	TO.5AL 250V
Peak Factor	110/220VAC 50/60Hz	110/220VAC 50/60Hz
