Mecoo R7 Dental Foldable Dental Apex Locator with 3.5 inches TFT Screen

Mecoo R7 Dental Foldable Dental Apex Locator with 3.5 inches TFT Screen
Item No. ADL003967
Brand:Mecco
- EOFY sales 2026:
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till June 30th,2026
But It Now : $179.98
Voltage :

Plug :

Quantity :
Weight:0gram
Goods click count:150

Item Description Reviews

Mecoo R7 Dental Foldable Dental Apex Locator with 3.5 inches TFT Screen

Features:

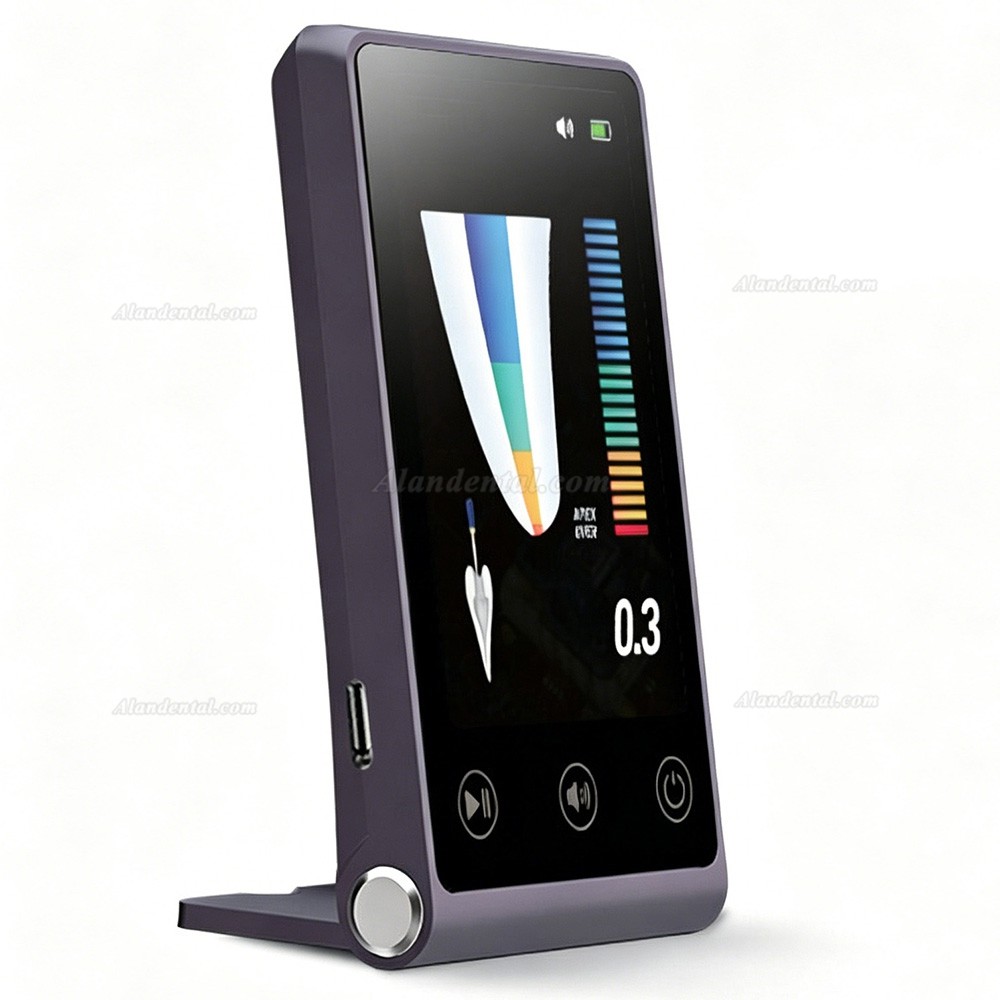

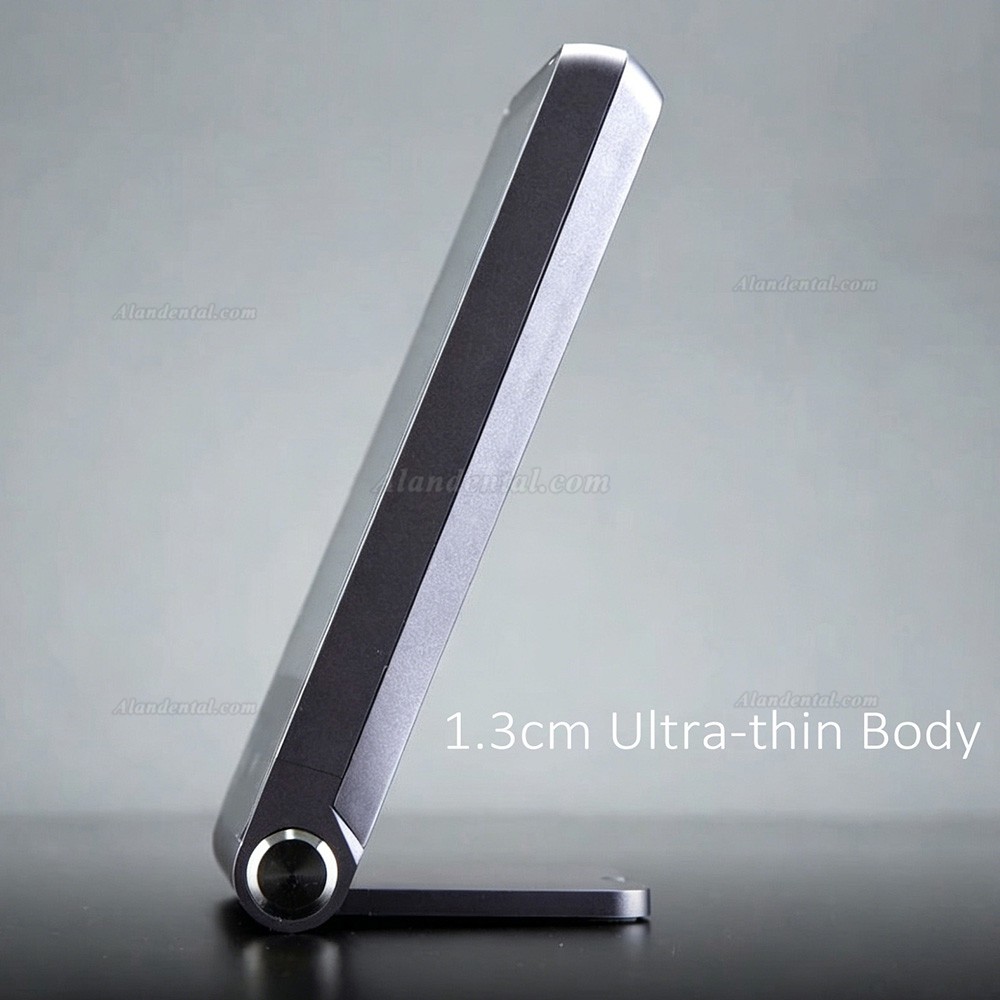

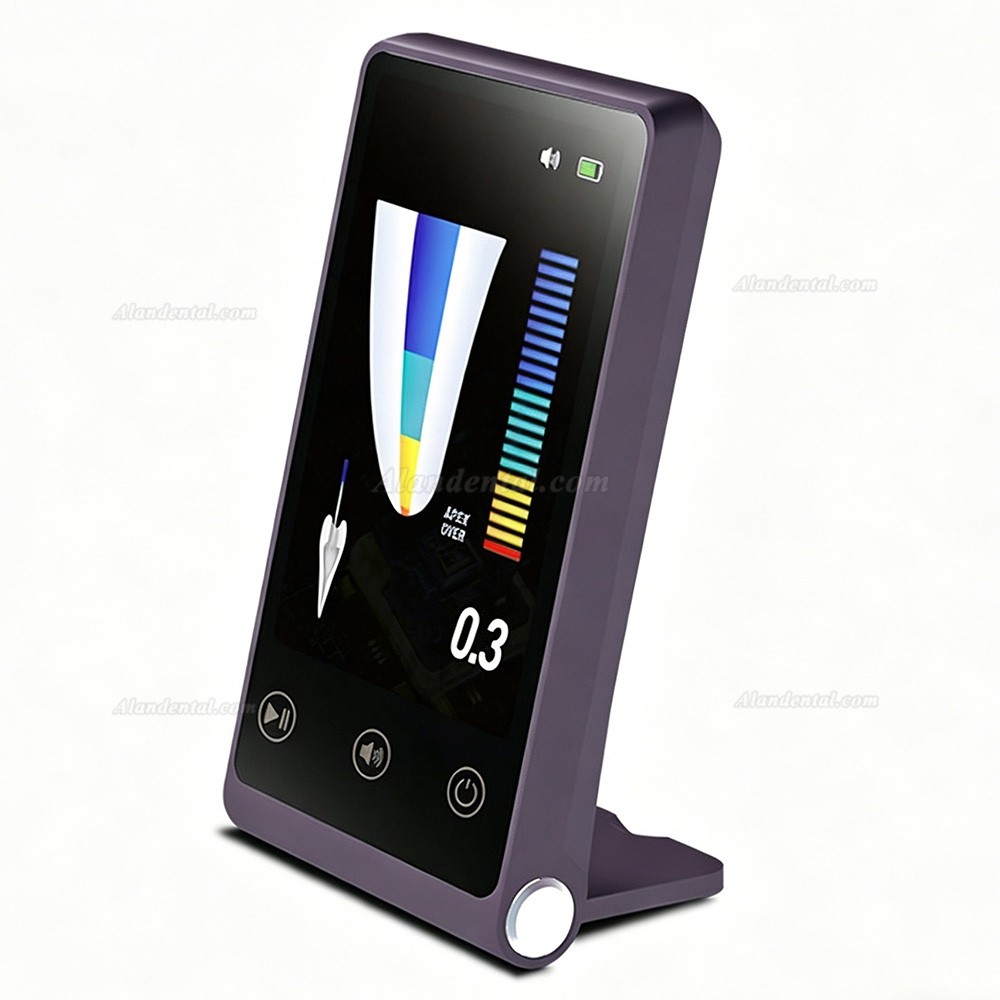

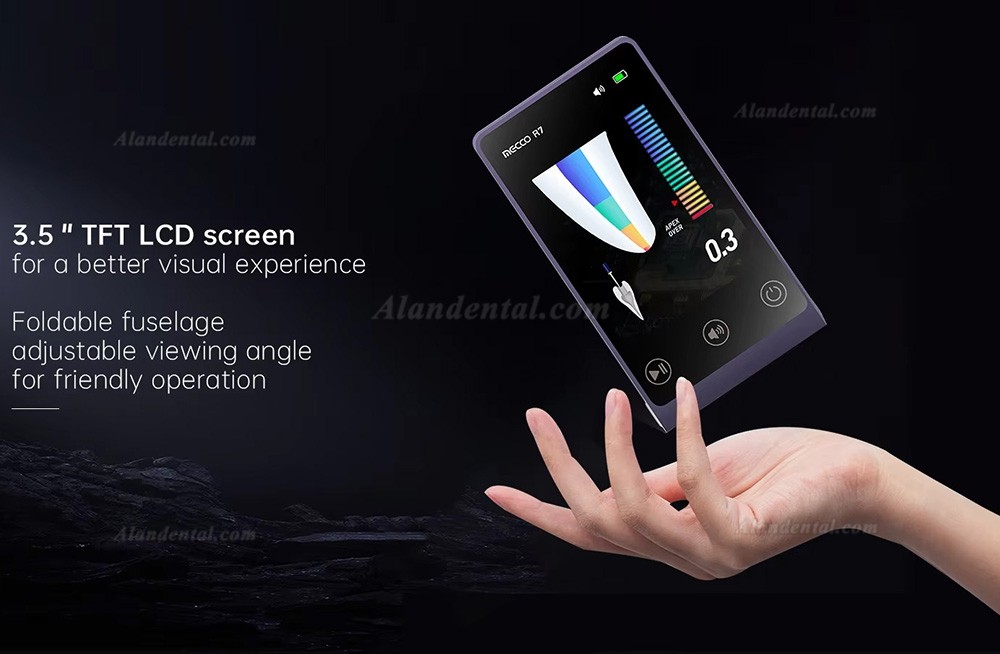

Compact & Flexible: R7 apex locator endo adopts 3.5 inch TFT screen with clear image and 1.3cm ultra-thin body.

Dual Protection: The apex finder allows enlarged display of root canal narrow areas and alarm function activates when the file approaches the root tip.

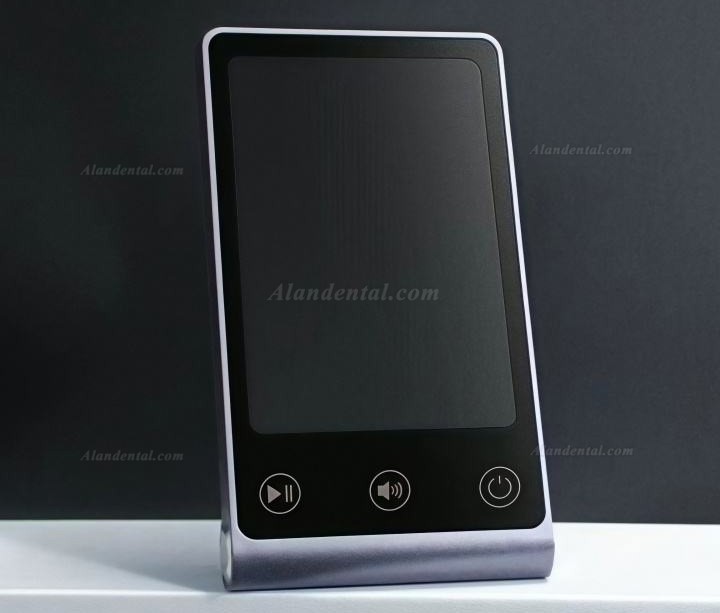

User Experience: R7 apex finder provides LED backlight colorful display, clear vision, more comfortable viewing, soft light source without irritation. Touch button, volume adjustable prompt tone, four gears adjustable.

Intelligent Anti-Interference: R7 endomotor apex locator adopts accurate measurement of both dry and moist pulp cavities, utilizing multi-frequency root tip positioning technology.

Efficient Use: Apex finder dental 0.5S automatic calibration after power on, 1000 mAh large-capacity battery ensures continuous operation for 7-8 hours without frequent charging.

Technical parameters

Charging Input: DC 5V1A

Power Adapter: 100-240VAC 50Hz/60Hz Rechargeable Lithium Battery: DC3.7V 1000mAh

Working Voltage: DC 3.7V

Working Current: DC <0.15A

Rated Power: 0.5W

Measurement Voltage: AC 200mV

Measurement Current: AC 100uA

Screen Size: 3.5 inches (49mm*73.5mm)

Display Type: TFT

Usage Environment: Temperature: 5°C-40°C; Usage Environment Humidity: 10%-93% RH: Atmospheric pressure: 70KPa-106KPa

Host Size: 107x59x13mm

Host Weight: 98g (including battery)

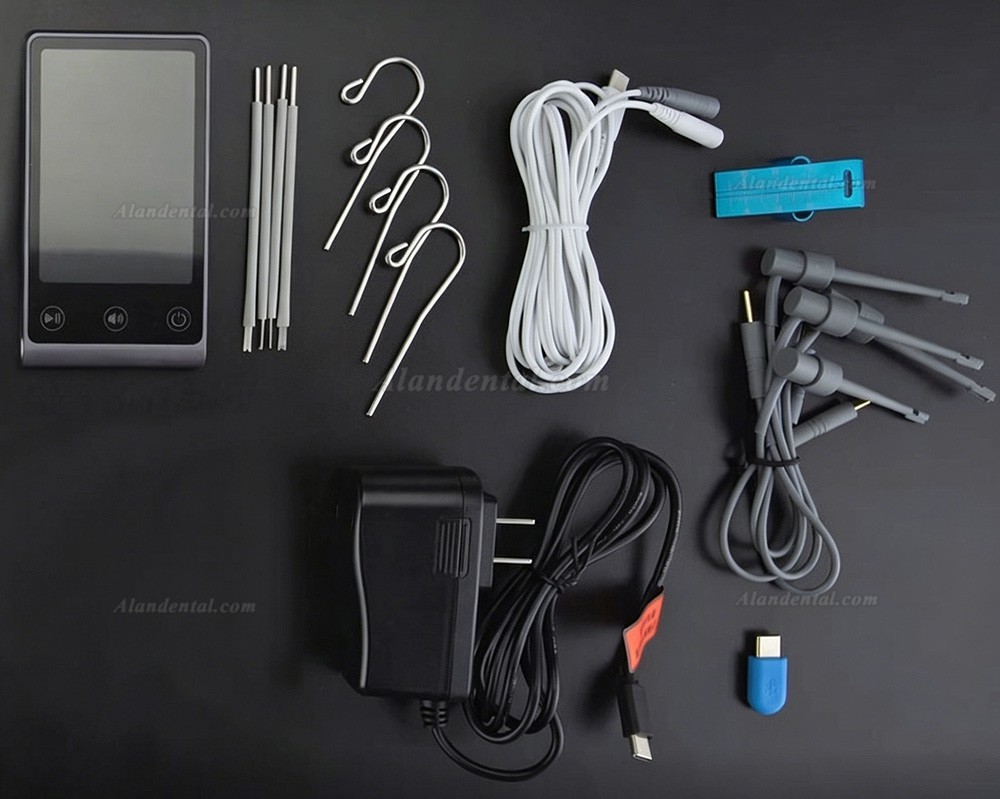

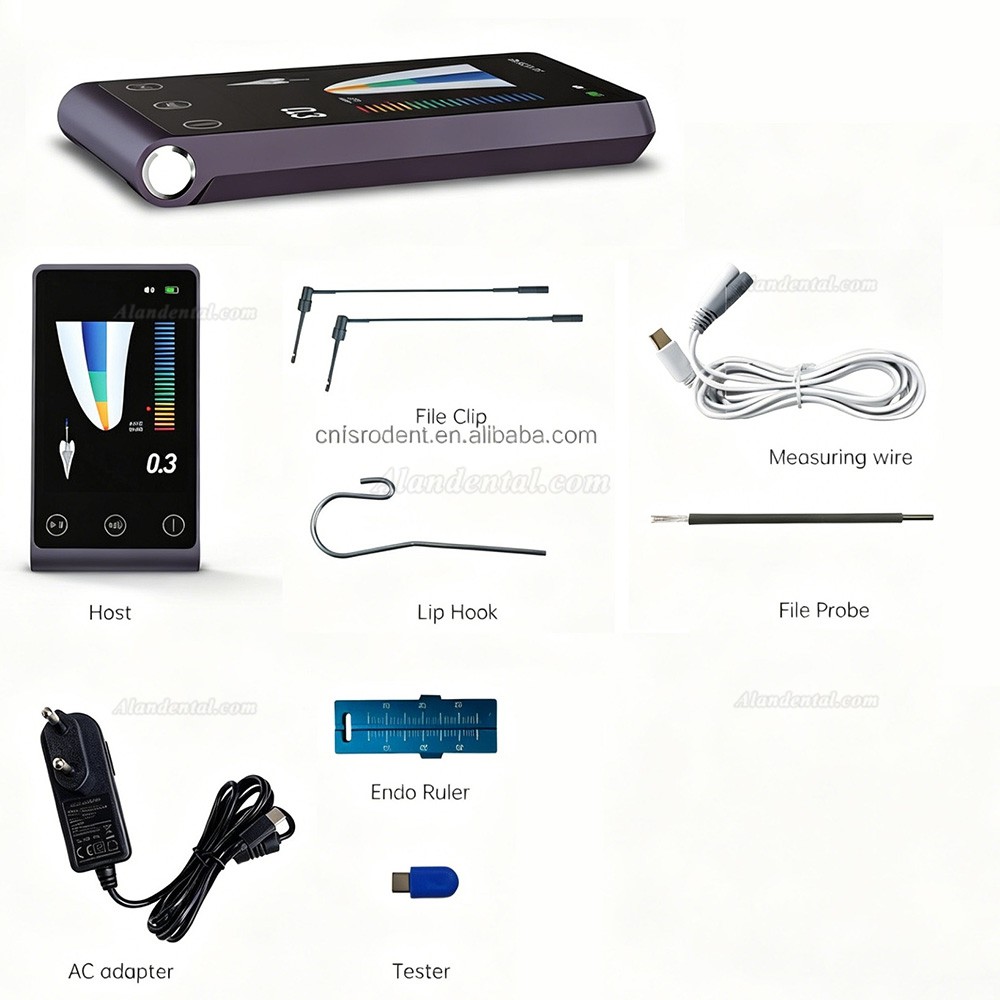

Accessories list

Tester x1

Measuring wire x1

AC adapter x1

File clip x4

File Probe x4

Lip Hook x4

Endo Ruler x1

Installation:

1. Connect the measuring wire: securely insert the plug of the measuring wire into the measuring wire socket on the unit.

2. Connect the file clip: connect the plug of the file clip to either plug of the measuring wire.

3. Connect the lip hook: connect the lip hook to the other plug of the measuring wire.

4. Make the lip hook touch the bent section of the file clip, the screen will display"Ov", otherwise, it means the file clip or the measuring wire is damaged, and should be replaced.

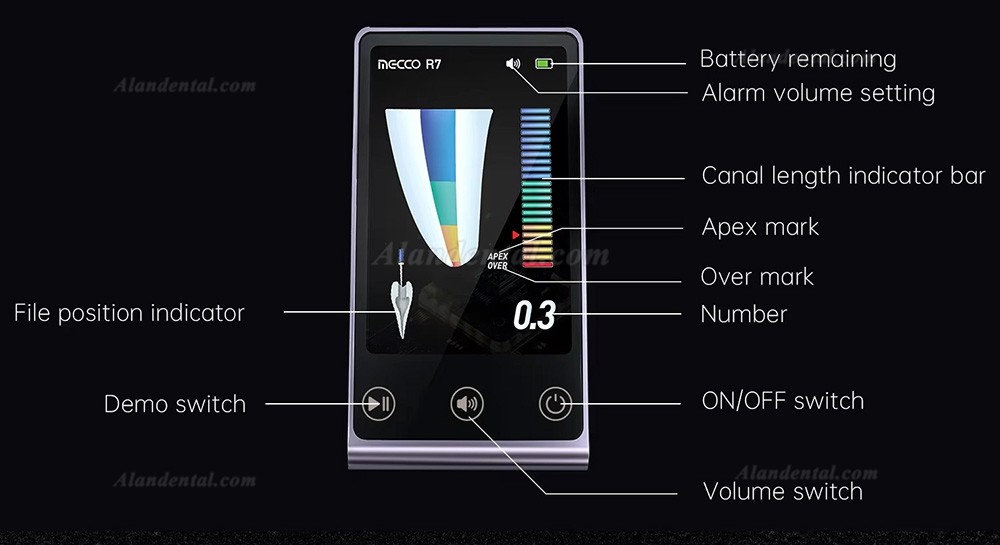

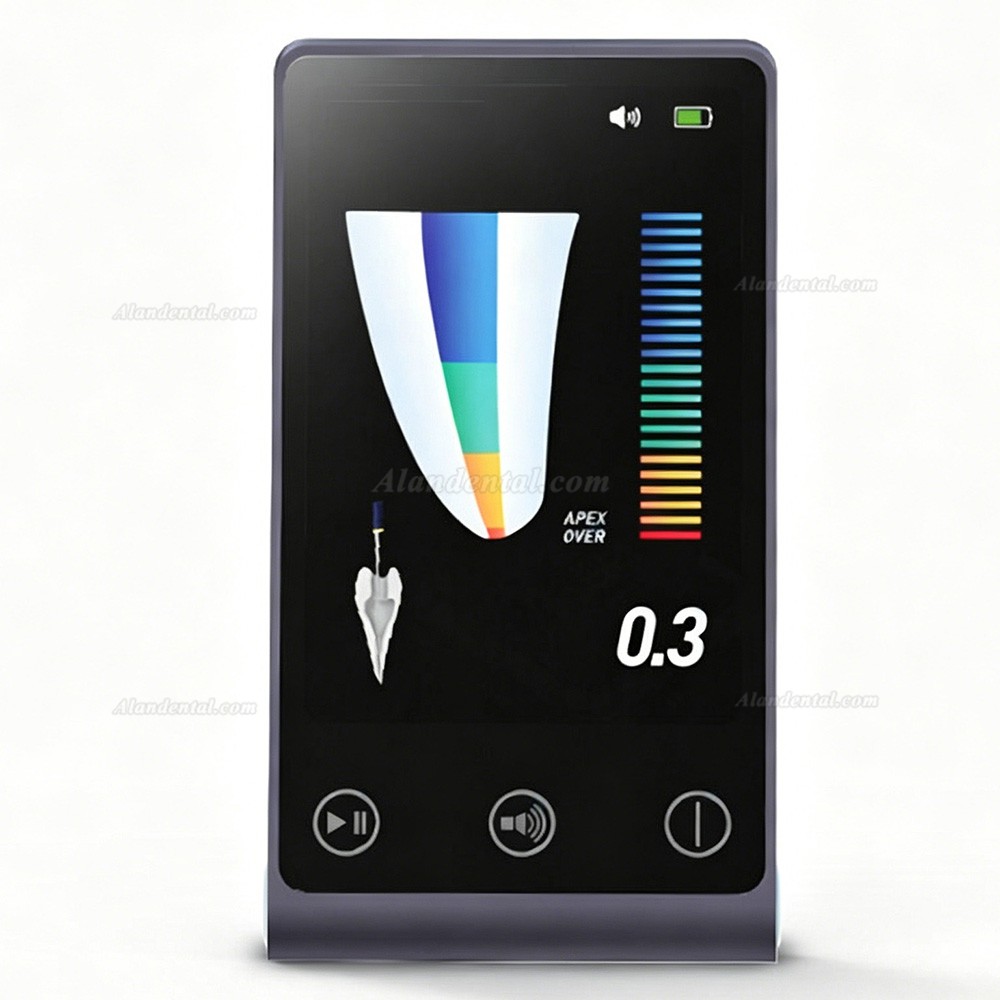

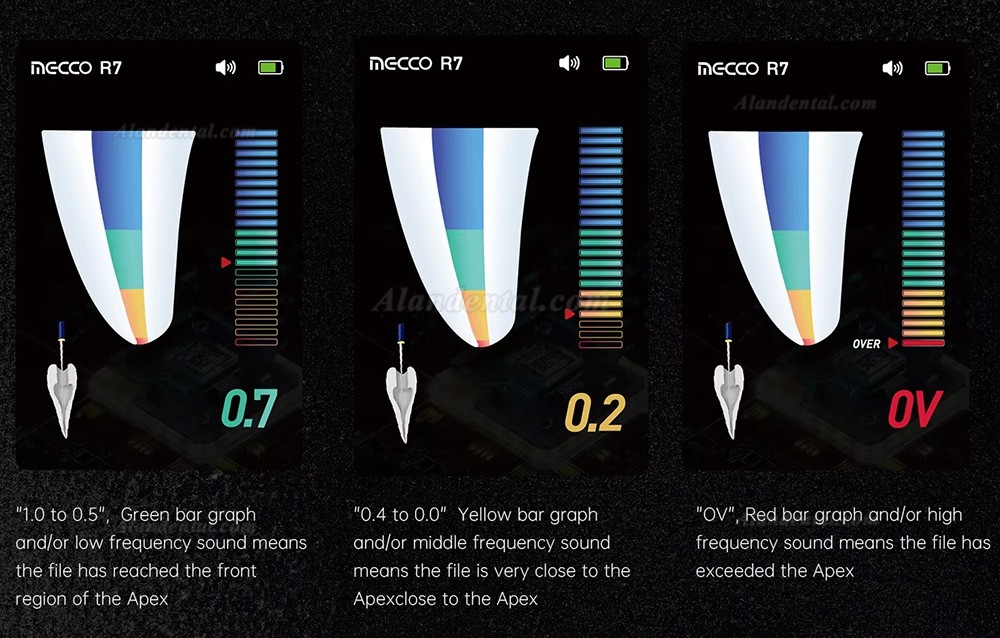

Display explanation：

"1.0 to 0.5", Green bar graph and/ or low frequency sound: File has reached the front region of the Apex;

"04 to 0.0", Yellow bar graph and/ or middle frequency sound: File is very close to the Apex;

"OV", Red bar graph and/ or high frequency sound: File has exceeded the Apex;
