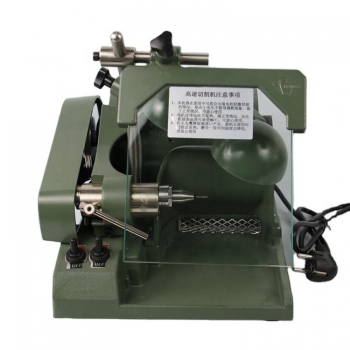

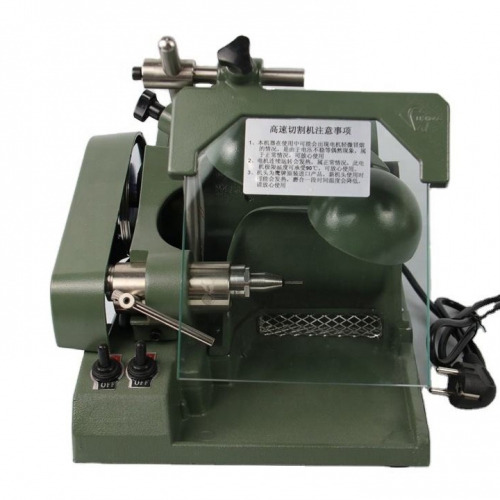

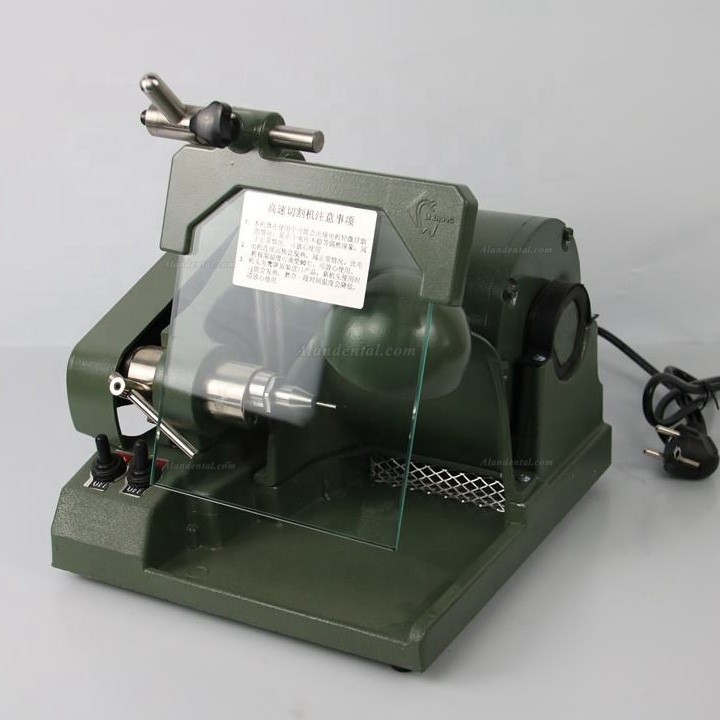

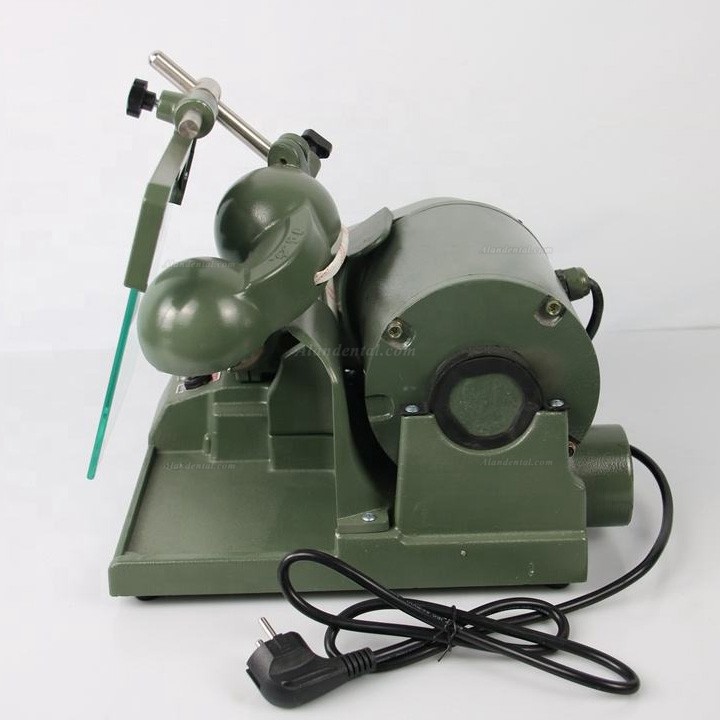

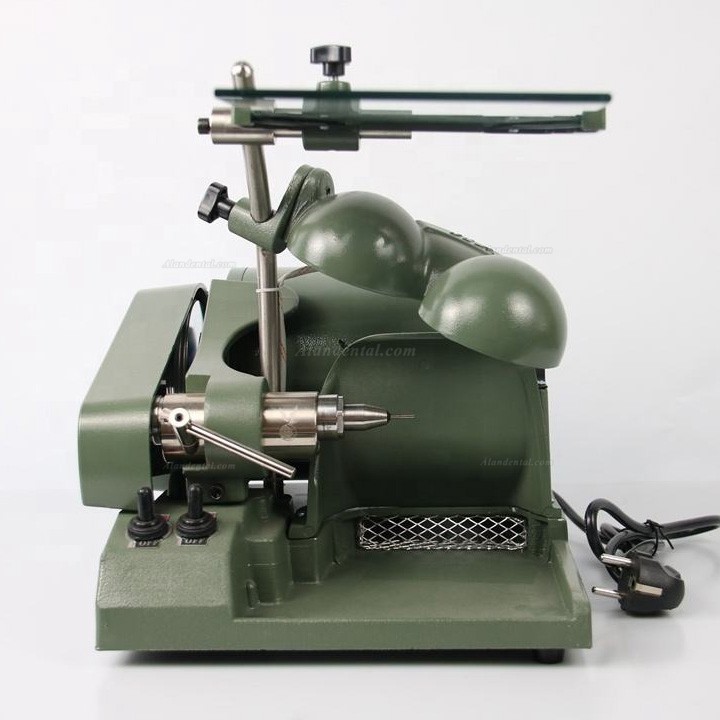

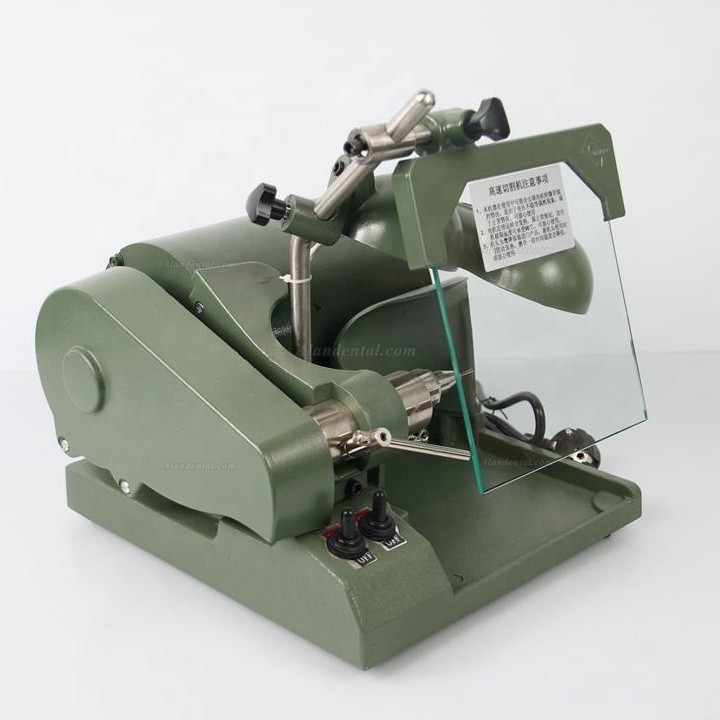

LZ Dental Lab High Speed Cutting Polishing Lathe with Spindle Alloy Grinder

LZ Dental Lab High Speed Cutting Polishing Lathe with Spindle Alloy Grinder

Description:
The High Speed Alloy Grinder is widely used to polish all kinds of metals in restorative dentistry.The housing of this machine is made of aluminum,which makes it reliable and corrosion resistant.This machine has low noise and high power,the rotational speed can reach up to 14000rpm.The Eagle spindle which is imported from the USA ensures the quality of the machine.


Specification:
Power supply voltage: AC110v/220v- 50hz 10%
Power: 370W
Rotational speed: 18000rpm
Weight: 23kg

Instruction:
1.Unpack the package,check if all the accessories are included.Read this manual carefully before using.
2.Connect the machine to a electric inlet,making sure the voltage is compatible with this machine.
3.Open the clamp with a spanner
4.Put in a stone holding pin or abrasive disc(make sure the stone-holding pin or the abrasive disc is compatible with the diameter of the clamp).
5.Rotate the switch from slow mode to fast mode, Observe if the abrasive disc is shaking.

Cautions:
1.Do not put too much side before to the main axis and the clamp
2.The emery wheel should be used with slow speed to avoid breaking which would hurt the user.
3.Do not let the machine idling for a long time.
4.If the belt is loose,loosen the screw under the head turn the head inside to a suitable position.If the belt is still loose,please replace it .To charge the belt loosen the screw on the left side of the cover.

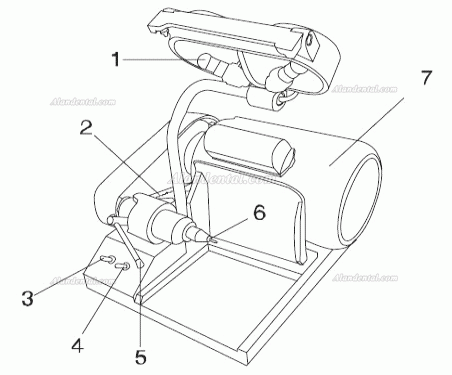

Diagram:



1.Light    2.Belt   3.Motor Switch    4.Light Switch    5.Adjust Handle   6.Clamp   7.Motor
