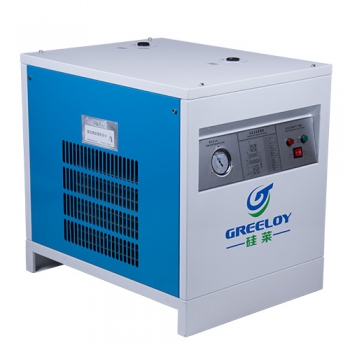

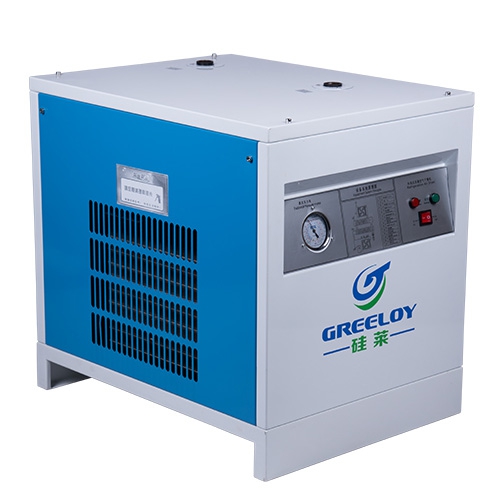

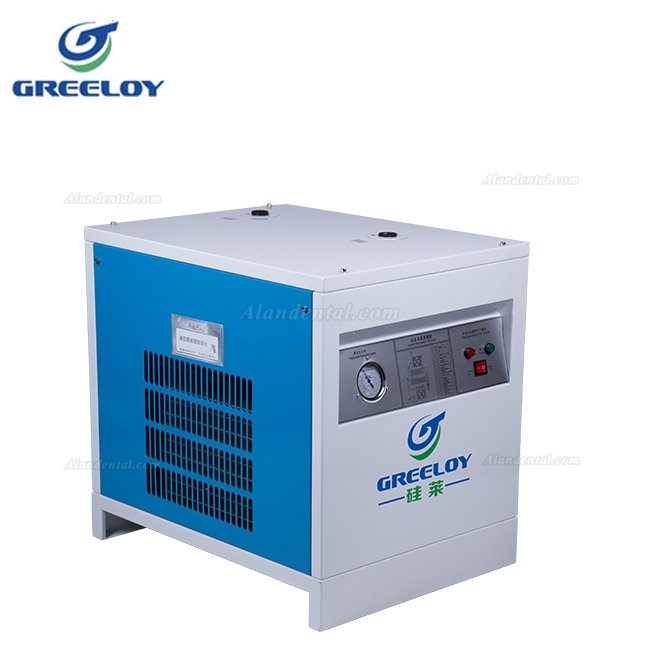

Greeloy GR-03 Refrigerated Air Dryer for Air Compressor

1. Advanced technology

We accumulated Hankison’s technology and adopt more scientific, efficient design in the basic of the actual working conditions of China. HOLYSUN brand refrigerated compressed air dryer became one of the leading brands in China because of its’ advanced technology, reliable running and low dew point.

2. Prefect refrigerated system configuration

Initial parts come from foreign famous brands to ensure efficient & system reliable running & life as well.

3. Energy conservation

New heat exchanger design, counter-flow structure, no freezing. Ripple pipeline of both internal and external of the heat exchanger to increase the using rate of cooling air, Evaporator is made from laminose copper pipeline with aluminum flake, high heat exchange efficiency.

4. Gas liquid separated thoroughly

Filtering separated with HANKISON element. Thorough separation, avoid the second vaporizing of water, ensuring dry effect. It is better than cyclone separation and it will reach efficiency at 99.99%.

5. Good drainage system

It adopts 3 grades for draining, Electronic drain can lots of condensate water and oil contaminant so as to keep clean and dryness of the system and air, meanwhile reduce system load.

6. Unique outer box and air exhaust design

No negative pressure and counter current, excellent heat dissipation and convenient for maintenance.

7. Multi-control of circuitry to supply

Multi control of circuitry to supply to different users(single control; integrate circuit, linkage control, PC panel, frequency conversion, etc.)

8. Superior condenser

Condenser made from fin copper, slow flow, multi-cycling and high heat exchanging tate. it won’t freeze for a long time use.

Model No.:GR-03

Inlet temperature℃:≤65℃

Air flow m3/min 3.8m3/min

Designed dew point temperature:2-10℃

Standard working Pressure:0.8Mpa

Max. working Pressure:1.0Mpa

Ambient temperature:≤40℃

Working mode:Continuous

Pressure drop:≤0.025Mpa

Drain valve:Electron drainage

Cooling method:Air-cooling

Refrigerant:R22

Voltage/Hz:220V/50HZ

Compressor power:1.25KW

Connector diameter:DN40
