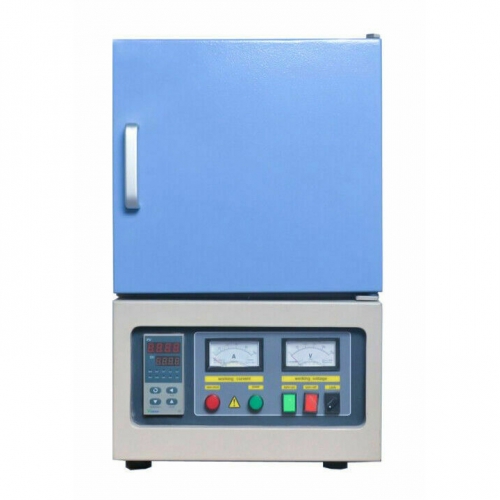

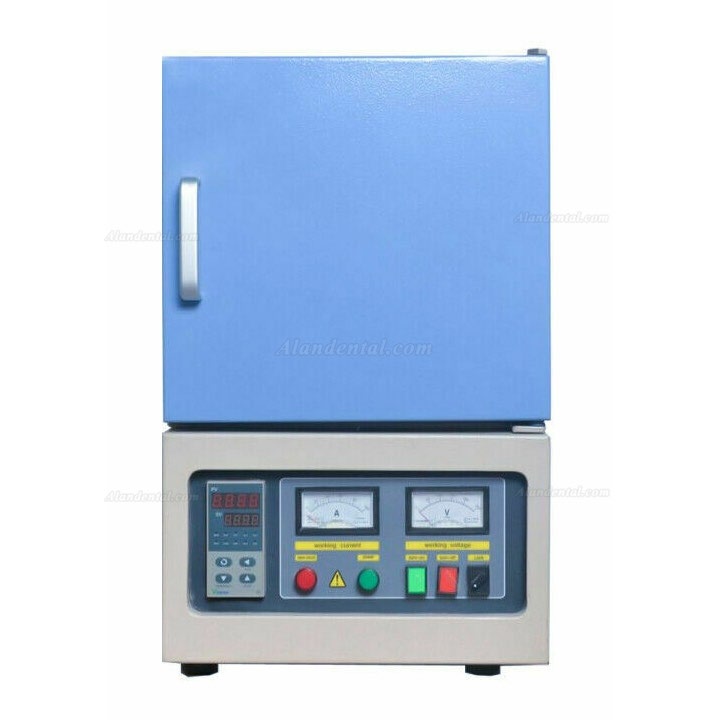

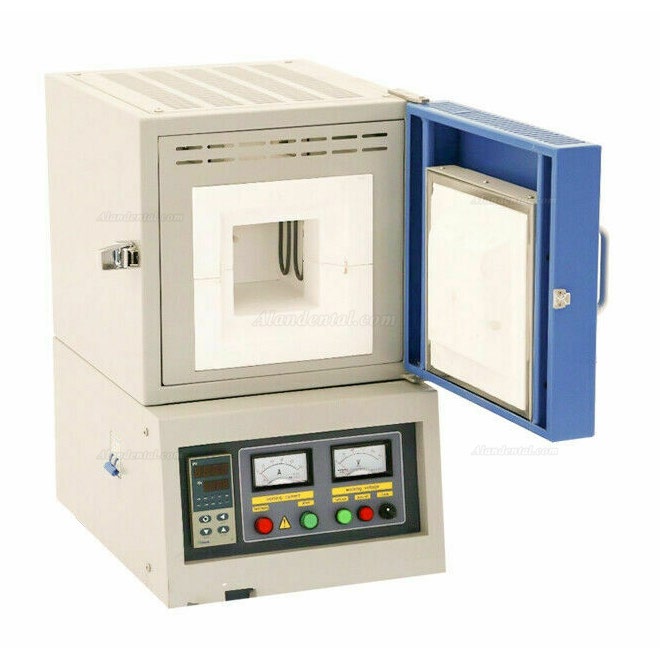

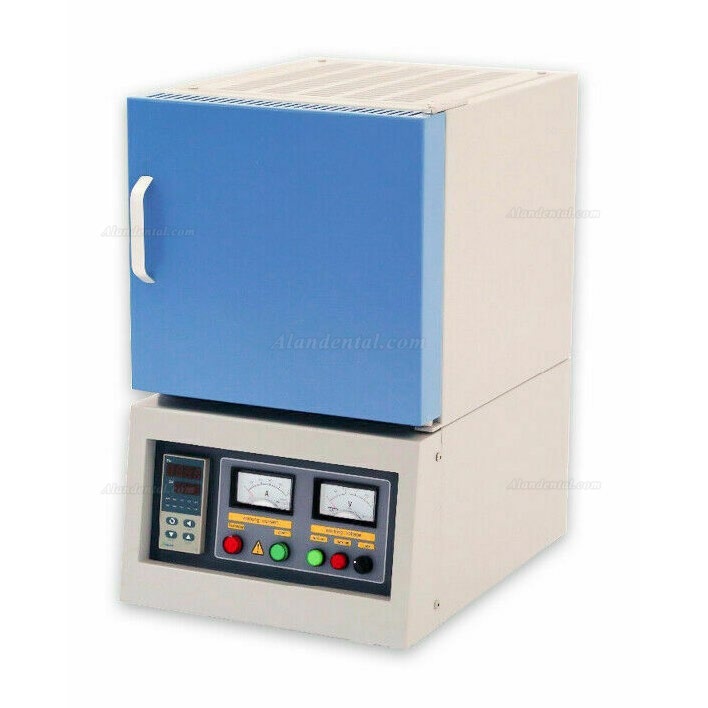

Dental Zirconia Sintering Muffle Furnace Max Temperature 1700℃

Dental Zirconia Sintering Muffle Furnace Max Temperature 1700℃

The furnace consists of alumina fiber brick and MoSi2 heating elements, and furnace temperature is controlled by SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1 deg °C and 51 segments programmable up to 1700 °C or 3092 ℉.

Inside Chamber Size:100 x 100 x110mm

Furnace casing:Double layer steel structure with air cooling fan to keep case temperature below 55°C

Standard Working Temperature:1600 °C or 2912℉ ( continuous )

Maximum Working Temperature:1700 °C or 3092 ℉ < 3 hours)

Temperature Control:PID automatic control via SCR ( Silicon Controlled Rectifier) power control, e.g. current limiting phase angle fired the resistor with 51 steps programmable

Heating Rate:0~~20 °C / min (suggestion =< 10 °C )

Temperature Accuracy & stability:+/- 1°C

Temperature uniformity:+/- 5 °C over 120 mm (5") @ 1700 °C

                                      +/- 2 °C over 80 mm (3") @ 1700 °C

Heating Element:MoSi2 ( 4 pcs U shape)

Thermo Couple:B Type (Pt-Rh to Pt-Rh) with Alumina tube

Working Voltage:220V single phase, 50Hz ( 50A air breaker required)

Max. Power:1KW

Outside Size:330 x 320 x 480 mm

Net Weight:50KG

Limited Warranty:One year manufacture limited warranty and free replace all defective parts (not including spare parts).

Shipping Weight:60KG
