Dental Portable X-Ray Machine Built-in Screen X-Ray Unit with Dental Digital X-ray Sensor

Dental Portable X-Ray Machine Built-in Screen X-Ray Unit with Dental Digital X-ray Sensor
Item No. ADL003600
Reviews: 5 stars, 1 reviews
Brand:Alan Dental
But It Now : $1729.98
Model :

Quantity :
Weight:0gram
Goods click count:3036

Item Description Reviews

Dental Portable X-Ray Machine Built-in Screen X-Ray Unit with Dental Digital X-ray Sensor

Feature:

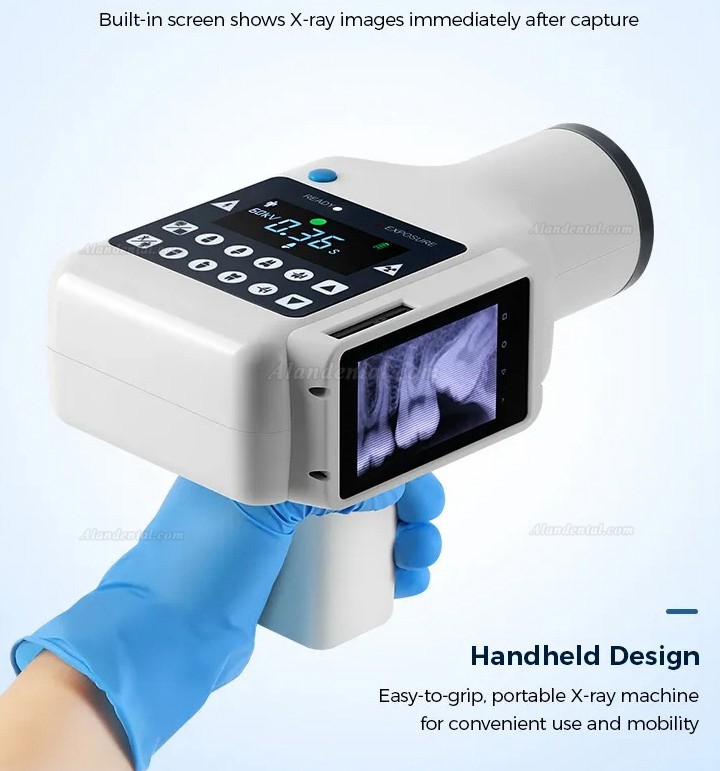

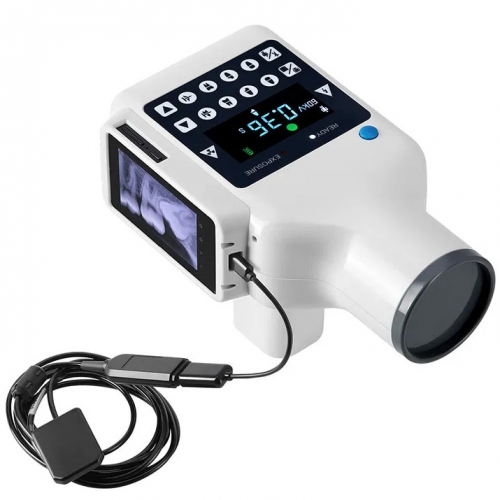

1. Instant Image Display: When connected to our sensors, built-in screen shows X-ray images immediately after capture.

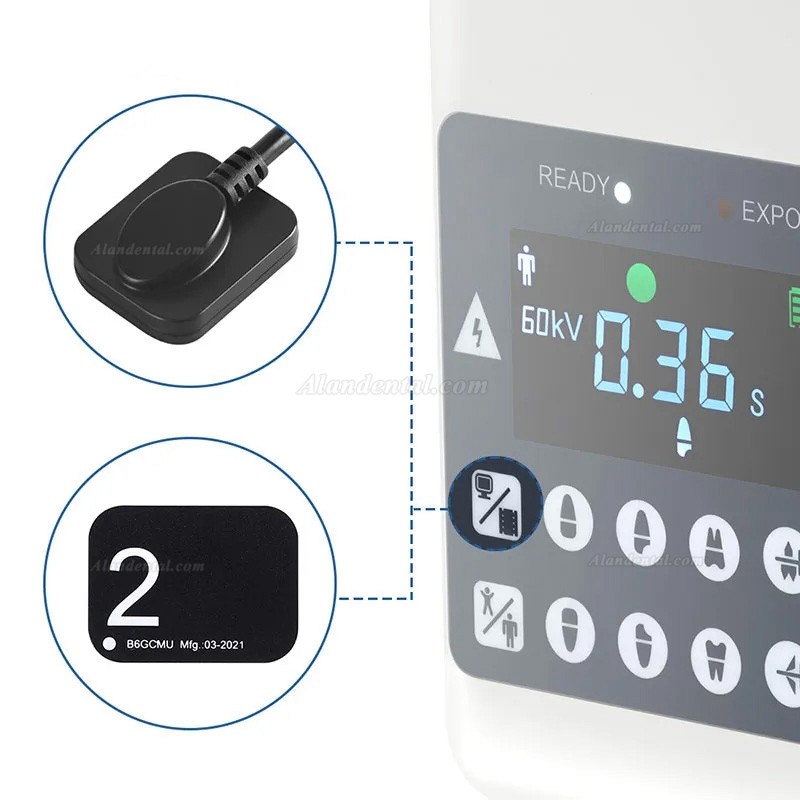

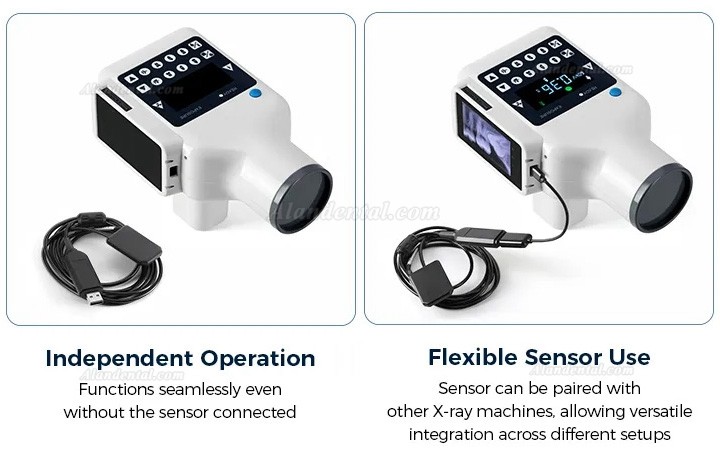

2. Independent Operation: Functions seamlessly even without the sensor connected.Compatible with digital sensors, X-ray film, and image plate scanners.

3. Flexible Sensor Use: Sensor can be paired with other X-ray machines, allowing versatile integration across different setups.

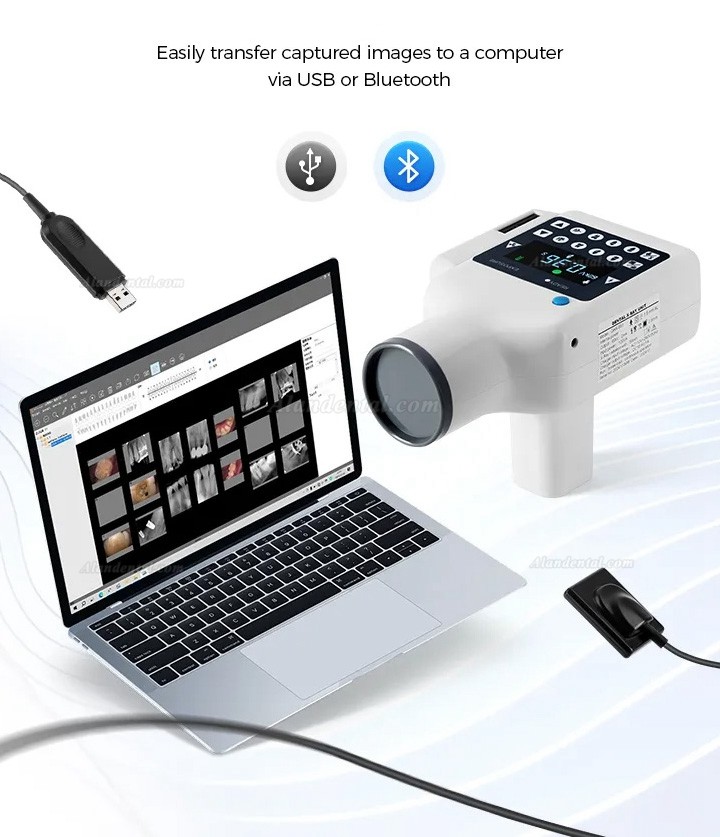

4. Effortless Image Transfer: Easily transfer captured images to a computer via USB or Bluetooth.

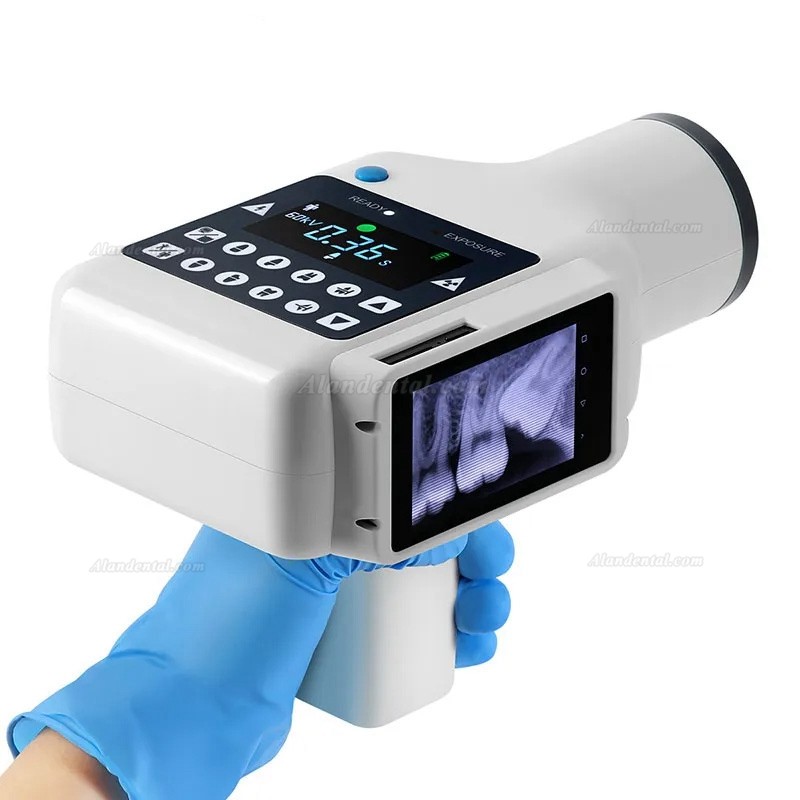

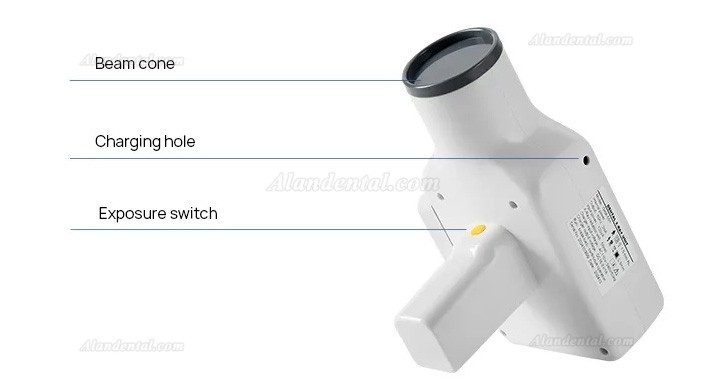

5. Handheld Design: Easy-to-grip, portable X-ray machine for convenient use and mobility.

6. The body is small, light in weight, and the radiation leakage is less than 20μgy/h.

7. It uses high frequency and DC power supply.

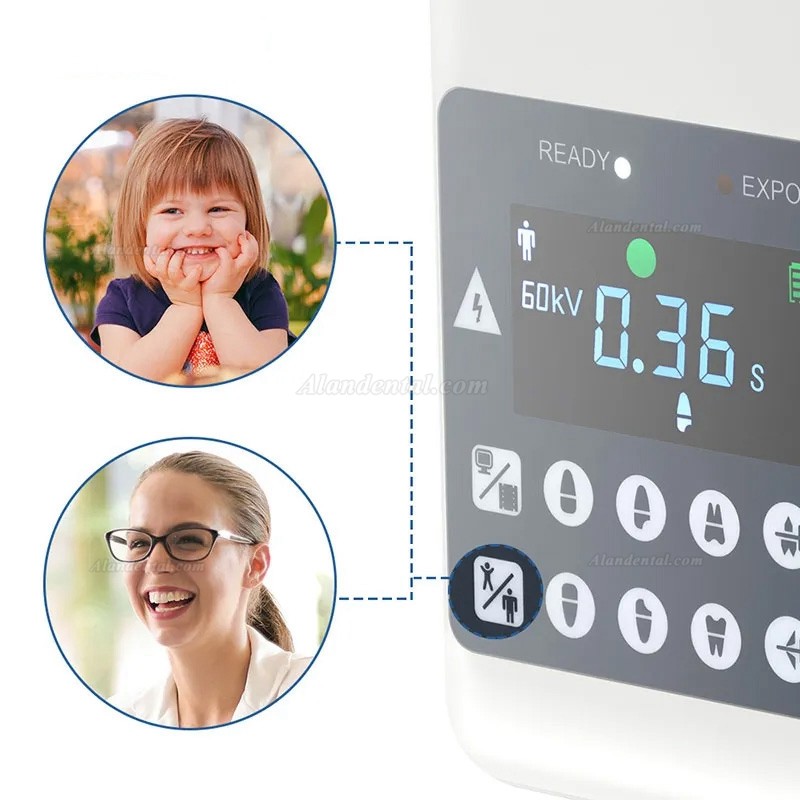

8. Different exposure times are preset for adults and children.

9. The battery is durable, it can take about 4 hundred images after fully charged.

Sensor technical parameter:

Model	COX2230	COX2635
Detector Technology	APS CMOS	APS CMOS
Pixel Size	18.5μm
Theoretical Resolution	27lp/mm
True Resolution	CsI: ≥14 lp/mm
Pixel Matrix	1200*1600	1402*1888

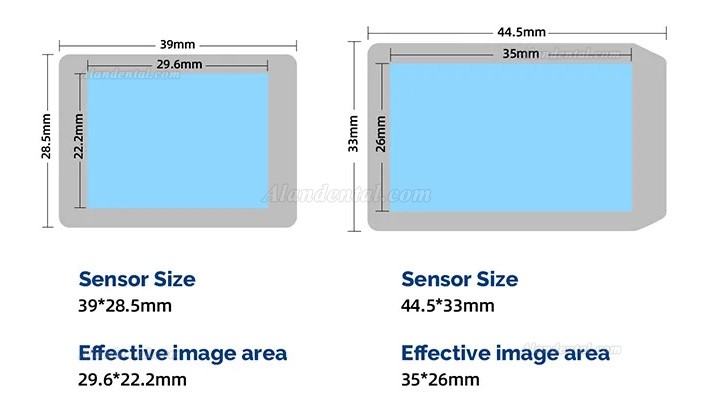

Active Area(mm)	29.6 X 22.2	35 X 26
Mechanical Size(mm)	39 X 28.5 X 6	44.5 X 33.0 X 6
Data interface	USB
Digitization	12/14/16 bit
Imaging Time	3-4s

Specifications:

Tube voltage: 60KV

Tube current: 2mA

Exposure time: 0.1-2.0s

Frequency: 30kHz

Rate power: 120VA

Distance from skin to cone: 105mm

Tube focus: 0.8mmx0.8mm

Battery: DC14.8V1600mAh

Charger input voltage: AC100V-240V+10%

Output voltage: DC16.8V

Ambienttemperature: 5°C~40°℃

Relative temperature: <75%RH

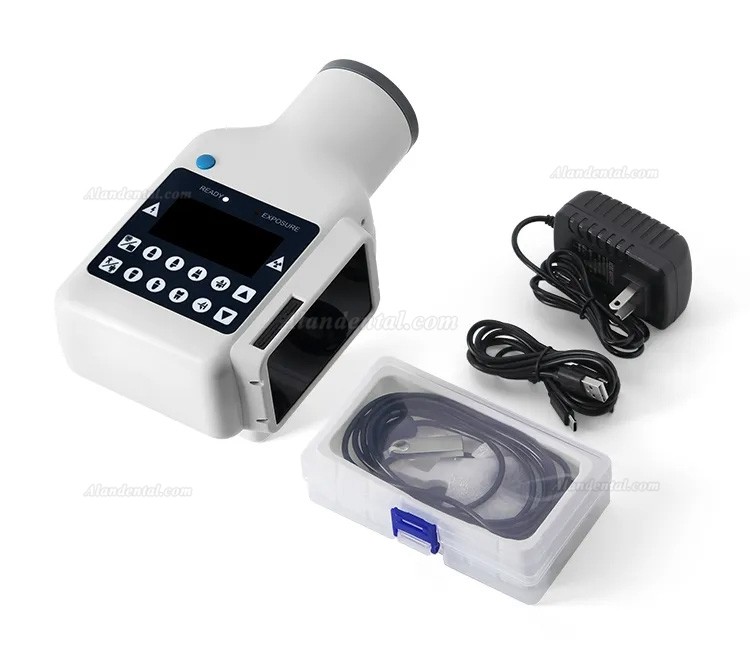

Package:

1.Aluminum box *1

2.X-ray machine *1

3.Sensor (with U disk) *1

4.Charger *1

5.Manual*1

6.Data cable*2

Note:

We are have 2 options for you to choose,

Dental X-Ray Unit with 2230sensor

Dental X-Ray Unit with 2635sensor
