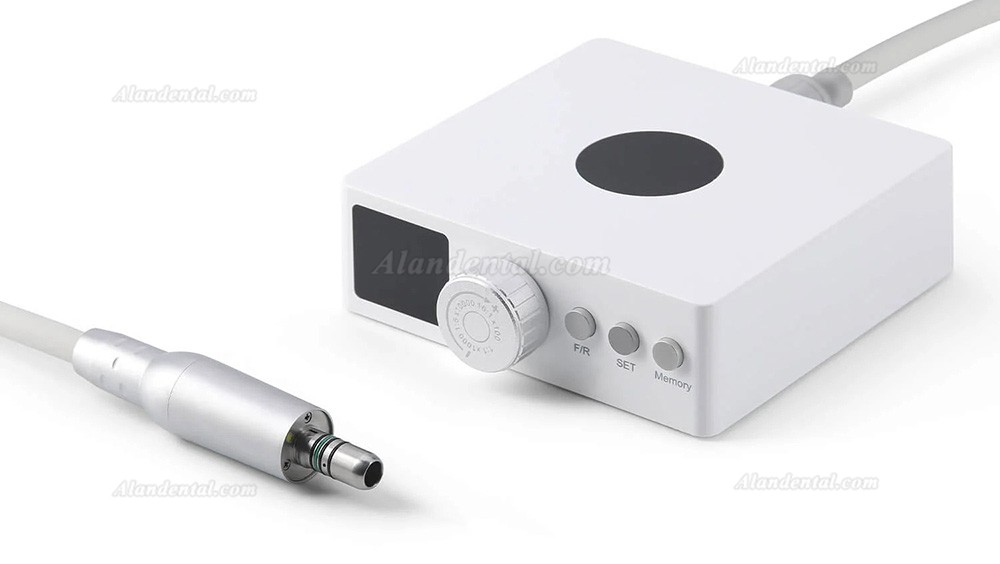

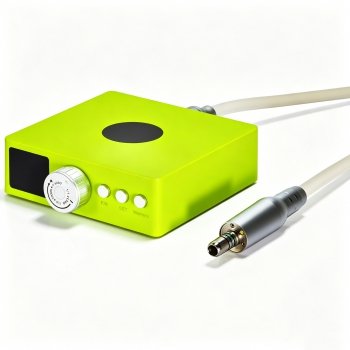

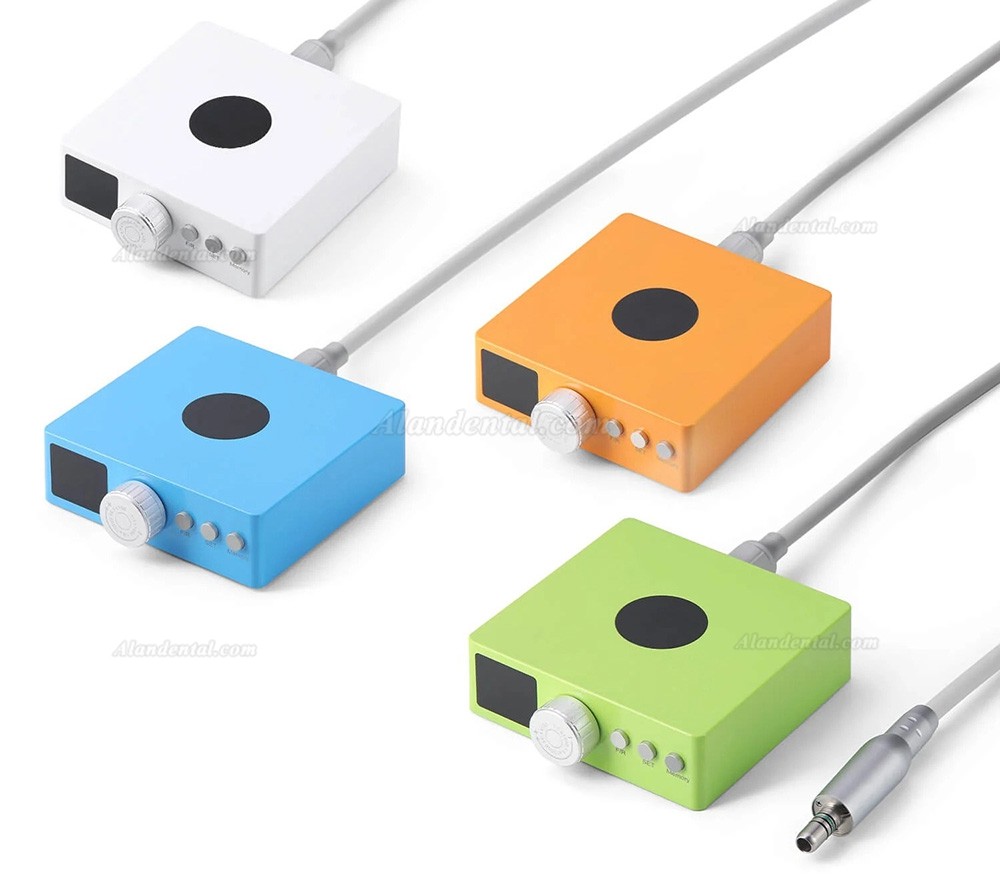

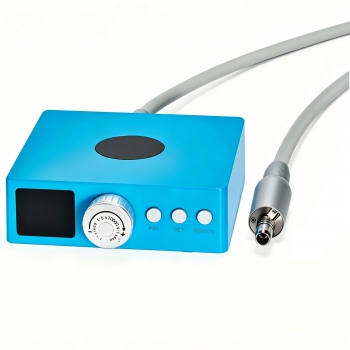

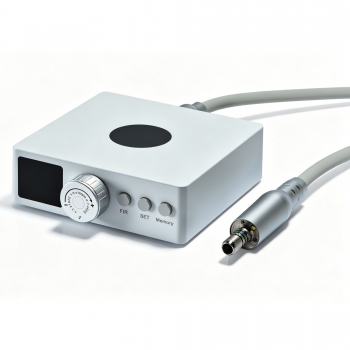

Dental LED Brushless Electric Micro Motor 4 Holes With Three Modes 16:1 / 1:1 / 1:5

Dental LED Brushless Electric Micro Motor 4 Holes With Three Modes 16:1 / 1:1 / 1:5
Item No. ADL003987
Brand:Alan Dental
- EOFY sales 2026:
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till June 30th,2026
But It Now : $298.98
Color :

Plug :

Voltage :

Quantity :
Weight:0gram
Goods click count:145

Item Description Reviews

Dental LED Brushless Electric Micro Motor 4 Holes With Three Modes 16:1 / 1:1 / 1:5

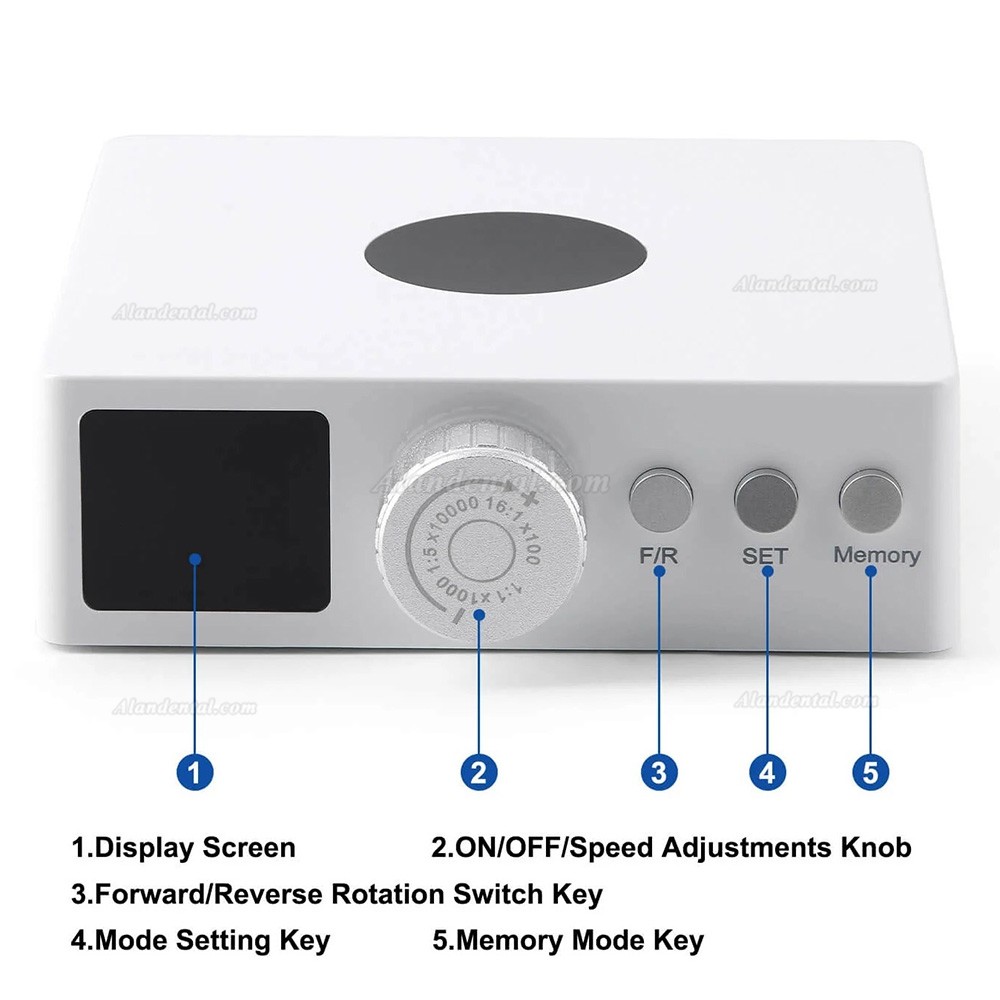

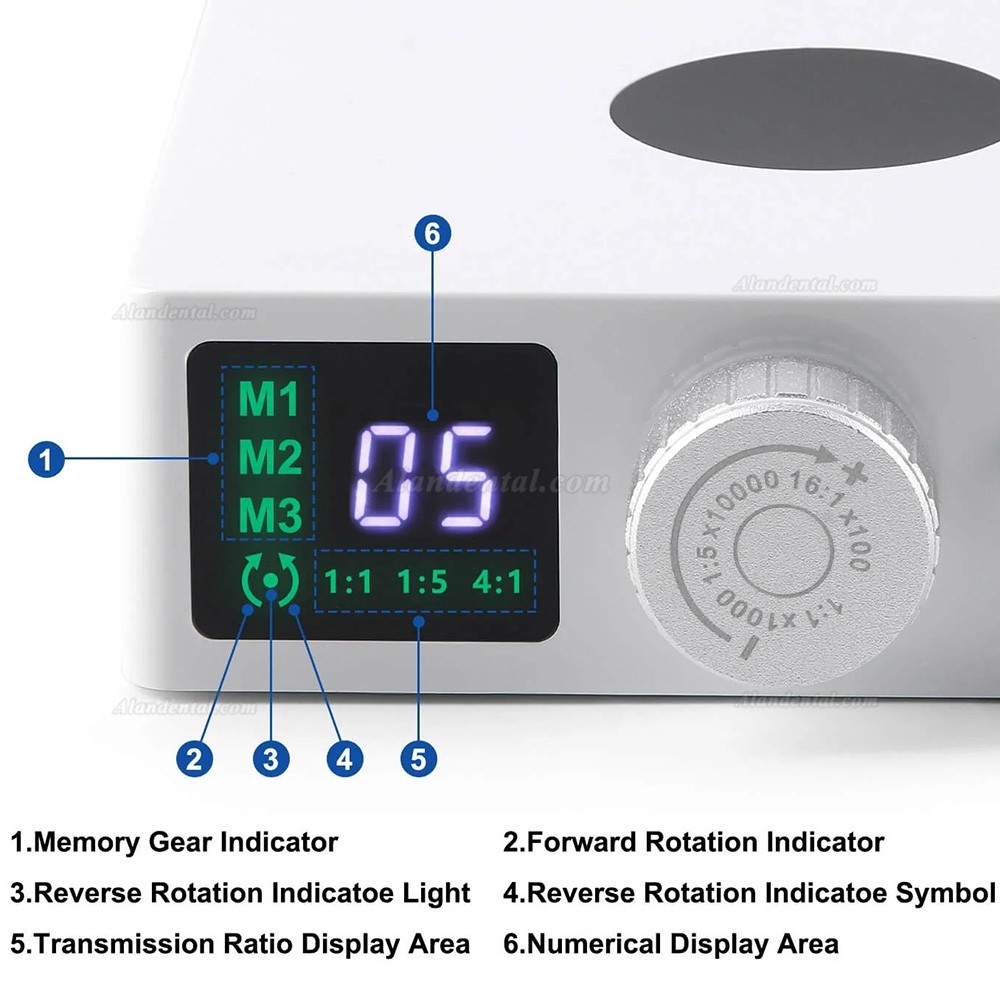

Three optional settings:16:1/1:1/1:5

16:1 Rotation: 100-2,500rpm

1:1 Rotation: 2,000-40,000rpm

1:5 Rotation: 10,000-200,000rpm

Specifications

Adapter Input Voltage: AC 100-240V 50/60Hz

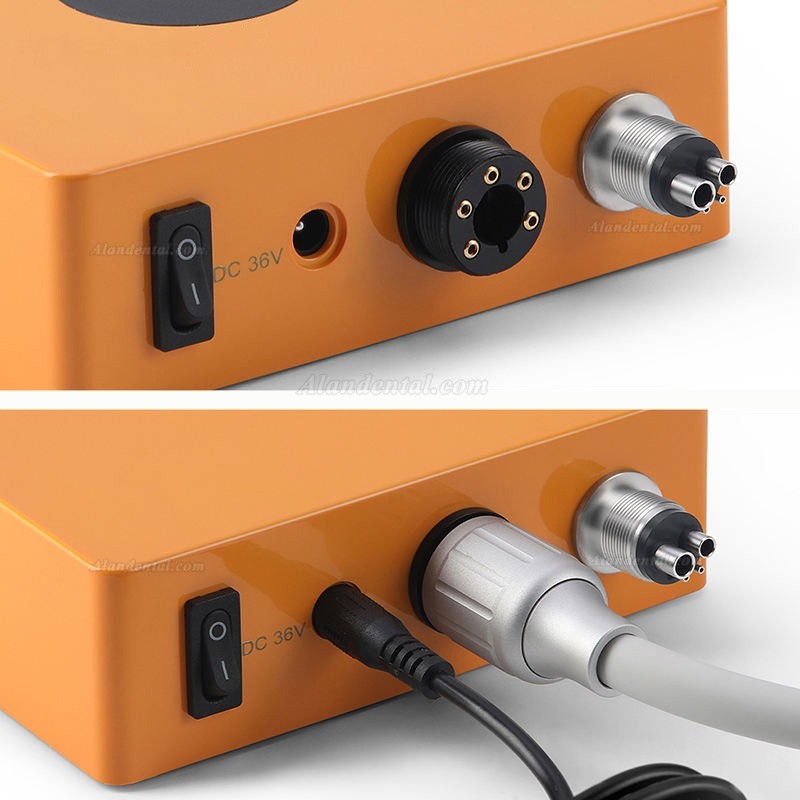

Adapter Output Voltage: DC 36V 4A

Motor Parameters Block Torque: 69mN·m

Motor Parameters No-load Current: 0.22A MAX

Motor Parameters No-load Speed: 39,000±10% r/min

Motor Parameters Blockage Current: 12.37A

Motor Parameters Starting Voltage: DC 24V

Water Pressure: 0.2-0.3MPa

Power: 120W

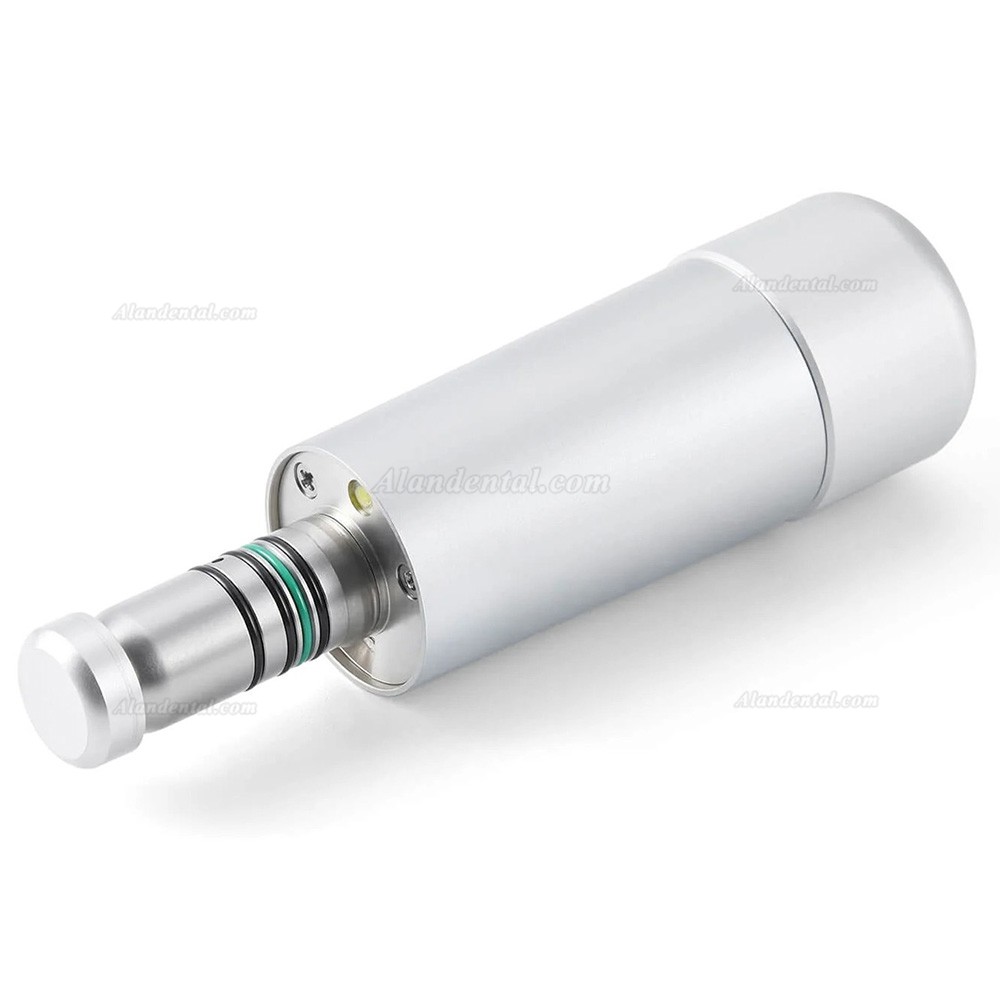

Type Of Motor: Brushless Motor

Optic: With LED

Warranty: 1 year

Input Voltage: AC100~240V,50/60Hz

Speed: 2000-40000r/min

Packing Box size: 25*19*10cm

Tail Cord Length: 190cm

Motor Weight: 80g

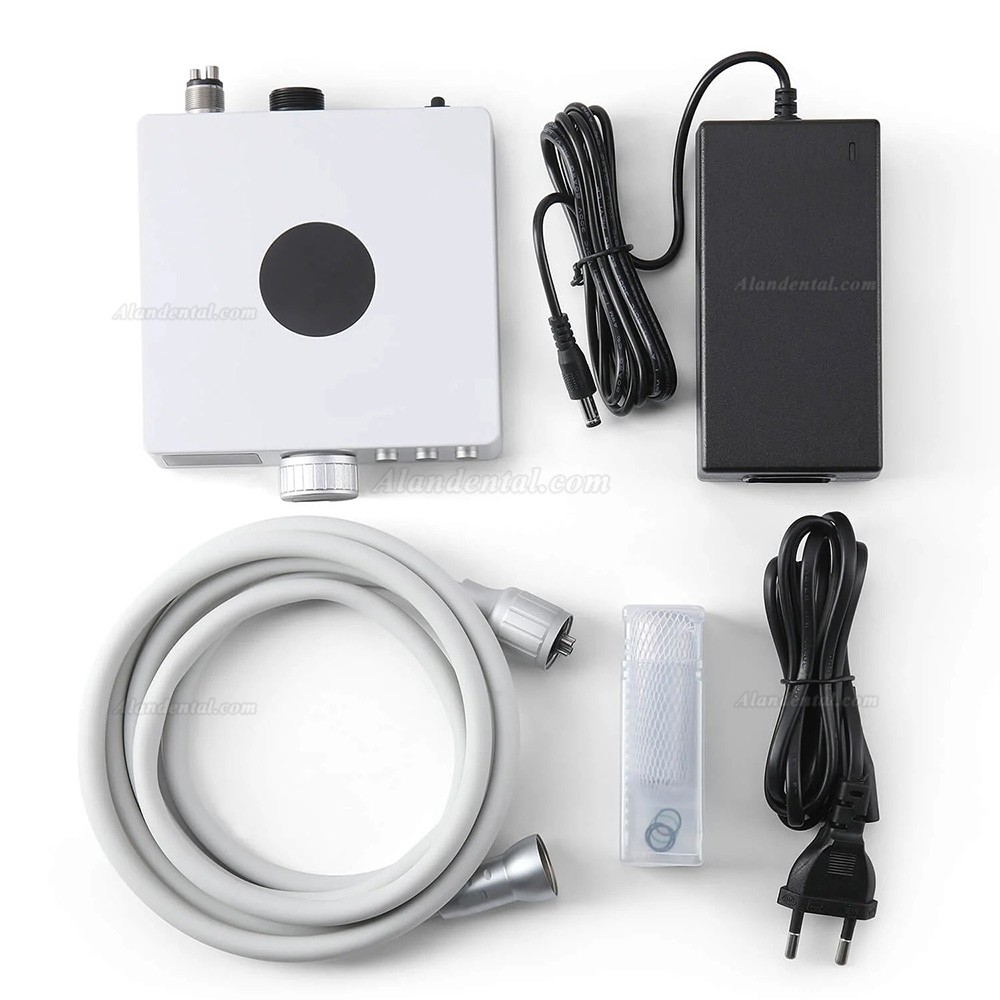

Packing List:

Main Unit: 1 PC

Power Supply: 1 PC

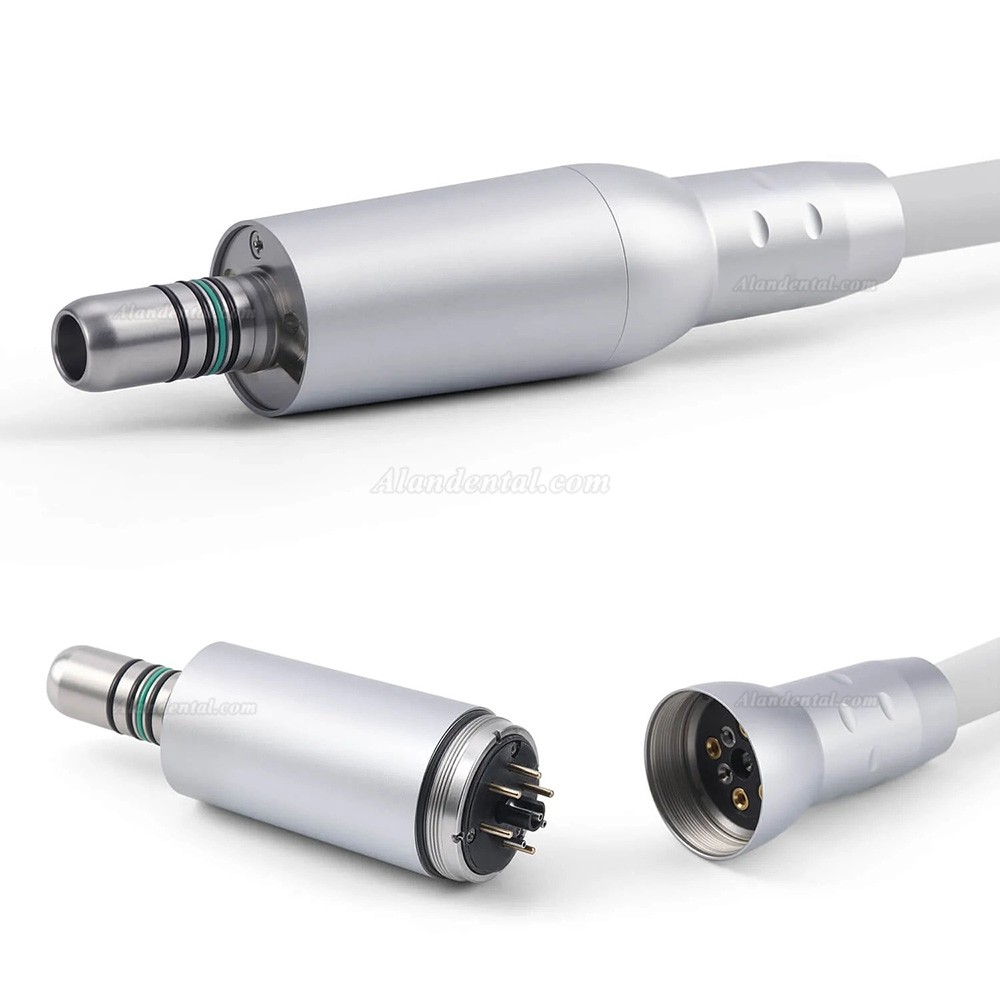

Motor: 1 PC

Motor Pipeline: 1 PC

Instruction Manual: 1 PC

Note

Before treatment, test run the handpiece outside the oral cavity for at least 30 seconds. Proceed with treatment only if no abnormalities are found.

When connecting or disconnecting the handpiece, ensure the motor has stopped rotating. Never connect or disconnect the handpiece while the motor is running.

Portable and mobile RF communication equipment may affect the performance of the electric motor. Avoid strong electromagnetic interference during use, such as being near mobile phones, microwave ovens, etc.
