Zoneray Dental HL-YMCⅡ Alginate\Die Stone Mixer (foot control)

Zoneray Dental HL-YMCⅡ AlginateDie Stone Mixer (foot control)

Parameters

1. Power supply: AC 110V, 60Hz / AC 120V, 60Hz / AC 220V, 50Hz / AC 230V, 50Hz / AC 240V, 50Hz

2. Speed: Low speed: 120rpm; High speed: 250rpm.

3. Timer alert: After 20s of mixing, a beep sounds and the alarm light flashes to indicate the mixing cycle is complete.

4. Overload stop: When the motor is overloaded, the unit stops automatically after 3s. Press the Start key or use the foot control to resume.

5. Foot control for start and for switching between low and high speed.

6. Gross weight: 3.0 kg

7. Size: 280×230×230 mm

Operation Description

1. Power switch: a black boat-shaped switch behind the machine.

2. Mixing bowl: Place it on the tray at the top of the unit. Turn the mixing bowl clockwise to lock it. Turn counterclockwise to unlock.

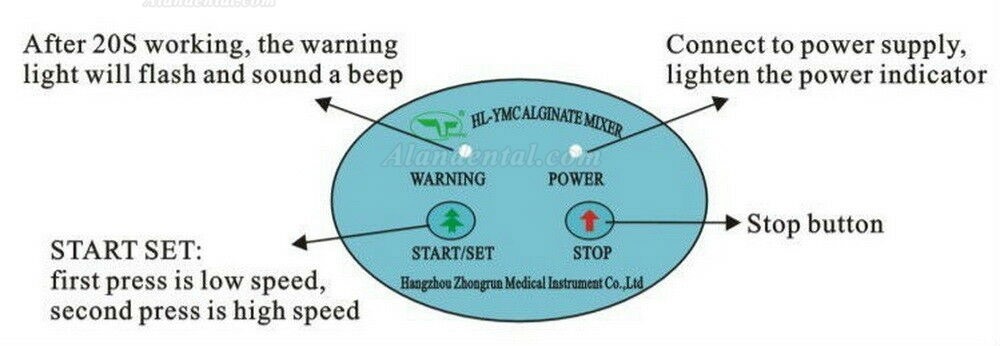

3. "Start/Set" button: Located at the left side of the front panel. First press starts low speed; press again for high speed.

4. "Stop" button: Located at the right side of the front panel. Press to stop the unit.

Usage

1. Place the cleaned and disinfected mixing bowl into the tray and turn clockwise to lock it.

2. Connect the power plug to a grounded electrical socket and turn on the power switch.

3. Put water and impression material into the mixing bowl according to the proportion specified in the impression material manual. Mix until evenly blended.

4. Place the spatula into the mixture, press the Start/Set button or use the foot control to start at low speed. Close the spatula along the mixing bowl and move it in the rotation direction.

5. Press the Start/Set button or use the foot control again to switch to high speed. The spatula should follow the wall of the mixing bowl. After 20s, the alarm light flashes to indicate the mixing cycle is complete.

6. Press the "Stop" button to stop. Use the spatula along the mixing bowl to remove the mixture.

7. Turn the mixing bowl counterclockwise, take it out, and clean it.

Packing list

1 Alginate mixer, 1 Mixing bowl, 1 Spatula, 1 Fuse, 1 Instruction manual, 1 Warranty card, 1 Foot switch
