YS YS-CS-A(5E) Dental Cleaning Ultrasonic Scaler Periodontal Machine

Function:

G Scaler

P Periodontal treatment

E Root canal function

Powder polish function

Product attribute parameters:

Product name:Professional Dental Ys-Cs-A(5E) Cleaning Ultrasonic Scaler

Item no.:YS-CS-A(5E)

Input Voltage:48VA

Voltage:AC100V-240V 50-60HZ

Ultrasonic wave output character:Biggest output intensity 8w

Transformer Input:AC100V-240V 50-60HZ,output:DC 24v

Main Libration excursion:0.05-0.15mm,Half excursion power:no smaller than 0.5N

External Charger:Input:110v/50-60hz or 220v/50-60Hz Output:5V DC

Tips output libration frequency 25Khz-35Khz

Function::scaler/Periodontal Treatment/Root canal /polish

Environment Temperature:5℃-40℃

Relative humidity:Less than or equal to 80%

Atmospheric pressure:86kpa-106kPa

1. Scaler fuction

1.1 Press the power button, pick up the scaler handpiece, and press the “scaler& polish” button,change to scaler, and press “Option” button to choose function, till the “G” indicator light is on, it is the scaler fuction now.

1.2 Press “water mode” button to choose the water mode, bottle water supply and outside water supply two mode.

1.3 Choose the correct working tips according to requirements. And use the limited force spanner to install it on the handpiece.

1.4 Press the foot pedal, the working tips will be vibrating, and the led light will be light on,and the cold water will be spraying out.

1.5 When the machine works normally, the ratation is very fast. To make sure the vibration of the working tips is normal, and the water spraying is normal, then use the working tip side to touch the tooth softly, and repeat moving constantly,then can delete the dental calculus.

1.6 Vibration strength: To adjust the vibration strength according to requirements. The default gear is 5, according to the patient’s dental calculus,adjust the vibration strength.

1.7 The water volume: If the water mode is bottle water supply,adjust the water button for bottle water supply. If the water mode is outside water supply, adjust the water button for the outside button.

1.8 After finishing the work, make sure the water spraying 30 seconds more, to wash the handpiece and the working tips, and disinfect the working tips.

2. Periodontal treatment fuction

2.1 Use the limited force spanner installing the periodontal treatment working tip, press “Option” button to choose the function, till the “’P” indicator light is on, then can do the treatment.

2.2 The other steps please take scaler function as reference.

3. Root canal/endodontics function

3.1 Use the limited force spanner installing the root canal working tip, press “Option” button to choose the function, till the “E” indicator light is on, then can start the treatment.

3.2 The original gear for root canal is 1, you can use “+” and “-” button to choose the suitable gear for treatment.

3.3 Choose the suitable working tip, to make sure to put into the patient’s root canal, then press the foot pedal to start the treatment.

3.4 Suggest gear 1-5 for root canal fuction.

4. Powder polish function

4.1 Put enough powder into the powder bottle, more than “Min”,and less than “Max”.

4.2 Pick up the polish handpiece, then press the “Scaler & polish” adjust button to change to polish model.

4.3 Adjust the “WATER” and “AIR” button, then press the foot pedal, to make sure there is water and powder out,and the function is normal.

4.4 Wear goggles and veil for the patient, the user also need to wear goggles before treatment.

4.5 Adjust the water and air to be the suitable gear. Suggest the water gear begin from 5, and the air gear begin from 3,adjust the water and air according to the patient’s teeth status. Enlarge the water, the polishing effect will be better than cleaning effect. Enlarge the air, the cleaning effect will be better than polishing effect.

4.6 When do the treatment, the working tip is near teeth about 5mm, and keep the beam angle to be 30°-60°,and make sure the working tip not touch the teeth directly.

4.7 After treatment, adjust the water to be biggest gear, and polish all the teeth.

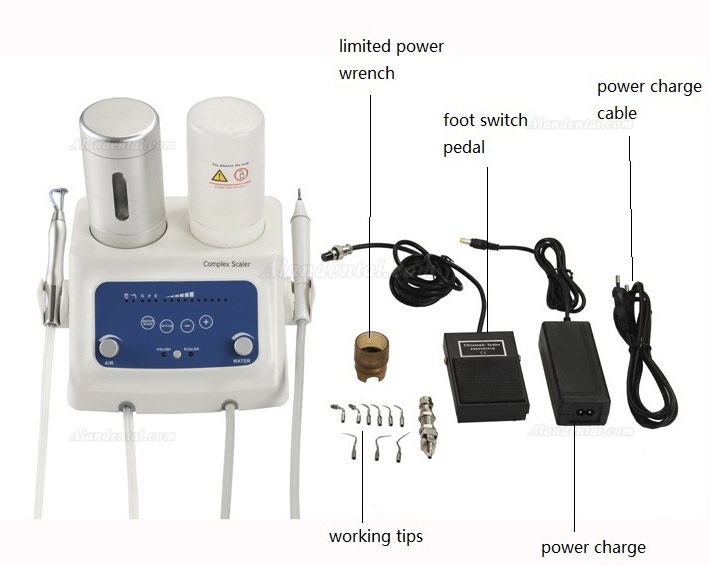

Standard Package:

Measurement: 305*255*240mm

Gross Weight:3.3KG
