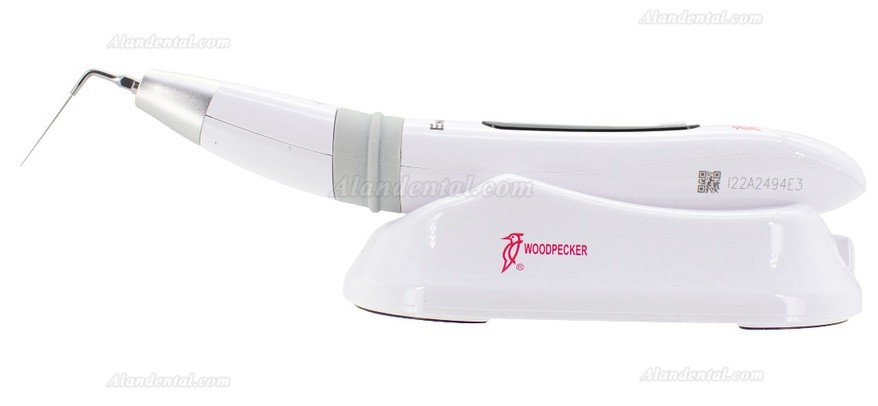

Woodpecker Endo 3 Ultrasonic Endoactivator Endo Irrigator Activate Device





The Endo 3 Ultrasonic Endo Activator is an intelligent ergonomic, wireless handpiece for activating irrigation during a root canal procedure. This unit replaces the Endo 1 and has some upgraded features. As you are aware, proper irrigant activation in the canals during a root canal plays a key role in the proper debridement and disinfection of the root canal system. The Endo 3 emits a high-frequency ultrasonic vibration to safely and effectively boost the endo irrigation used in endodontics.

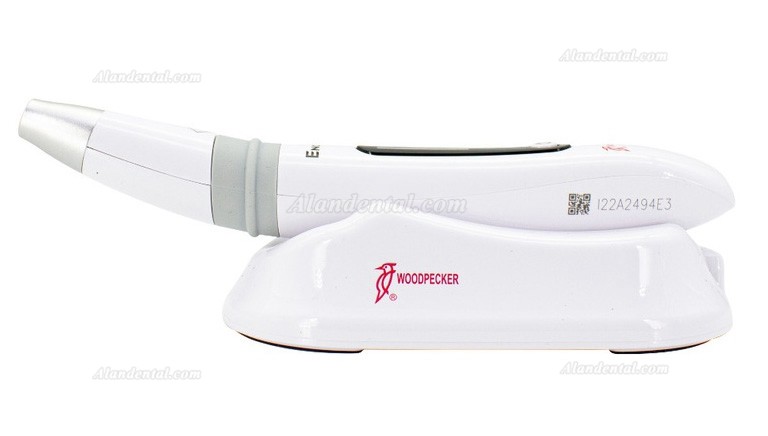

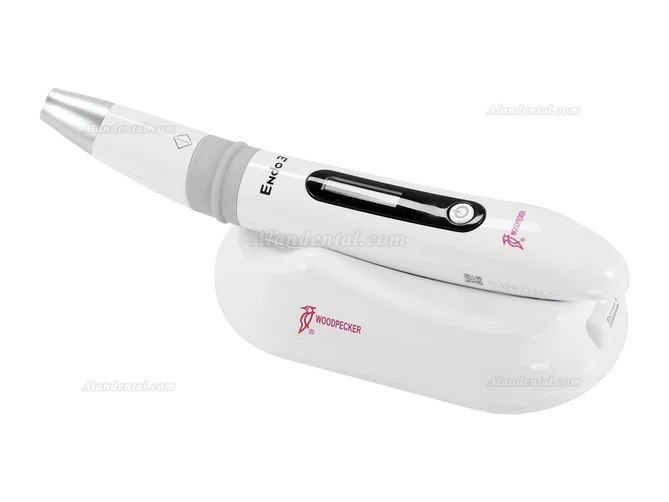

Wireless Use & Wireless Charging Base no plugs or cords.

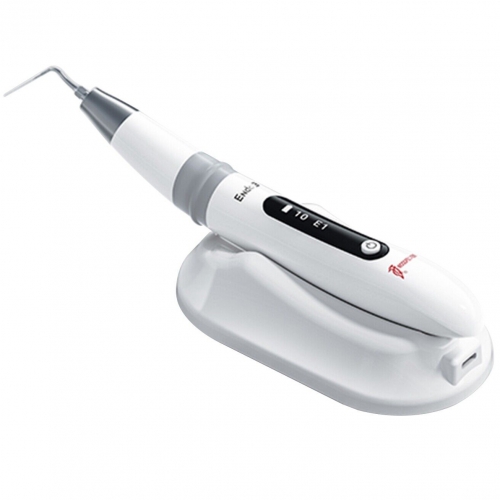

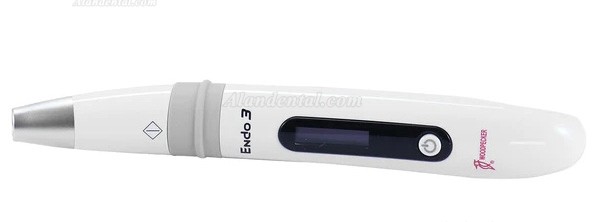

Larger and Clear LCD Screen for better observation by the dentist.

Adjustable Head for Improved Access entire head of the device can be turned to the position needed.

The Endo 3 has three Power Modes which are E1, E2, and E3 which go from low, medium to high power.

The Endo 3 has four Time Modes which allow the ultrasonic to run for 10 seconds, 15 seconds, 20 seconds or 10 minutes.

The Endo 3 has 2 Modes that allow it to be used as 1) Stand-by Mode Where Ready to Use or 2) Irrigation Mode.



Standard configuration: E96*2,E99*2,E70, E71*10

High configuration: E96*2,E99*2,E70*2,E71*10,E72*10

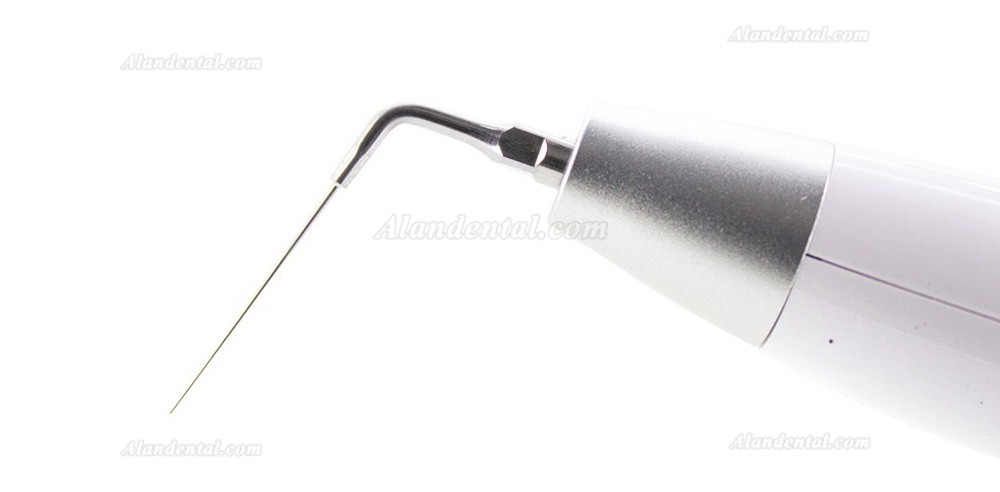

Compatible tips: E70, E71, E72,E73, E74,E93, E95,E96, E97,E98,E99



For canal irrigation after the root canal preparation

E70: Endochuck, used for install E71, E72, E 73 or E74 for root canal cleaning or irrigation

E71,E72,E73, E74: Polymer materlal without cutting abillity (E71 - Smooth tip , 30#, 4.2 %taper, 18mm; E72 - Smooth tip , 30#, 3.6 %taper, 21mm; E73 - Smooth tip , 25#, 3.1 %taper, 18mm; E74 - Smooth tip , 25#, 3.3 %taper, 21mm)

E93:20#, taper 1%, tip end length 21.5mm, Ni-Ti

E95:20#, taper 2%, tip end length 18mm, Stainless steel

E96:20#, taper 2%, tip end length 21mm, Stainless steel

E97:20#, taper 2%, tip end length 25mm, Stainless steel

E98:25#, taper 2%, tip end length 18.5mm, Titanium alloy

E99:25#, taper 2%, tip end length 18.5mm, Titanium alloy



Dimensions : 173.8mmx25.8mmx35.8mm

Net Weight : 78gm



Rechargeable Lithium Battery :

Battery mode: 14500

Nominal voltage: 3.6V

Capacity: 750mAh



Power Adaptor :

Input: 100V-240V   50Hz/60Hz   0.4A MAX

Output: DC 5V/1A

Build-in fuse: T1AL 250V

Working Parameters :



Output tip vibration frequency : 40KHz±10KHz

Relative Humidity at 30% - 75%

Atmospheric Pressure : 70kPa - 106kPa

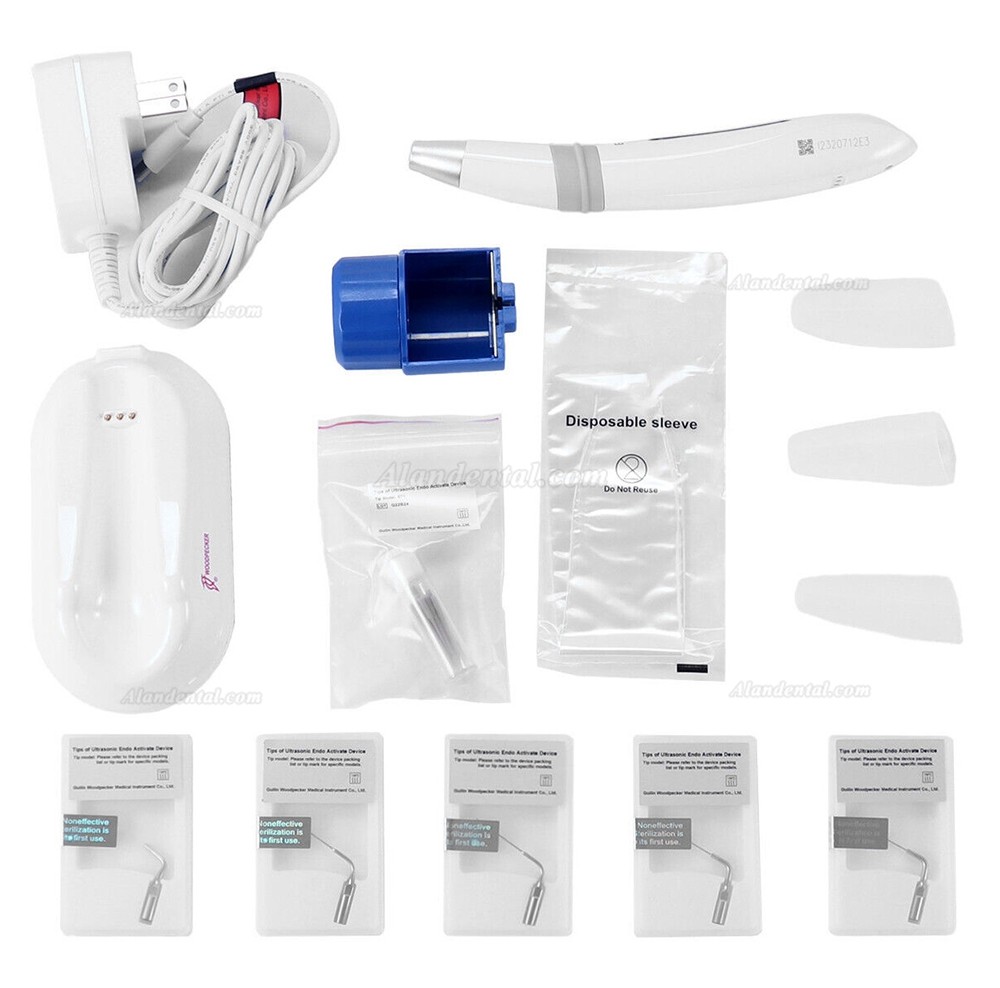

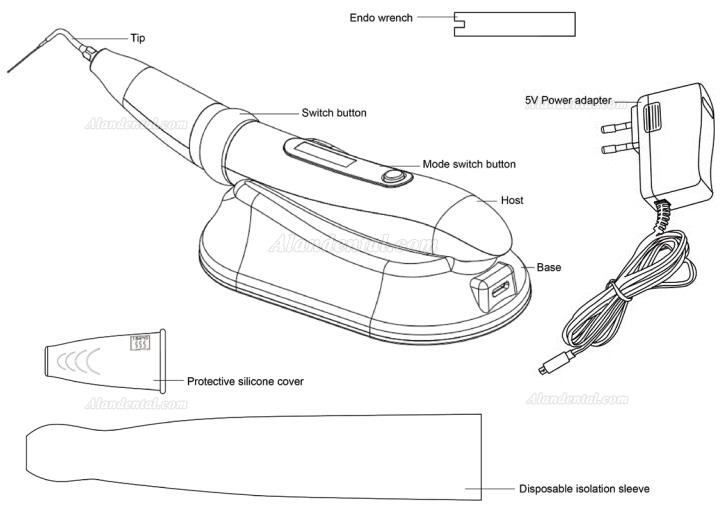

1 x Main Unit

1 x Power Adaptor

1 x Pedestal Charger

2 x Scaling Tip E96

2 x Scaling Tip E99

1 x Scaling Tip E70

10 x Scaling Tip E71

3 x Silicone Sleeves

1 x Torque Wrench

1 x Disposable Isolation Sleeve
