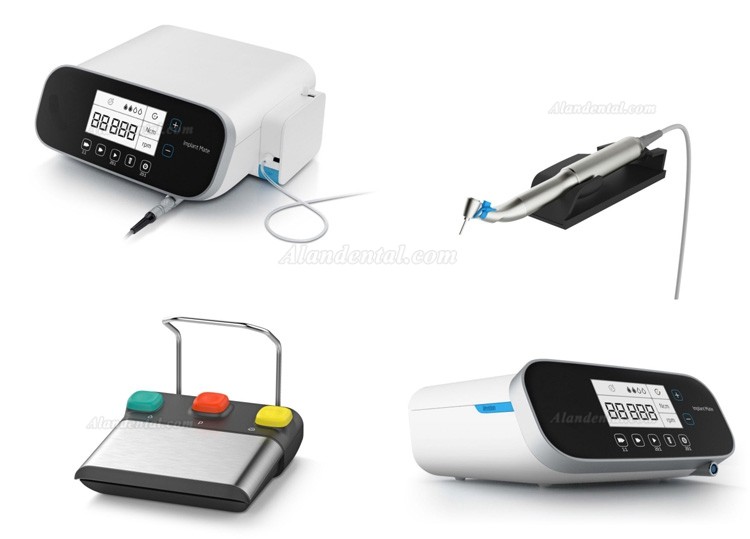

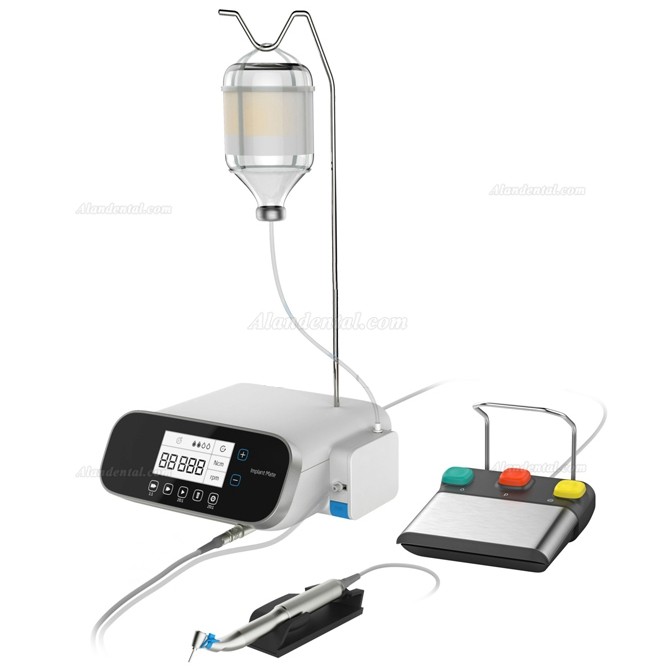

Venton M1 Dental Implant Motor Machine with Waterproof Foot Controller (Wiht Lihgt/Without Lihgt)

One button operation, ease of use, super safe and convenient.

Freely programming for the needs of different users.

High definition LCD screen with no refection, satisty for 360°glance.

Coolant volume at 100% reaches minimum 90ml/min, starts simultaneously with hand piece to ensure sufficient water cooling for bur.

Automatic thread Cutter mode.

When this mode[P5] is activated,the speed in both forward and reverse modes is 20rpm and can no longer be changed

When the foot pedal is pressed, the bur rotates inwards until the torque is reached

When the set torque is reached,the bur autormatically switches to reverse

Disengaging and then re-engaging the foot pedal will switch the device back to forward operation

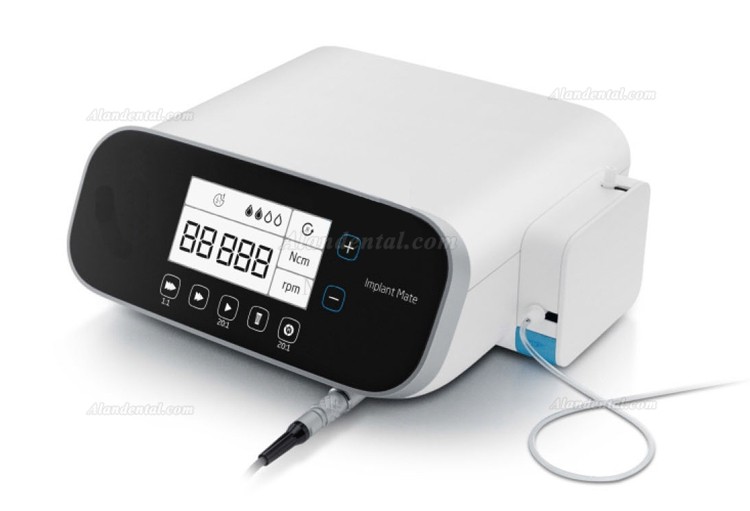

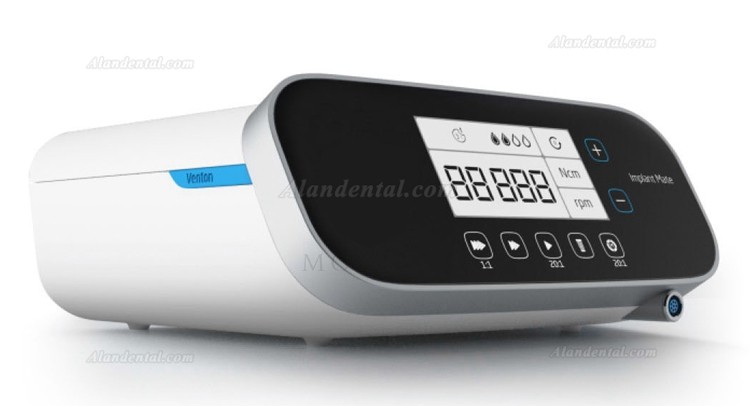

COMPLETE UNIT

Maximum torque of bur:7ONcm

The power supply voltage:220V±10%, 50-60Hz/110V±10%, 50-60Hz

Maximum output power:70W

Adjustable motor range rpm:300-40000rpm

Coolant volume at 100%:>90ml/min

Transmission ratio:1:1 1:20

Program settings:5 programs fer individual adjustment of parameters

Foot control:IPX6

Ceolant pump:Built-in

Dimension of main unit (with steeve) LxWxH: 270x240x520mm

Dimension of packing(LxWxH):428x328x255mn

Net/Gross weight:5.7/7. 3kg

Colour of main unit body:White

Material of tubing:PvC Silcane tubing

Total Length:3m

Size of extrusion section:External diameter 6mm Internal diameter: 4mm

Size of water spray seetion:External diameter: 3mm Internal diameter: 1.4mm

IMPLANT MOTOR

Slim size and artistic design

Comfortable grip and ideal balance

Torque range 5-70N-cm with 20:1 handpiece

Technical parameters:

Maximum torque of motor: 5.5N.cm

Dimension of motor: L49xW22mm(Motor without LED)/L69xW23.9mm(Motor with LED)

Net weight of motor: 110g(Motor without LED)/139g(Motor with LED)

Length of motor cable: 1.8m

Autoclavable motor and cable: 134℃, last at lease 3 mins

The maximum noise of the motor without loading:<40dB

Motor with LED light at high color rendering index:Natural daylight, adjustable brightness levels

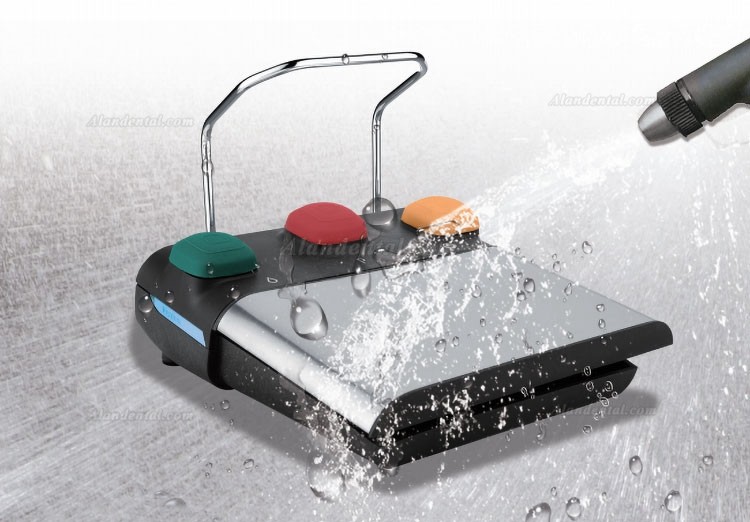

FOOT CONTROL

Functions: Water Volme switch, program conversion, motor rotating direction control, stepless speed control

Waterproof level of foot control:IPX6

Dimension of foot control(LxWxH):200x210x85mm

Cable length of foot control:2.8m

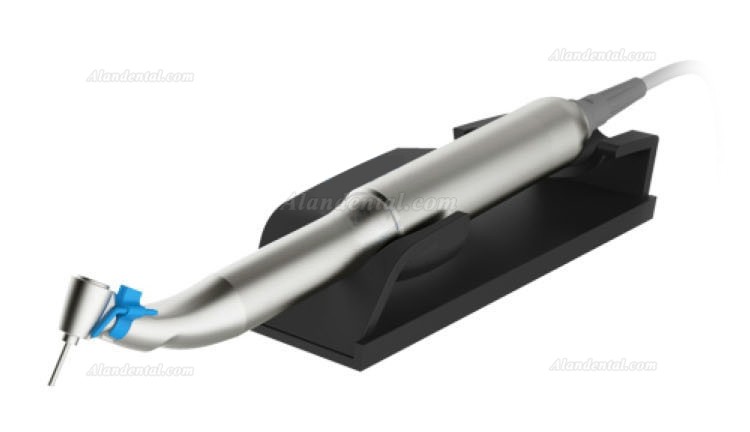

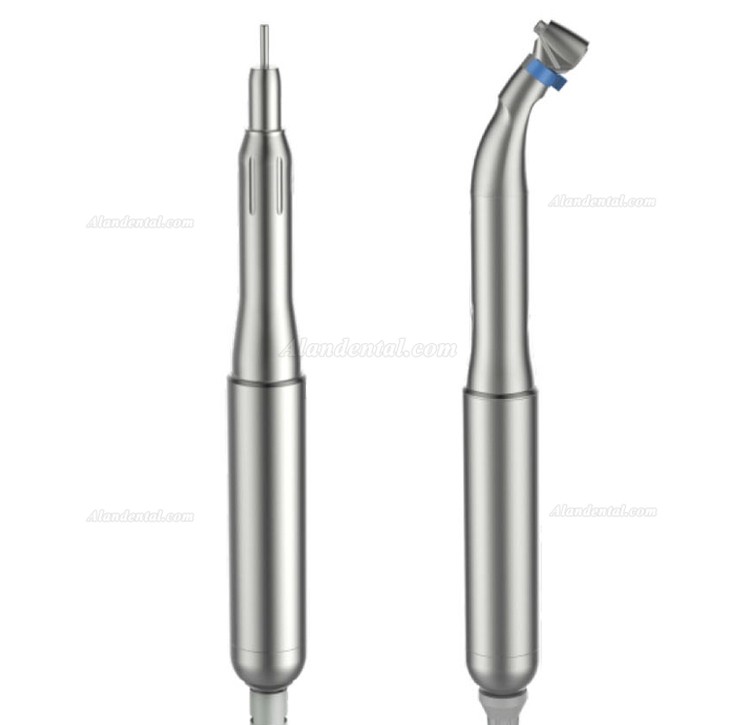

Implant Handpiece

Model:R20(Motor without LED)

Transmission ratio: 20:1

Maximum torque: 70Ncm

Lighting mode: No

Lighting color: No

Chucking mode: Push-button

Cooling mode: External spray

Detachable: No

Model:RL20(Motor with LED)

Transmission ratio: 20:1

Maximum torque: 70Ncm

Lighting mode: Fiber optic

Lighting color: Natural daylight

Chucking mode: Push-button

Cooling mode: External spray

Detachable: Yes

Indications, e.g: Implantation, Osteotomy

Coupling standard: ISO 3964.YY1012-2004

]
