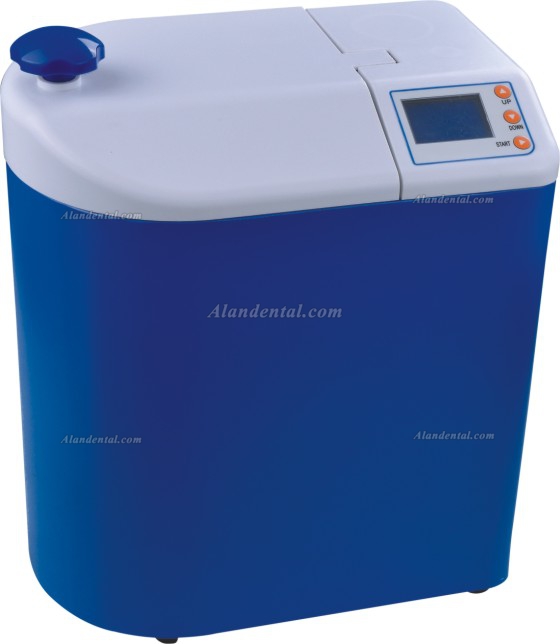

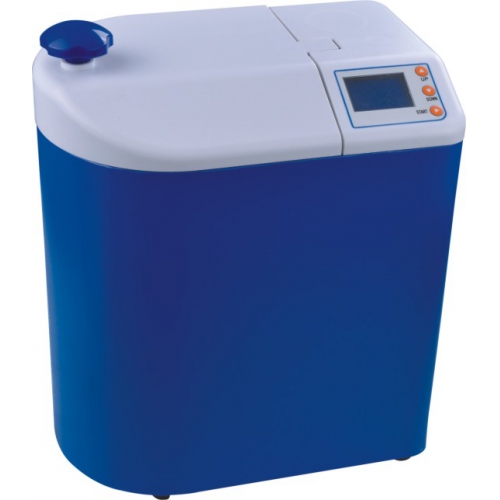

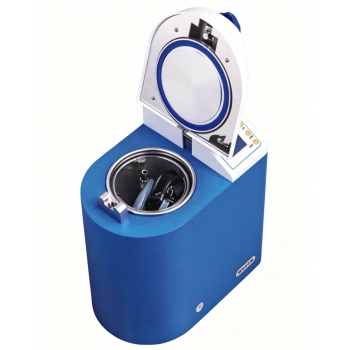

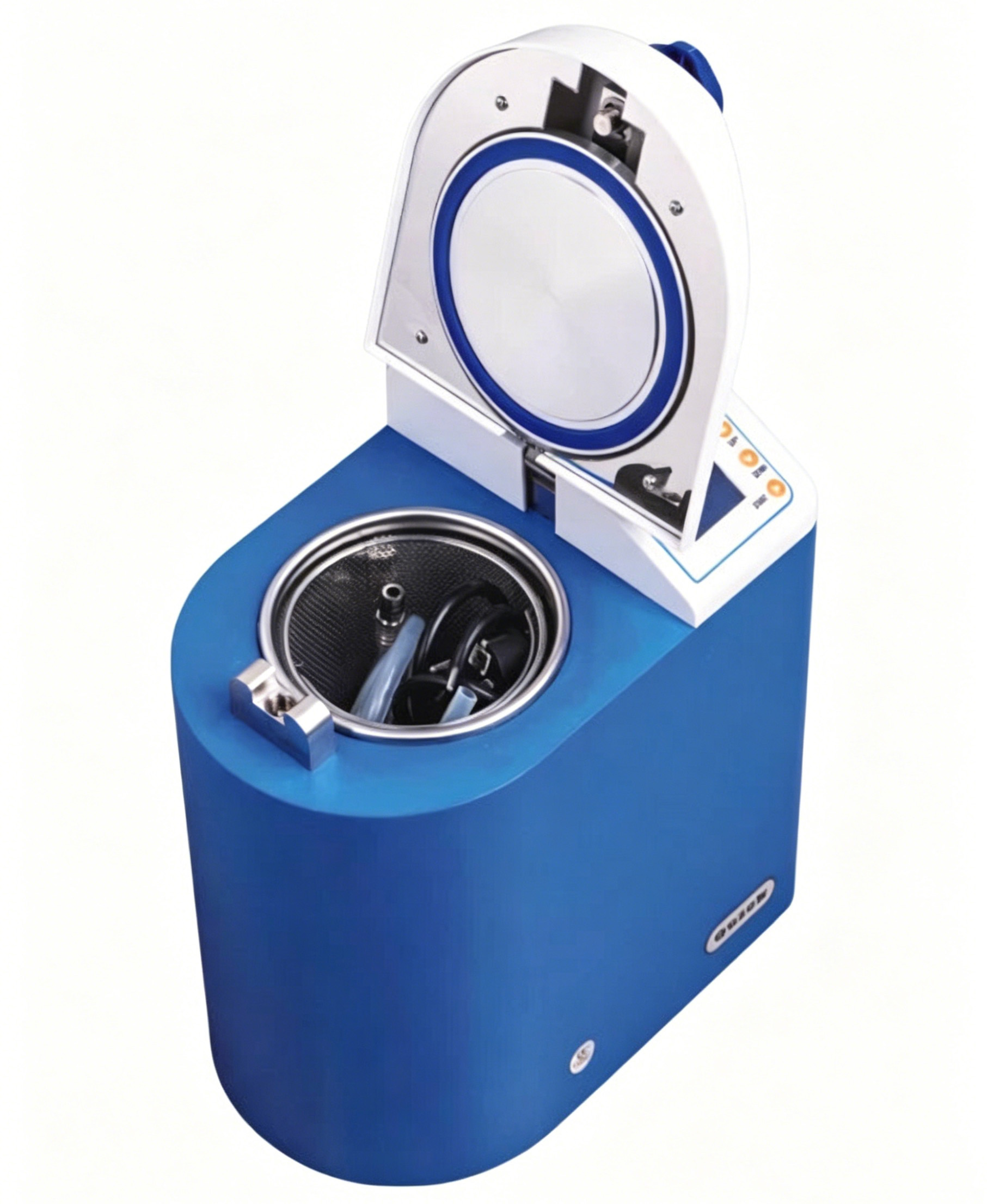

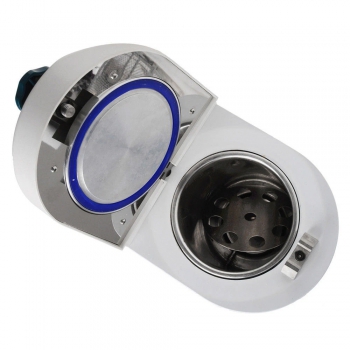

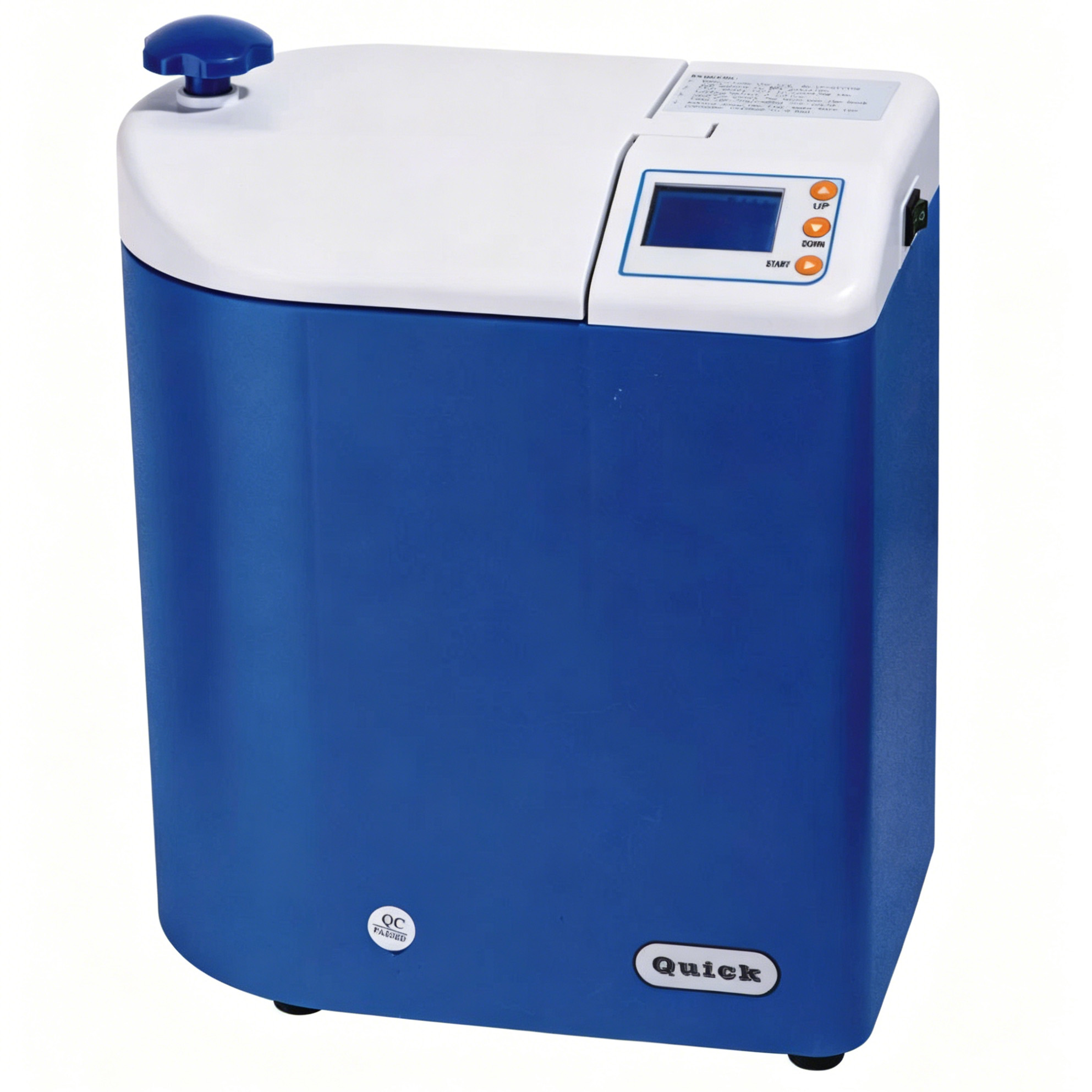

SUN® SUN3-I Autoclave Sterilizer Vacuum Steam 3L

SUN® Autoclave Sterilizer Vacuum Steam 3L SUN3-I

Features:

1. 11-minute sterilization cycle, processing 12 handpieces or two instrument sets for daily use.

2. When the temperature reaches 134°C, the thermostat automatically stops heating, and the pressure remains stable throughout the entire process.

3. The machine is equipped with a safety valve. In case of malfunction (e.g., abnormal cylinder pressure), the exhaust valve will automatically open to release the pressure.

Specifications

1. Model: SUN3-I

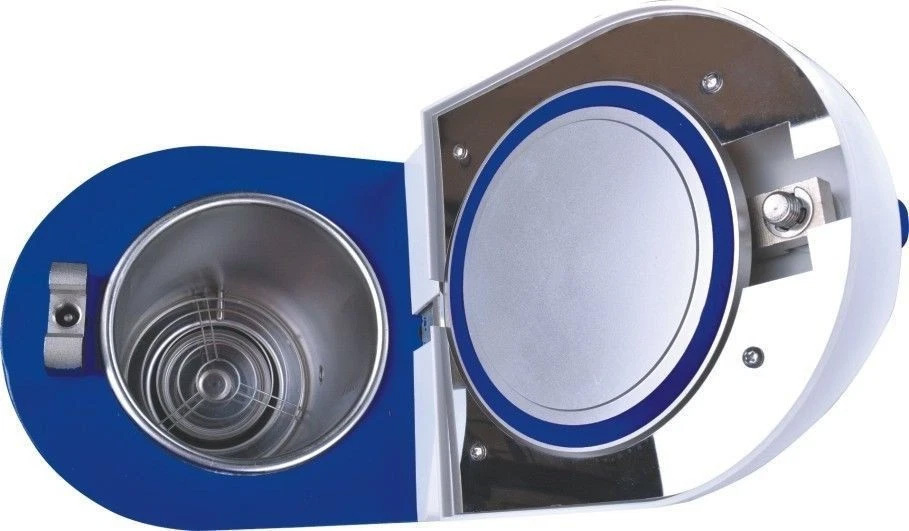

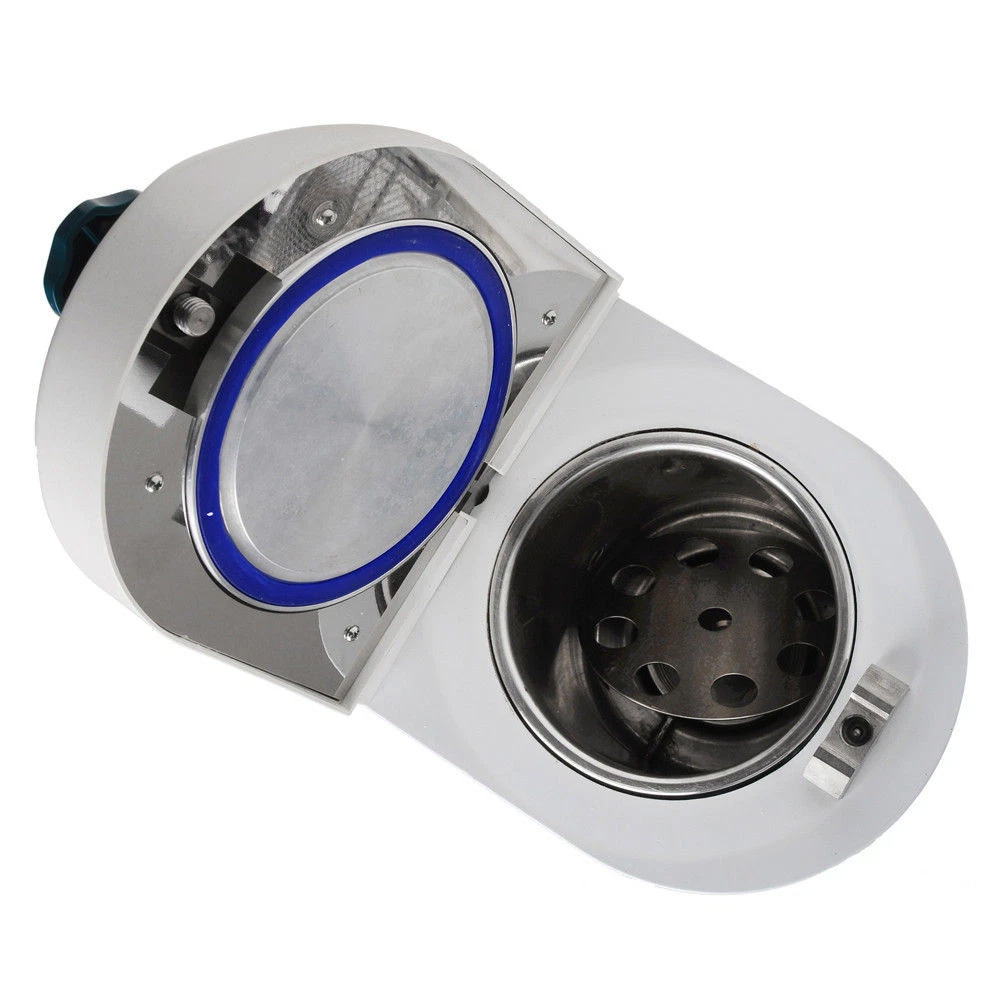

2. Inner chamber of the steam sterilizer (Diameter X Depth) 125mm X 195mm

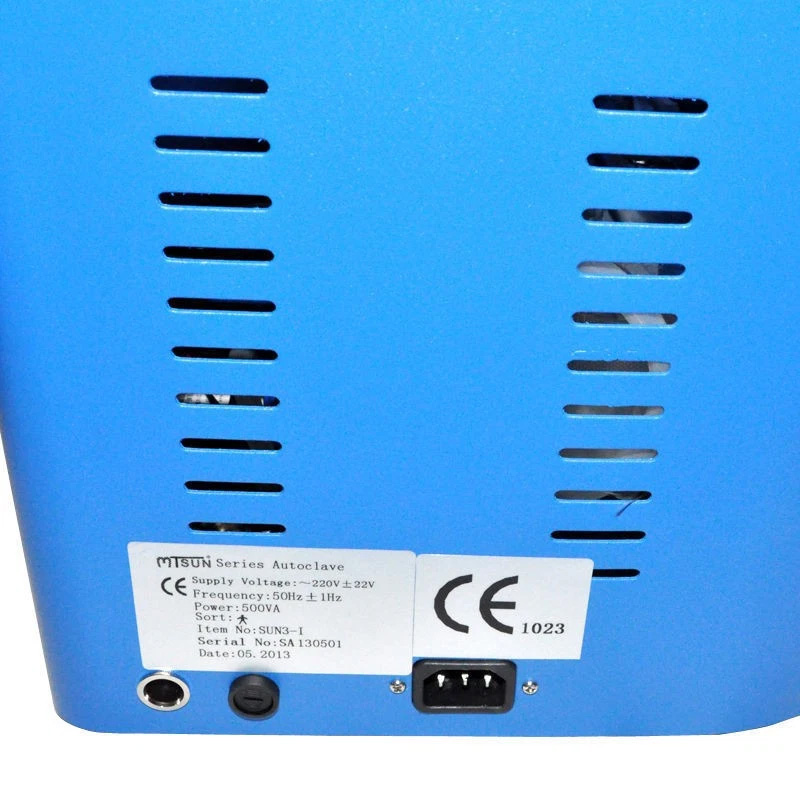

3. Rated Voltage: 220V±22V,50Hz±1Hz ； 110V±11V,60Hz±1Hz

4. Rated Power: 500VA

5. Sterilizing:(Pressure/Temp.): 200～230Kpa/134℃ (Both of above are Under Standard Atmospheric pressure)

6. Fuse-Melting pipe: T15A；T30A

7. Water Consumption volume per recycling round: 0.15L

8. Operating Temp: 0-40℃

9. Net weight:7.5kg

10. Gross Weight:7.75kg

11. Appearance size:30*19*35cm

12. Package Size:38*29*45cm

13. Power:500W

14. Sterilization time: 11min

15. Sterilizar Volume: 3 Litres

16. Required Water: Distilled water or purified water

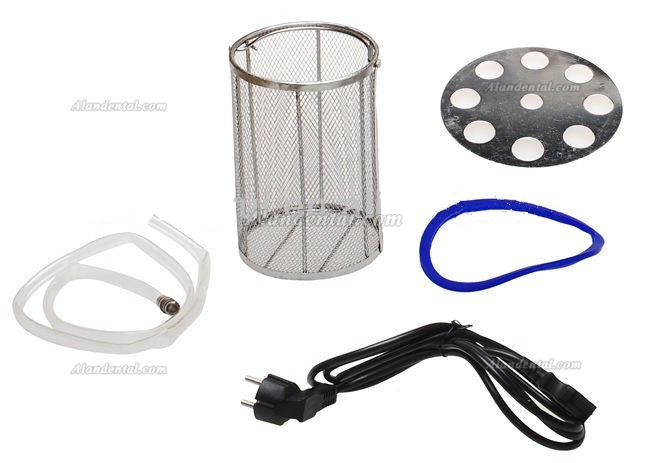

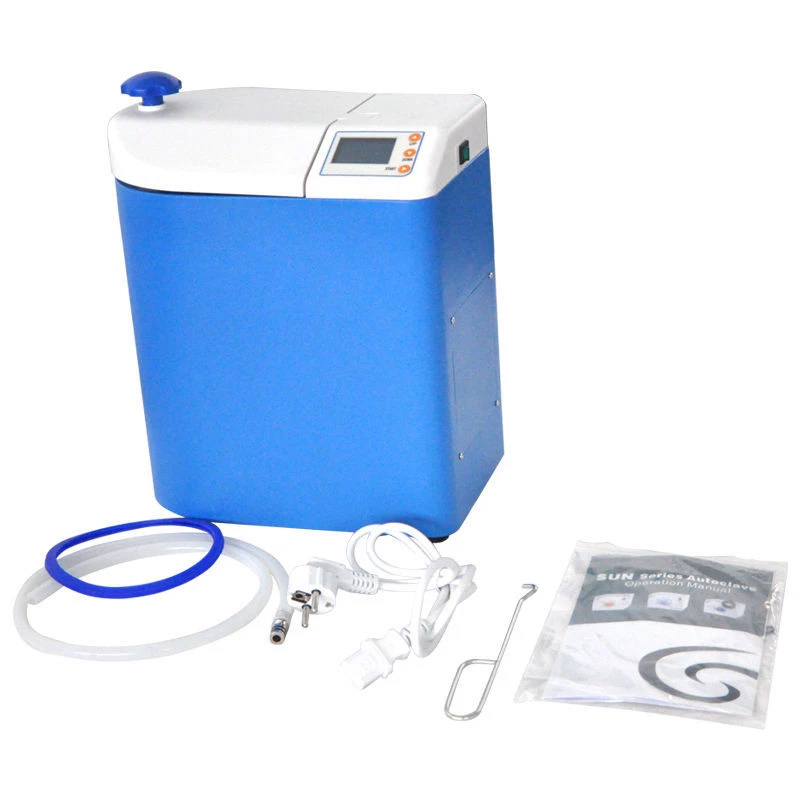

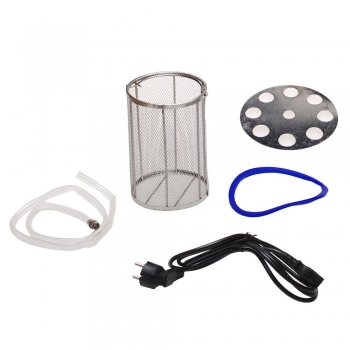

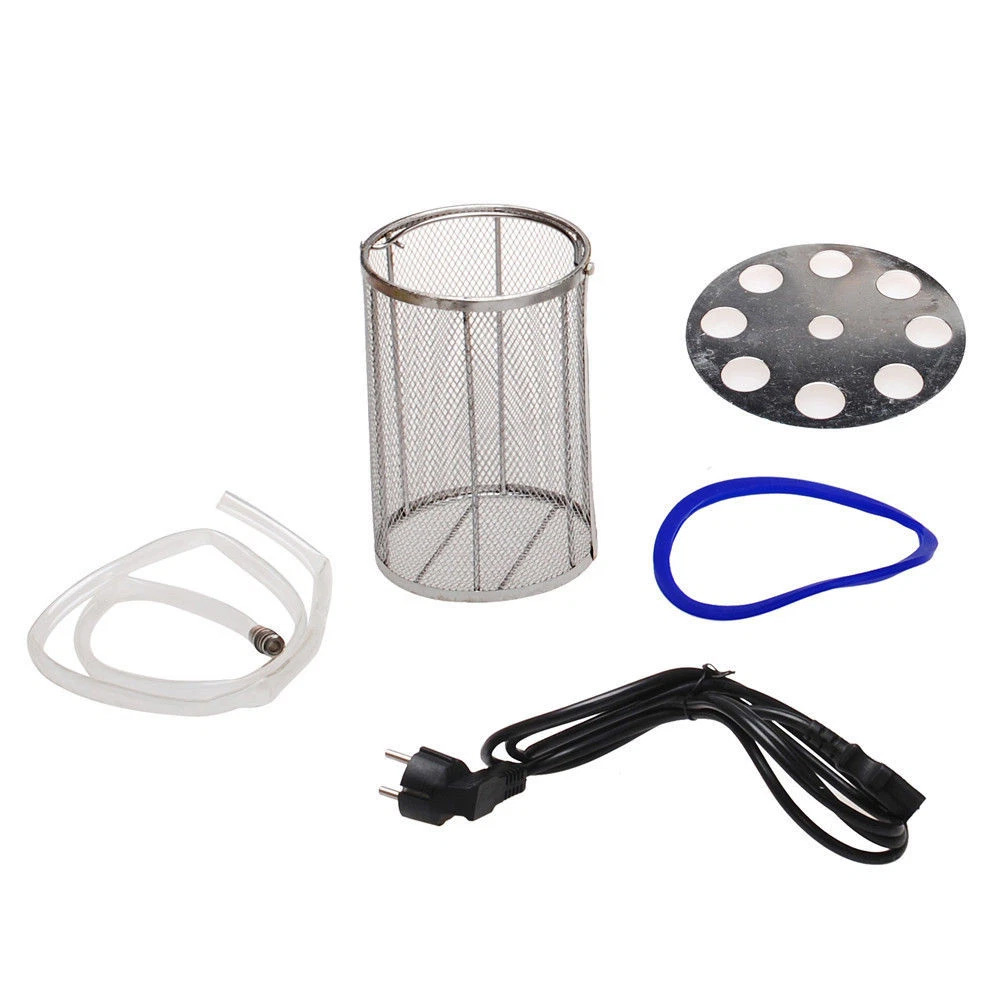

Package includes:

Main Machine: 1 each

Pipe: 1 each

O ring: 1 each

Power line: 1 each

Barrel: 1 each

Maintenance and Service

1. Clean the distilled water tank by medical once a month.

2. Clean the interior surface of the chamber by alcohol once a month.

3. Replace the fuse.

(1) Shut off the power

(2) Revolve the fuse base by counter-clockwise by screwdriver to bring out the melting fuse to be replaced;

(3) Replace the new fuse and reset the fuse base on the original position, then use the screwdriver to fasten the base by clockwise.

(4)Check the correctness of the parameter of the new fuse replaced.

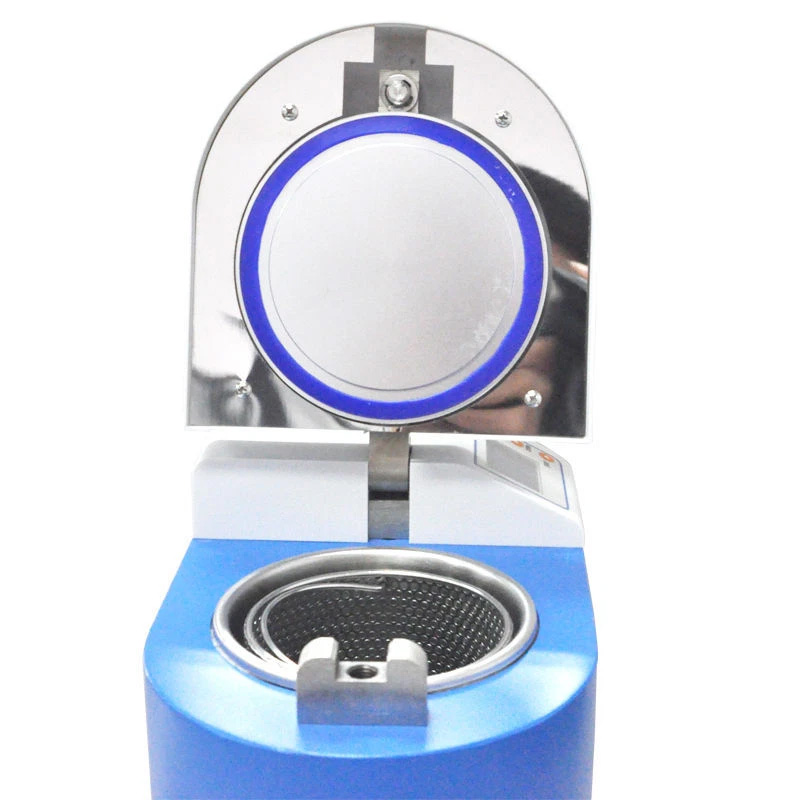

4. Clean the sealing ring periodically

The user shall clean the sealing ring periodically for avoiding the influence to the seal caused by the dust/dirt left due to the long period use. Use the smooth cloth with distilled water to wipe the surface of the sealing ring or sealing cap gently. The user shall discharge the sealing ring for further cleaning or replacement if the air-leaking problem can not be resolved after the above process (The user shall discharge the sealing ring periodically for cleaning and inspection as recommendation by the supplier).

Transportation and Storage

The autoclave shall be transferred and stored with the below conditions:

Ambiance temperature: -40oC -+55oC

Relative humidity: ＜ 85%

Atmospheric pressure: 500HPA-1060HPA
