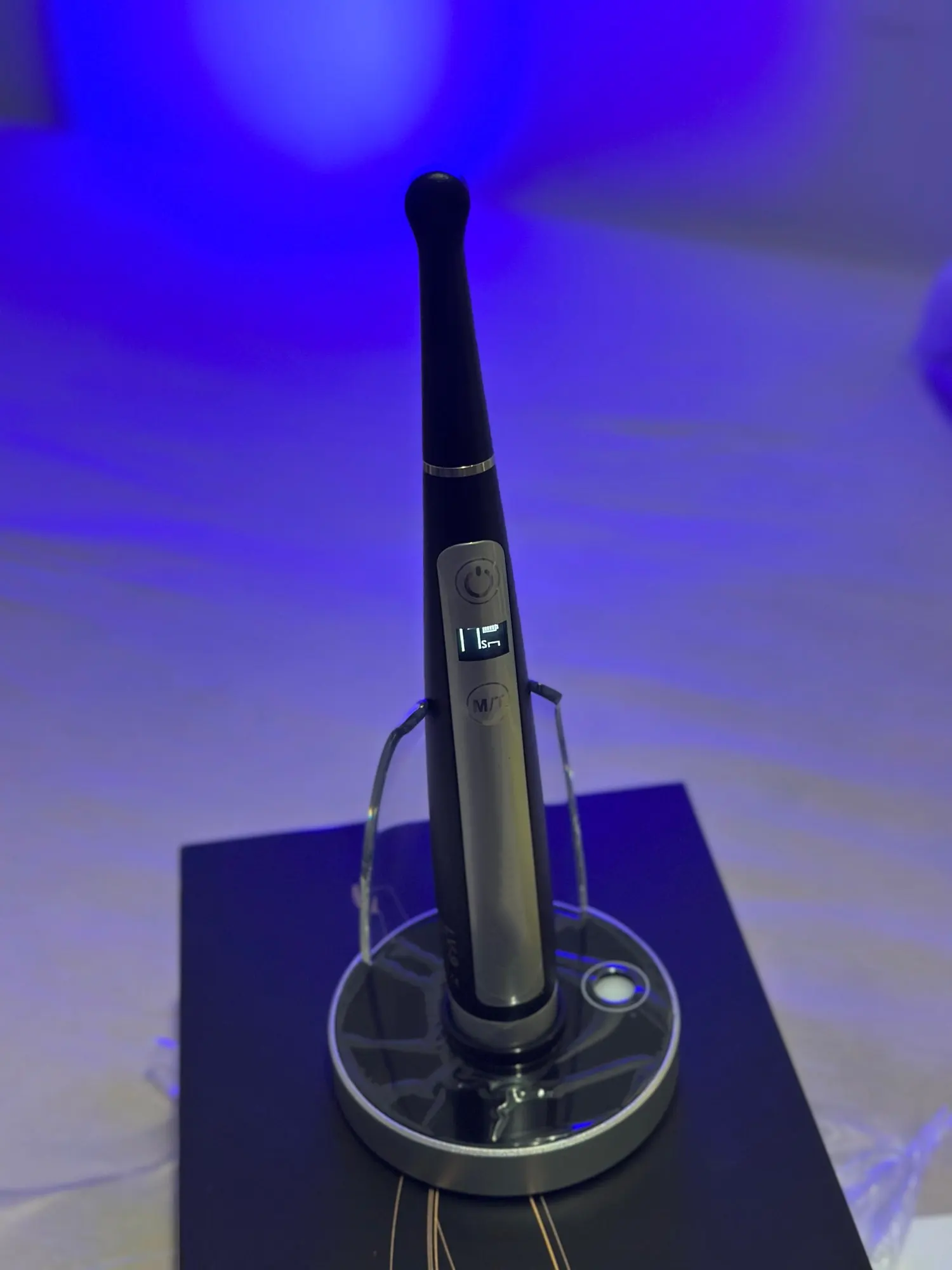

Refine® Swan Dental Broad Spectrum LED Curing Light (Light Cure Unit)

Refine® Swan Dental Broad Spectrum LED Curing Light (Light Cure Unit)

Broad Spectrum LED Light

Constant-current drive

Wireless and hygienic design

Features:

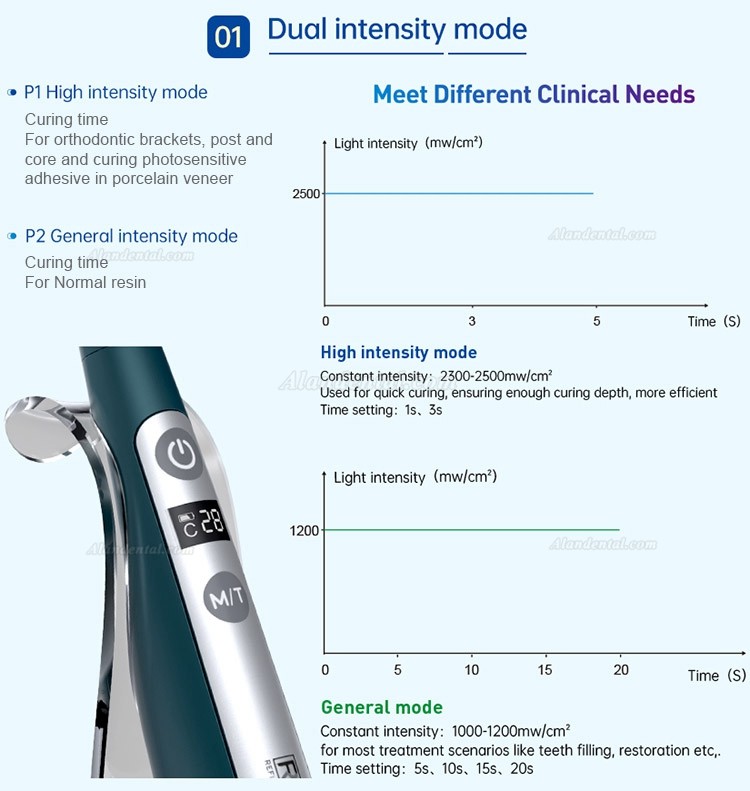

Dual intensity mode:

P1 High intensity mode

Constant intensity: 2300–2500 mW/cm²

For curing applications. Time setting: 1 s, 3 s.

For orthodontic brackets, post and core, and curing photosensitive adhesive in porcelain veneer.

P2 General intensity mode

Constant intensity: 1000–1200 mW/cm²

For treatment scenarios such as fillings and restorations. Time settings: 5 s, 10 s, 15 s, and 20 s.

For normal resin.

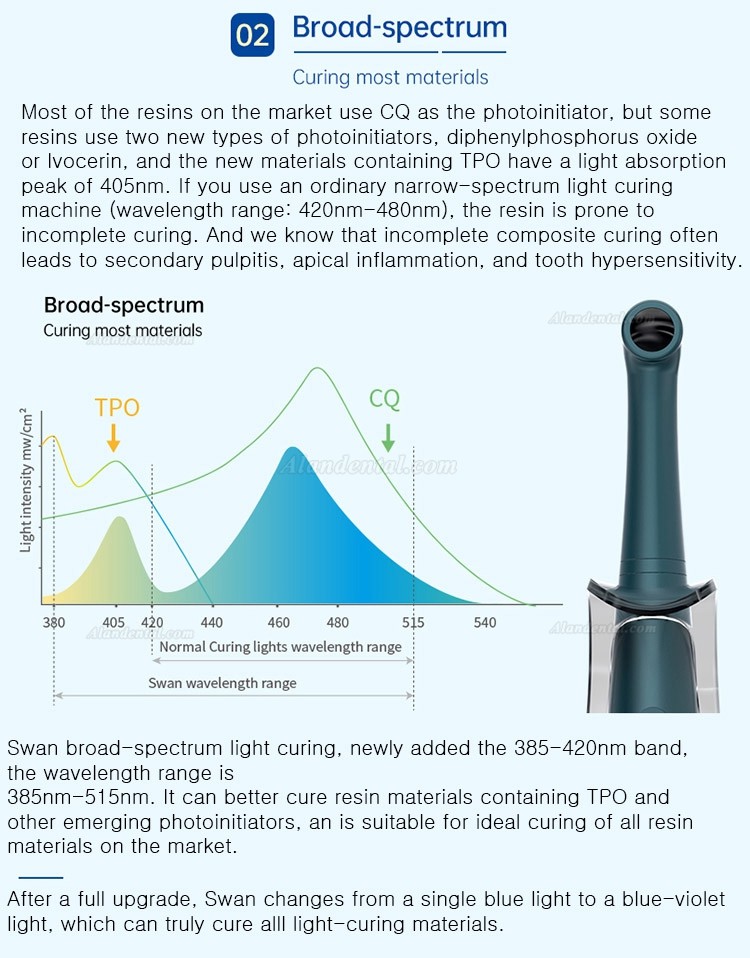

Broad spectrum: For curing a range of materials

Many resins use CQ as the photoinitiator, while some resins use photoinitiators such as diphenylphosphine oxide or Ivocerin. Materials containing TPO have a light absorption peak of 405 nm. A narrow-spectrum light curing unit (wavelength range: 420–480 nm) may not fully cure these resins.

Swan broad-spectrum light curing adds the 385–420 nm band, with a wavelength range of 385–515 nm. It is designed to support curing of resin materials containing TPO and other photoinitiators.

Specification:

Model: Swan

Power Input: 100–240 VAC, 50 Hz / 60 Hz

Power Output: 5V DC / 1A

Wavelength: 385–515 nm

Light intensity: 1000–2500 mW/cm²

Battery: 2600 mAh
