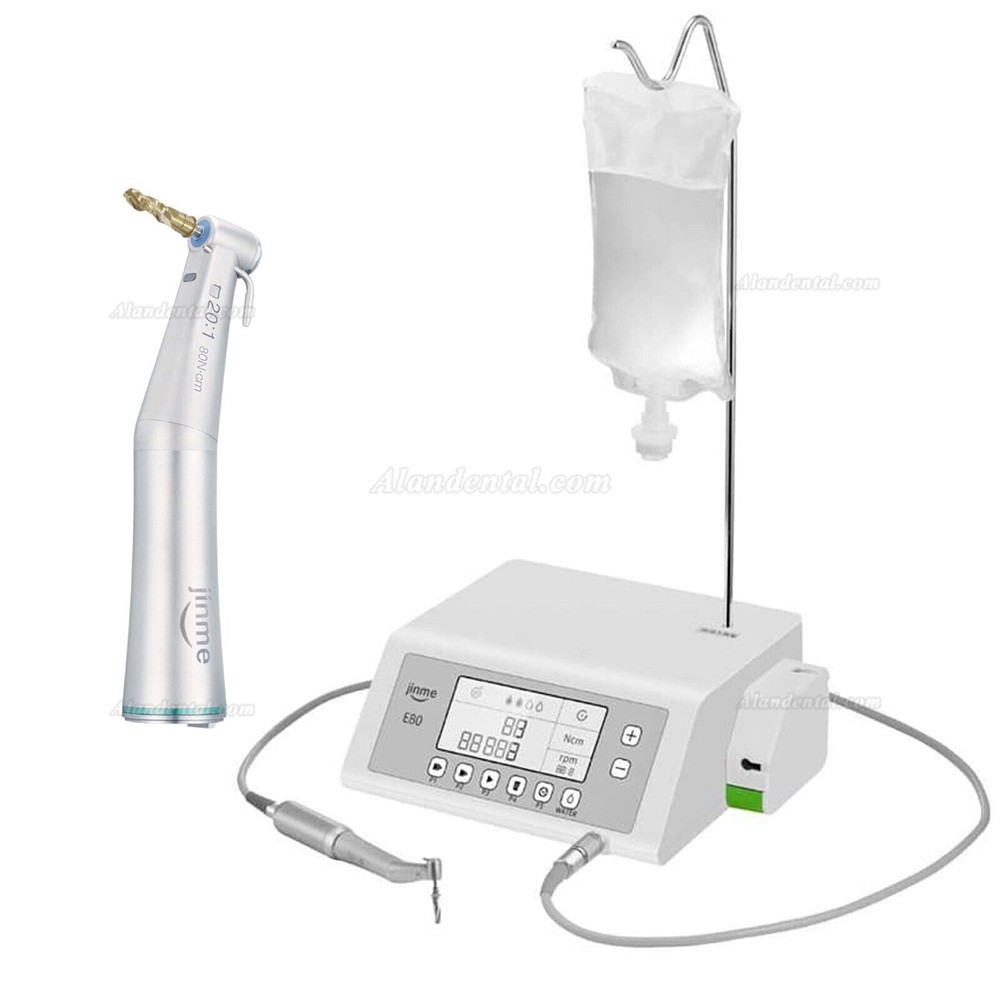

JINME Dental Brushless Implant Motor System with LED 20:1 Surgical Contra Angle

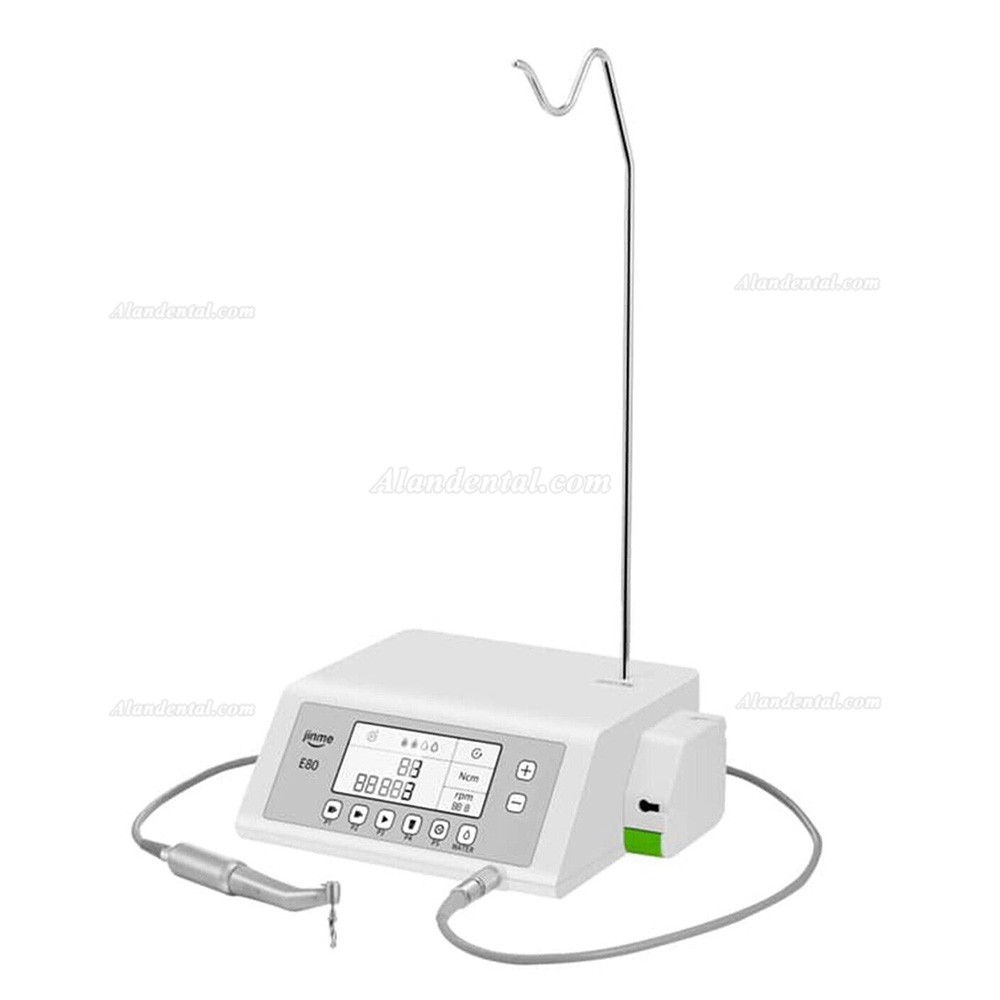

E80 Implant System

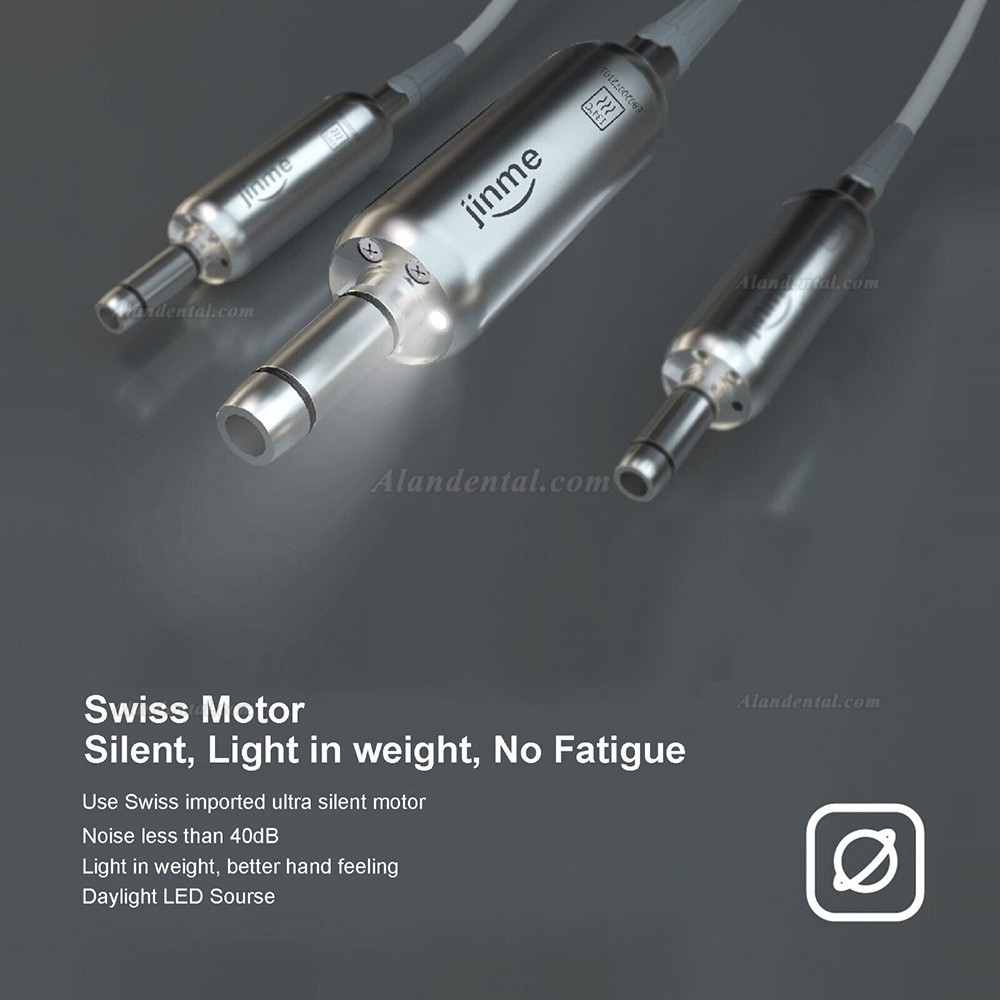

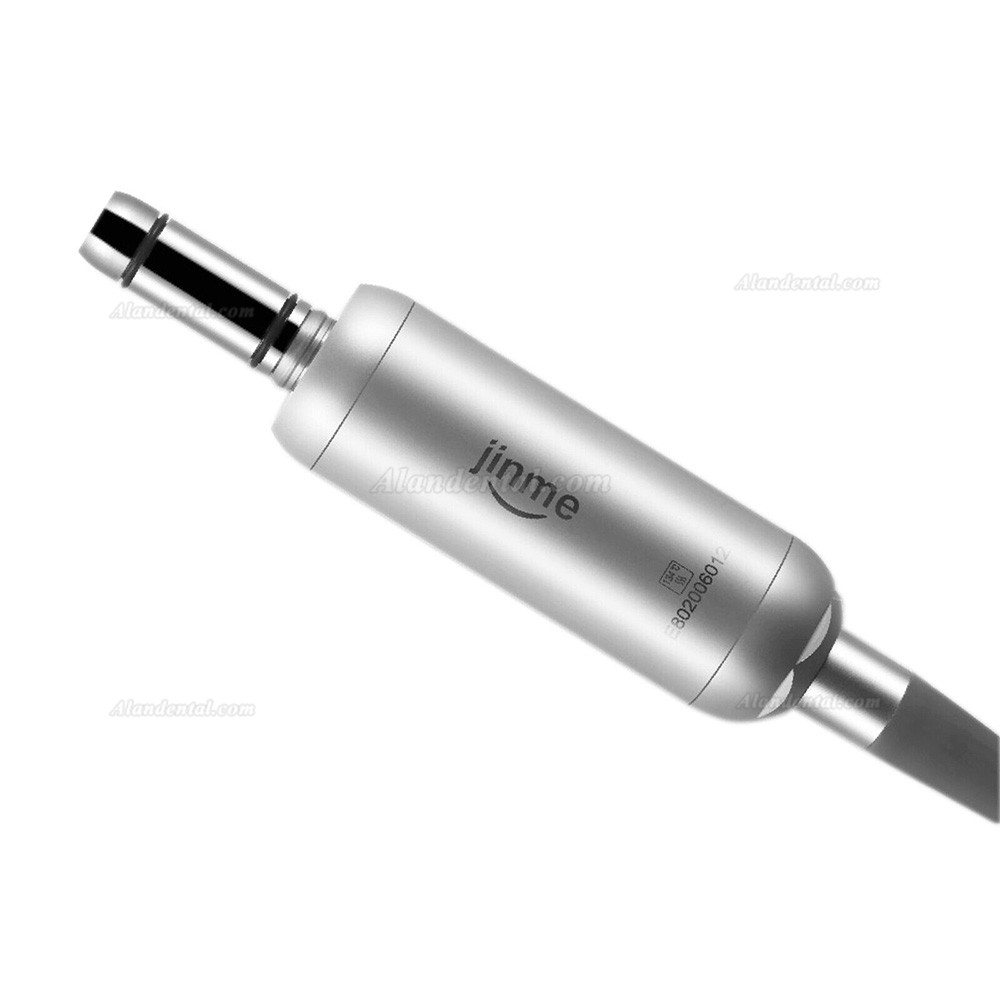

Swill imported motor, silent, light in weight, better handfeeling, no fatigue

Germany bearings, big torque, ultra stable, easy operation

Ultra low rotation speed like Bien Air, more precise implant

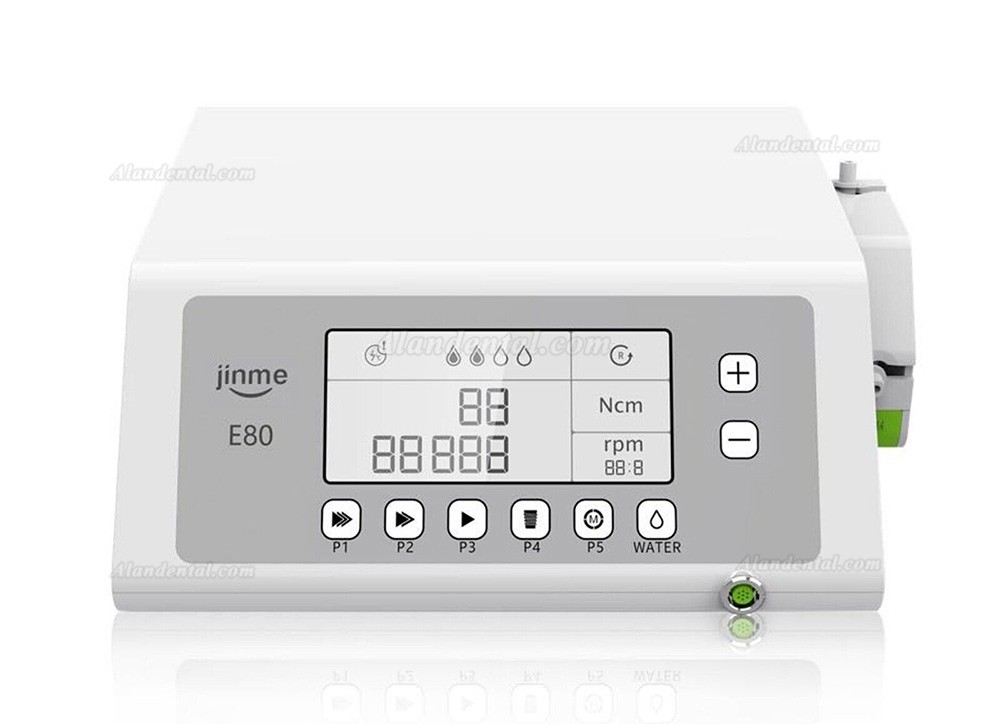

Big LCD display, real-time display, easy to adjust

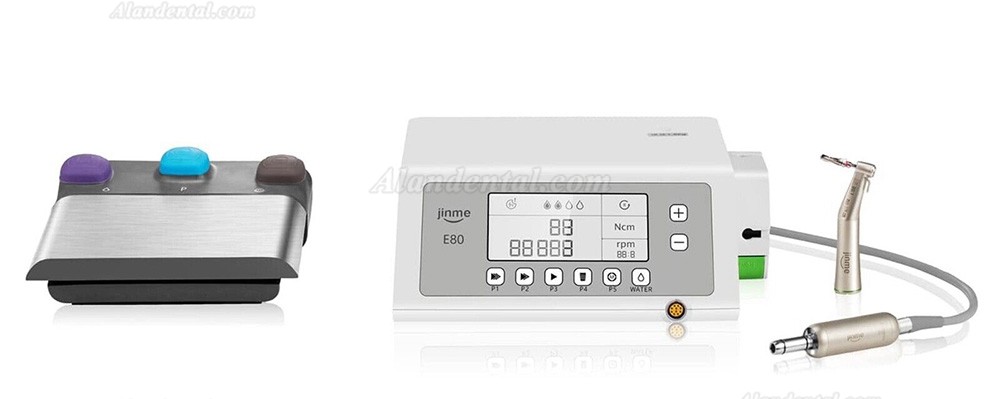

Continuously variable transmission, sensitive and comfortable foot pedal

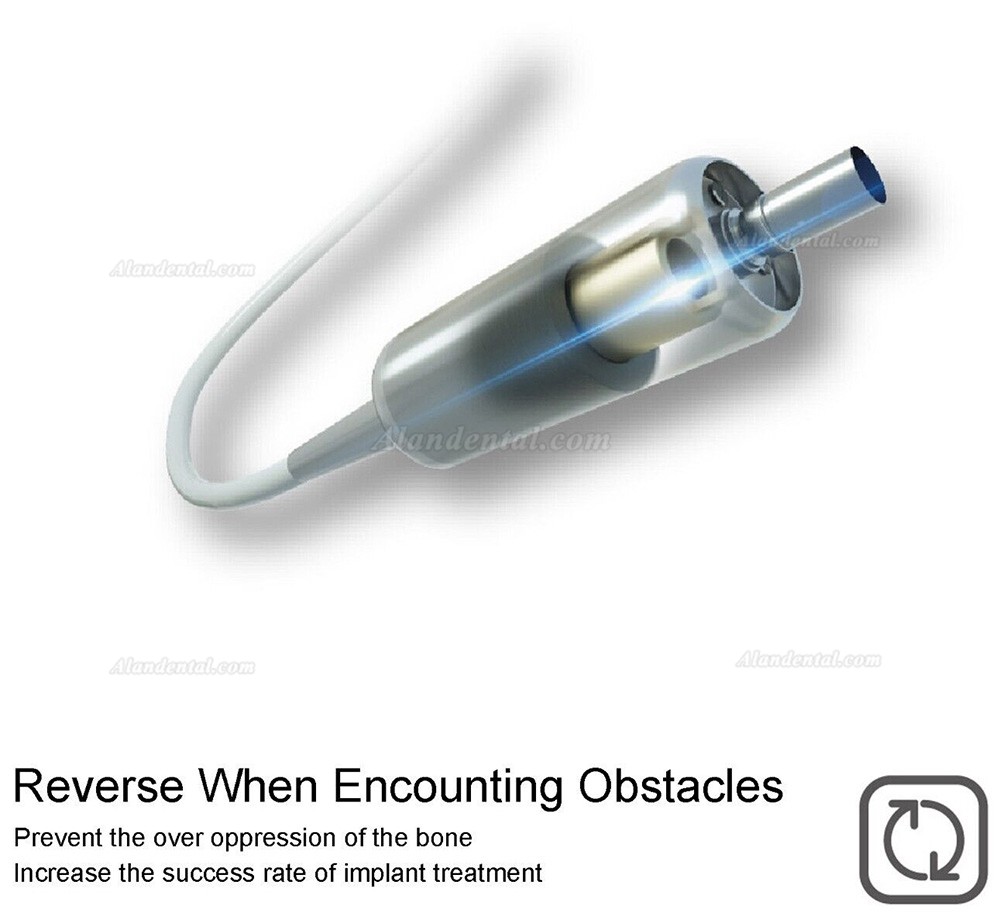

Auto reverse when encounting obstacles, prevent the over oppression of the bone

Techincal Details

Model: E80

Power input： 110V or 220V

Current: 0.1-0.8A

Motor torque: MAX 5.5N.cm

Rotation speed: 100-40000 rpm

Net weight: 5.7kg

Gross weight: 7.3kg

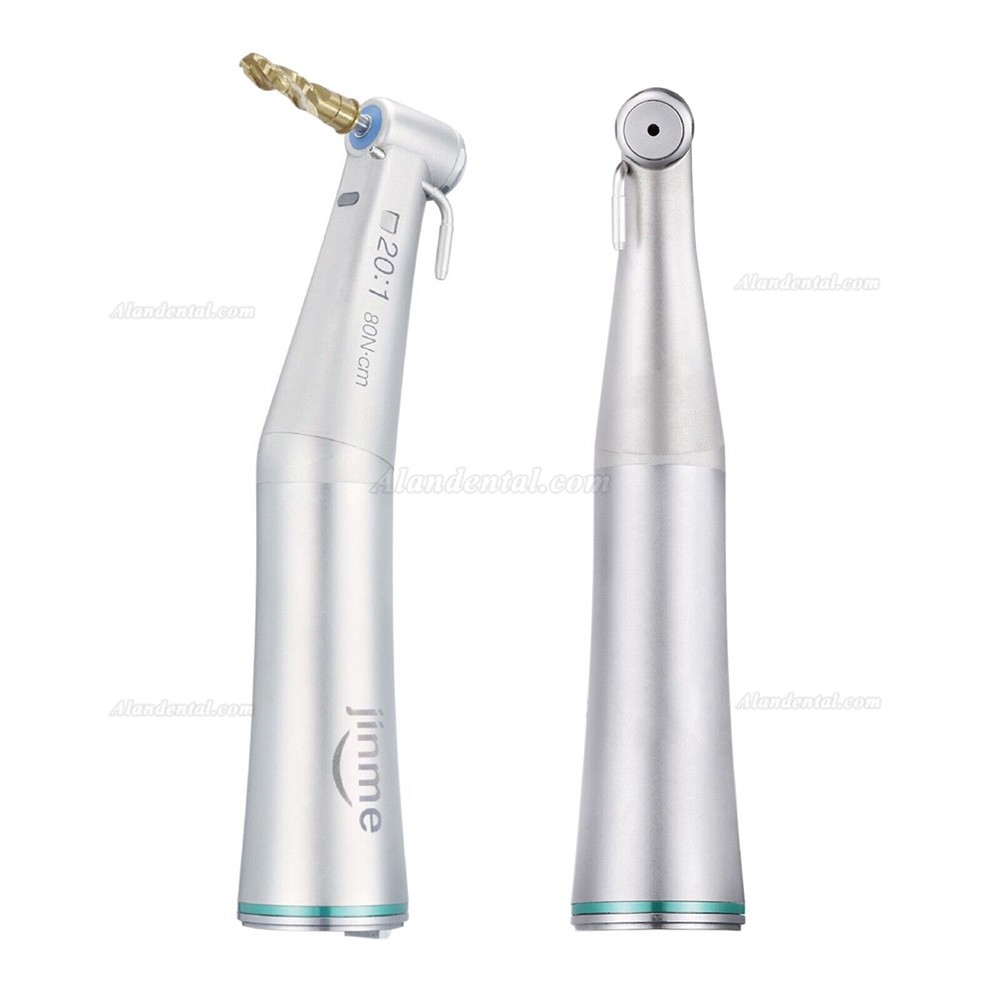

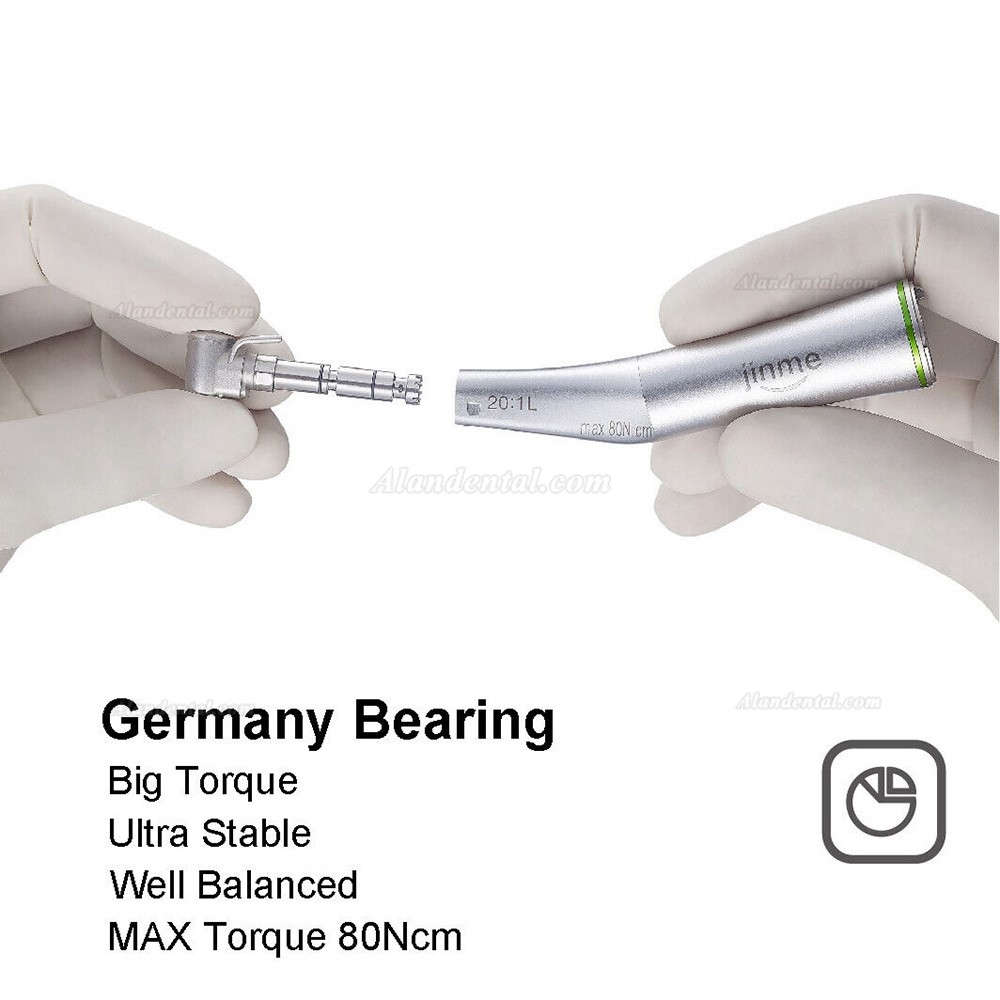

20:1 Fiber Optic Implant Contra Angle

The 20:1 variable speed dental implant handpiece adopts detachable and easy cleaning machine head, modular assembling so the assemble and disassemble is convenient and quick. The operation is easy. Besides, the consequent maintenance can be carried out by yourself easily.

This dental drill features large torque output which can be up to 80N.cm. The torque of the similar products on the market is generally 55N.M. The ultra high torque output can satisfy the dental treatment requirements.

The machine adopts reinforced stainless steel both inside and outside. Besides of the delicate appearance, this also improves the practicability by making the handpiece corrosion resistant, dropping resistant and improving the service life directly.

The whole machine is equipped with 9 Germany bearing of which the noise is less than 50 dB. This can eliminate the fear of the patients to treatment. The patients can receive treatment in quiet and comfortable environment.

The radial run-out is controlled within 0.03mm which can perfectly satisfy the requirements of doctors and technicians for fine operation.

The transmission efficiency is up to 80%. This dental drill adopts gear set which is made of superior material by high precision CNC machining craft. It can ensure low noise as well as high transmission efficiency which can be up to 80%.

Technical Details

Max torsion: 80N.cm

Max bur length: 36mm, max bur diameter: Φ4.7mm

Noise: ≤50db

Light source: LED optical fiber

Gear ratio: 20:1

Moving method: 360º rotation

Max bur diameter: Φ4.7mm

Machine head diameter: Φ9.6mm

Radial run-out: ＜0.03mm

Bur changing method: push type bur changing
