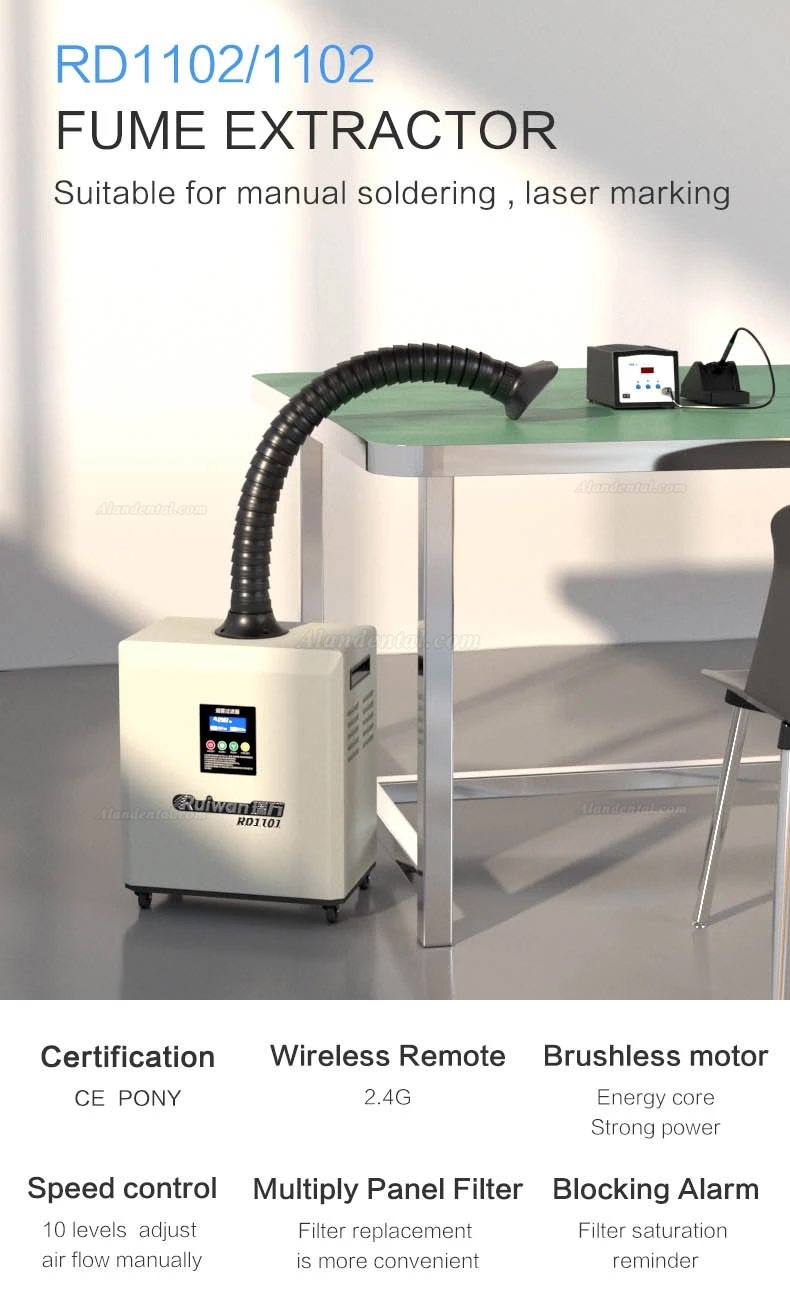

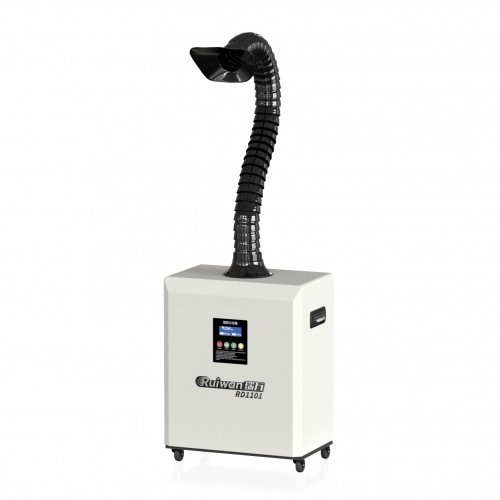

90W 4 Layer Filter Portable Fume Extractor System for Manual Solder Laser Making Ruiwan RD1101

Ruiwan RD1101 Portable Fume Extractor Systems for Manual Solder Laser Making 4 layer Filter

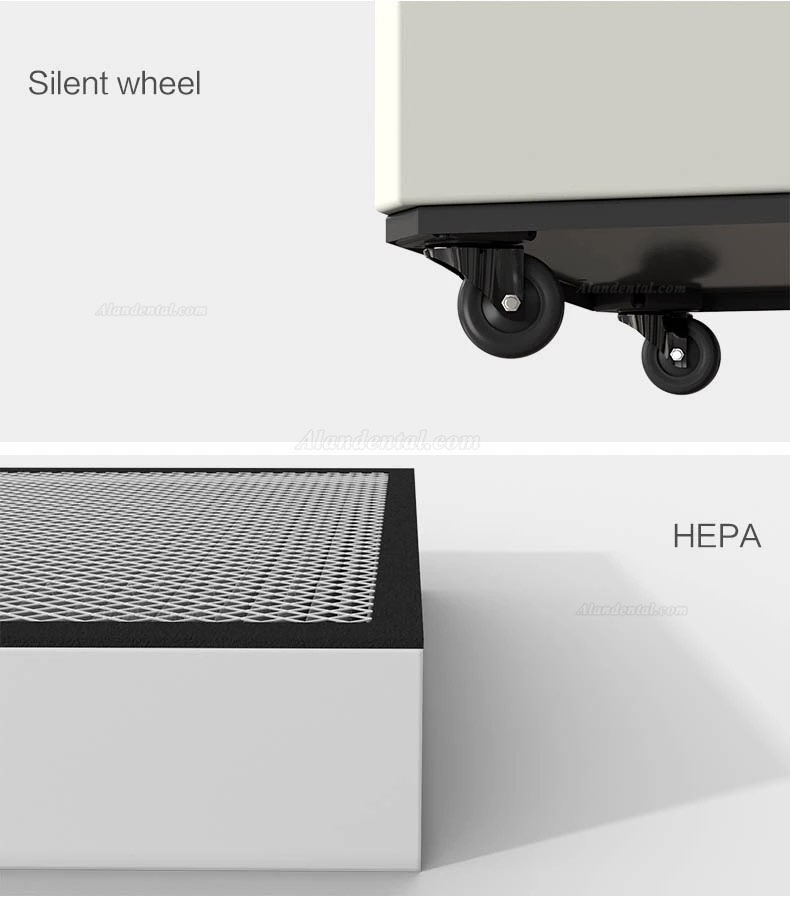

RUIWAN fume extractors offer the utmost in user-friendly design and multi-stage filtration in a compact and portable fume extractor design. All of our Mobile Fume extractors can accommodate a variety of filter media including, HEPA, ULPA, Medical Grade Filter Media, and a variety of adsorbent Chemical filter media such as Activated Carbon.

Portable Fume Extractor systems for today's mobile work environment. Powerful, Multi-Stage Filter Systems can be moved between locations, effectively handling applications throughout your facility.

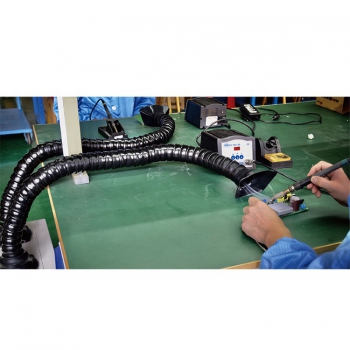

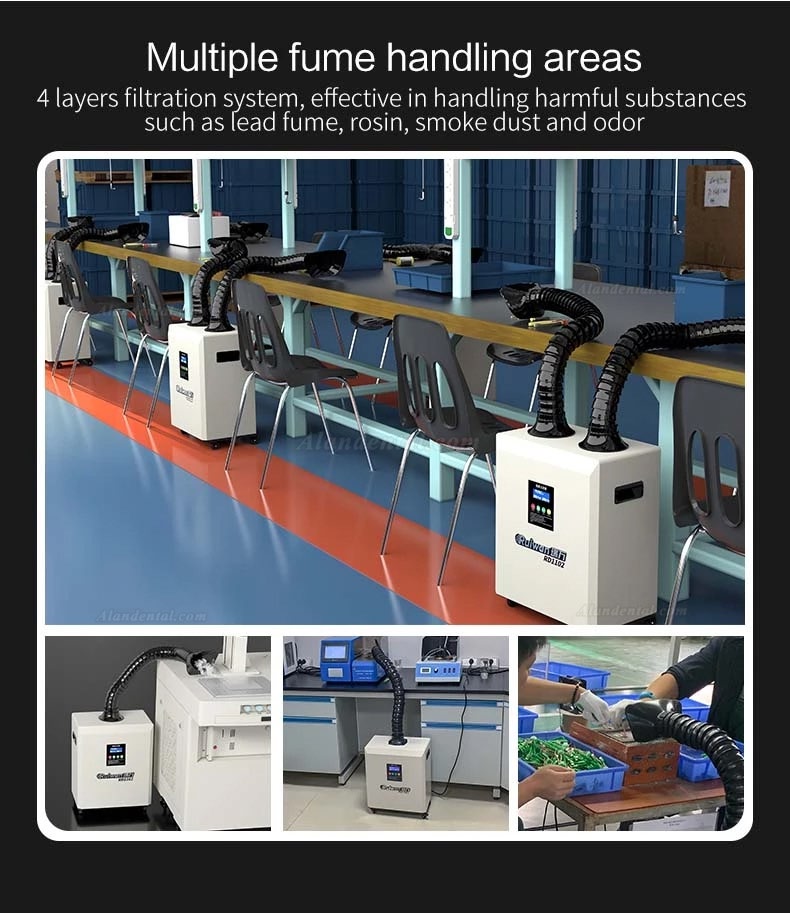

RUIWAN fume extractors are mobile and allow you to capture harmful fumes in areas where stationary fume extractors are not practical. By using portable fume extractors, the operator will be able to remove fumes, odor, vapors and smoke from a variety of applications.

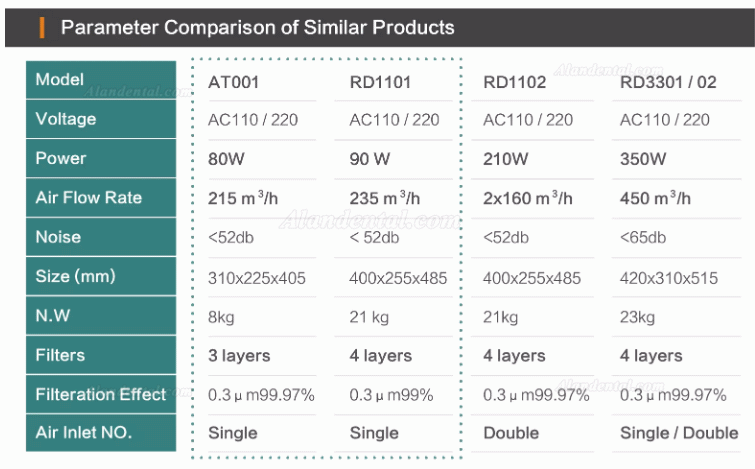

Model:RD1101

Noise:< 52 db

Voltage:AC110V / 220V

Filtration Effect:0.3 μm 99.97%

Power:90W

Size:400x255x485 mm

Air Flow Rate:235 m3 / h

Diameter of Flange:75 mm

N.W:19 kg

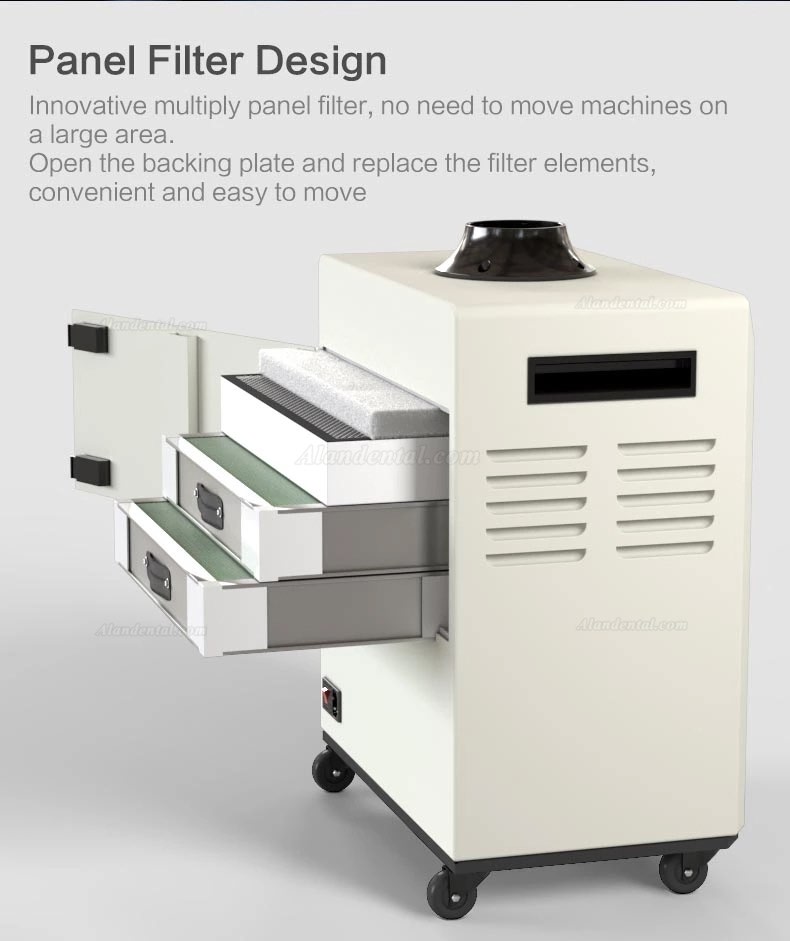

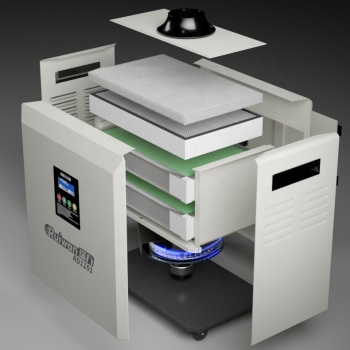

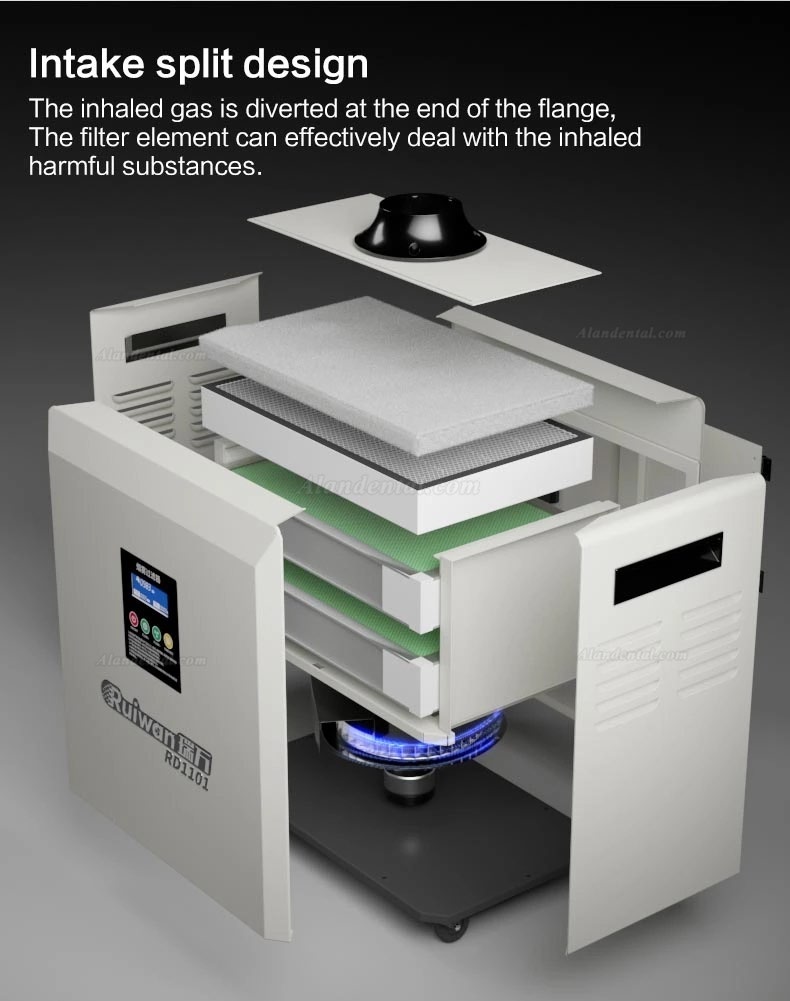

Filter Elements:4 layers

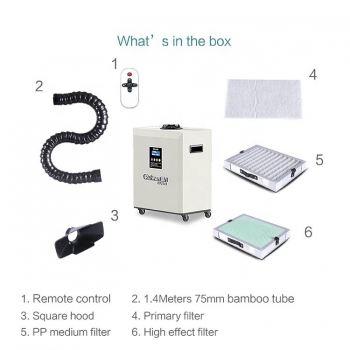

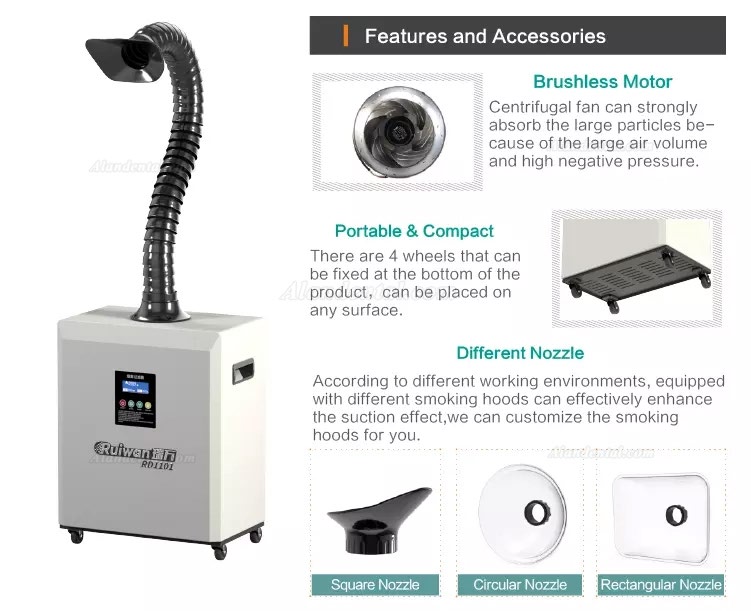

Square Nozzle:Made of silica gel, resistant to 130 ° C high temperature

Circular Nozzle:Made of PP/PC material, broken-resistant, more flexible and more resistant to pressure

Rectangular Nozzle:Made of PP/PC material, broken-resistant, more flexible and more resistant to pressure, can absorb more range of smoke

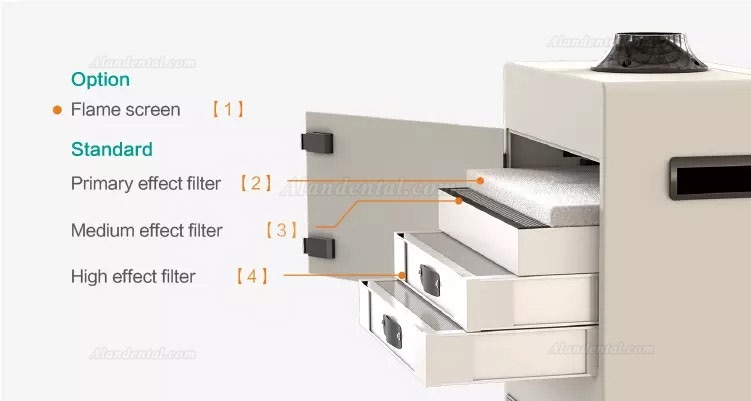

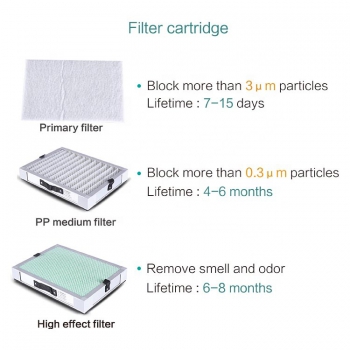

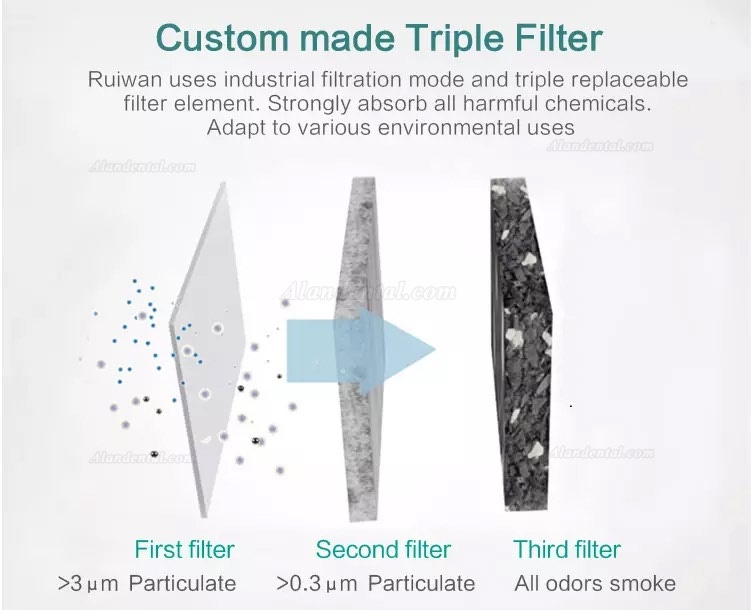

Filters	Function	Material
Flame Screen	Function：Block fire	Metal
Primary Effect Filter	Block > 3 μm particulates	Synthetic fiber with gardual density
Medium Effect Filter	Block > 0.3 μm particulates	PP / Glass fiber / Water wash PET

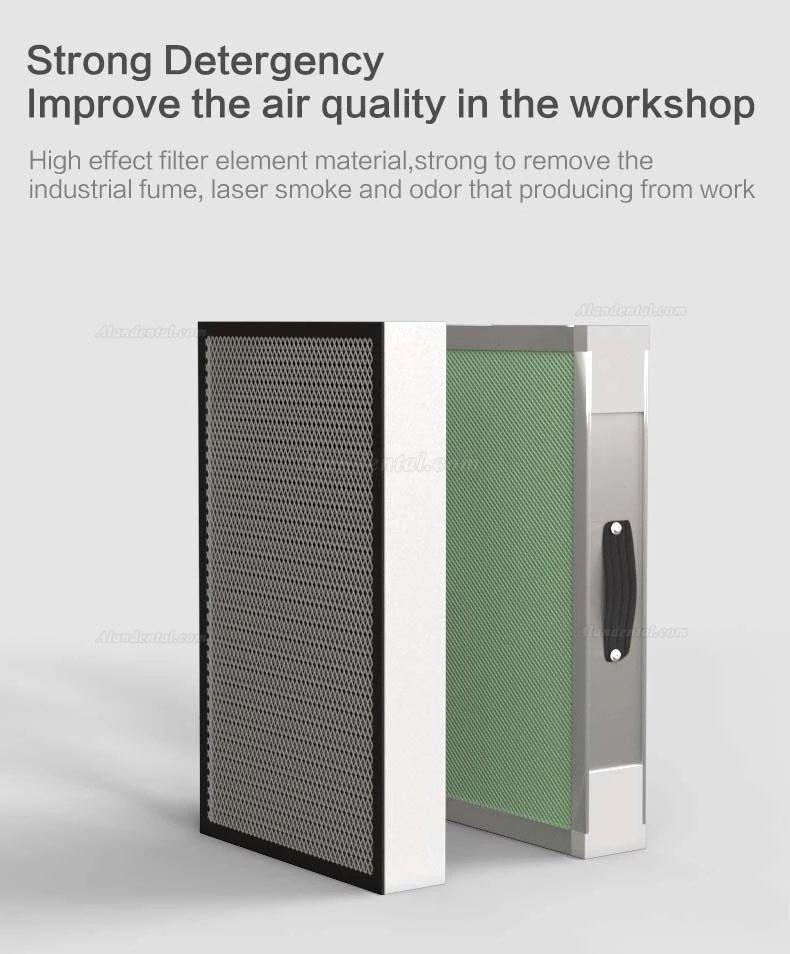

High Effective Filter	Remove all smell and Odor	Custom made activated carbon



Contact Information:
Live Support: Chat with us online
Email: service.alandental@gmail.com
If you have any problem, please do not hesitate to contact us.

Shipment Note:
If your package shipped by Express Delivery, please give us a valid delivery phone number, and also a full and accurate shipping address.

How to Buy from Alandental?

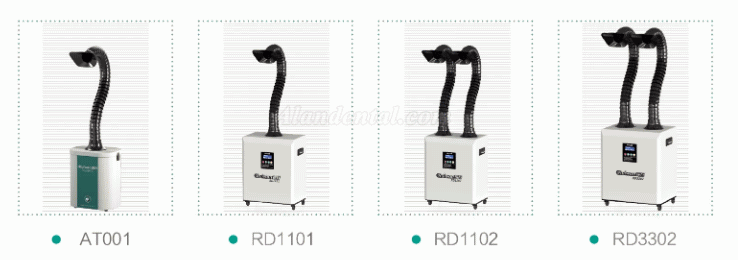

Prev: 80W Portable Mini Fume Extractor Atmosphere for Industry Soldering Laser Making Laser Cosmetic Ruiwan AT001
