Woodpecker Ai-Pex Dental Apex Locator With Pulp Tester Function

Features:

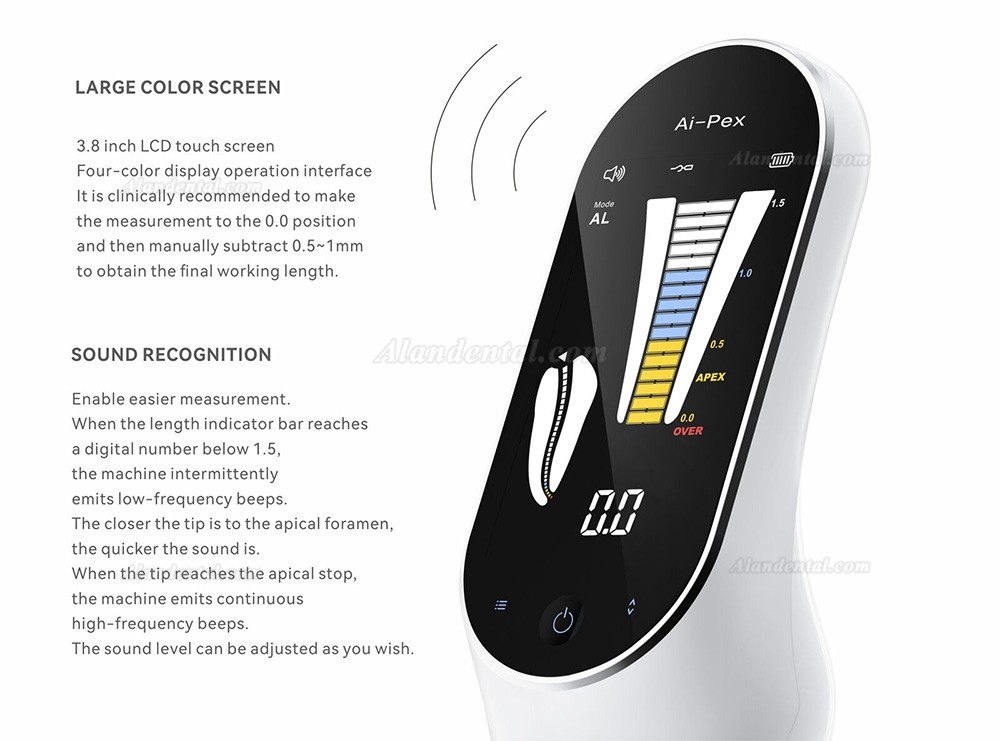

LARGE COLOR SCREEN

3.8 inch LCD touch screen

Four-color display operation interfacelt is clinically recommended to makethe measurement to the 0.0 positionand then manually subtract 0.5~1mmto obtain the final working length.

CONSTANT CURRENT SOURCE

Electric pulp testing

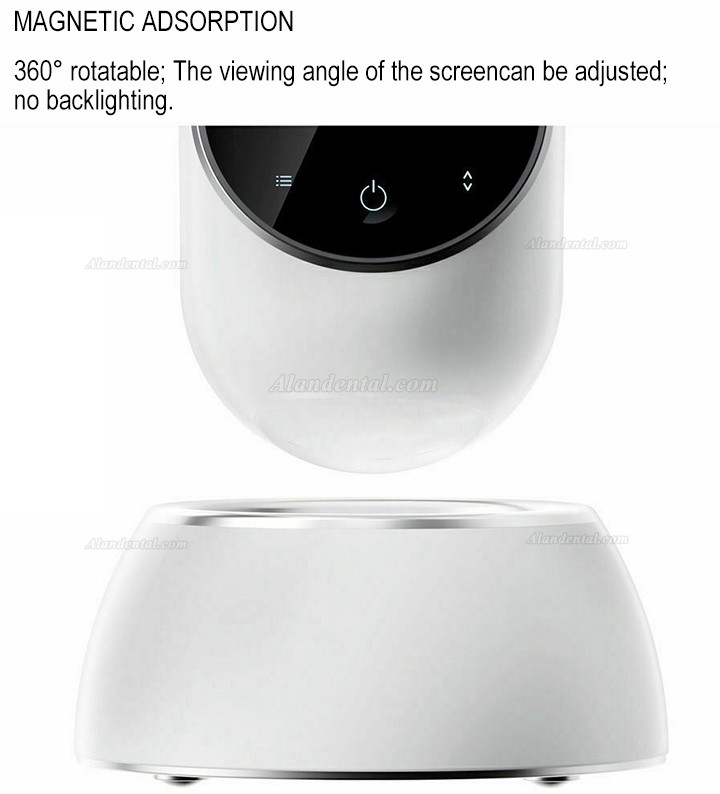

MAGNETIC ADSORPTION

Unique base design: 360° rotatable; The viewing angle of the screencan be adjusted; no backlighting.

ANTI-INTERFERENCE

Multi-frequency

DSP technology

SOUND RECOGNITION

Enable easier measurement.

When the length indicator bar reachesa digital number below 1.5, the machine intermittentlyemits low-frequency beeps.

The closerthe tip is to the apical foramen,the quicker the sound is.

When the tip reaches the apical stop,the machine emits continuoushigh-frequency beeps.

The sound level can be adjusted as you wish.

Technical Parameter：

Working time: 5h 20min

Charging time: 3h

Battery: 18500, 3.7v/2000mAh

Input: ∼100v-240v 50Hz/60Hz 0.4A

Output: DC5V/1A

Consumption power: ≤0.5W

Screen: 3.8" LCD Screen

OPERATION CONDITION

Environment temperature: +5℃~+40℃

Relative humidity: 30%~75%

Atmosphere pressure: 70kPa~106kPa

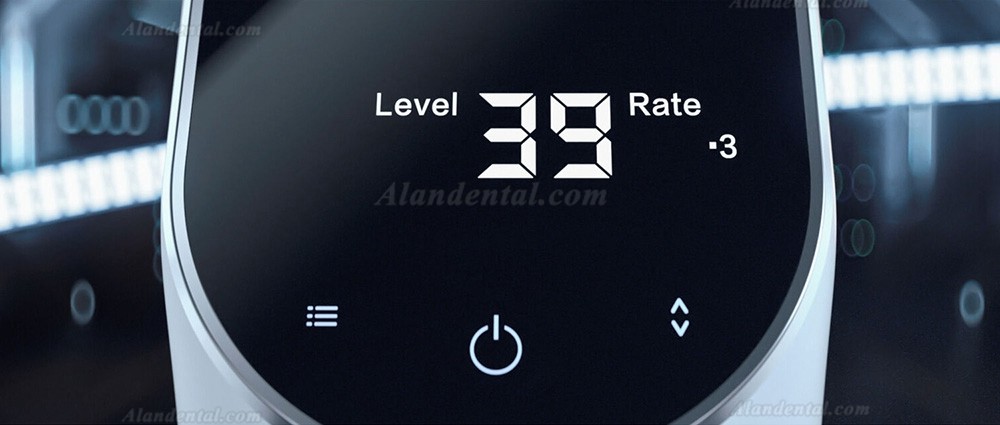

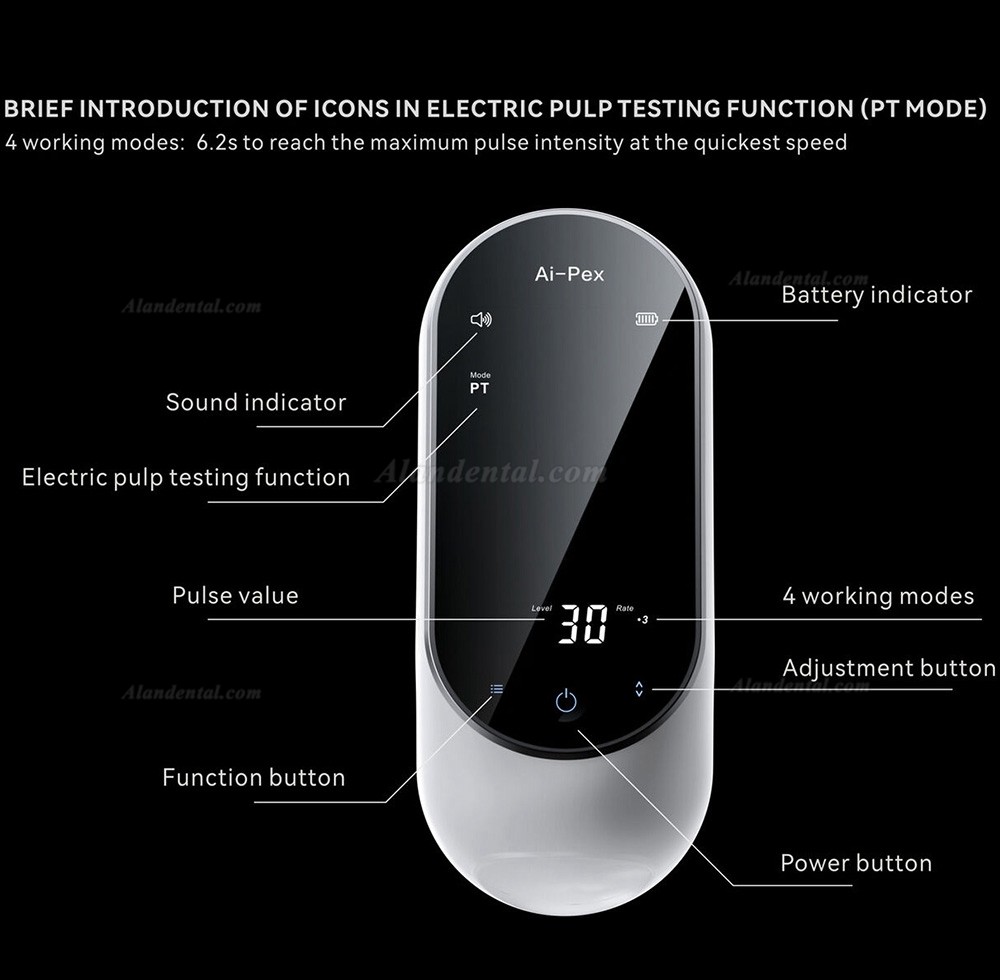

HOW TO USE THE PULPVITALITY TEST FUNCTION:

1.Long press the function button to switch to PT mode

2.Press the speed button to adjust to the suitable working mode

3.Connect lip hook and probe

4.Coat the head of probe with a layer of conductive agent(toothpaste, etc.)

5.Place the probe at the 1/3 position of the tooth neck. Test the tooth and its adjacent tooth separately andcompare the values when the patient feels tingling.

6.Determine the pulp vitality based on comparative numerical analysis.

Packing List :

Ai-Pex main unit *1

Measuring wire *1

File clips *4

Lip hooks *5

Touch probes *2

Pulp tester probes *2

Adapter *1

Tester *1

Instrument manual *1

Qualified certificate *1

Instruction card for apical stop *1

Enlarged display of apical foramen *1

Apex locator troubleshooting card *1
