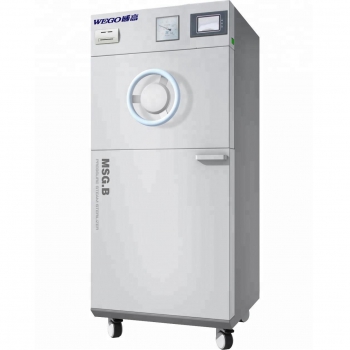

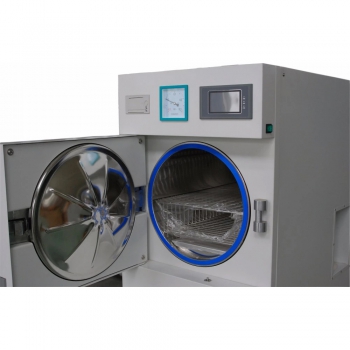

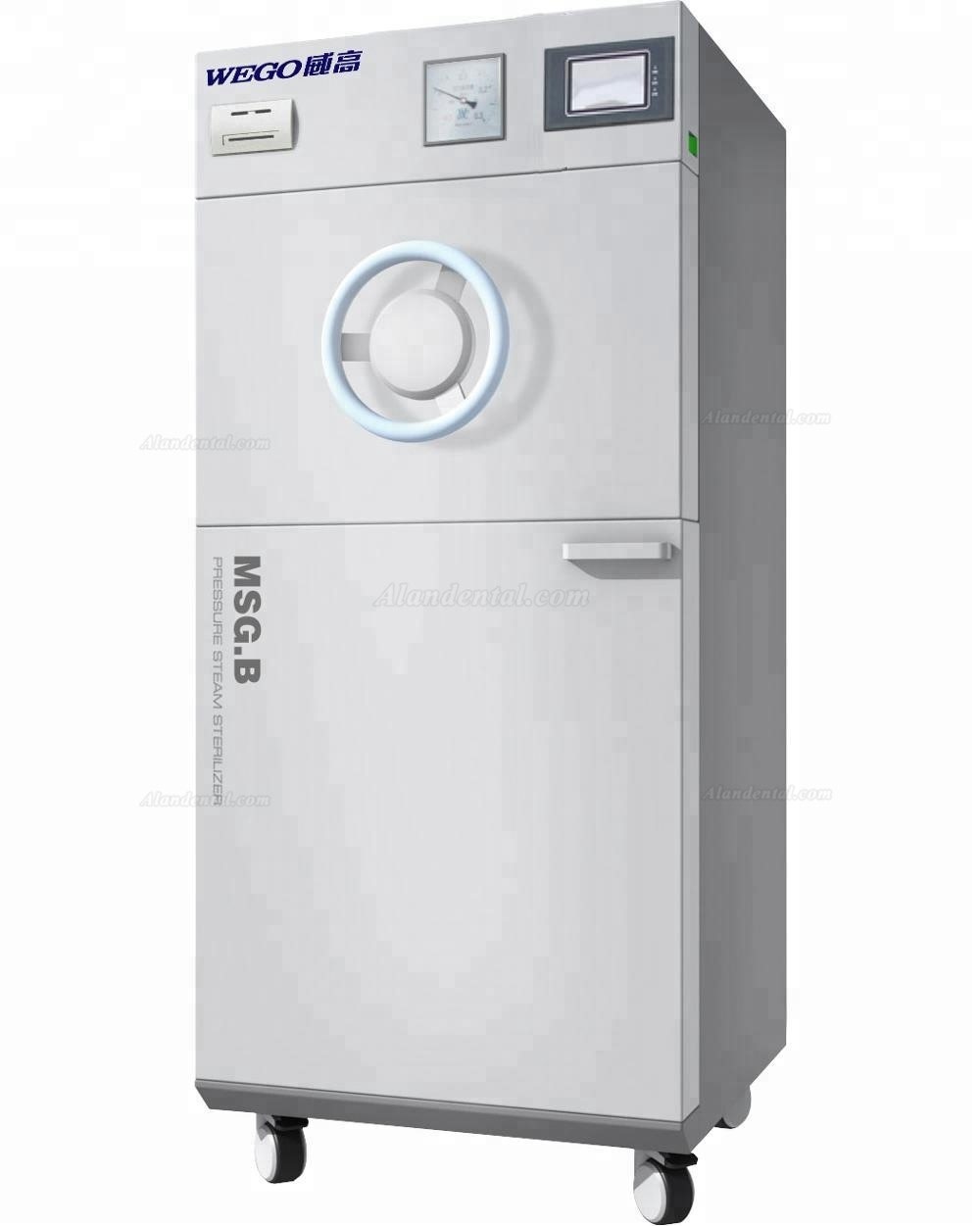

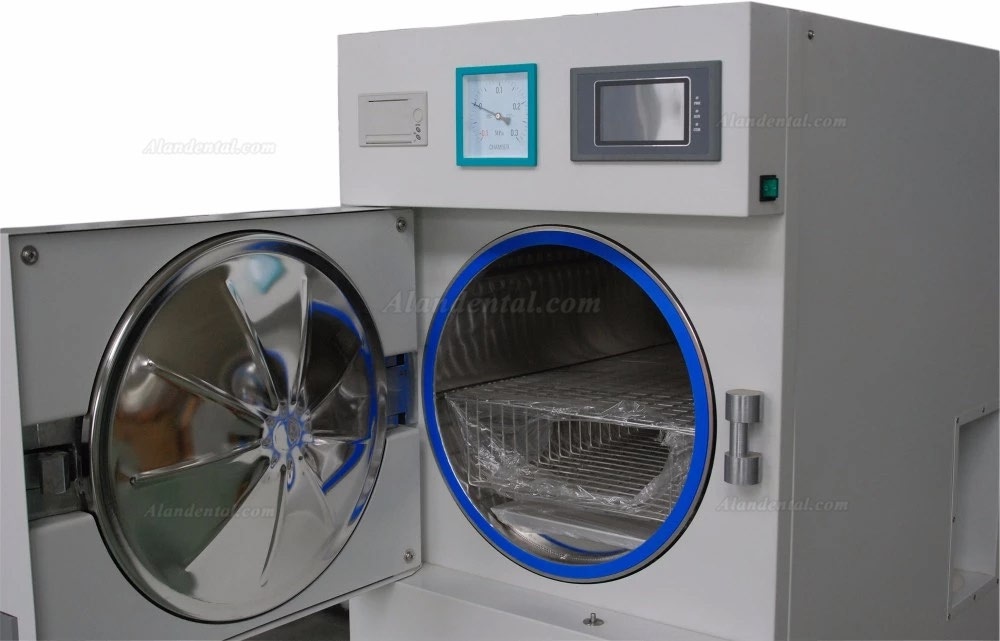

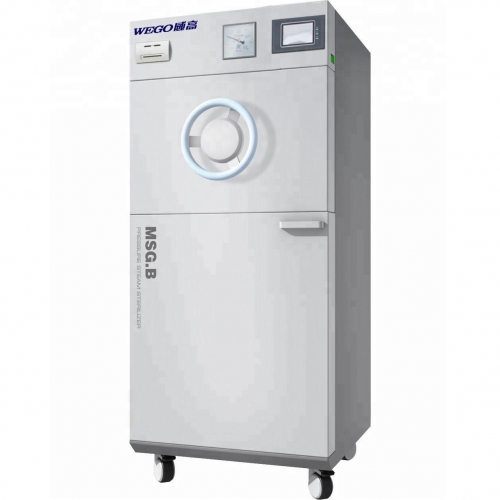

WEGO MSG.B Horizontal Medical Pressure Steam Autoclave Sterilizer

WEGO MSG.B Horizontal Medical Pressure Steam Autoclave Sterilizer



Product Application

Horizontal Medical pressure steam autoclave sterilizer is suitable for sterilizing unwrapped, wrapped, solid, hollow A, hollow B, instrument with built-in pipe and implanted instrument which can withstand high temperature and pressure in the places including oral department, ophthalmology, operation room and lab.



Program	Sterilization Temperature	Sterilization Time	Drying Time
Unwrapped instruments	134℃	6 mins	5 mins
Wrapped instruments	134℃	10 mins	10 mins
Fabric/Dressing	134℃	10 mins	15 mins
Rubber	121℃	20 mins	15 mins
Liquid	121℃	20 mins	No
Self-defined	√
B&D test	√
Vacuum test	√



Main Features

PLC control, touch screen display

Water injection, Pulsing , heating up, sterilizing, drying process fully automatic.

Status, temperature, pressure, time and fault message are shown on touch screen display.

Built-in micro-printer, record the whole sterilization information.

Cycle count function.

The beep will sound once the sterilization cycle completes and messages shown on screen touch display .

Built-in high quality vacuum pulse , vacuum pulse 1~6 times can reach -0.09 Mpa(-0.9Bar), to ensure effective removal of the air so as to get the optimum saturate steam.

Inner circulation, water ring pump without external pipeline

Unique pulse vacuum drying procedure is designed.



Safety

Heater protection:he system will cut off its power supply once the temperature exceeds the desired value and show the alarm information.

Anti-dry heating:anti-dry heating device will automatically cut off its power supply and show the alarm information once the water level is lower than the heating pipe.

Mechanical pressure interlock door: the mechanical door device is locked tightly and can’t be opened once pressure is in chamber.

Over-temperature and over-pressure protection: the system will start up procedures to lower temperature and release pressure to protect items from being damaged when the temperature and pressure in chamber exceed the safe limit.

Automatic release safety valve: the safety valve will begin to release pressure automatically when the pressure in chamber exceeds the desired value.

Electric safety protective measure: short circuit and leakage current are designed to protect equipment and personal safety.



Specifications:

Model Number:MSG.B

Type:Pressure Steam Sterilization Equipments

Instrument classification:Class II

Class:Class B

Vacuum pump:Built-in vacuum pump

Application:hospital, clinic, oral, cosmetic surgery, lab

Sterilization item:Unwarpped or Wrapped instruments/Fabric/Dressing/Rubber/Liquid

Sterilization temperature:105℃~138℃

Design pressure:0.26MPa

Display:Touch screen display

Water required:Soft water



Model	Chamber size (ø×L)	Outer size	Packing size	Gross weight
MSG.B(120L)	500×665 mm	780×650×1550 mm	1050×830×1750mm	320kg
MSG.B(140L)	500×765mm	880×650×1550 mm	1160×840×1780mm	330kg
MSG.B(180L)	500×965mm	1080×650×1550 mm	1360×840×1780mm	360kg
