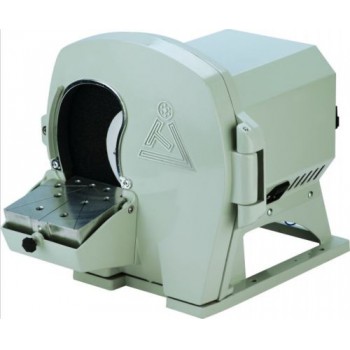

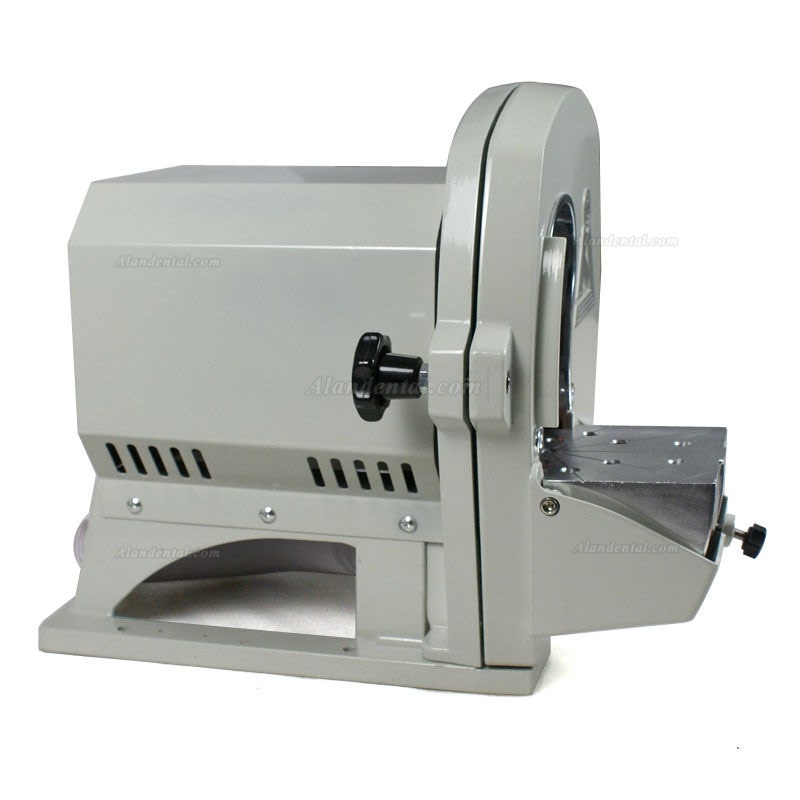

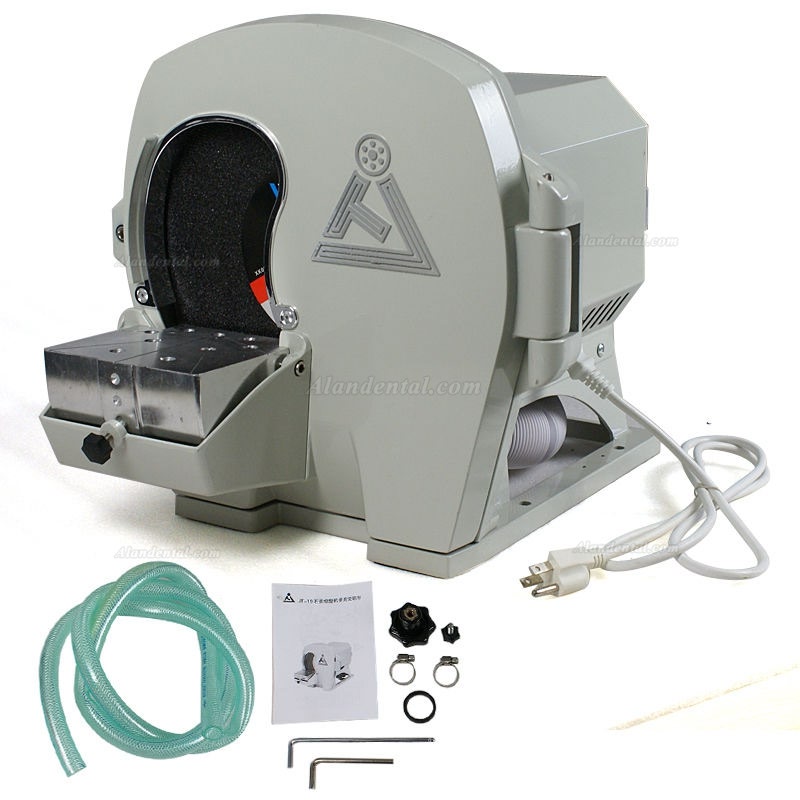

JT Wet Dental Model Trimmer Abrasive Disc Wheel Gypsum Arch JT-19 Lab Device Pro

JT Wet Dental Model Trimmer Abrasive Disc Wheel Gypsum Arch JT-19 Lab Device Pro

Installation method
1. Connect one end of the water tube to the nozzle of the wet model trimmer and the other end to the tap, open the valve

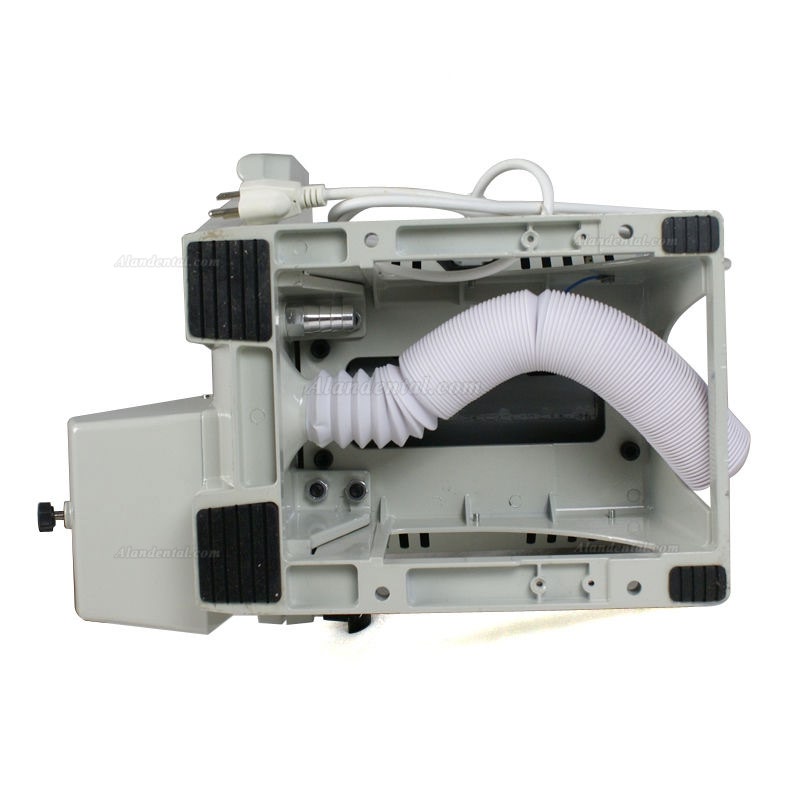

2. Connect the waste-disposal tube to the unit

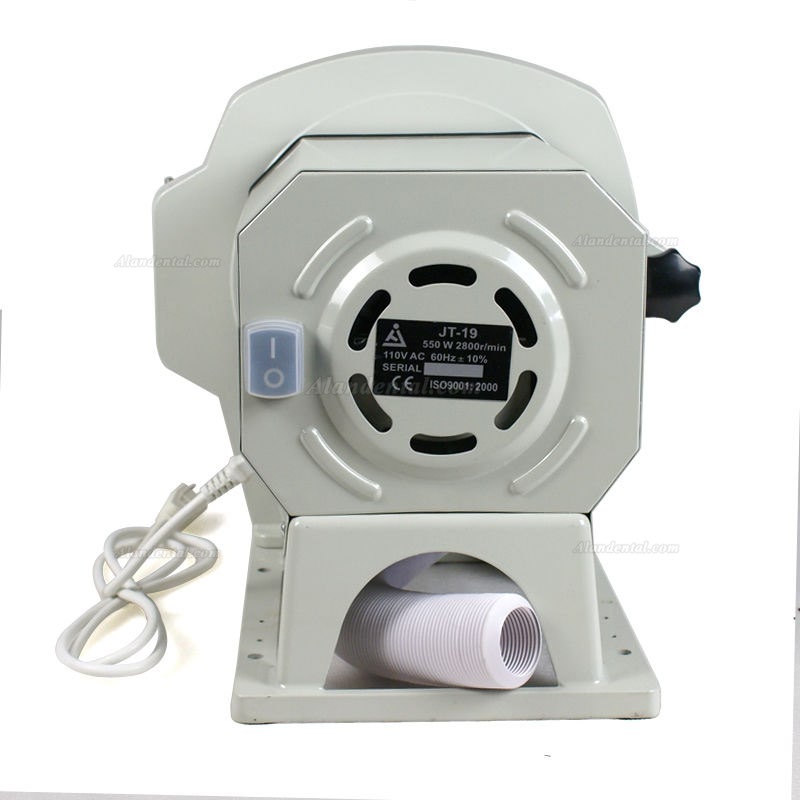

3. Connect the power cord, and switch on the power switch (O=off, l=on)
4. When braking, it is normal to hear clicking before the sand tablet stops. If the sand tablet makes unusually loud noises, remove it, and use the included hex-wrench to adjust the screw on the back cover (18)

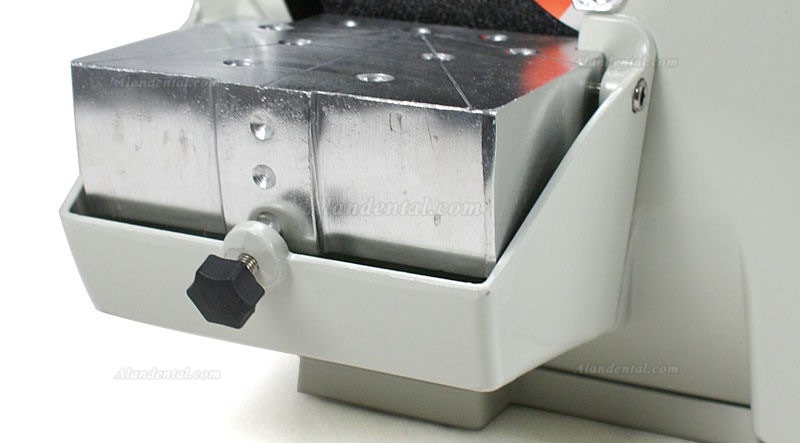

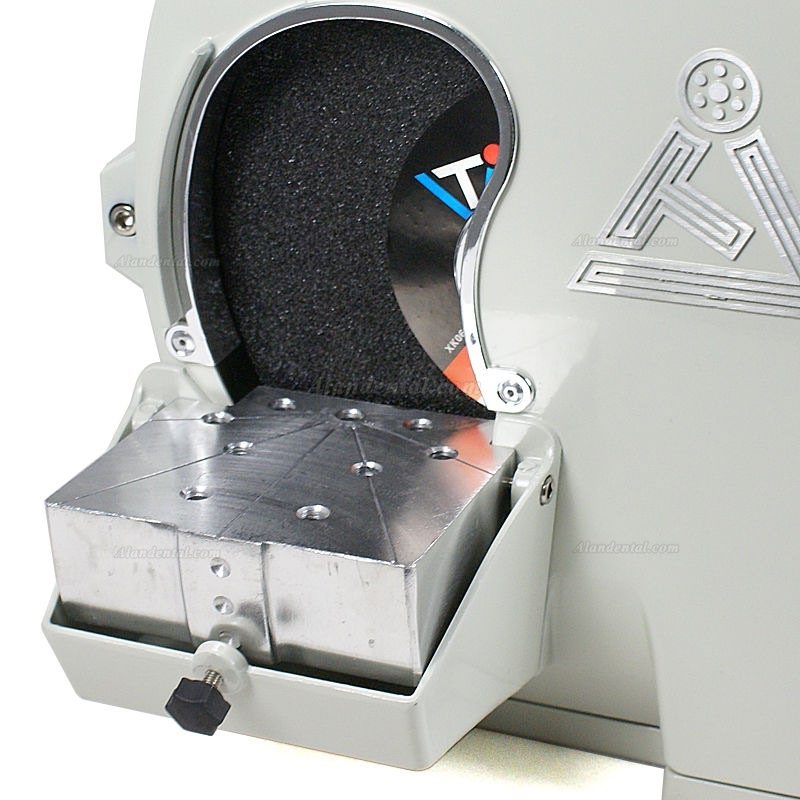

5. To check if you need to replace the abrasive disk, rotate the disk by hand and estimate: if the platform jumps more than 2mm, change the disk. After replacing the disk, make sure to tighten the ring on the platform 8 (closest to the outside of the sand tablet)

Attention:
If there is some abnormal noise when working on
Possible reason：
1. Axon is loosing
2. Disc is not plain enough

How to solve it:
1. Dissemble the disc with spanner，make the snap Ring tightly
2. Change the disc

The machine does not work when power on.

Possible reason：
1.fuse get burnt
2.motor get burnt
3.switch get wrong

How to solve it:
1.change the fuse which inside the socket；
2.change the motor
3.change the switch

Specifications:

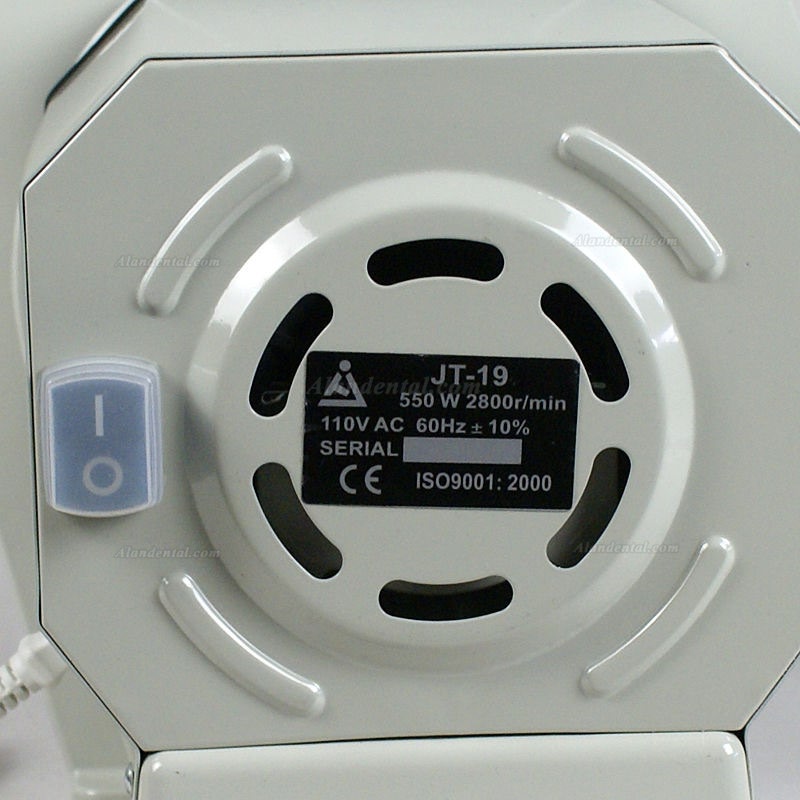

Voltage:220V/50Hz±10% & 110V/60Hz±10%
Power: 500W
Rotational Speed: 2800 rpm
