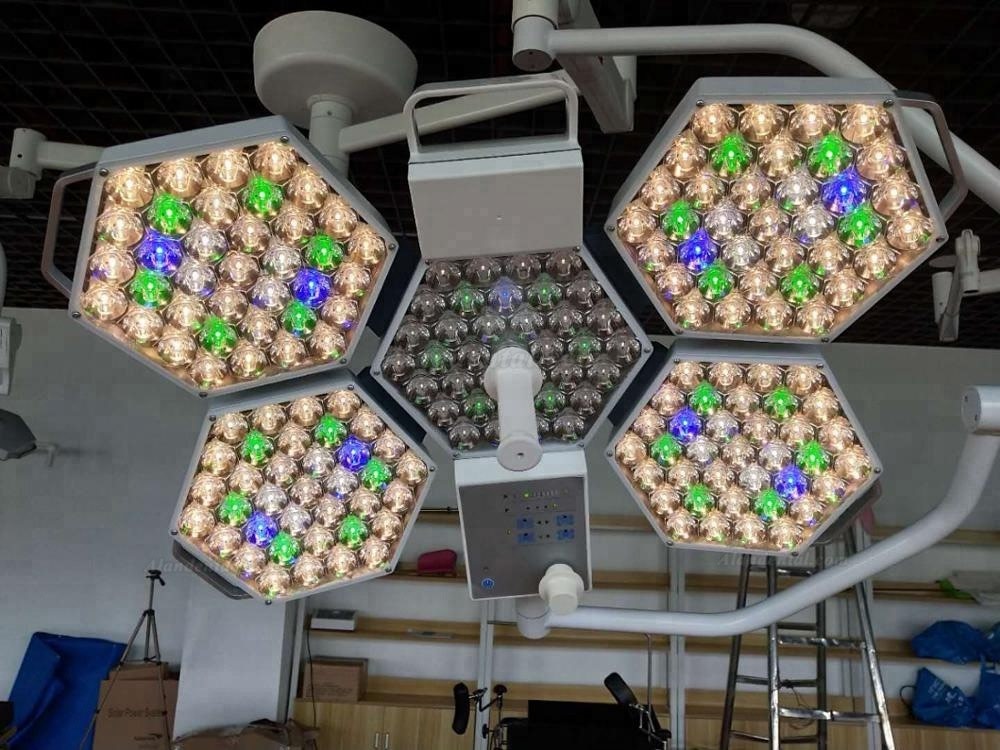

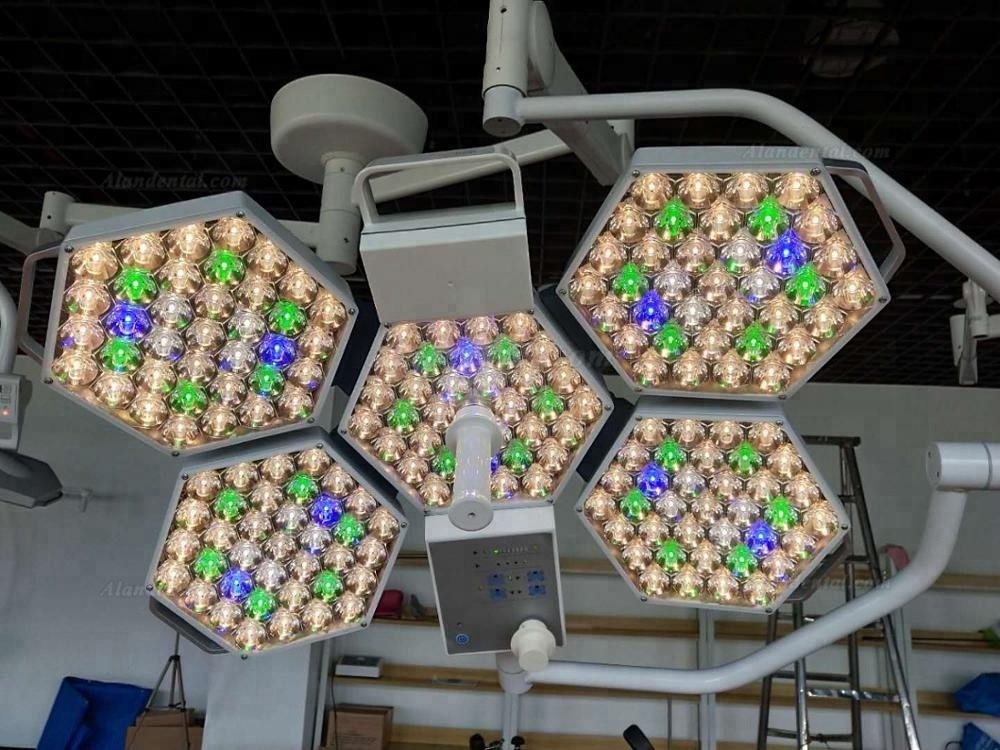

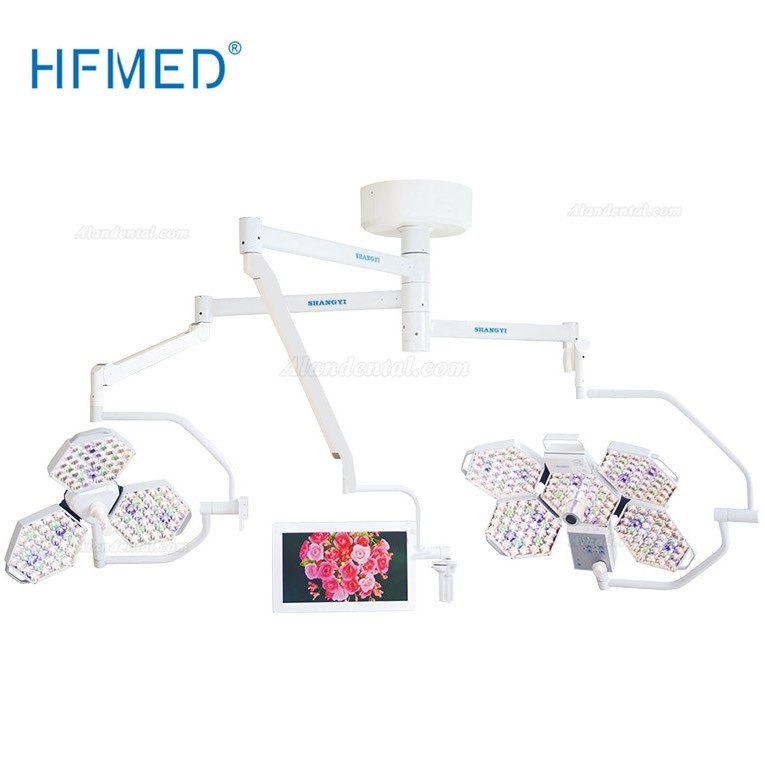

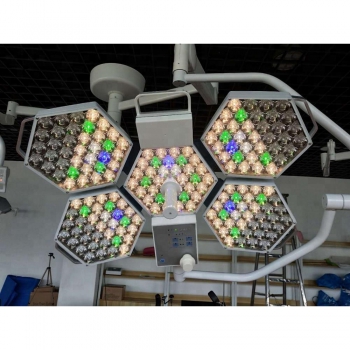

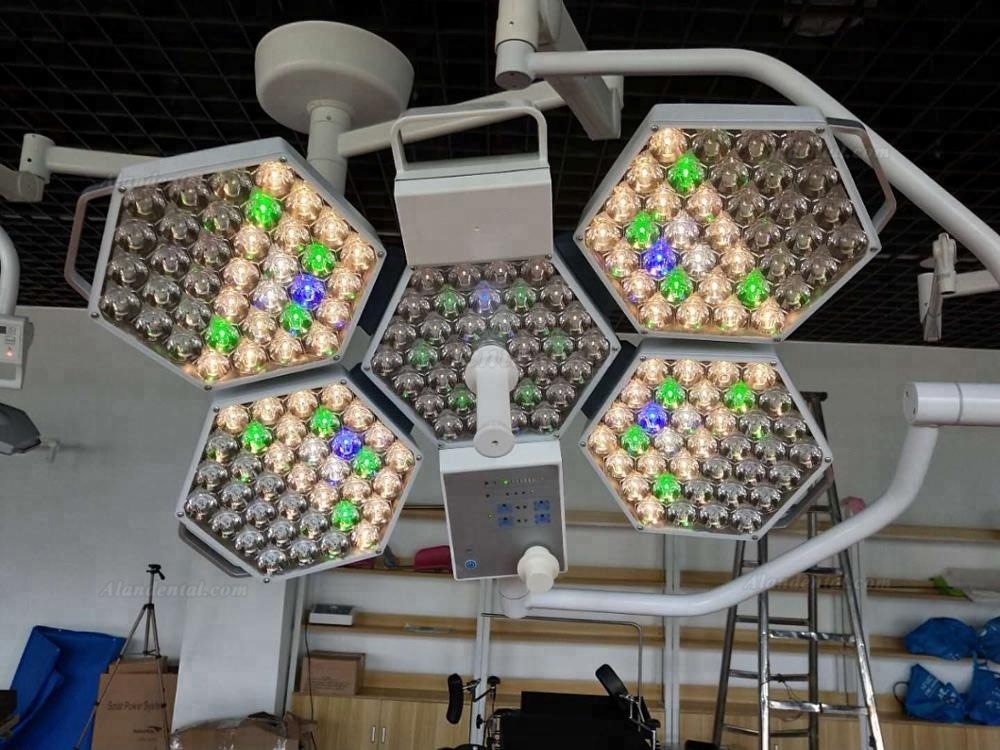

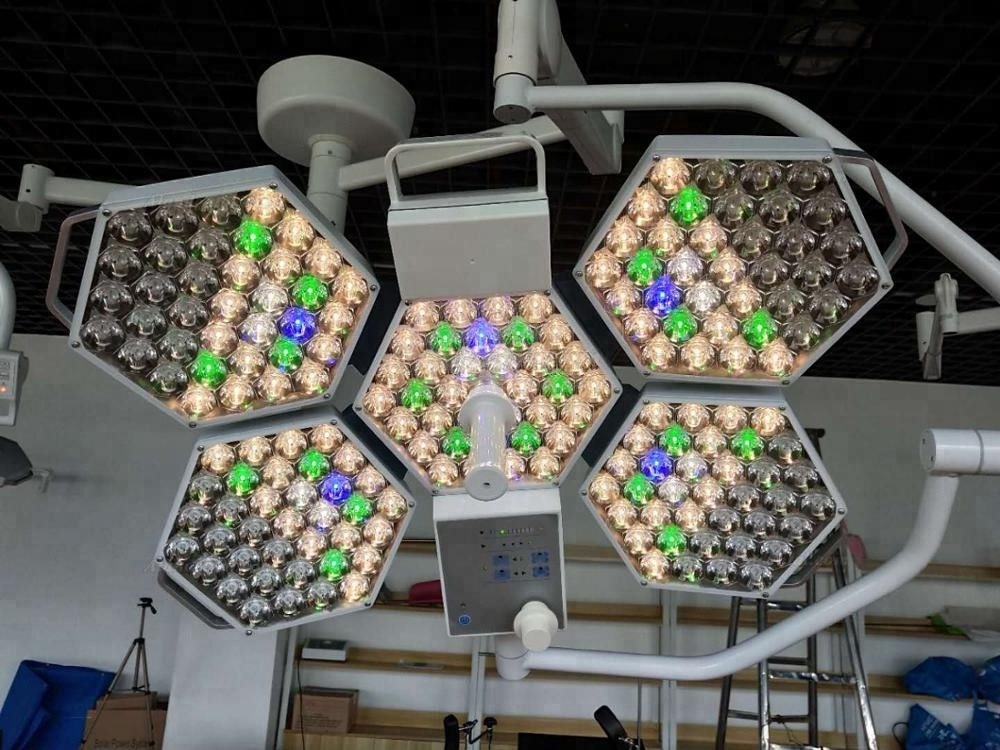

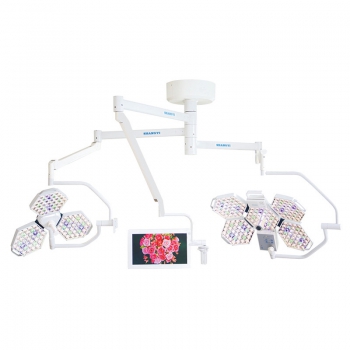

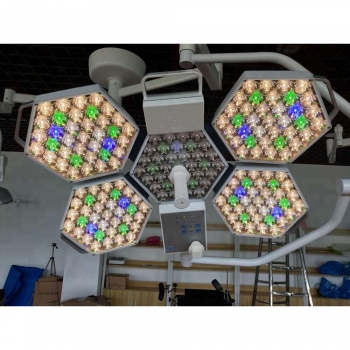

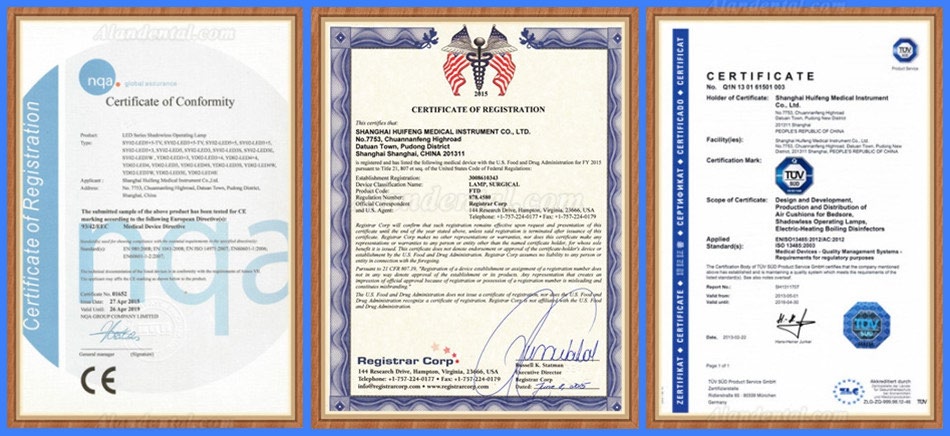

HFMED SY02-LED5+3-TV Surgical Centre LED Shadowless Light with Camera CE FDA Certification

HFMED SY02-LED5+3-TV Surgical Centre LED Shadowless Light with Camera CE FDA Certification



Detailed Description:

1. Using LEDs to illuminate demanding environments is becoming ever more common.

2. Low heat generation, minimal power consumption and an almost unlimited life expectancy.

3. Light emitting diodes have a whole range of technological, economic and ecological advantages.



Main Features:

1. Precise: Uniform, homogeneous lighting in surface and deep cavity procedures.

2. Simple: Ergonomic, sterile operating concept allows for the simple and flexible control of all functions.

3. Efficient: Environmentally proactive, low power consumption and durable, minimizeresources impact.

4. Durable: Almost unlimited LED life expectancy delivers tremendous reliability and minimize resources impact.



Adantages:

1. Unmatched shadow management optimizes concentration and surgical team efficiency.

Huifeng has harnessed the far-reaching potential of the multi-lens matrix to virtually eliminate shadows. The SY02-LED overlapping fields of light and multiple patterns - selectable based on the surgical situation - minimize shadows and redirect the full selected intensity to the surgical site.

The result is up to 25% more light in deep cavity situations.



2.Sterile control operations

One of the innovative characteristics of SY02-LED5+3: The sterile control concept enables the surgical team to operate all important functions intuitively, quickly and simply - either on the light heads or via a wall control panel.



3. On and off-switch

Dimming with integrated Endo mode

Shadow management

Optimized air flow design for better hygiene



With its open design and superior ventilated ceiling tolerance, SY02-LED ensures that perfect operating conditions are created and hygienic requirements are fulfilled. The airflow surface under the ventilated ceiling is minimized and the reduced heat generation ensures a low turbulence displacement stream under the light head.



SY02-LED combines these characteristics.



Type:SY02-LED3+5  Surgical Shadowless Light

Illuminance(Lux):≥120000/140000

Colour temperature(k):3500±200K/4000±200K 4500±200K/5000±200K

Colour reduction index(Ra):96

Illuminance depth(mm):1020/1150

Total irradiance (W/m2):380/510

Size of light field (mm):200-350

Rated power of bulb(V/W):3.2V/1W

Lamp head diameter(mm):700/860

LED Service life of illuminant:≥50000

Power supply voltage:AC110V-240V(50HZ-60HZ)

Brightness adjustmen:stepless continuous light adjustment

Total power consumption(W):140

Total LED bulb quantity(pcs):295

Lowest height of installation(mm):2900

Warranty:2 years
