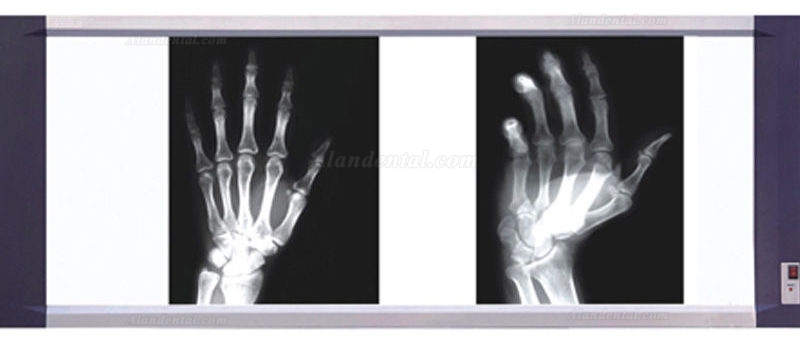

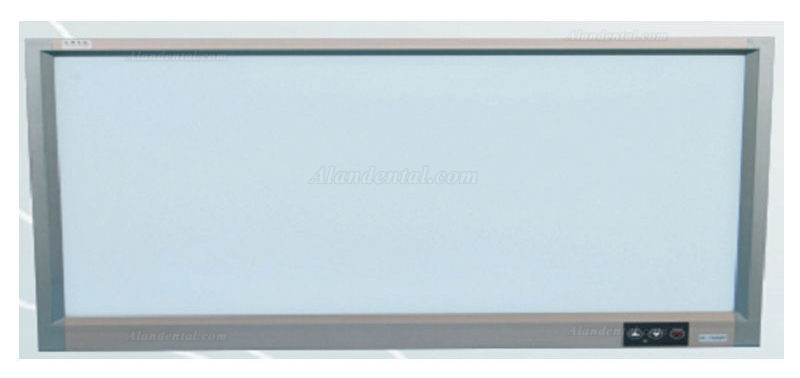

Ultra-thin X Ray Film Viewer Medical Diagnostic LED Illuminator View Box 1100H

Ultra-thin X Ray Film Viewer Medical Diagnostic LED Illuminator View Box 1100H





Features

1. H series viewer is the common high frequency viewer, lights is not optional

2. M series viewer is microcomputer automatic inducted medical observation, high frequency and high brightness lights

3. HT series viewer is the common high frequency viewer, lights is optional

4. MT series viewer is microcomputer digital controlled viewer, high frequency and high brightness lights

5. LED light source, isometric dot-matrix layout makes high luminance uniformity (over 98%)

6. Max luminance over 4000cd/㎡ and color temperature reach 10000k with 100,000 life span

7. Only 2.2cm thickness, good looking and saving space

8. Luminance intensity is adjustable

9. Equipped with automatic film activation, panel can light up automatically when inserting the film and turn off when taking away the film

10. Patented elastic silica film clipper, offering easy inserting,fast holding and easy taking off

11. Built-in power adapter, offering wide power supply range: 100V to 240V, 50/60 Hz.

12. Viewing area is same size as that of 14 x 17 film, no extra light disturbance from the edges

13. Can mount on the wall or on the desktop

14. Easier to light up than CCFL, and the long life of LED lamp is 100,000 hours, over 5 times than CCFL lamp

15. Automatic film activation, each panel can light up automatically and individually when film insert

16. Frequency is over 50kHz, eyes will not feel tired even long time viewing

17. Adopt elastic silica rubber clip, avoid the film getting stuck or dropping

18. Available as single, double, triple and quadruple panels

19. SKU: JZ-L-1100H



Specifications

1. Model: JZ-1100H

2. Viewing Dimension (mm): 1068 x 422

3. External Dimension (mm): 1128 × 509 × 22

4. Net weight:  12.5 kg

5. Light source: LED, lifespan ＞ 10000 hours

6. Color temperature: max to 10000K

7. Brightness: max ＞4000cd/㎡, adjustable

8. Light uniformity: ＞98%

9. Dimming: 10 phase digital dimmer

10. Thickness: 2.2cm

11. Screen: Mitsubishi acrylic screen

12. Power input: 110V-240V / 50HZ

13. Power consumption: 60W
