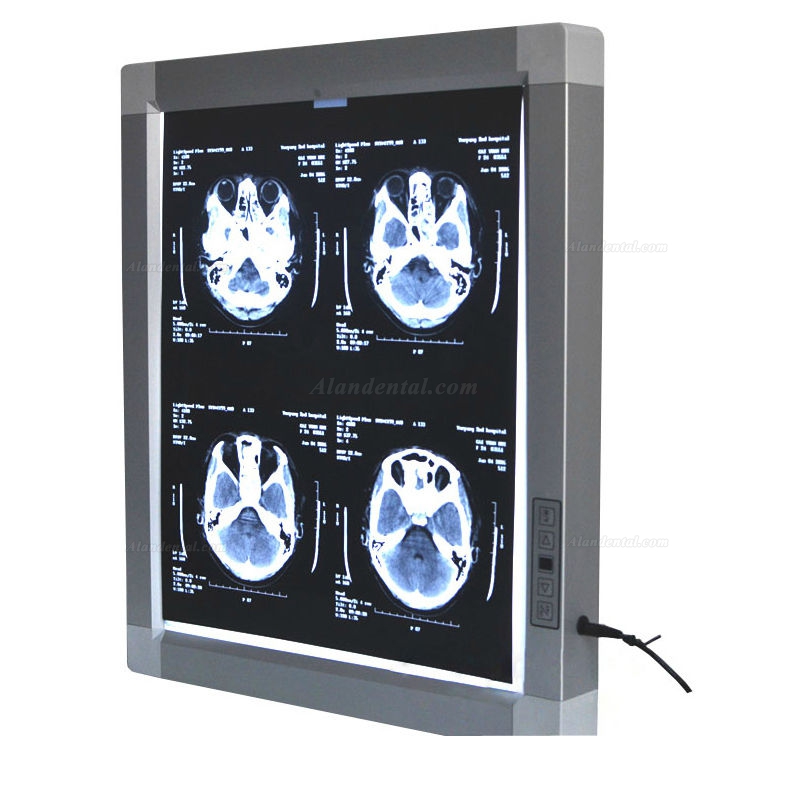

JINDETECH X Ray Film Viewer Medical Diagnostic E.N.T LED Illuminator View Box

JINDETECH X Ray Film Viewer Medical Diagnostic E.N.T LED Illuminator View Box

Features

1. CE Certificated

2. LED light source, isometric dot-matrix layout makes high luminance uniformity (over 90%)

3. Max luminance over 4500cd/㎡ and color temperature reach 9600k with 100,000 life span

4. Only 4.5cm thickness, good looking and saving space

5. Luminance intensity is adjustable by digital dimmer

6. Equipped with automatic film activation, panel can light up automatically when inserting the film and turn off when taking away the film

7. Patented elastic silica film clipper, offering easy inserting, fast holding and easy taking off

8. Built-in power adapter, offering wide power supply range: 100V to 240V, 50/60 Hz.

9. Can mount on the wall or on the desktop

10. Easier to light up than CCFL, and the long life of LED lamp is 100,000 hours, over 5 times than CCFL lamp

11. Automatic film activation, each panel can light up automatically and individually when film insert

12. Frequency is over 50kHz, eyes will not feel tired even long time viewing

13. Adopt elastic silica rubber clip, avoid the film getting stuck or dropping

14. sku: JD-L-01AII

Specifications

1. Model: JD-01AII

2. Viewing Dimension (mm): 355 × 424

3. External Dimension (mm): 507 × 438 × 45

4. Net weight: 3kg

5. Light source: LED backlight, lifespan ＞ 10000 hours

6. Color temperature: over 9600K

7. Brightness: 650 to 4500cd/㎡ adjustable

8. Light uniformity: ＞90%

9. Dimming: digital dimmer

10. Film activation switch: yes

11. Power adapter: External

12. Film Clip: elastic silica rubber clip

13. Thickness: 4.5cm

14. Installation: for both wall mounting and desktop mounting

15. Screen: Mitsubishi acrylic screen

16. Power input: 110V-240V / 50 - 60HZ

17. Power consumption: ≤ 25W
