Digital 2MP USB Pen Microscope Magnifier Endoscope Video otoscope Camera Loupe

Digital 2MP USB Pen Microscope Magnifier Endoscope Video otoscope Camera Loupe



Features

1. The Andonstar USB multifunction digital camera is an electronic health care product for the home and clinic.

2. It is a tubular imaging system consisting of an optical lens, an image sensor, an illumination mechanism, and an image transfer control circuit connected to a computer.

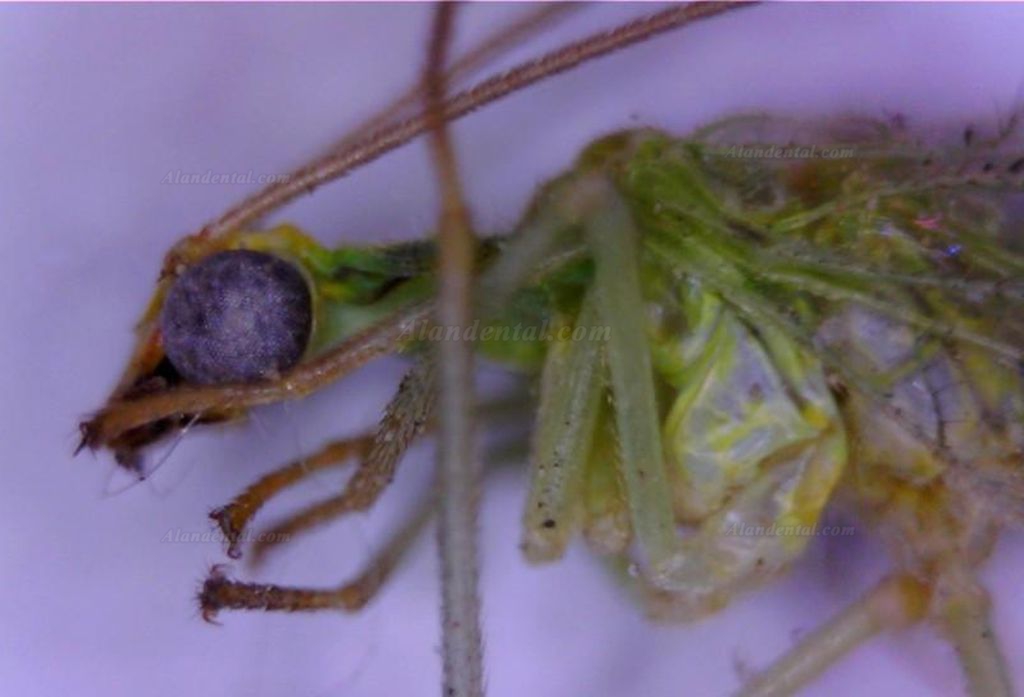

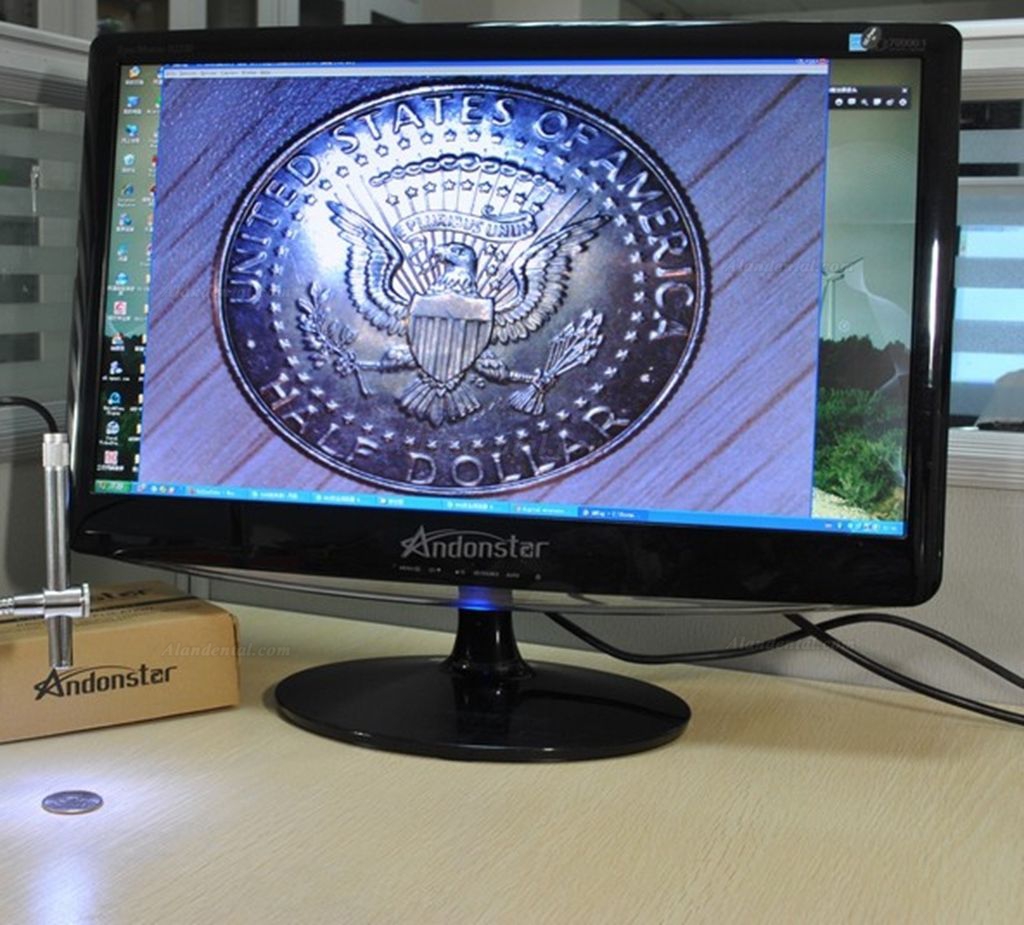

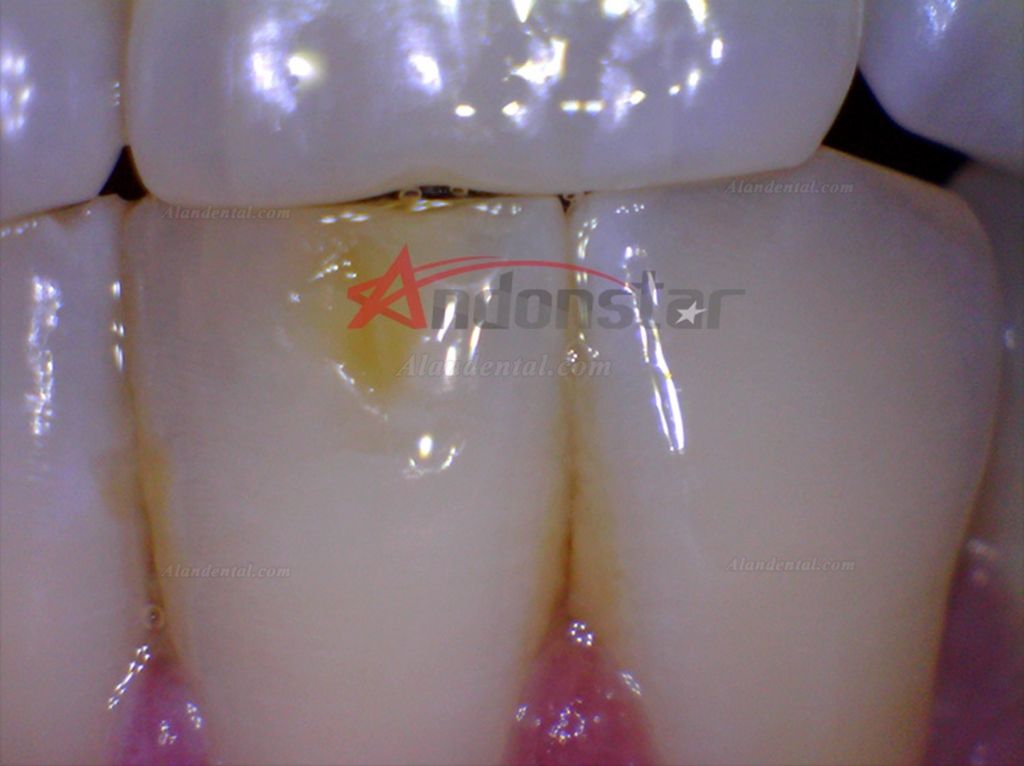

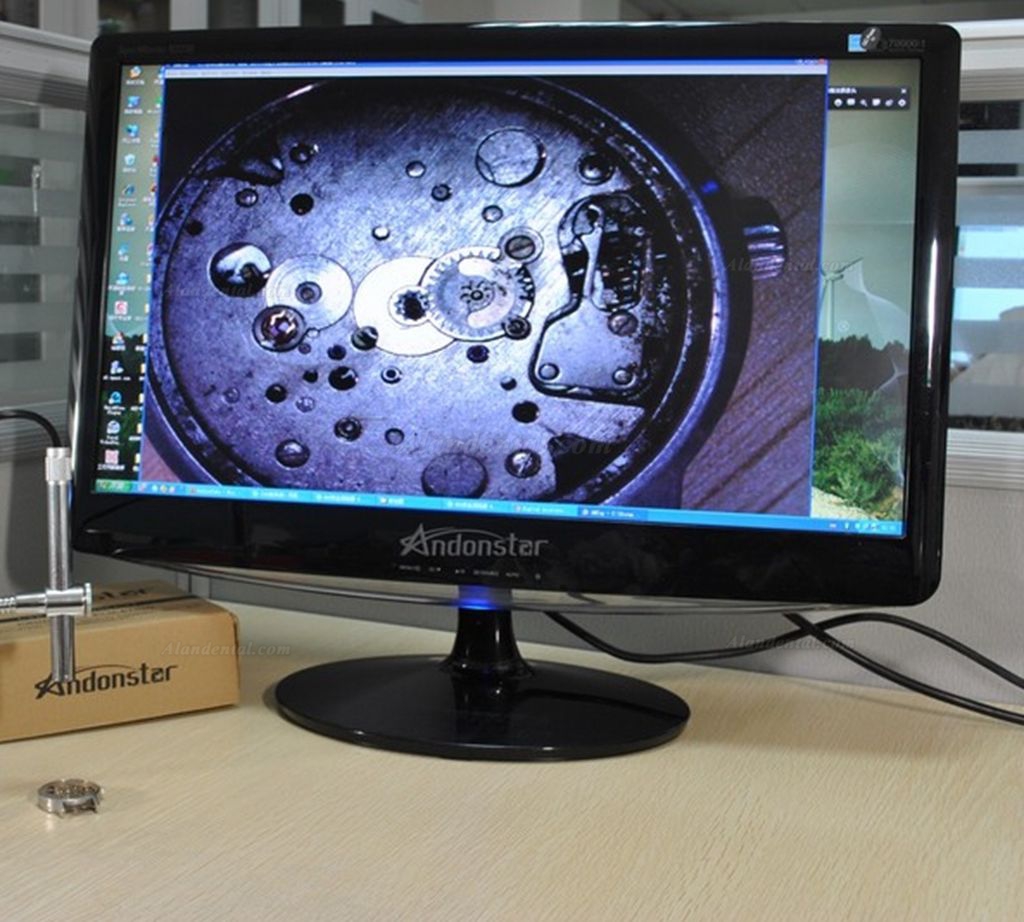

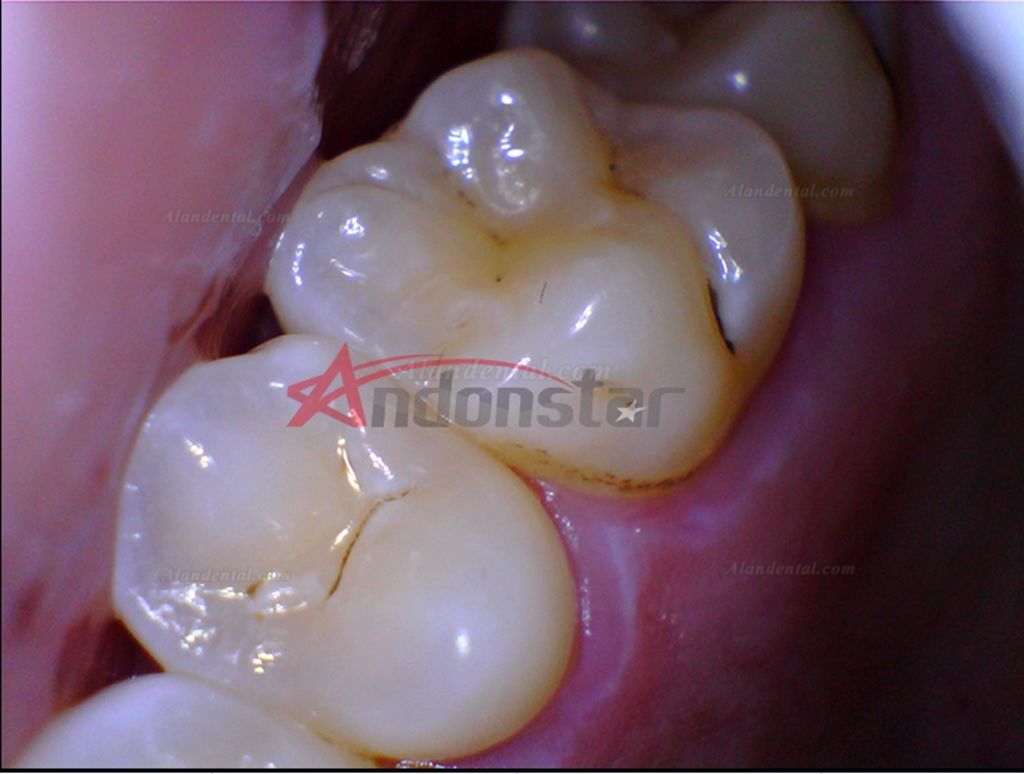

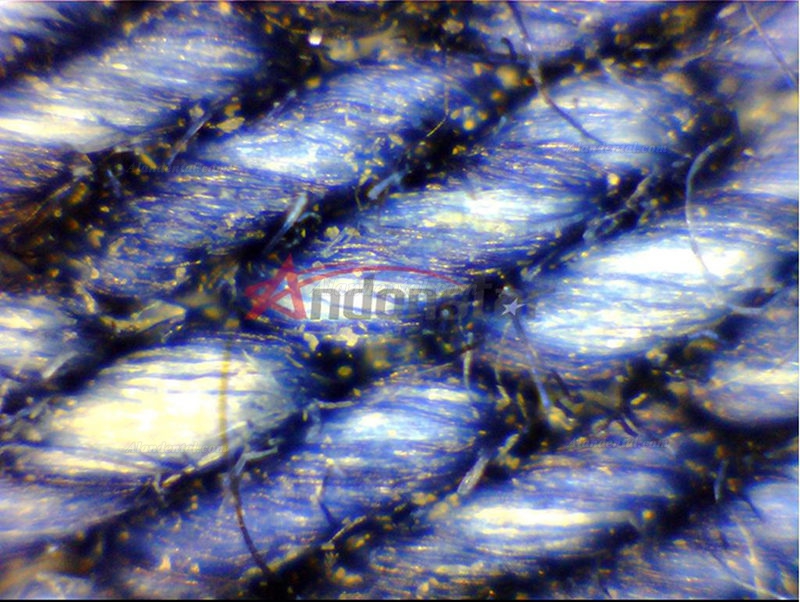

3. You can display the images captured by the USB Otoscope on the computer screen, store them on the computer, print them, or send them over the Internet.

4. As an otoscope, it can be used to observe the eardrum.

5. As a telemedicine tool for frequent observation and knowing what your body looks like in its normal, healthy state make you more alert to any abnormalities and will lead to early detection and treatment of illnesses.

6. SKU: AS-M-A2-200W-B



System Requirements

For best picture quality, the following specifications are recommended:

1. IBM PC compatible computer

2. Intel Pentium III processor or above

3. 128M RAM or above

4. At least one USB port (USB 2.0 port).

5. Windonws XP, Vista, Windows 7, 32bit or 64bit, Mac OS X 10.5 or above.

If you need use it on Mac OS, please tell us, we will sent software to you.



Specifications

1. DSP: High Quality Digital Image Monarch Processor

2. Sensor: High-quality CMOS sensor

3. Resolution: 2MP, Max 1600 x 1200

4. Picture format: bmp

5. Interface: USB2.0

6. Dimension: 12mm in diameter, 15cm in height

7. Focal distance: Min 5mm in front of the opening of specula

8. Multiplying power: 1 - 300 times

9. Support: Metal lifting support

10. Lighting: 6 x LED around the camera lens

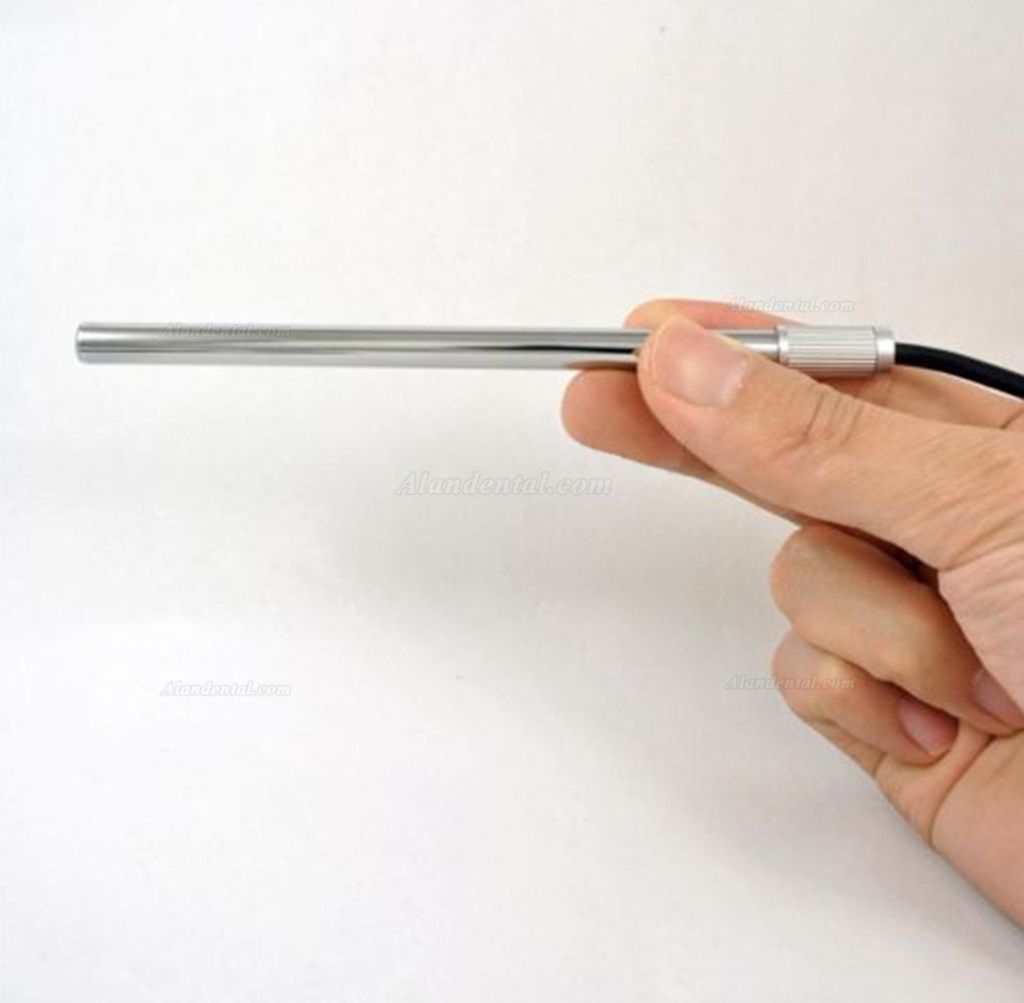

11. USB microscope Diameter: 8.2mm

12. Length: 110mm

13. USB cable length: about 165cm

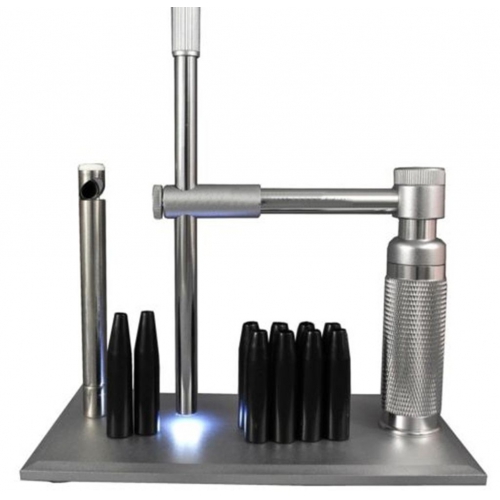

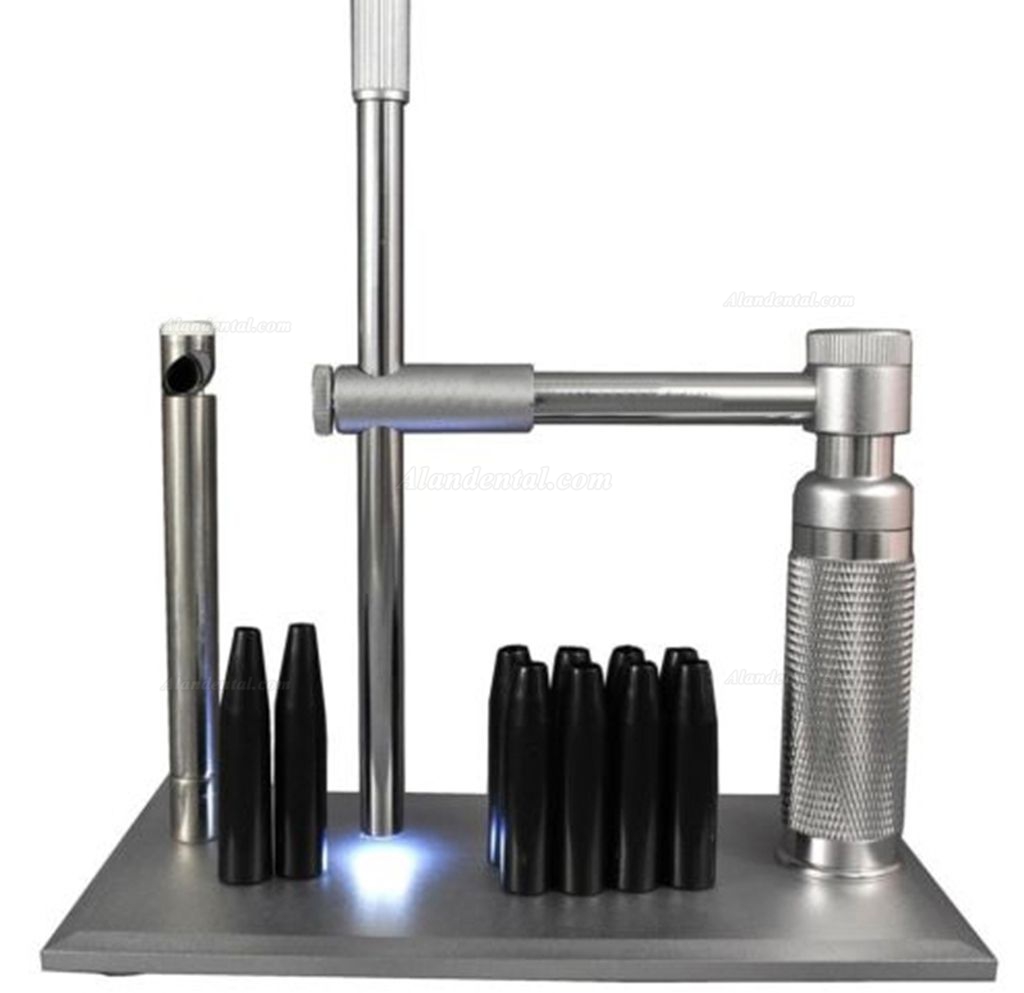

Content:

Digital Pen Camera x 1

Metal base bracket x 1

Reflector tube x 1

Big Specula x 8 Small Specula x 2

Software CD (User manual included) x 1



Safety Instructions

1. The socket that the computer is plugged in must be properly grounded,as the computer supplies power to this product. If in any doubt, please have a professional electrician check and verify the grounding to ensure safety.

2. Never use this product in stormy weather.

3. This product contains delicate and precision components. Be gentle when using it and avoid harsh handling or excessive force that may cause damage to the product.

4. The temperature of the handle increases slightly during use and it feels a little warm. This is normal. If the product is overheated and hot to the touch, immediately cut off the power and contact us for repair.

5. Never leave the product on unattended. Unplug from the USB port after use.

6. Do not disassemble this product.

7. This product may only be used by children under supervision of an adult.Never give this product to a child to use or play by him or herself. Keep this product out of reach of children.

8. Do not let this product come in direct contact with steam, vapor,water, or liquids of any kind.

9. When not in use, put the handle in the transparent sleeve and store it in a tightly sealed box to avoid moisture and decay. Damages resulting from improper storage are not covered by the warranty.

10.The cable with this product has been strictly tested. To ensure safe use,do not replace it.



Packing Volume：

Diameter: 8mm Length: 11cm

Net weight: 0.45kg

Gross weight: 0.75kg

Product packing: kraft paper box

Box size: 17*11*5cm

















Contact Information:
Live Support: Chat with us online
Email: service.alandental@gmail.com
If you have any problem, please do not hesitate to contact us.

Shipment Note:
If your package shipped by Express Delivery, please give us a valid delivery phone number, and also a full and accurate shipping address.
